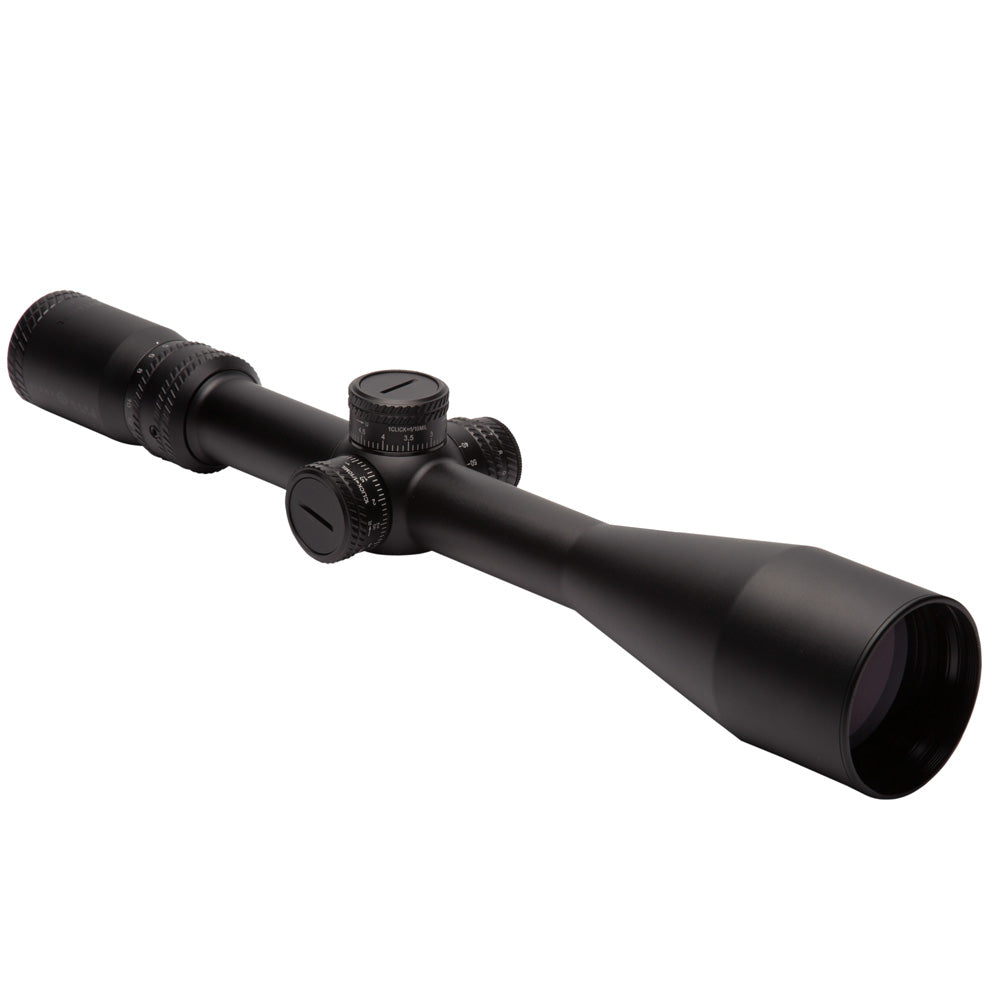

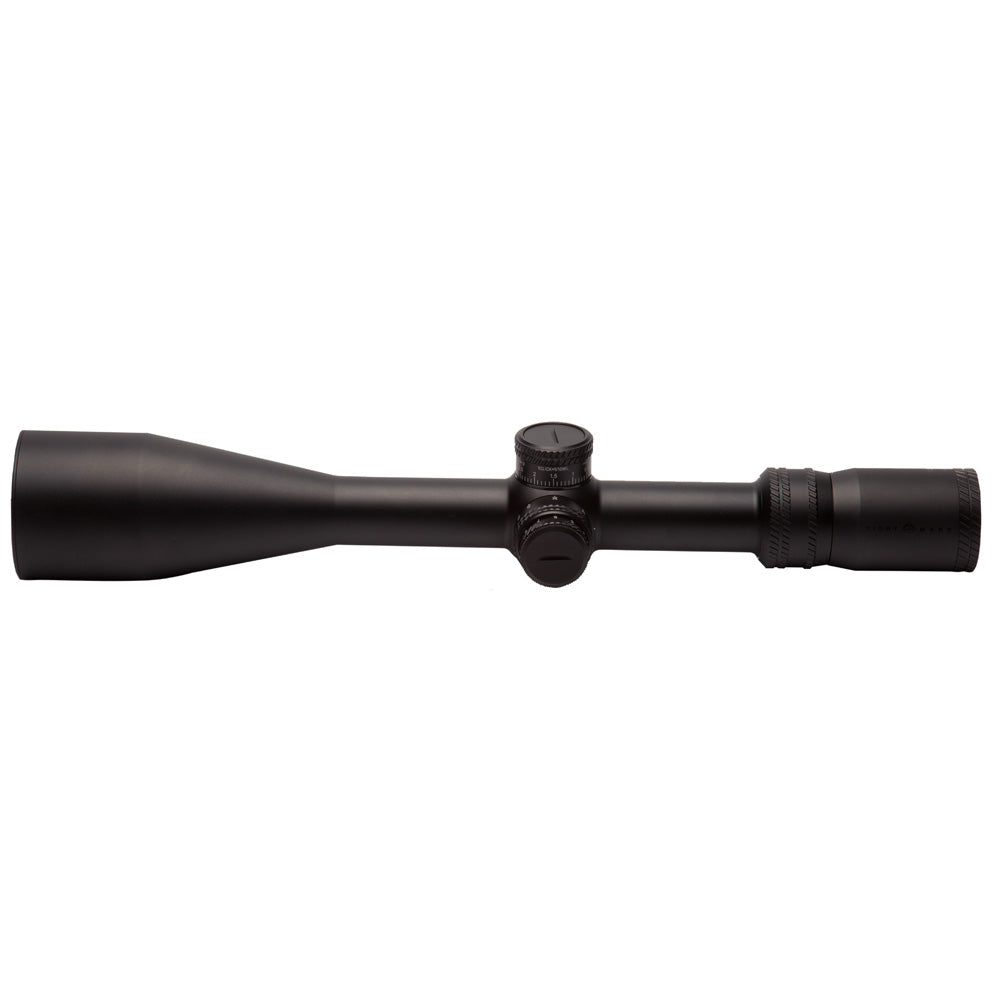

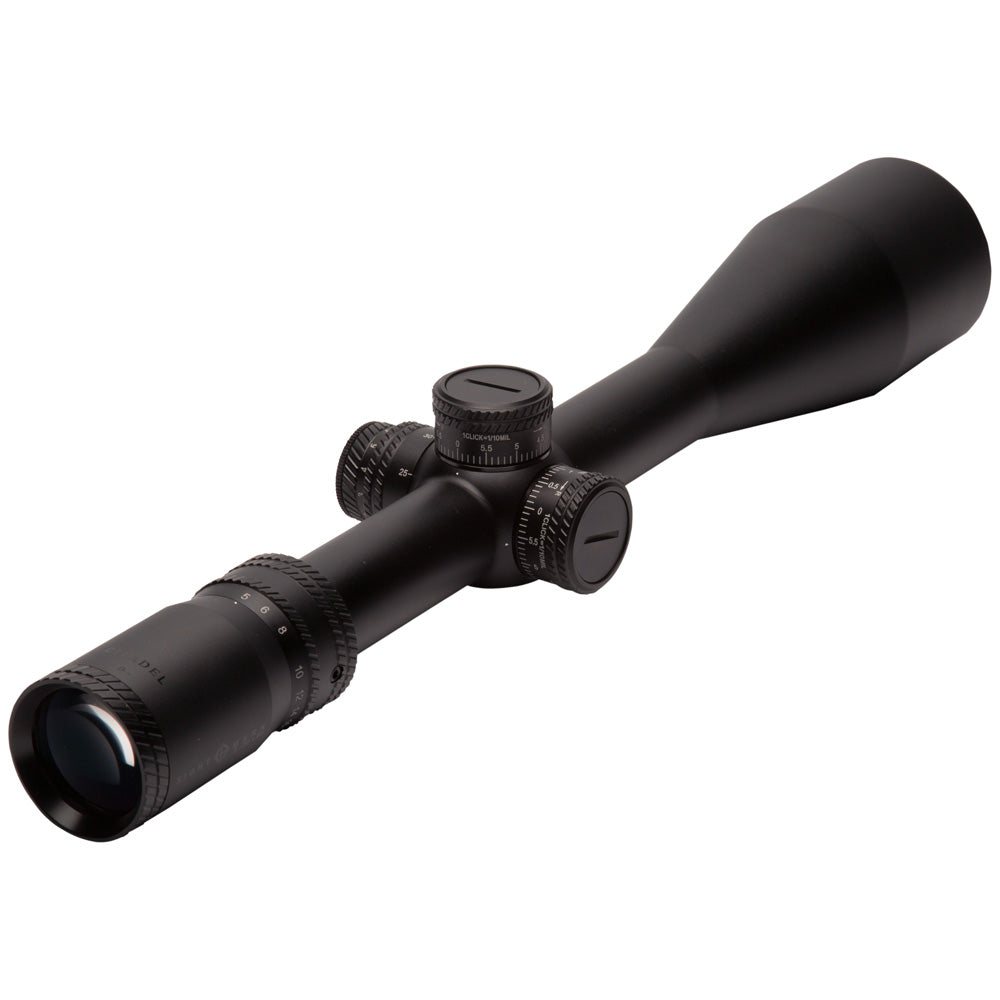

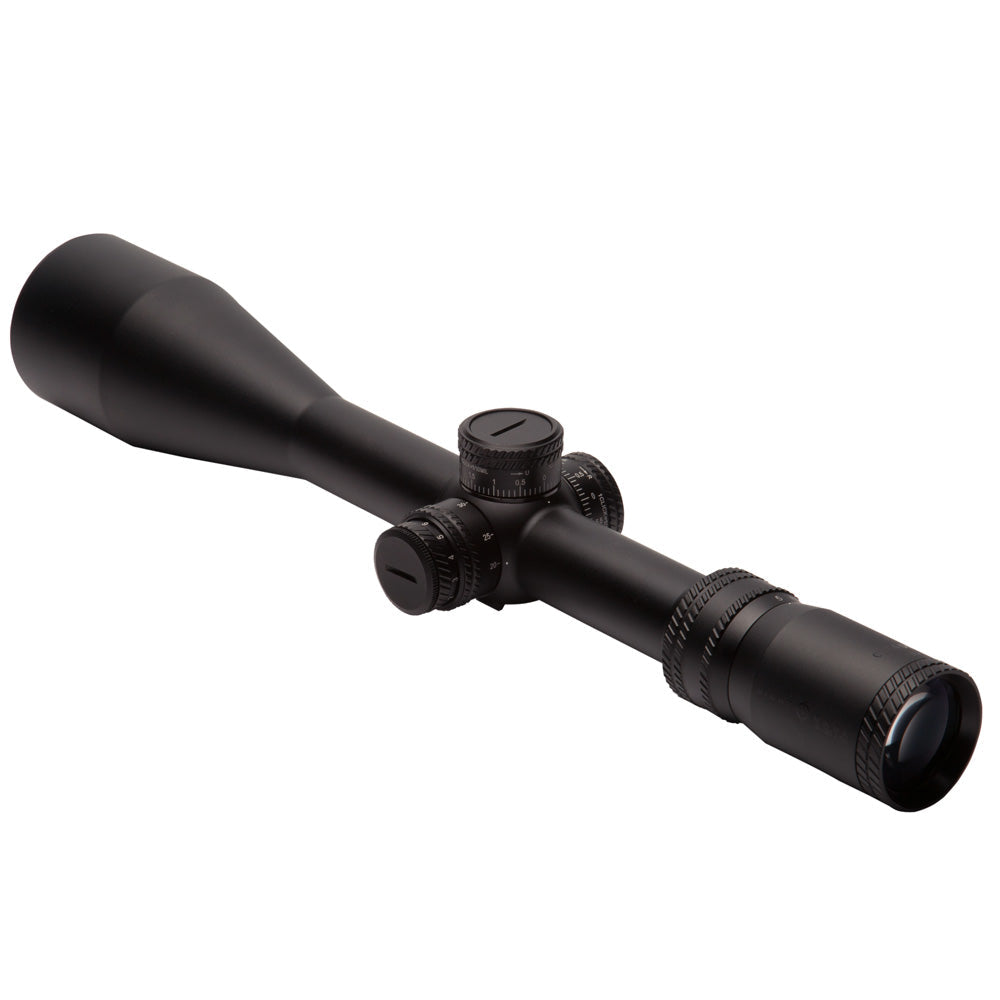

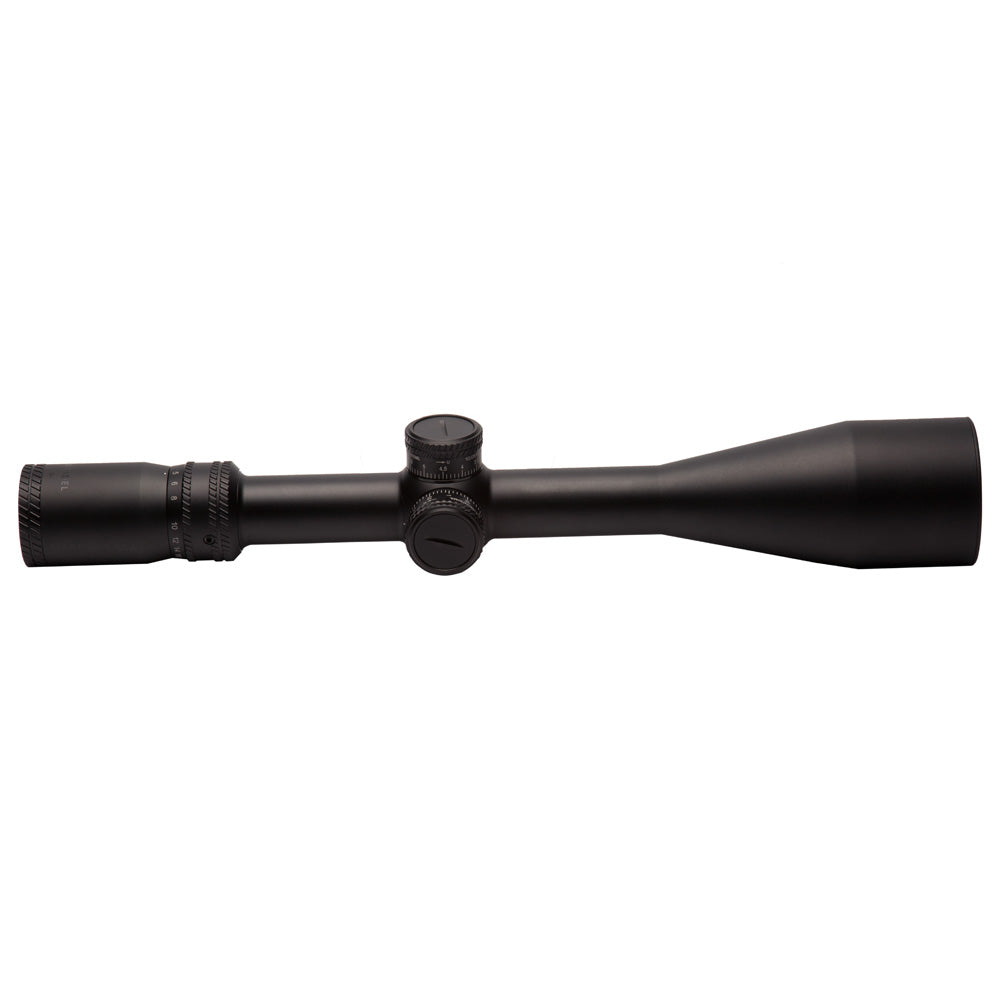

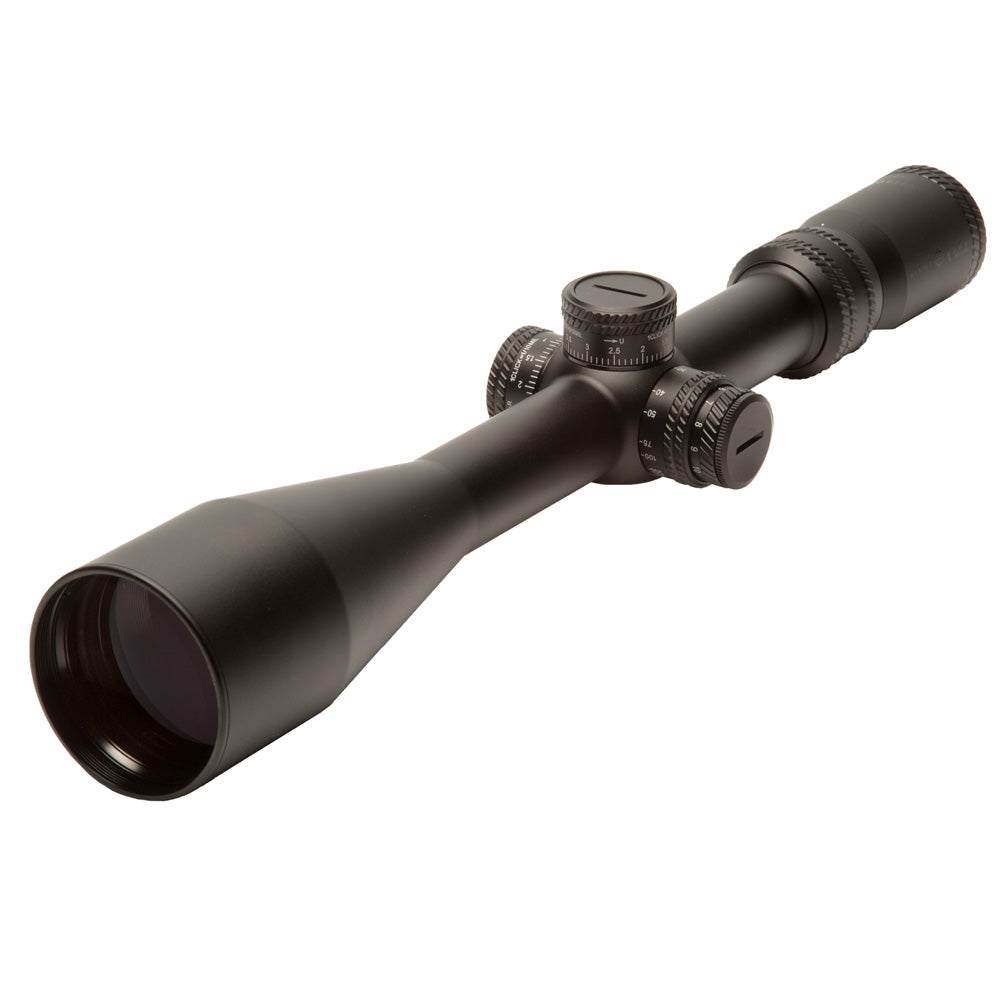

Sightmark Citadel 5-30x56 LR2 Riflescope

SKU# SM13040LR2

  • Sales Price:   $515.99
  • Regular price $593.39
  • 4 available
  • Sezzle Payment Program will increase handling time.
  • Tax & Shipping calculated at checkout.

Keep the odds in your favor by shooting with the first focal plane Citadel 5-30x56 LR2 riflescope. For those who aren’t afraid to reach out and touch something from long-range, the Citadel 5-30x56’s exposed, pop-up locking turrets and red reticle illumination make it a favorite of both competition shooters and serious hunters. A first focal plane reticle ensures shooters can range targets and use their holdovers across the 6x optical system found in this long-distance Citadel. Featuring fully multi-coated optics and a 30mm single-piece tube, the Citadel comes standard with flip-up lens covers, a sunshade and one CR2032 battery. Constructed of aircraft grade aluminum with a hard anodized finish, the durable Citadel 5-30x56 LR2 is IP67 waterproof, fogproof and shockproof.

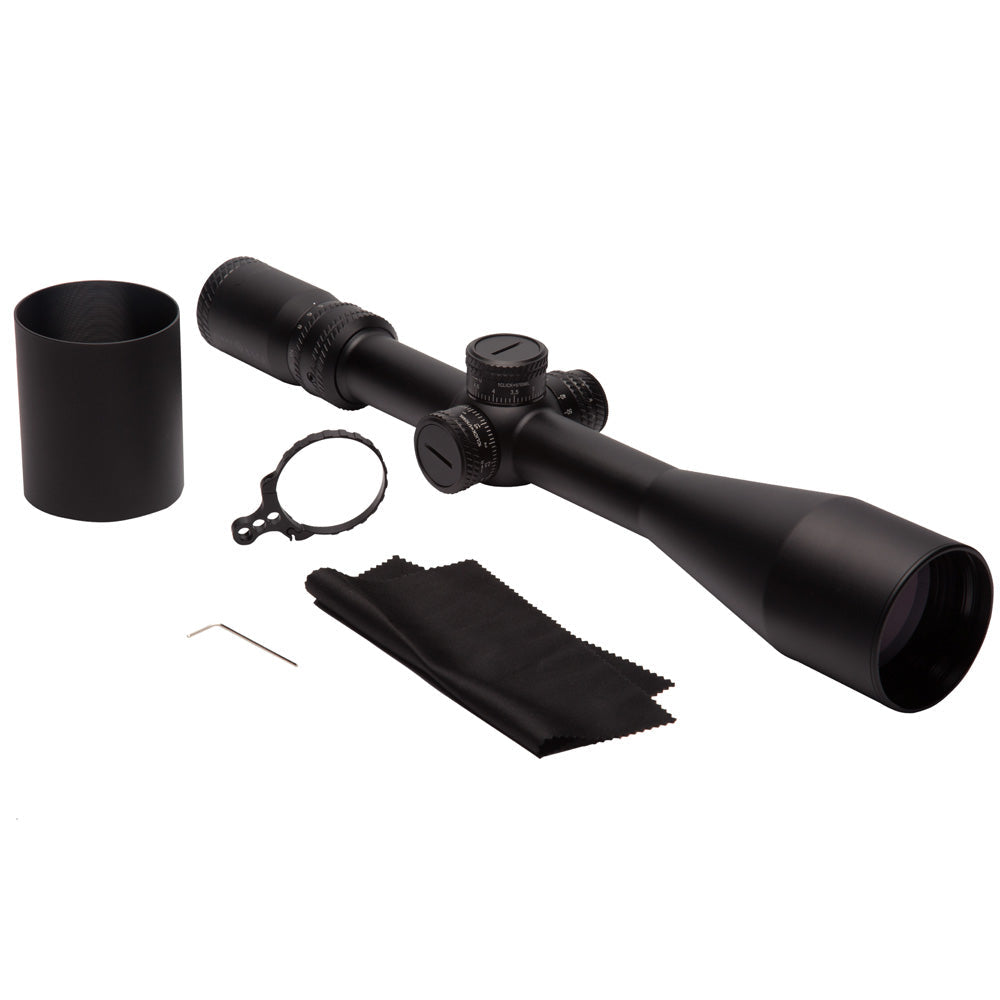

Included in Package

  • Flip up lens covers

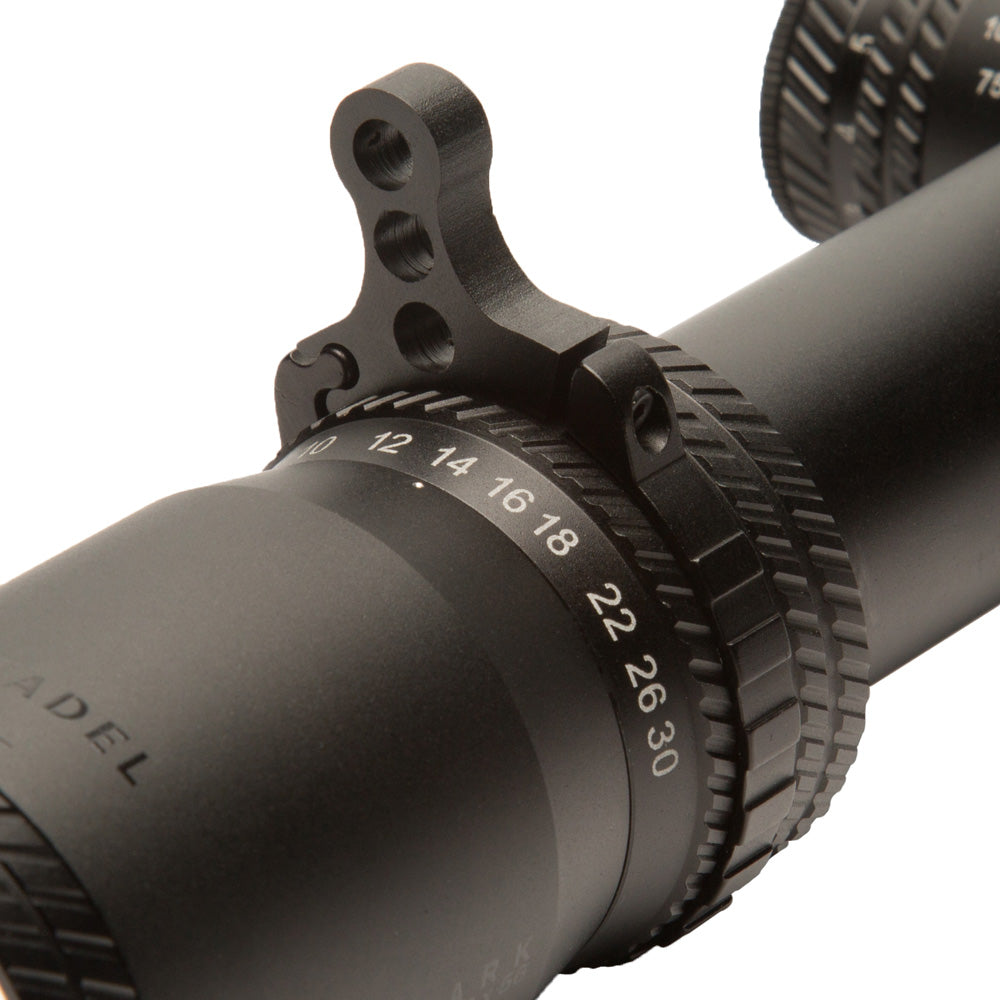

  • Throw lever attachment

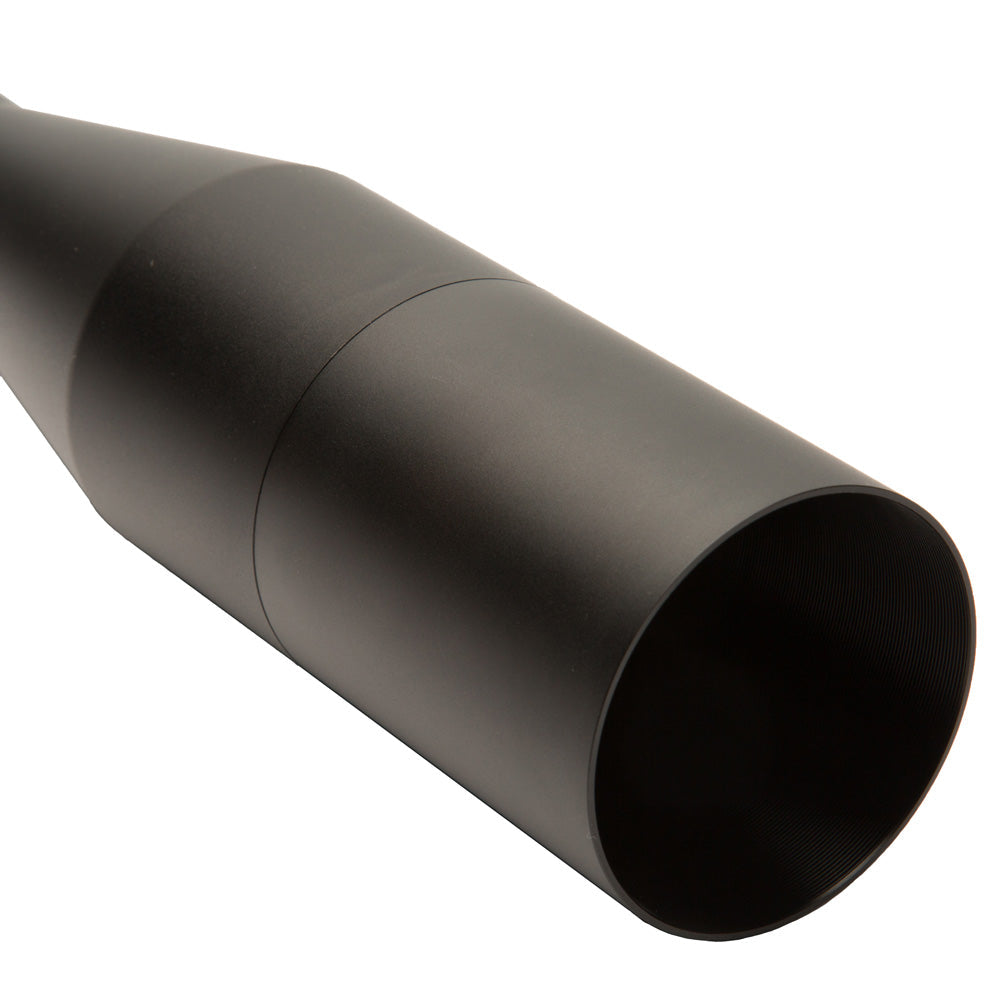

  • Sunshade
  • CR2032 battery

Batteries Used

  • Type: CR2032
  • Quantity: 1


  • 6:1 zoom ratio

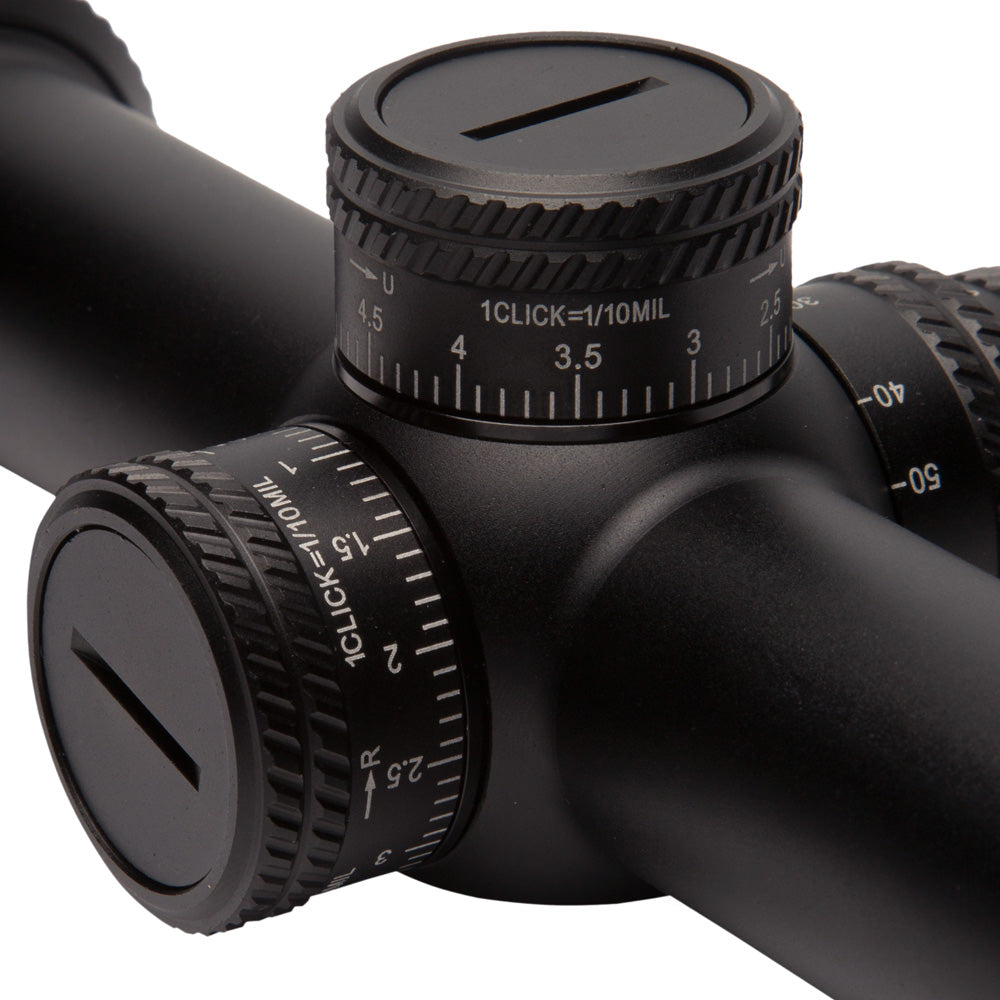

  • Exposed low-profile locking turrets
  • First focal plane reticle
  • Red illuminated reticle
  • Single-piece 30mm tube
  • Aircraft grade aluminum
  • Hard anodized finish
  • Shockproof; fogproof; waterproof
  • Fully multi-coated optics

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

California Disclaimer

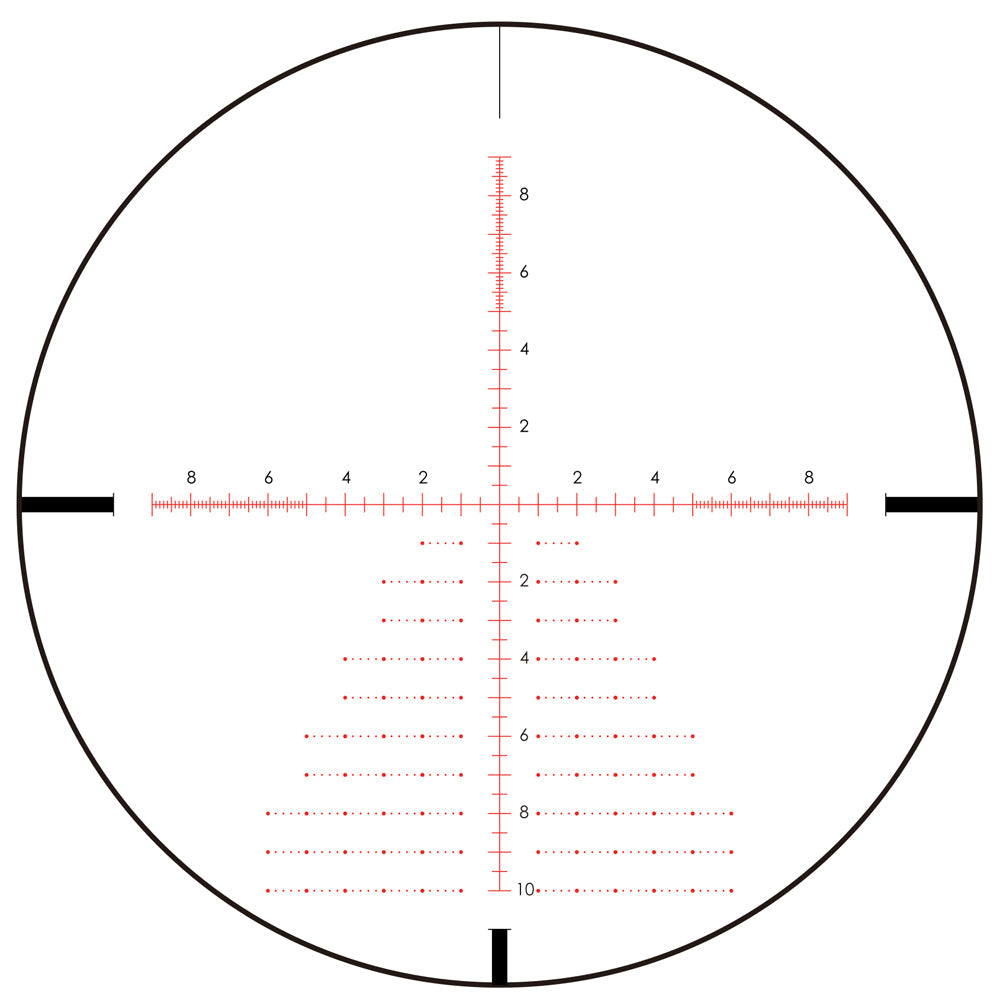

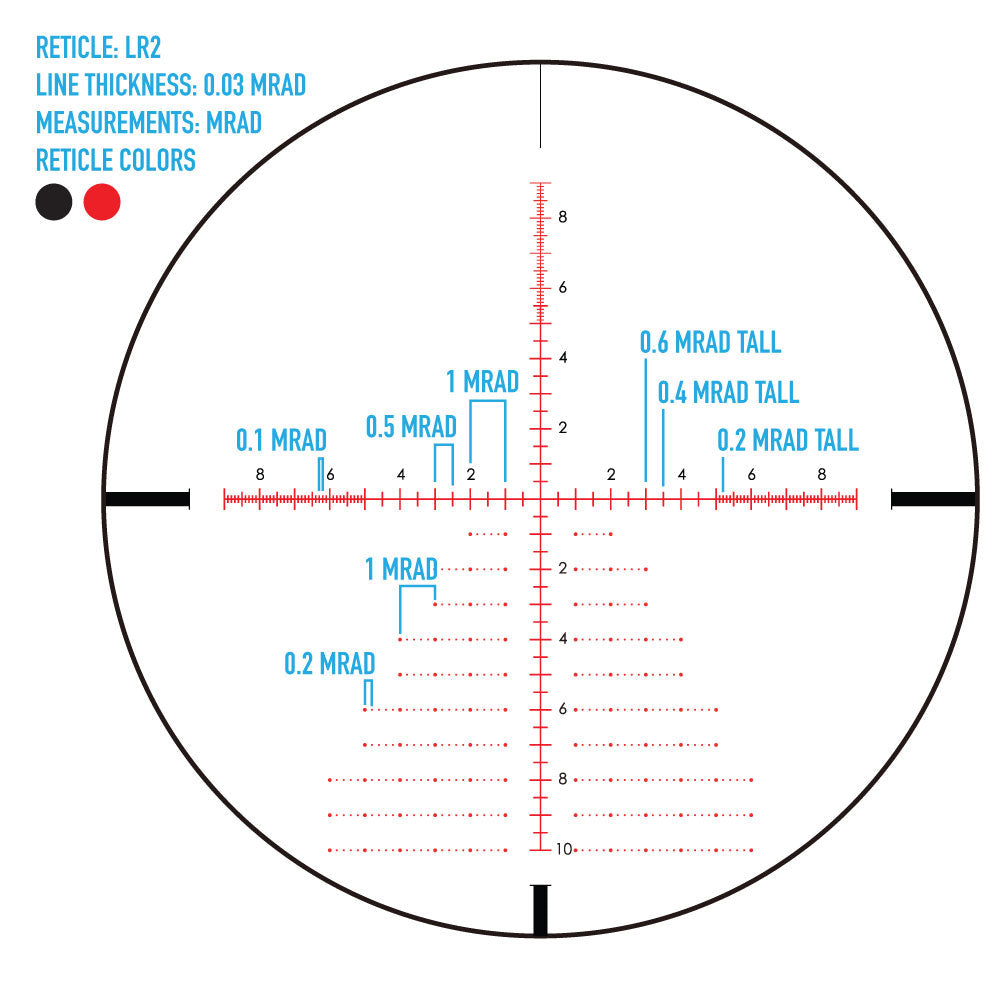

Reticle, Type LR2
Reticle Etched glass
Reticle, Color Red
Illuminated (yes/no) Yes
Reticle Brightness Setting 0 - 11
Magnification 5 - 30 x
Objective Lens 56 mm
Diameter, Eyepiece 40 / 1.6 (mm/in)
Diameter, Exit Pupil 1.7 - 6.5 mm
Eye Relief 3.7 - 4.9 / 94 - 124.5 (in/mm)
Field of view, m@100m 1 - 6.5
Field of view, ft@100yd 3 - 19.5
Diopter Adjustment +2 to -2
Diameter, Tube 30 / 1.18 (mm/in)

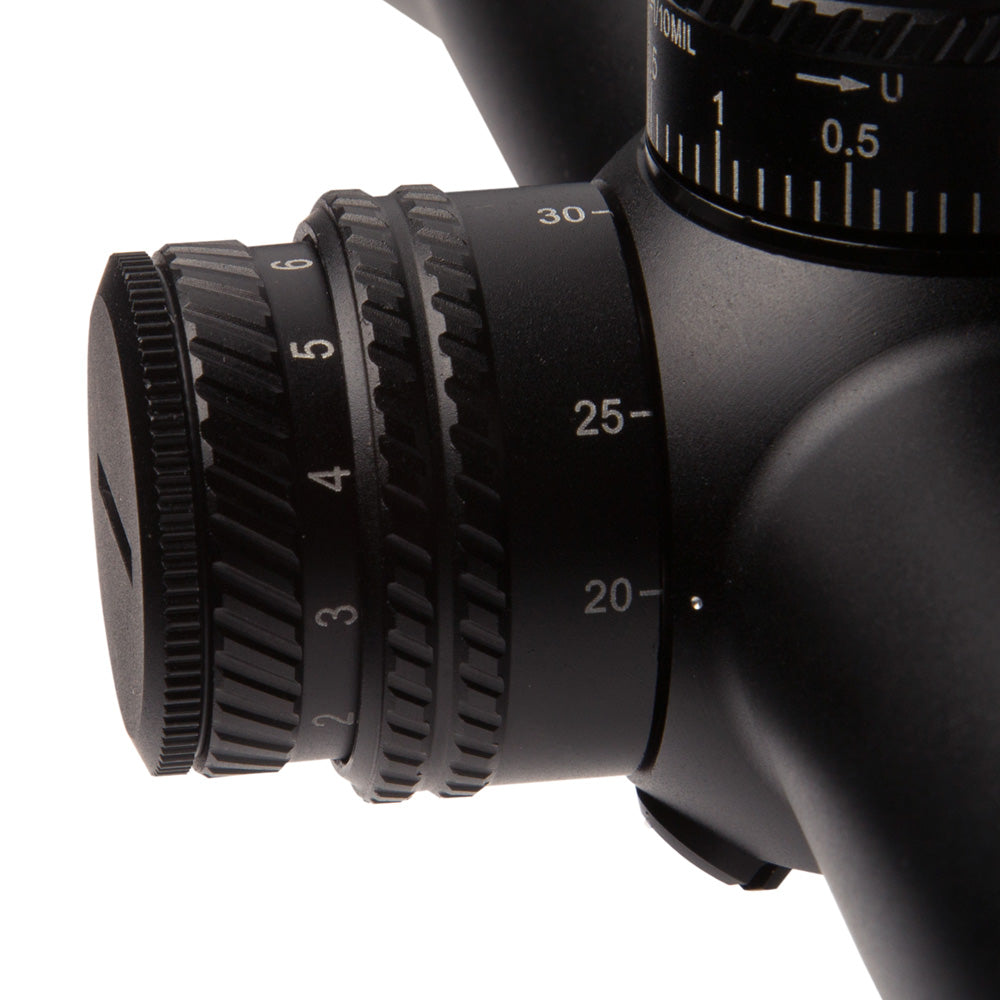

Parallax Setting 20 - infinite
Focal Plane 1st
Mil adjustment (one click =) .1
Windage adjustment range (MIL) 17
Elevation adjustment range (MIL) 17
Windage & Elevation, Lock Yes
Maximum Recoil .338 Win
Battery Type CR2032
Battery life, hours 70 - 100 Hours
Battery Voltage, V 3 V
Sunshade Yes
Nitrogen Filled Yes
Fog Proof Yes
Shockproof Yes
IP Standard IP67 - waterproof and dustproof
Operating temperature, F/C 0 to 120 / -17 to 49 F/C
Body Material Aluminum
Finish/Color Matte black
Lens Coating Full Multi-coated
Length (in/mm) 14.9 / 380 (in/mm)
Width (in/mm) 3.1 / 79 (in/mm)
Height (in/mm) 2.2 / 56 (in/mm)
Weight, oz 27.5 oz.
