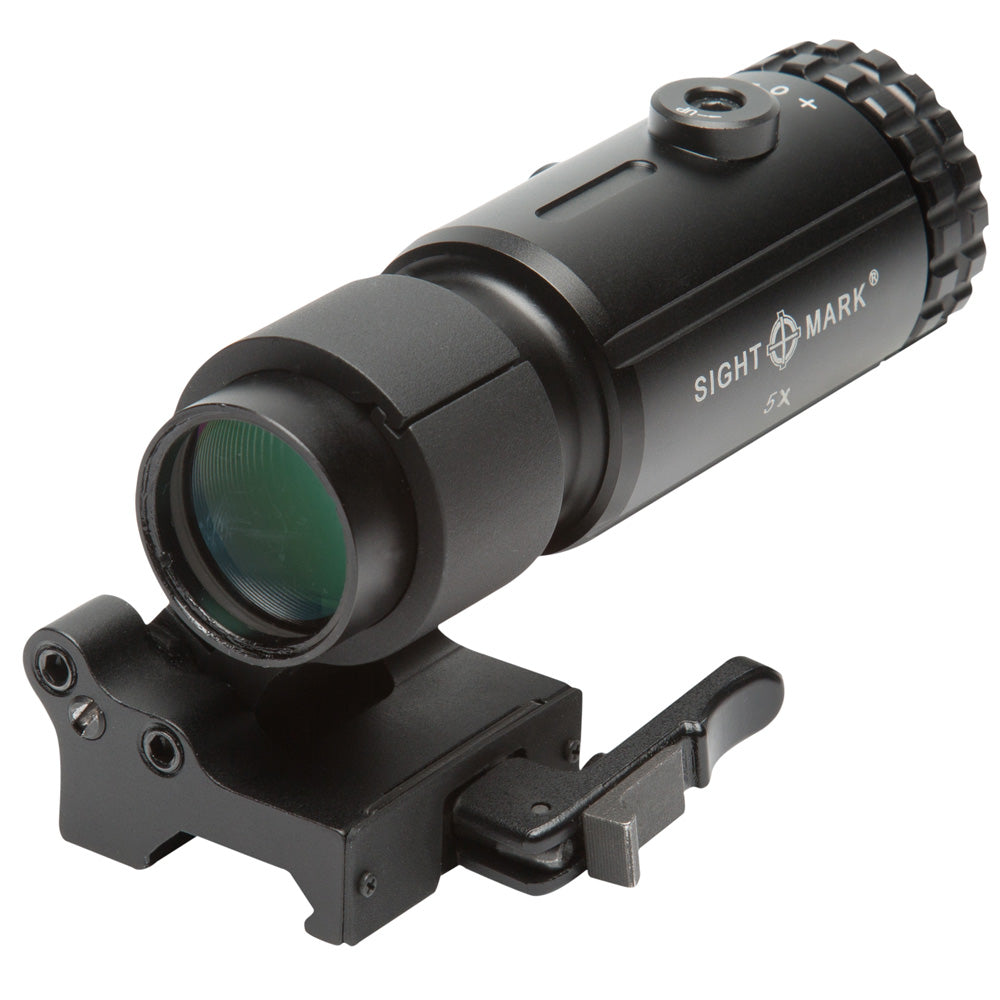

Sightmark T-5 Magnifier with LQD Flip to Side Mount

SKU# SM19064


  • Sales Price:   $143.99
  • Regular price $165.59
Note:
  • Sezzle Payment Program will increase handling time.
  • Tax & Shipping calculated at checkout.

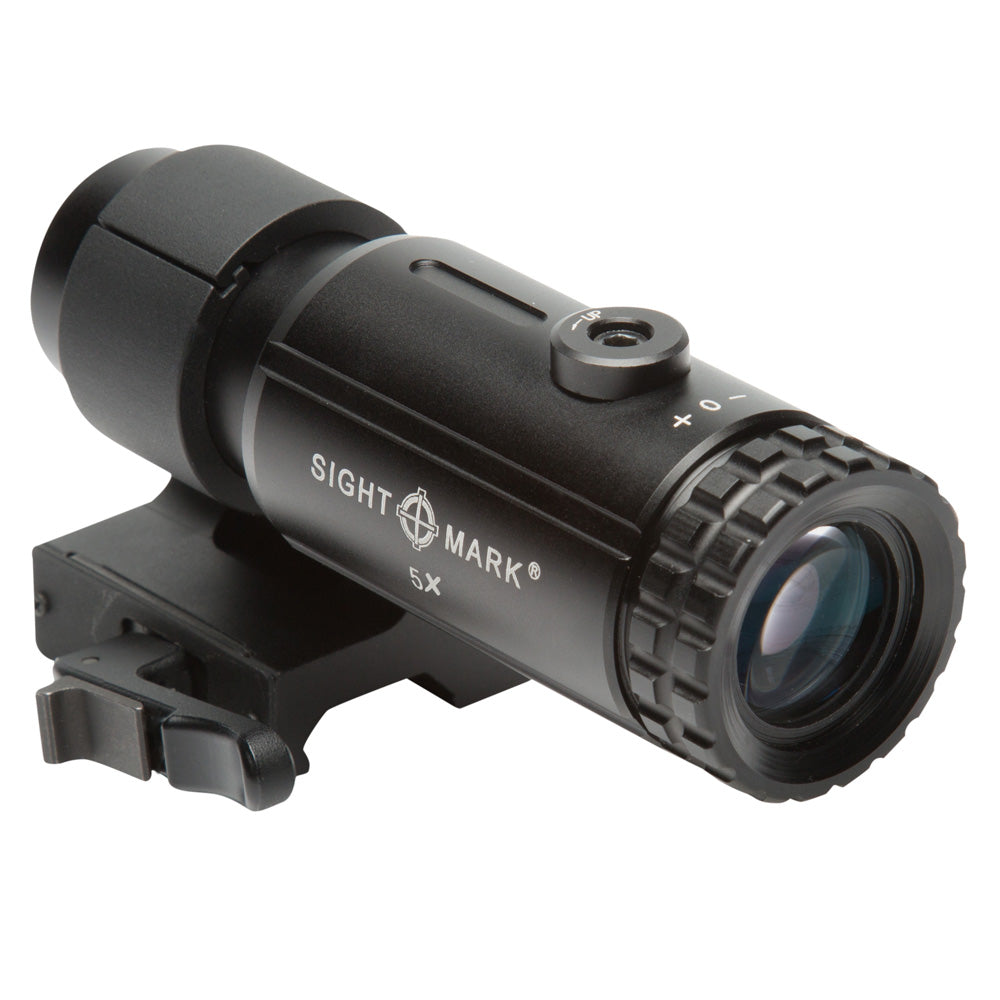

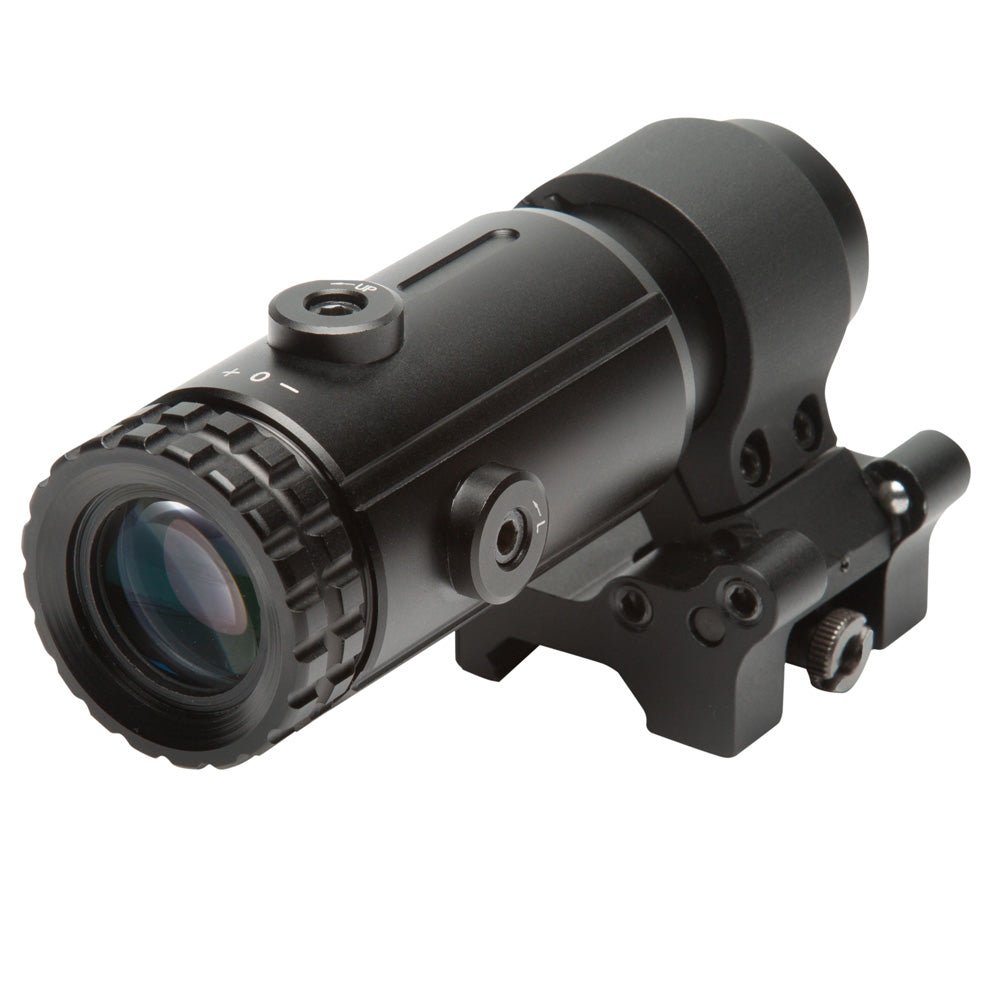

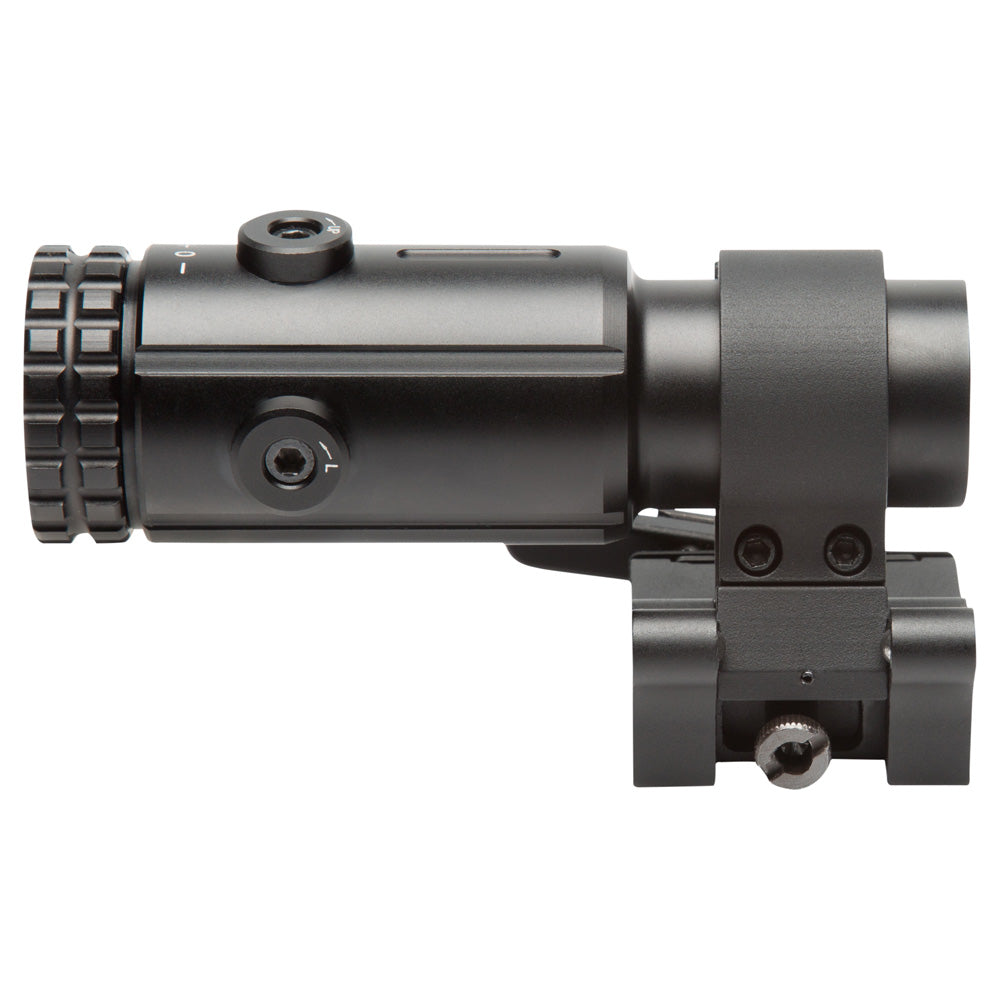

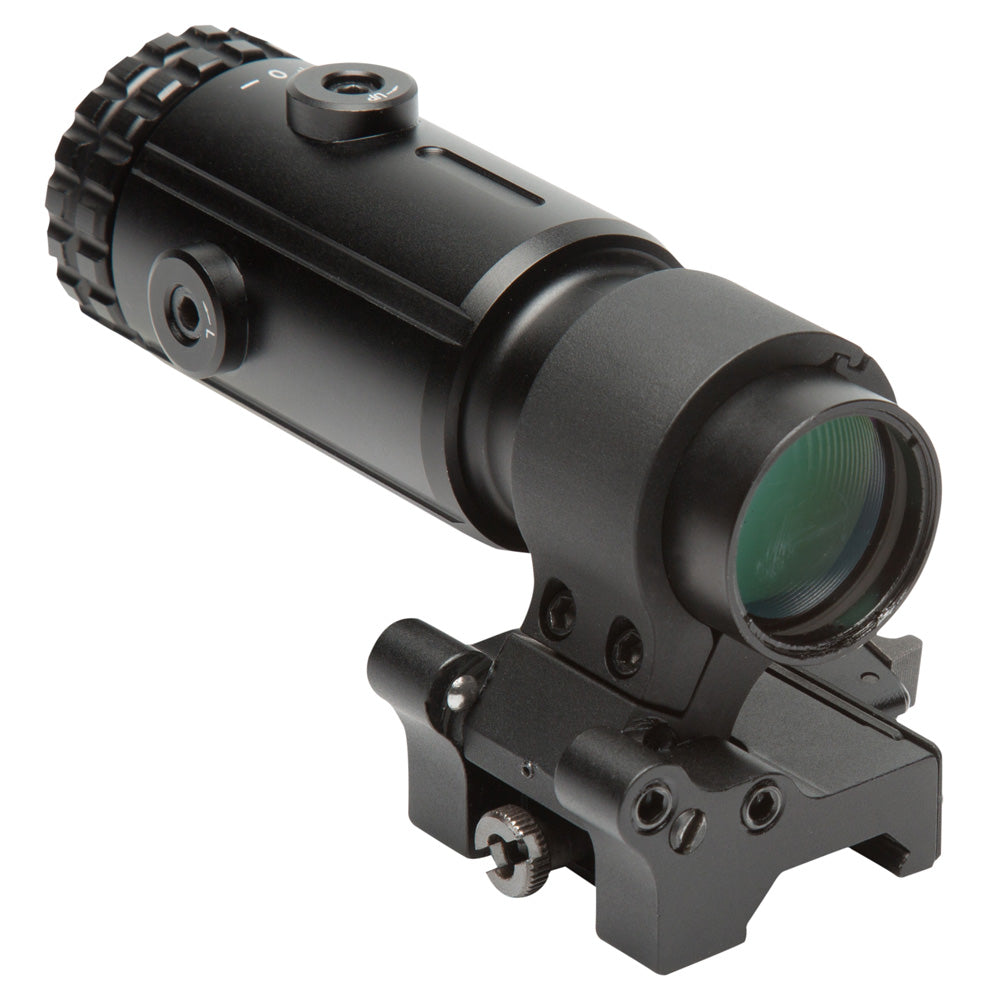

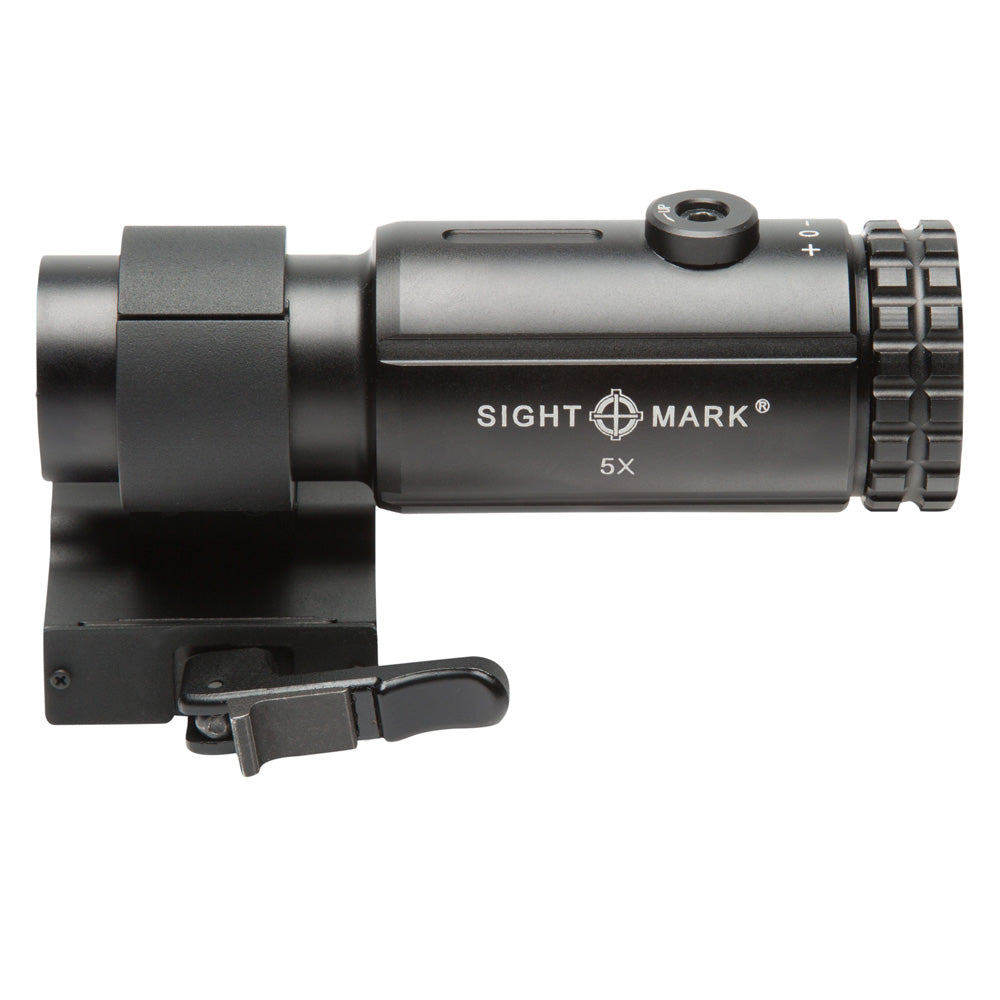

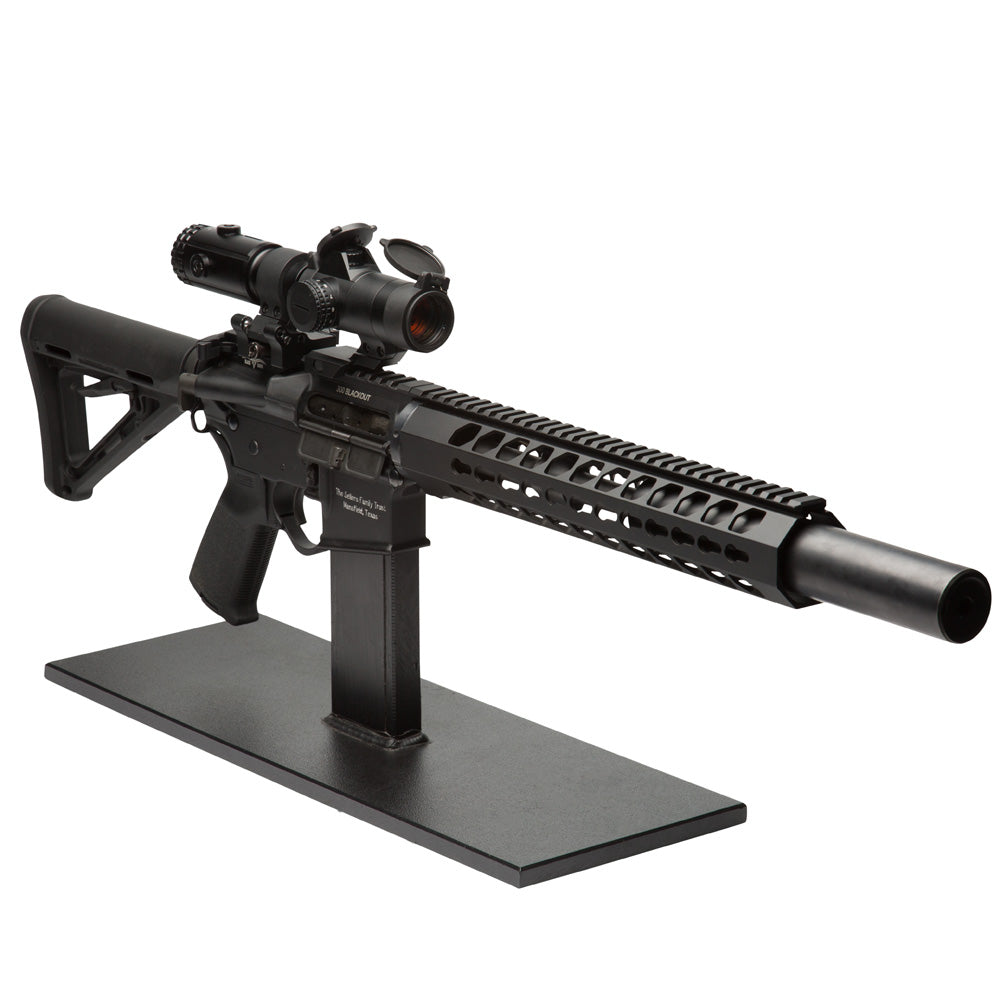

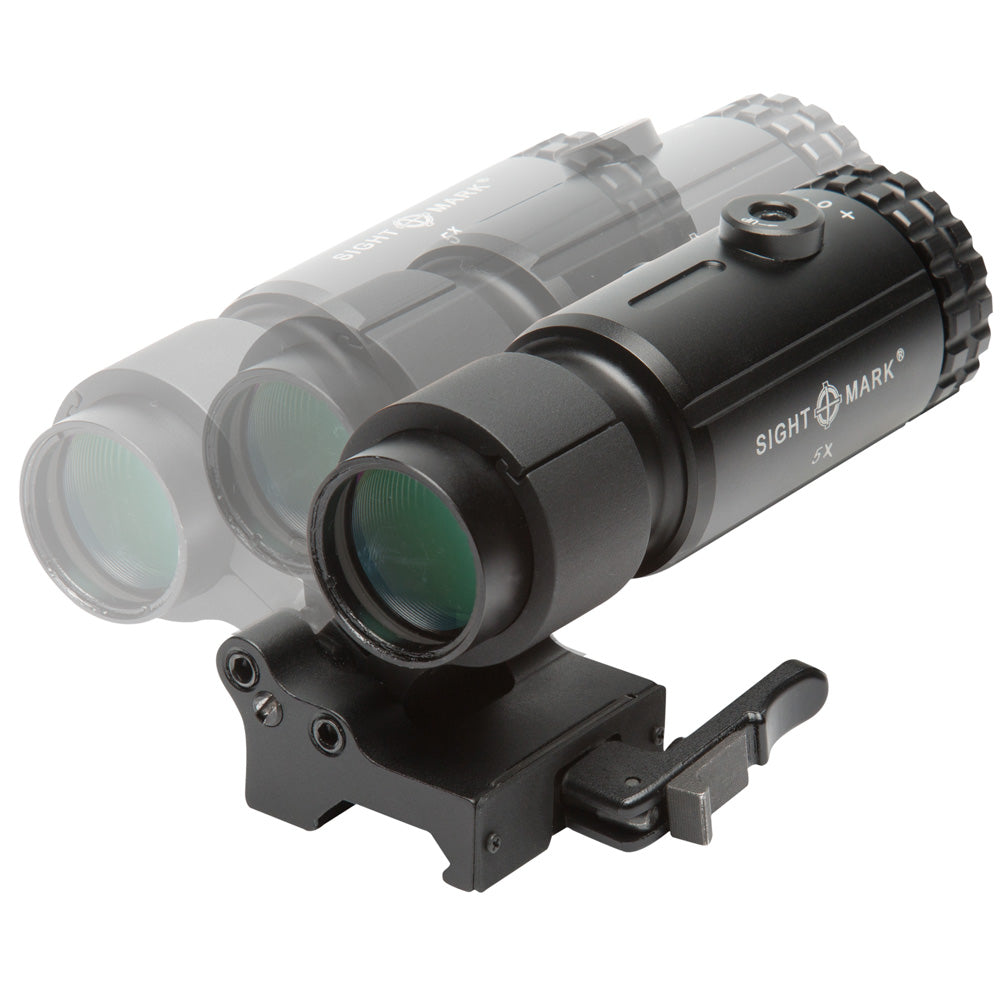

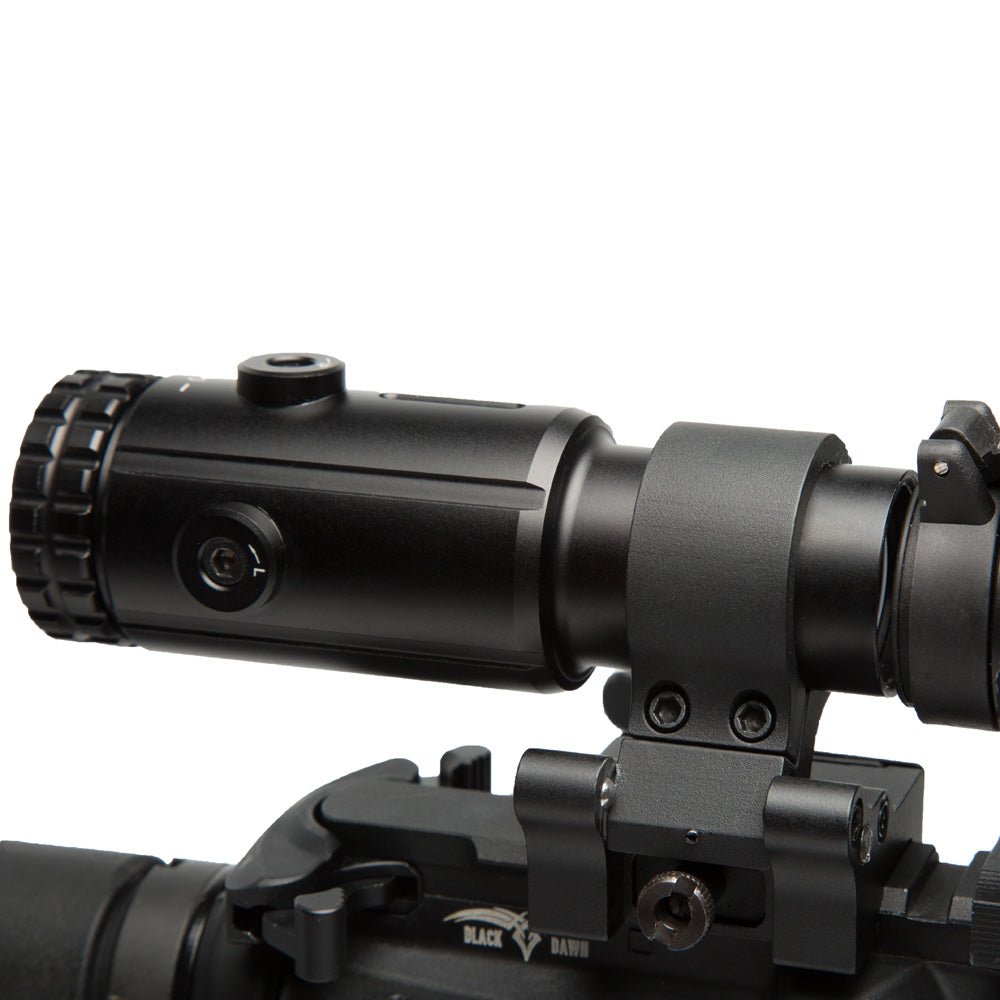

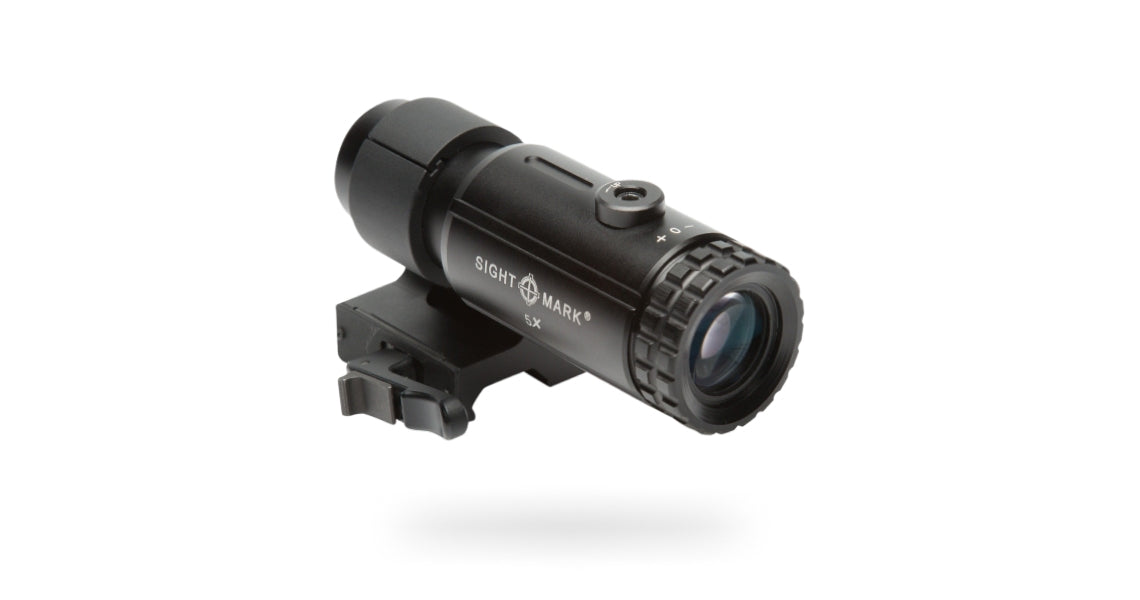

Built for shooting versatility, the Sightmark T-5 is a magnifier that mounts behind a reflex sight or red dot and provides an absolute co-witness. Instantly change the magnification of your close-range optic from 1x to 5x by using the T-5’s flip-to-side mount. The magnifier’s streamlined, low drag design prevents it from snagging on clothing and equipment and makes the T-5 .7” shorter than the magnifier it’s replacing. Ideal for stretching your AR engagements out to 200 yards, an included LQD mount allows for rapid attaching/detaching in intense shooting situations. The T-5’s aluminum construction is shockproof up to .308 caliber rifles and provides IP55 water resistant protection. Brightness and resolution are improved from fully multi-coated optics and external windage and elevation adjustments help shooters align the reticle of their red dot/reflex sight to the center of the magnifier’s point of view. The Sightmark T-5 includes flip-to-side LQD mount, adjustment tools and manual.

Included in Package

  • Flip to side LQD mount
  • Adjustment tools
  • Manual

Features

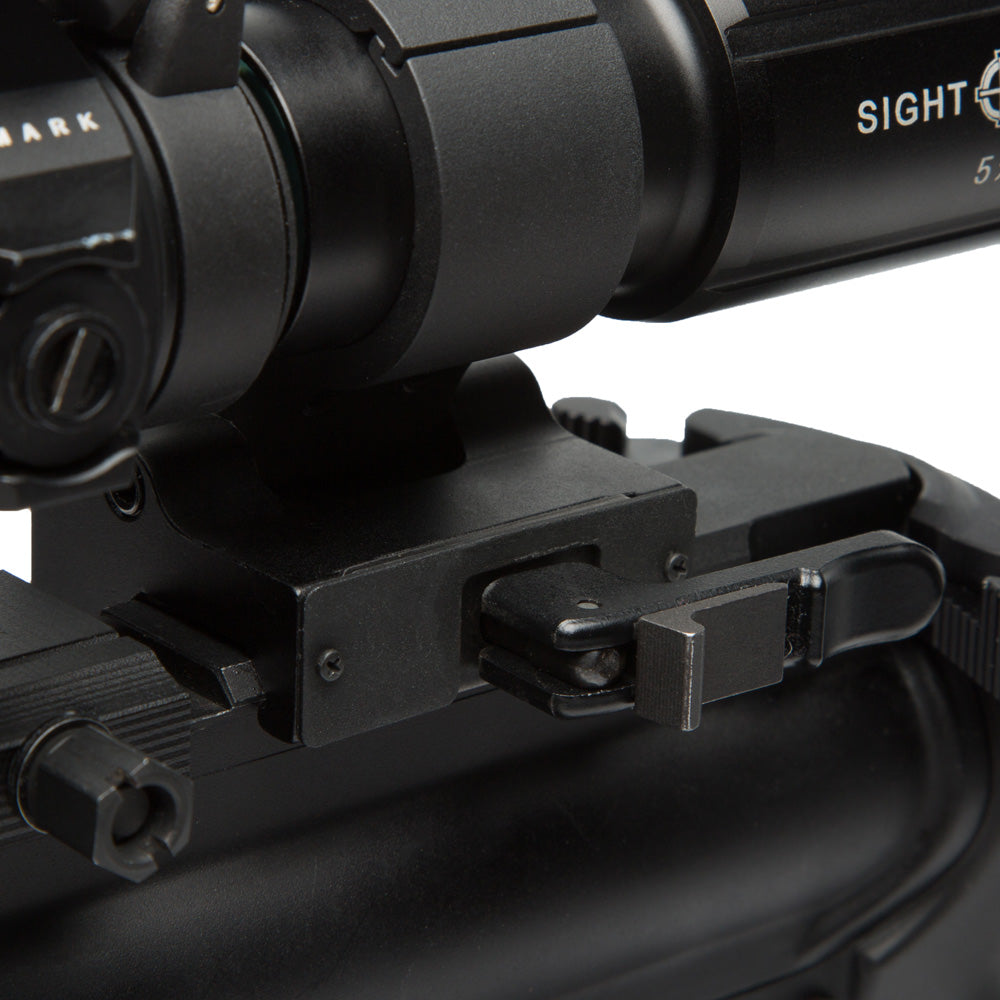

  • Locking, quick detach mount for quick and easy removal
  • External windage/elevation adjustment for reticle alignment
  • Absolute co-witness
  • Fully multi-coated, scratch resistant
  • 5x magnification increases engagement to 200 yards
  • EOTech® and Aimpoint® compatible



EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.


Magnification 5x
Objective Lens 23 mm
Diameter, Eyepiece 1.26/32 in/mm
Diameter, Exit Pupil 4.6 mm
Eye relief (in/mm) 2.25/57 in/mm
Field of view, m@100m 9.8
Field of view, ft@100yd 29.6
Diopter Adjustment +3 to -3
Diameter, Tube 30 mm
Maximum Recoil .308 Caliber
Shockproof Yes
Fog Proof No
IP Rating (waterproof) IP55 - water resistant
Finish/Color Matte black
Body Material Aluminum
Lens Coating Full Multi-coated
Mount Type Picatinny
Operating temperature, F/C -22 to 160 / -30 to 71 F/C
Length (in/mm) 4.72 / 120 in/mm
Width (in/mm) 2.6 / 66.2 in/mm
Height (in/mm) 1.67 / 42.5 in/mm
