        SKU : SM13104HDR2

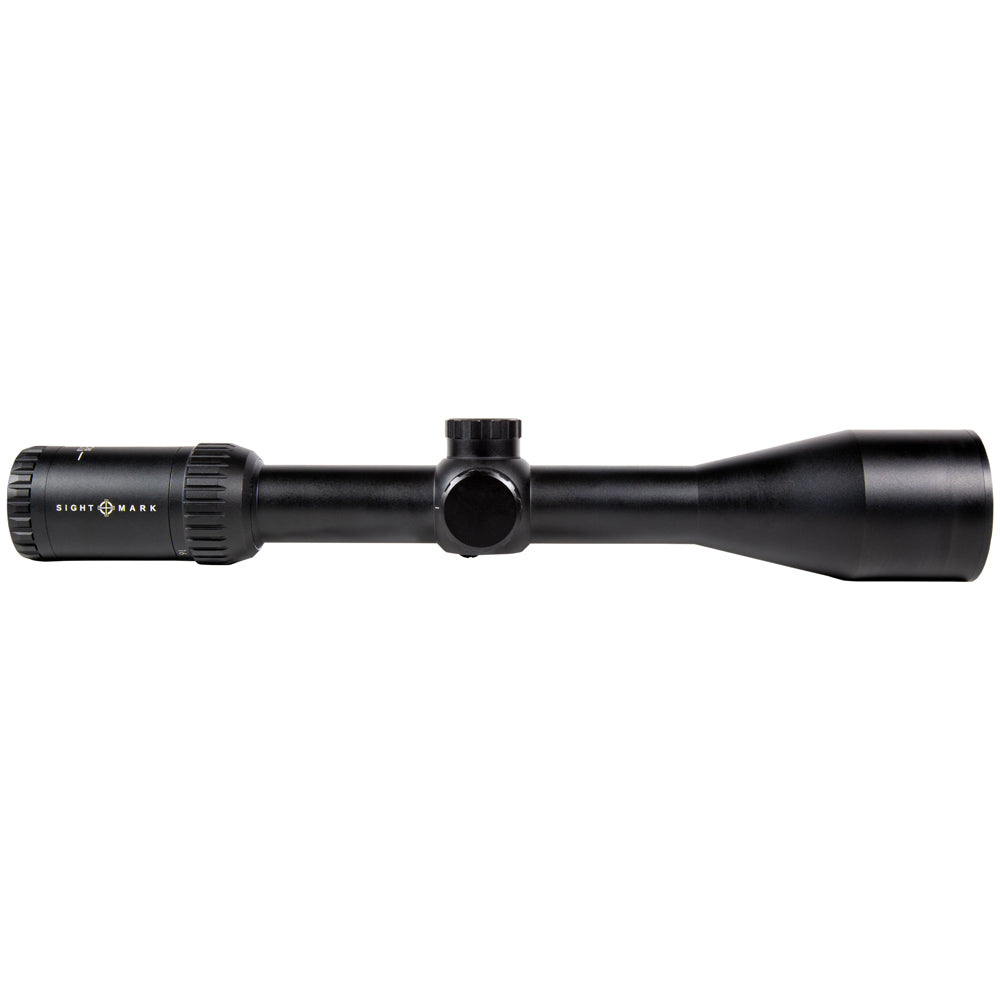

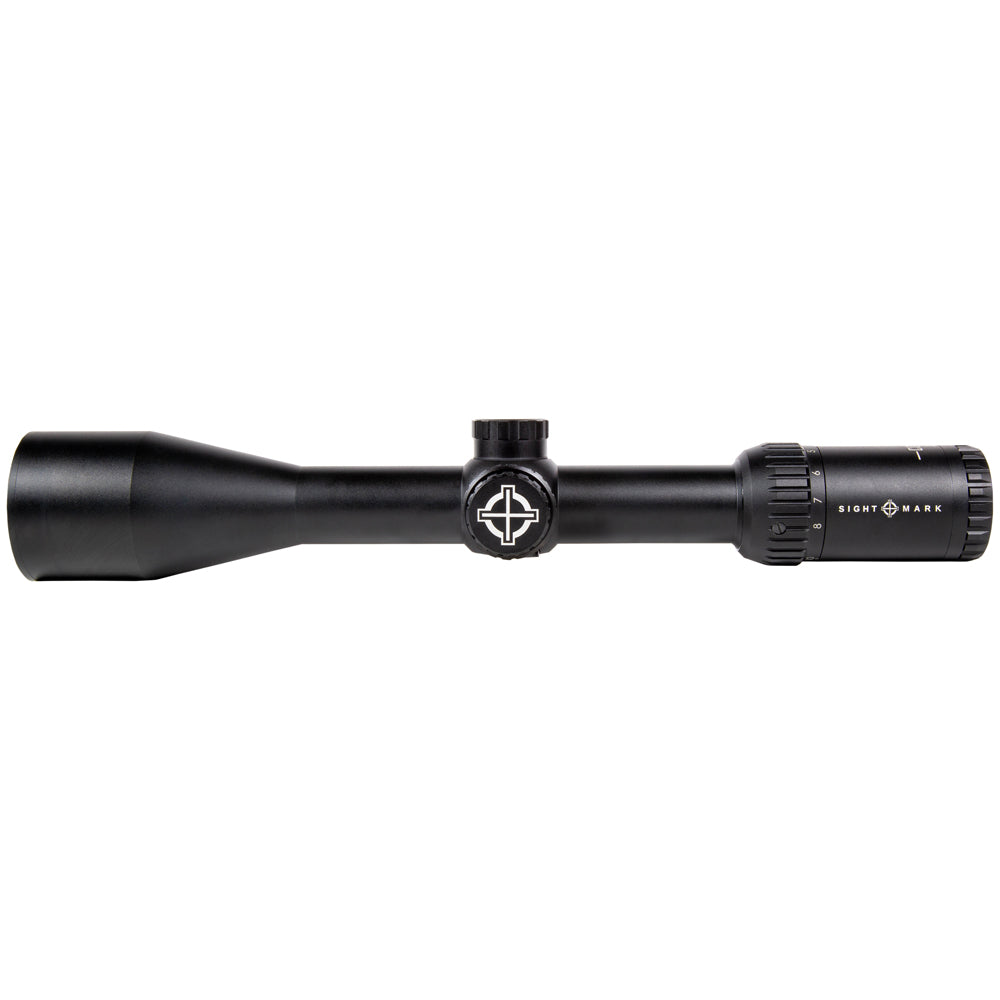

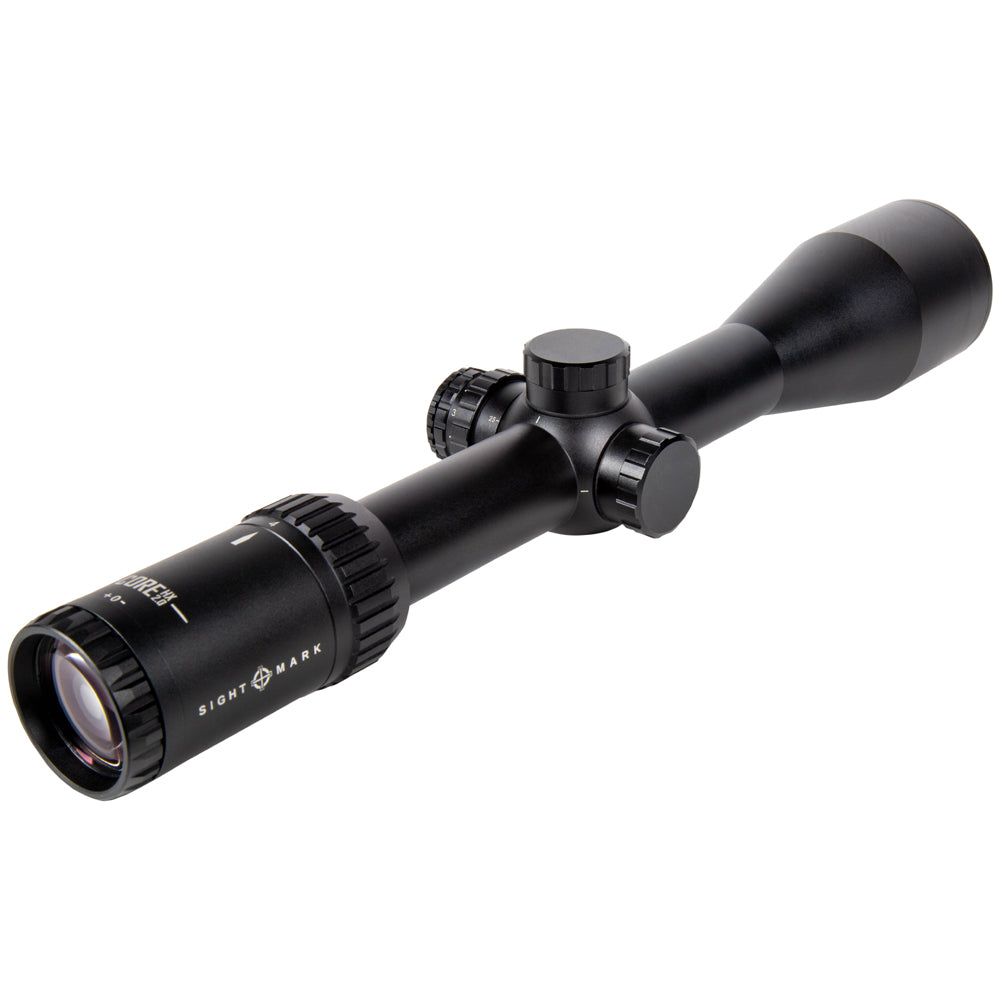

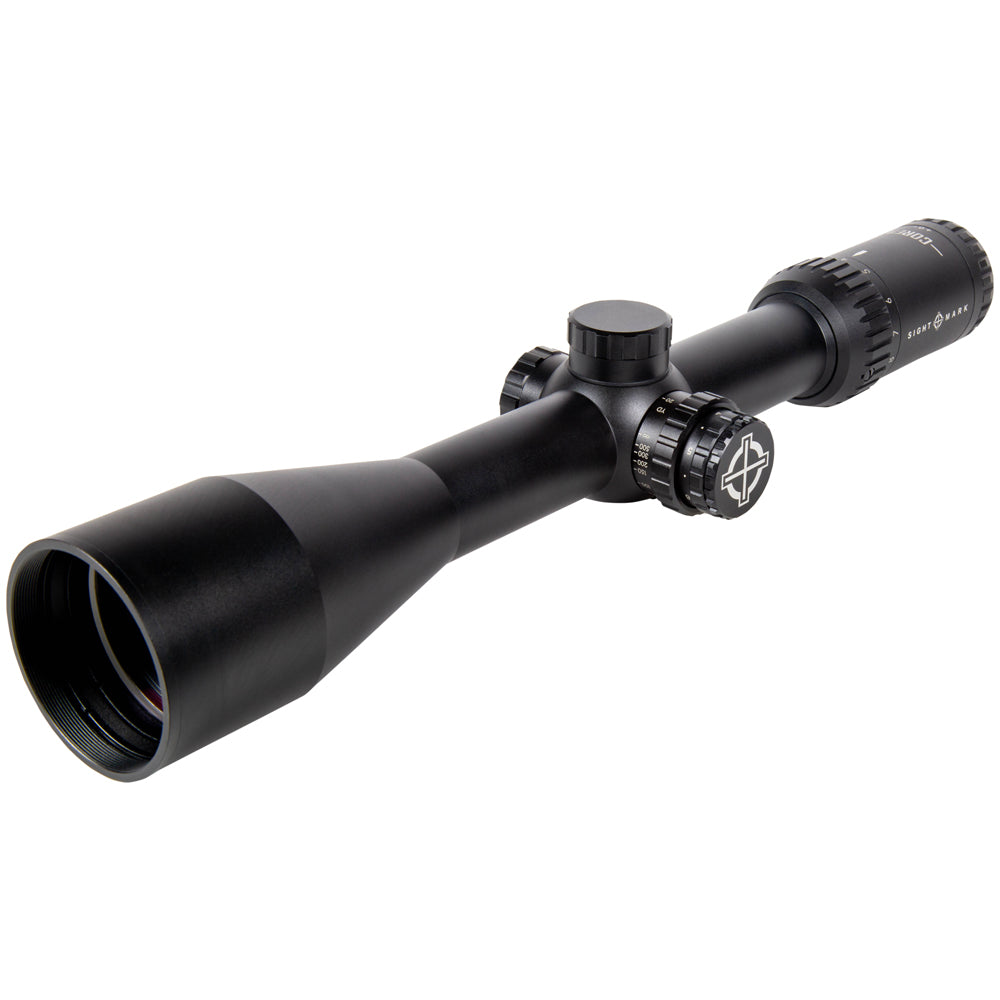

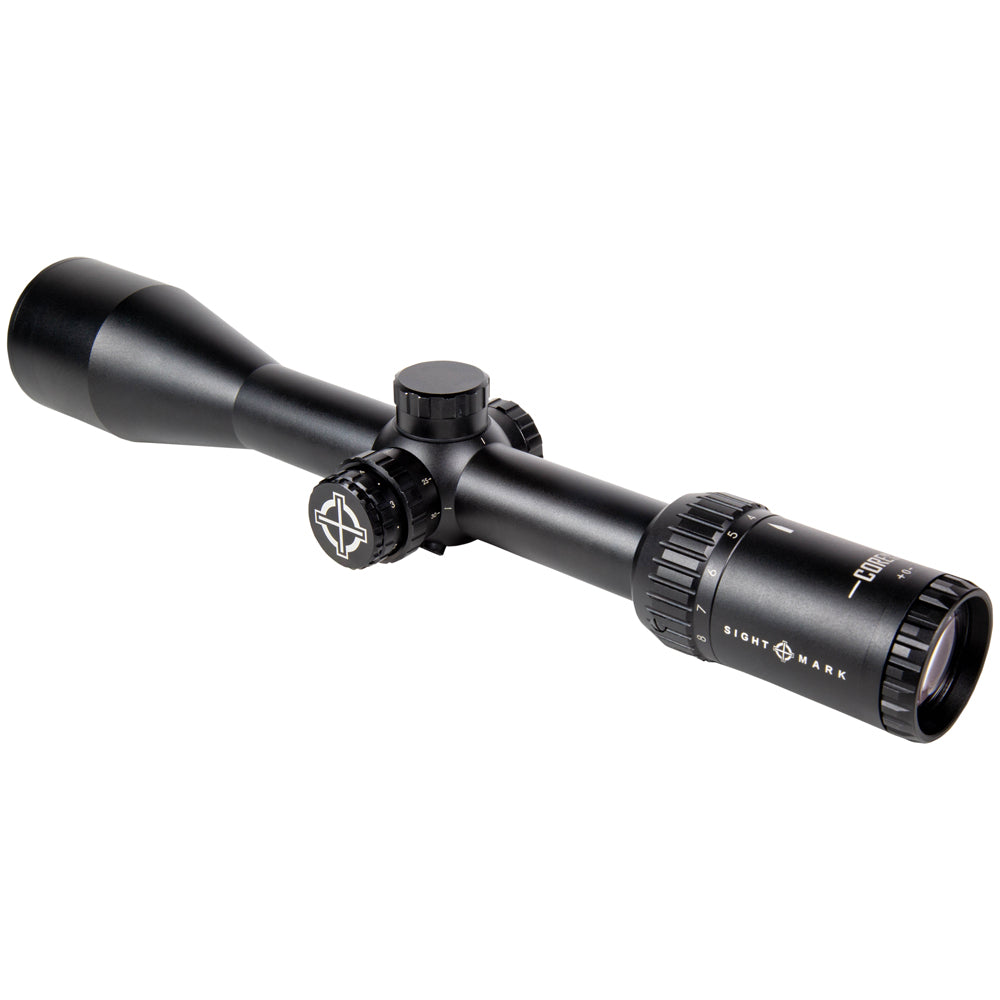

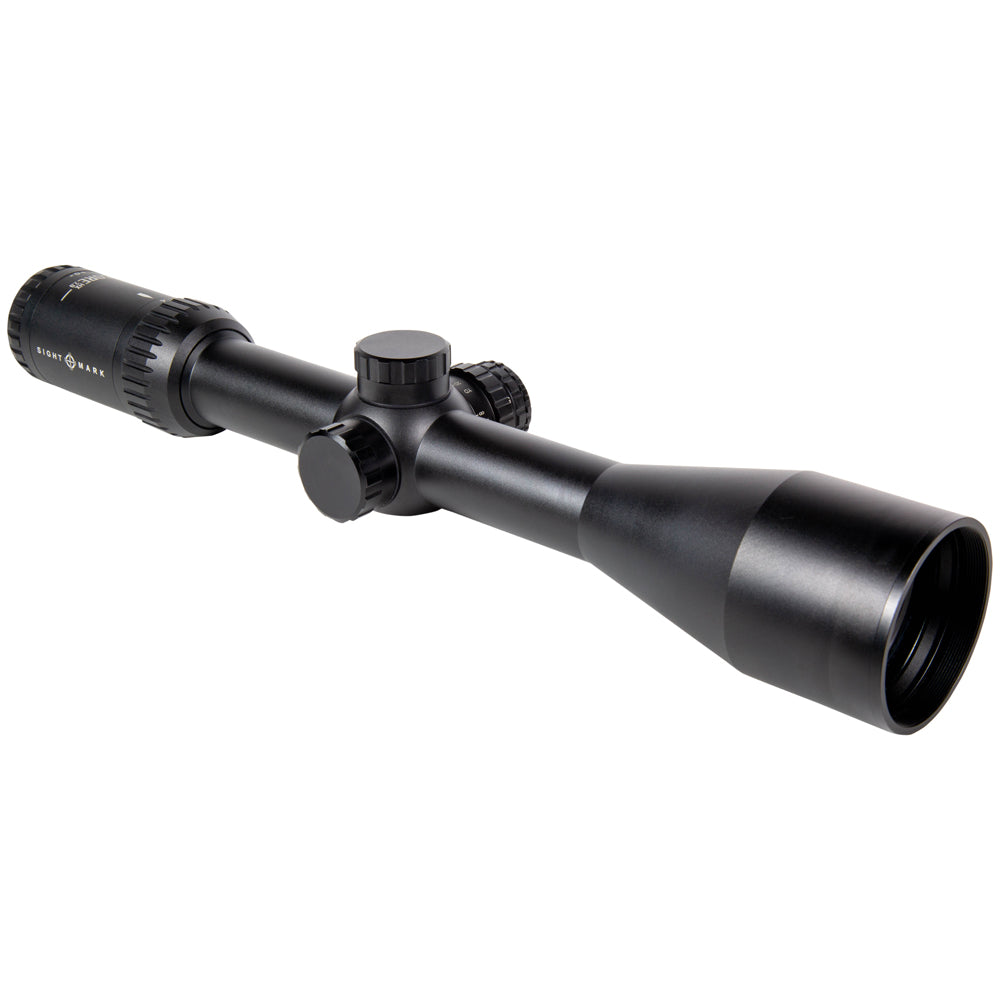

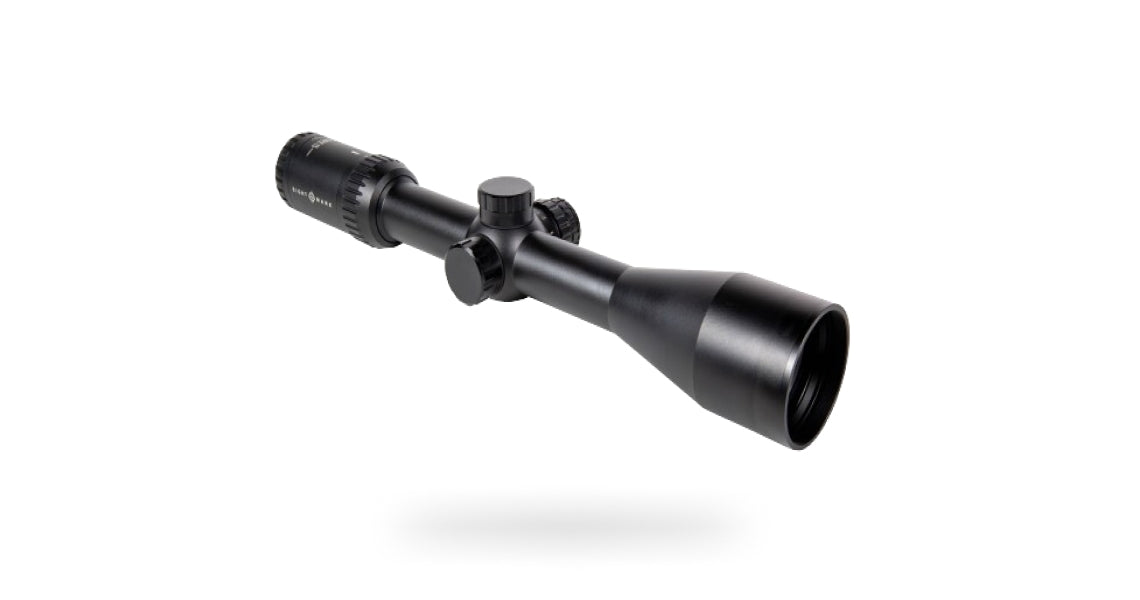

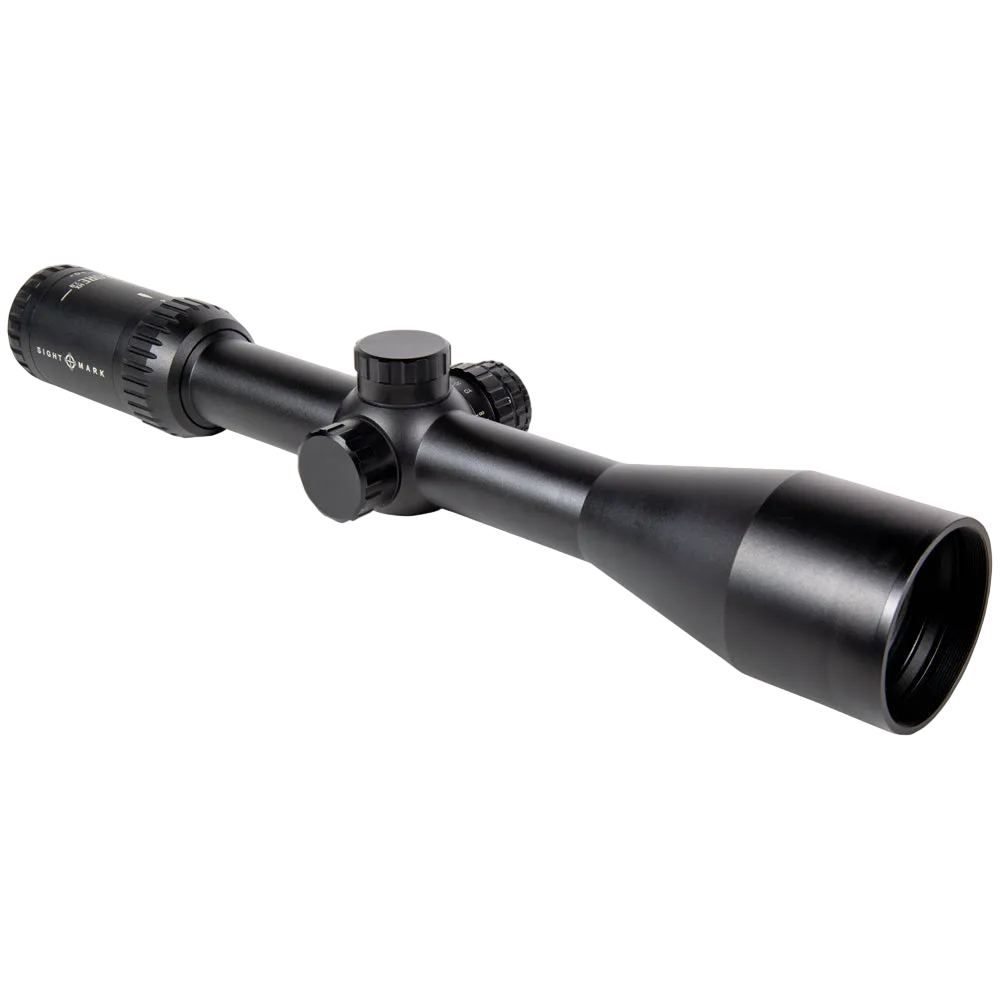

        The new Core 2.0 HX Series of riflescopes from Sightmark is an improvement on the previous Core, offering upgraded glass, finer click adjustments, and improved low light performance. Designed with versatility in mind, the Core 2.0 HX is available in either the Duplex or Hunter Dot Reticles to offer hunters of all skill levels the simplicity or sophistication they need to achieve that perfect shot.

        With its solidly built housing made of aircraft grade aluminum, the Core 2.0 HX promises to be a dependable hunting tool in any environment. This robust housing allows the Core 2.0 HX to be both waterproof and shockproof, while a nitrogen filled tube prevents fog and high quality glass enables a crystal clear image.

        Included in Package

        • Scope Rings
        • Lens Flip-Cover
        • Lens Cloth
        • CR2032 Battery

        Product Downloads


        • Hunter Dot Reticle 2
        • 4-16x Magnification
        • Objective Lens Diameter 50mm
        • Parallax Settings 20 to ∞
        • Windage Adjustment Range 80 MOA
        • Elevation Adjustment Range 80 MOA
        • Single-Piece Tube
        • Aircraft Grade Aluminum
        • Hard Anodized Finish

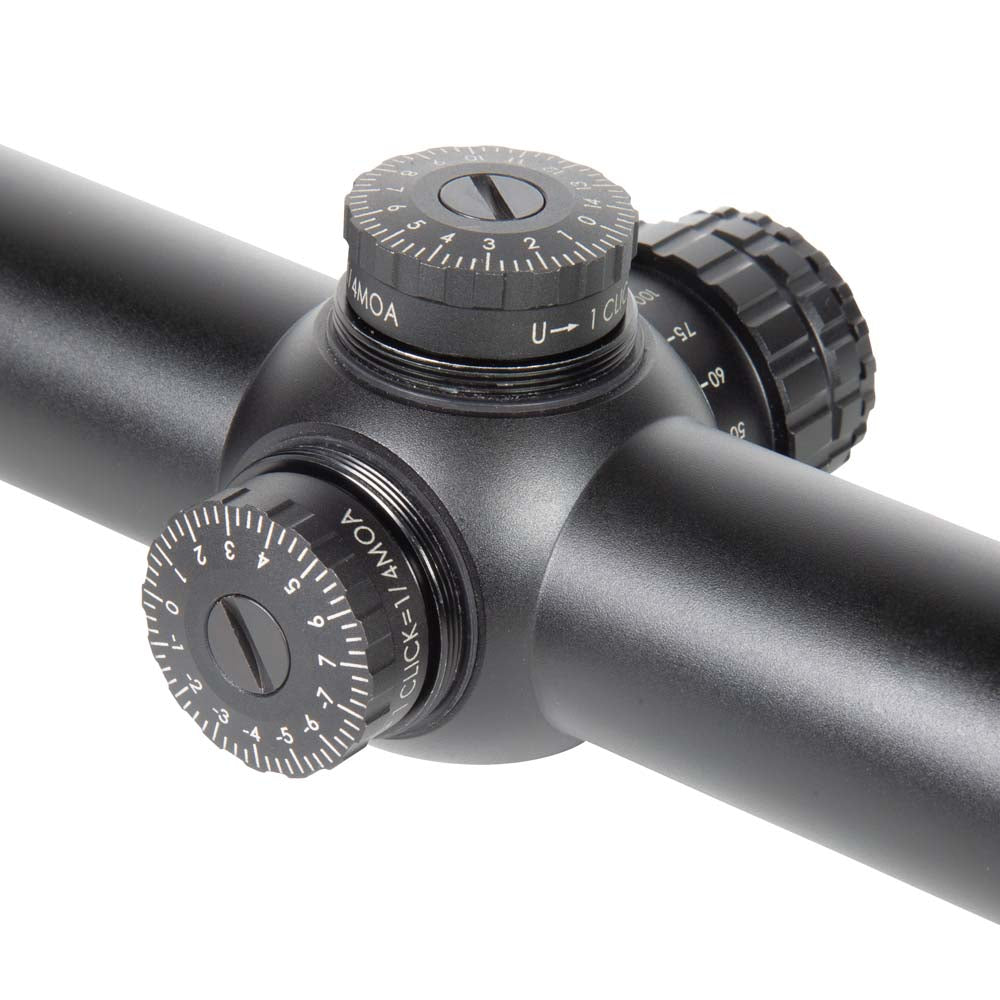

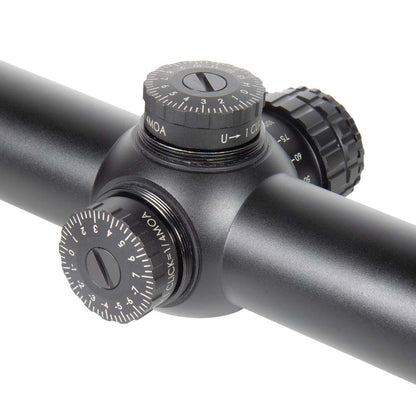

        • Resettable, Capped Turrets
        • Shockproof, Fogproof, Waterproof
        • Fully Multi-Coated Optics
        • Fast-Focus Eyepiece

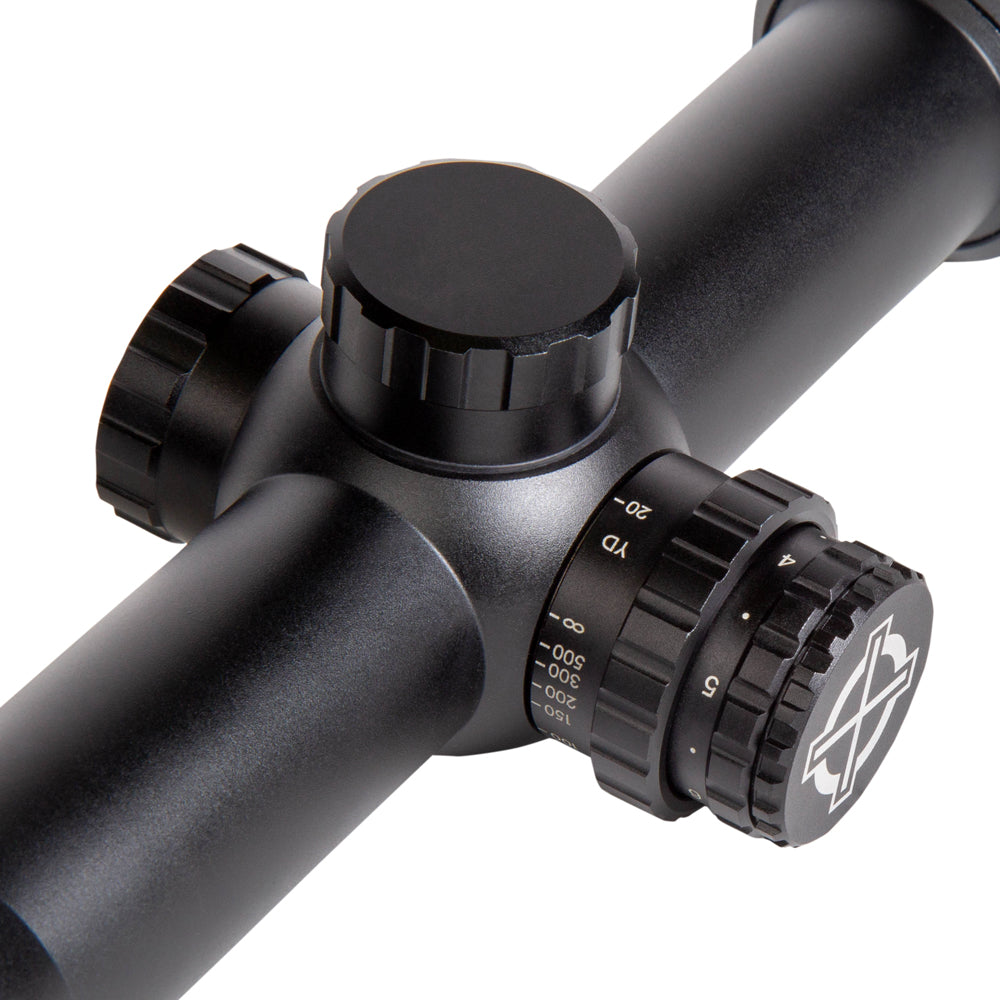

        • Adjustable Dial to Remove Parallax
        • Illuminated Red Ballistic Drop Reticle

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        Reticle Type HDR2 (Hunter Dot Reticle 2)
        Reticle Etched
        Reticle Color Red
        Illuminated (yes/no) Yes
        Reticle Brightness Settings 0-6
        Finish/Color Matte Black
        Magnification (x) 4-16x
        Objective Lens Diameter (mm) 50
        Eyepiece Diameter (mm) 43.8
        Exit Pupil Diameter (mm) 12.5 - 3.15
        Eye Relief (in/mm) 3.7 / 94.0
        Field of View (m @100m) 7.99 - 2.00
        Field of View (ft @100yd) 26.20 - 6.55
        Diopter Adjustment (+/-) +2 / -2
        Tube Diameter (in/mm) 1.18 / 30
        Parallax Settings (yds) 20 - ∞
        Windage Adjustment Range (MOA) 80
        Elevation Adjustment Range (MOA) 80
        Windage & Elevation Lock (yes/no) No
        Adjustment Value (one click =) 1/4 MOA
        Maximum Recoil (G's) 1000
        Sunshade (yes/no) No
        Nitrogen Filled (yes/no) Yes
        Shockproof (yes/no) Yes
        Fog Proof (yes/no) Yes
        Focal Plane 2nd
        IP Standard (water rating) IPX7 - waterproof and dust proof
        Body Material Aluminum 6061-T6
        Lens Material/Type Glass
        Lens Coatings Fully Multi-Coated
        Battery Type CR2032
        Battery Life (hours) 80 - 1000
        Operating Temperature (°F/°C) -4° to 149° / -20° to 65°
        Length (in/mm) 14.3 / 363.2
        Width (in/mm) 3.10 / 78.8
        Height (in/mm) 2.00 / 50.7
        Weight w/flip caps (oz) 24.1
