        SKU : SM13100DX

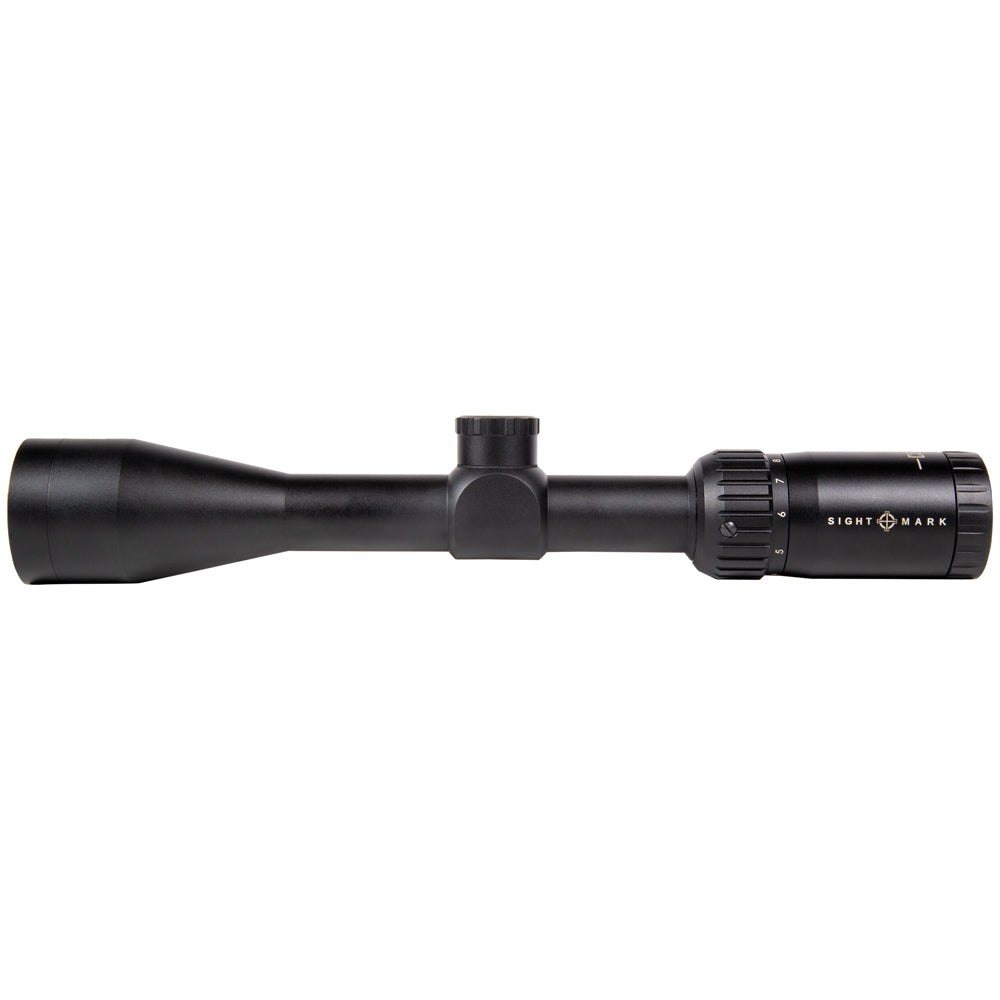

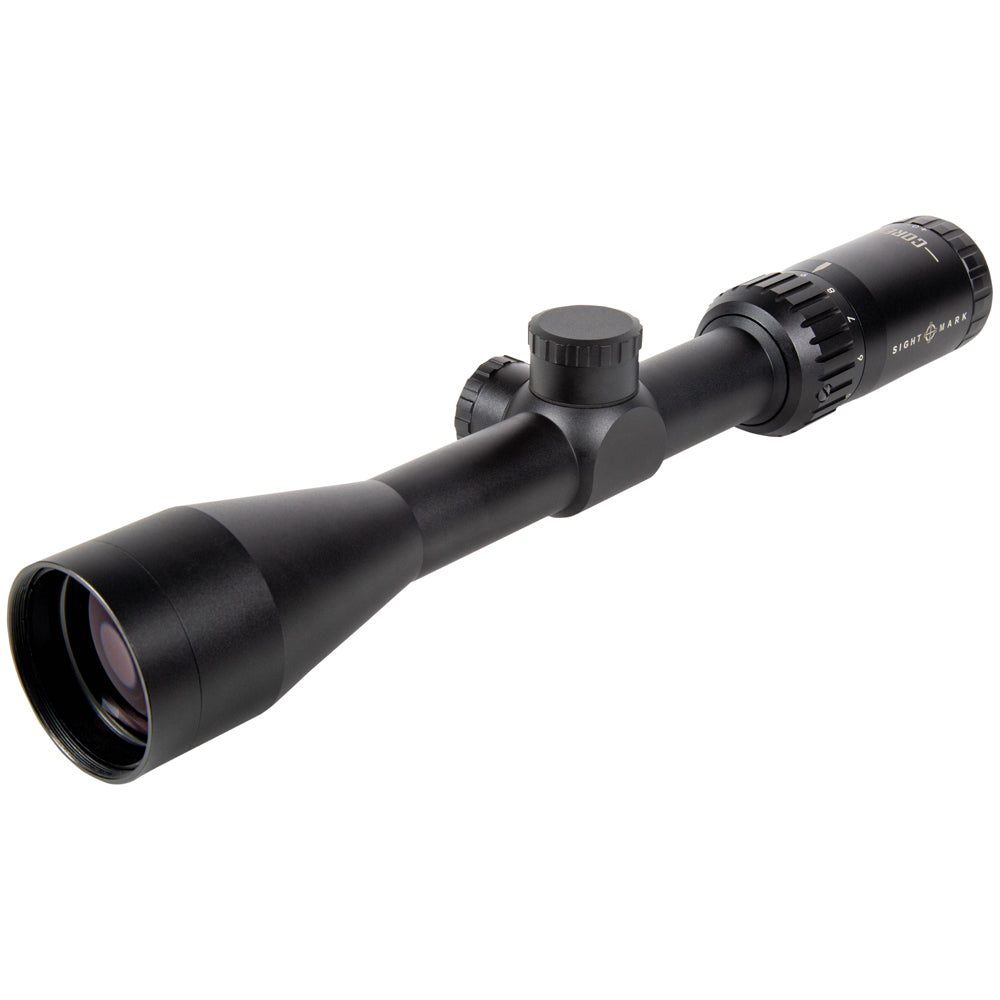

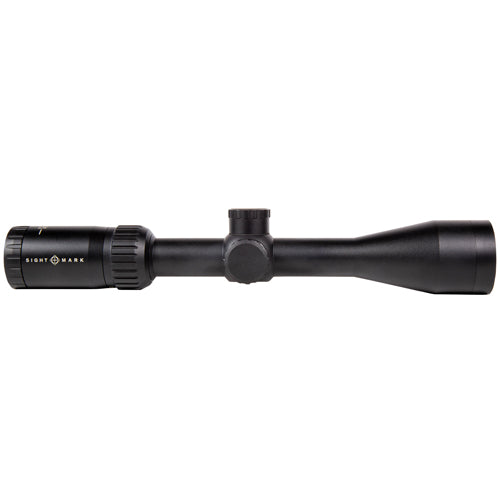

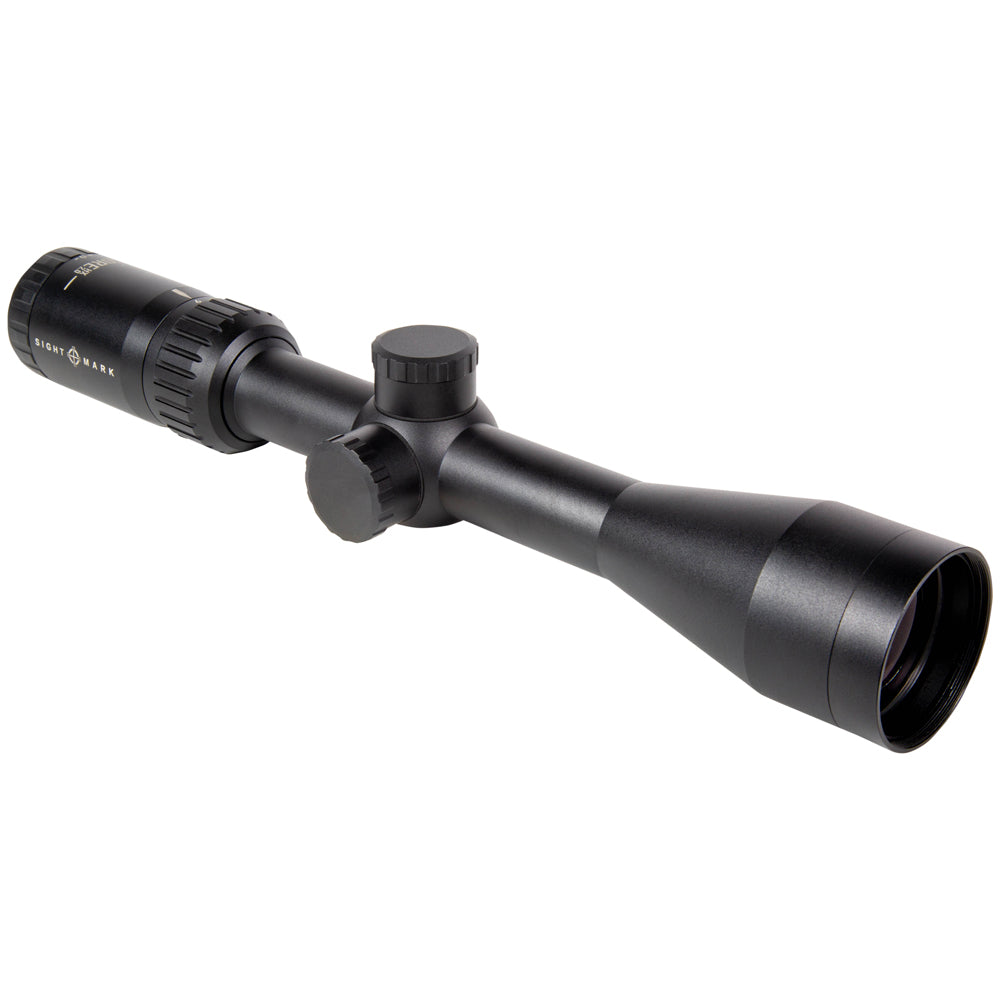

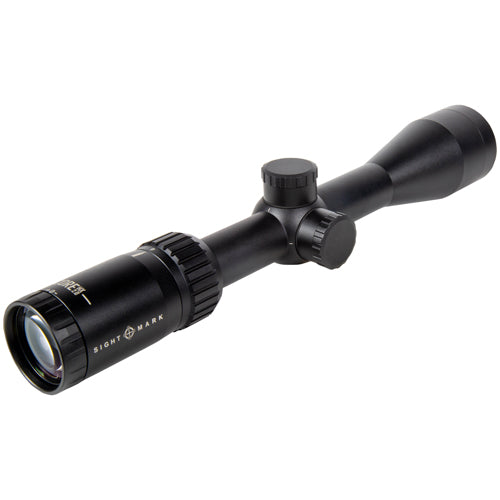

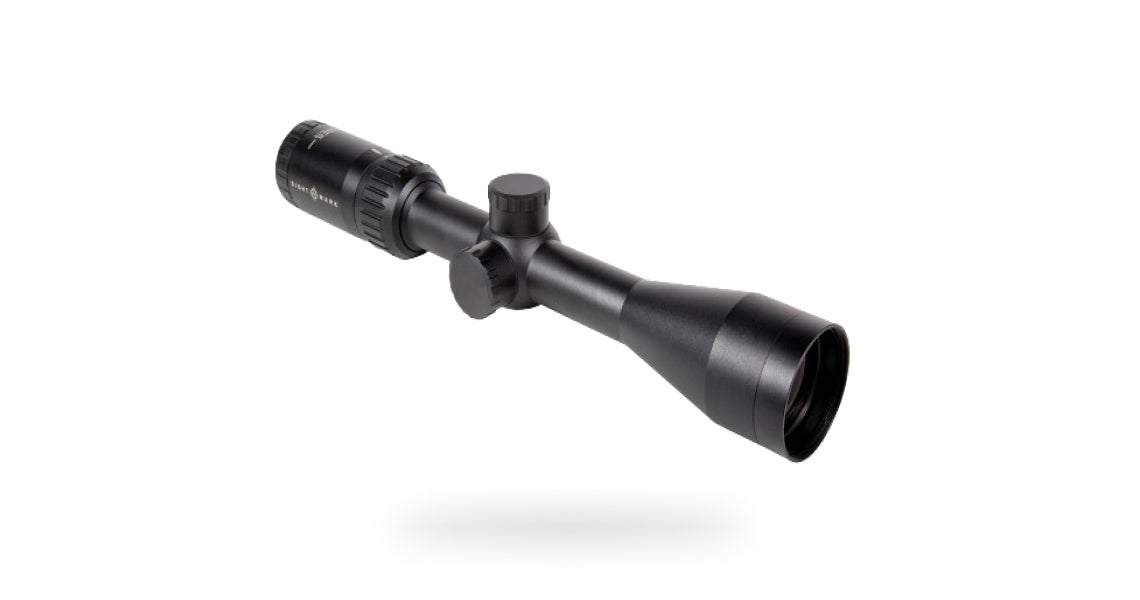

        The new Core 2.0 HX Series of riflescopes from Sightmark is an improvement on the previous Core, offering upgraded glass, finer click adjustments, and improved low light performance. Designed with versatility in mind, the Core 2.0 HX is available in either the Duplex or Hunter Dot Reticles to offer hunters of all skill levels the simplicity or sophistication they need to achieve that perfect shot.

        With its solidly built housing made of aircraft grade aluminum, the Core 2.0 HX promises to be a dependable hunting tool in any environment. This robust housing allows the Core 2.0 HX to be both waterproof and shockproof, while a nitrogen filled tube prevents fog and high quality glass enables a crystal clear image.

        Included in Package

        • Scope Rings
        • Lens Flip-Caps
        • Lens Cloth

        Product Downloads


        • Single-Piece Tube
        • Aircraft Grade Aluminum
        • Hard Anodized Finish
        • Resettable, Capped Turrets
        • Shockproof, Fogproof, Waterproof
        • Fully Multi-Coated Optics
        • Fast-Focus Eyepiece

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        Reticle Type  Duplex
        Reticle Wire
        Reticle Color NA
        Illuminated (yes/no) NA
        Reticle Brightness Settings NA
        Finish/Color Matte Black
        Magnification (x) 3-9x
        Objective Lens Diameter (mm) 40
        Eyepiece Diameter (mm) 41
        Exit Pupil Diameter (mm) 14.1 - 5.6
        Eye Relief (in/mm) 3.7 / 94.0
        Field of View (m @100m) 10.06 - 3.46
        Field of View (ft @100yd) 33.00 - 11.35
        Diopter Adjustment (+/-) '+2 / -2
        Tube Diameter (in/mm) 1 / 25.4
        Parallax Settings (yds) 100
        Windage Adjustment Range (MOA) 90
        Elevation Adjustment Range (MOA) 90
        Windage & Elevation Lock (yes/no) No

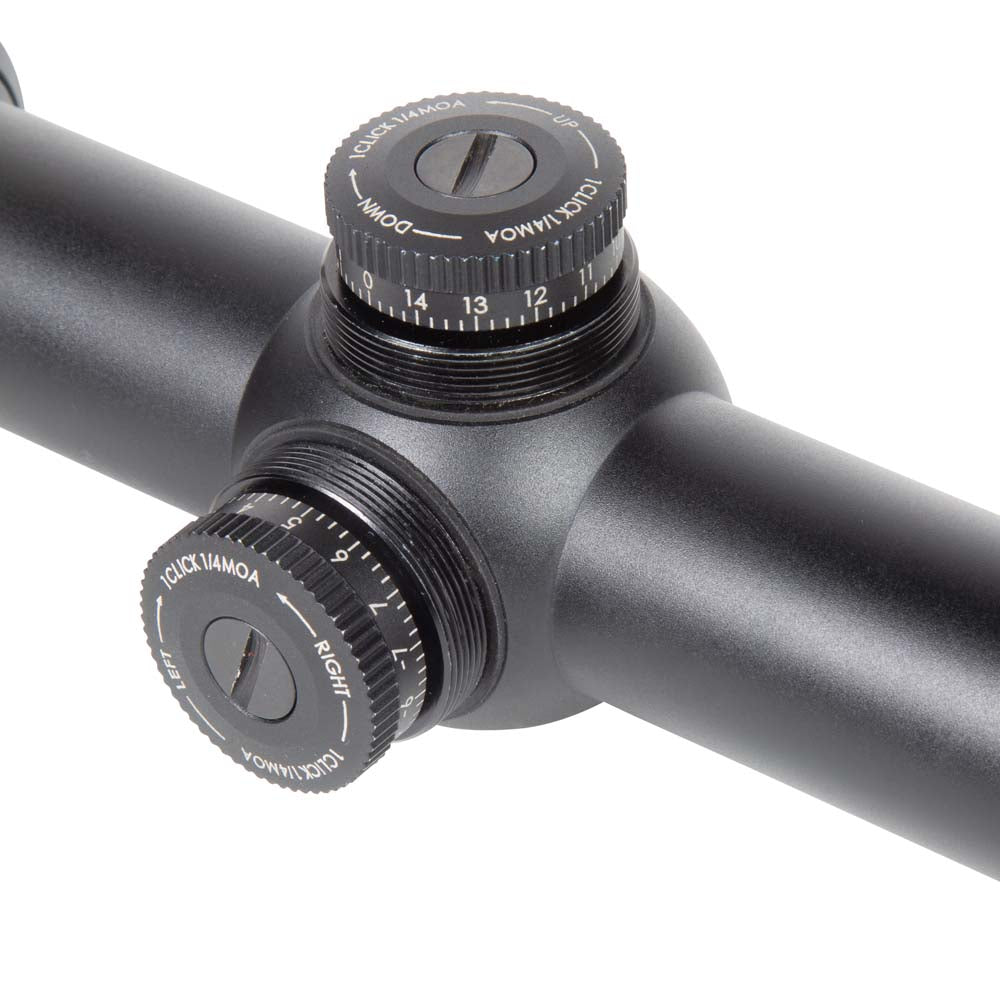

        Adjustment Value (one click =) 1/4 MOA
        Maximum Recoil (G's) 1000
        Sunshade (yes/no) No
        Nitrogen Filled (yes/no) Yes
        Shockproof (yes/no) Yes
        Fog Proof (yes/no) Yes
        Focal Plane 2nd
        IP Standard (water rating) IPX7 - waterproof and dust proof
        Body Material Aluminum 6061-T6
        Lens Material/Type Glass
        Lens Coatings Fully Multi-Coated
        Battery Type NA
        Battery Life (hours) NA
        Operating Temperature (°F/°C) '-4° to 149° / -20° to 65°
        Length (in/mm) 12.25 / 311.2
        Width (in/mm) 1.85 / 47.2
        Height (in/mm) 1.85 / 47.2
        Weight w/flip caps (oz) 16.4
