        SKU : SM13028TMD

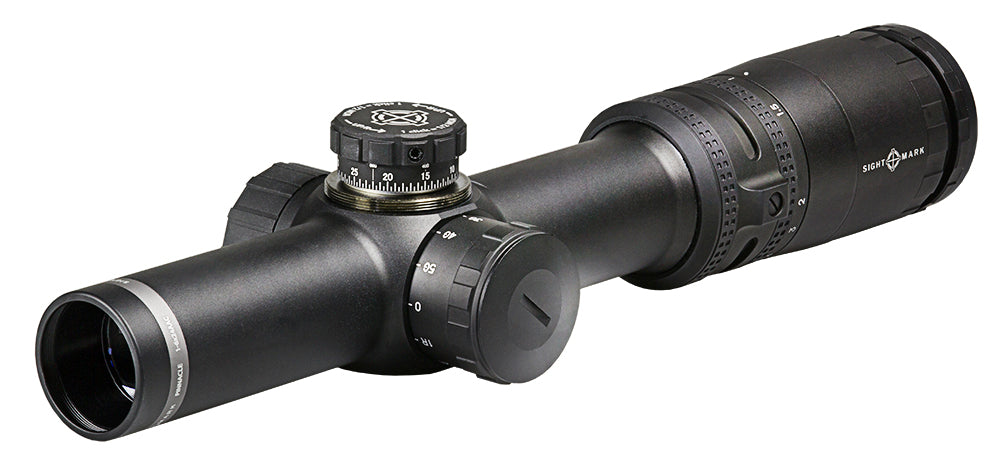

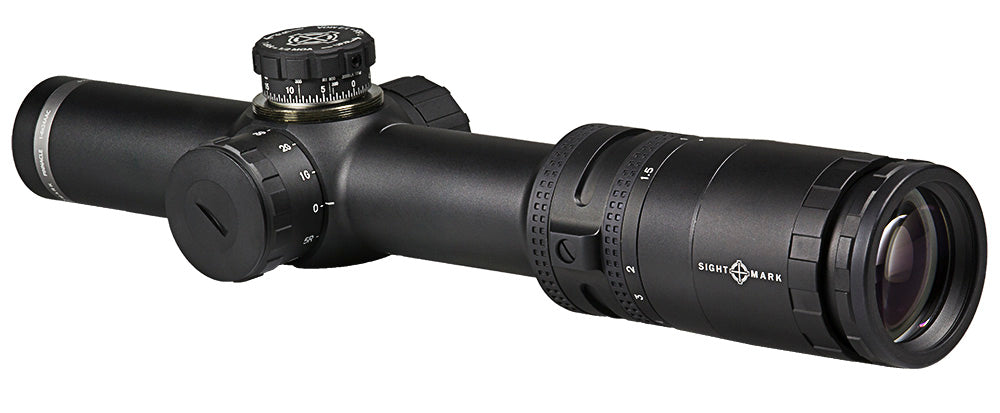

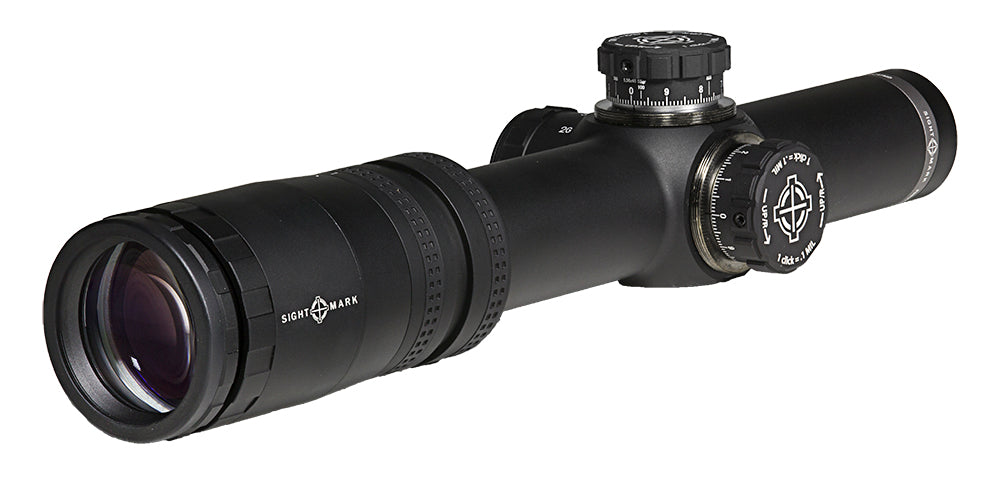

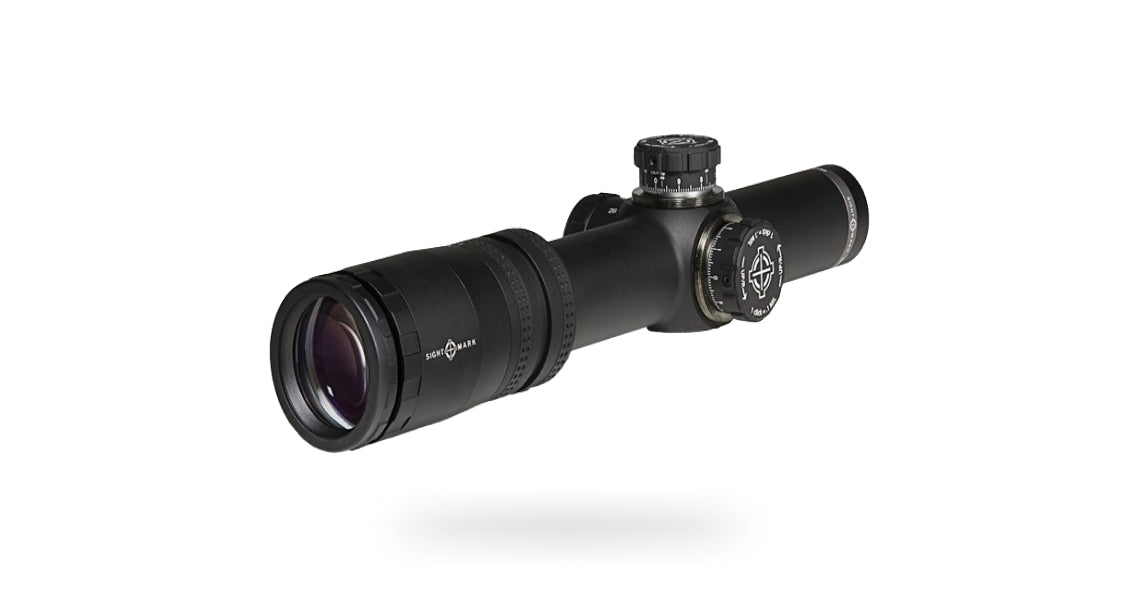

        Engineered with Sightmark’s Triple Duty™ concept, the 1-6x24 TMD Riflescope features a Tactical Mil-Dash first-focal plane reticle for rangefinding and quick target acquisition in competition, tactical or hunting scenarios. Precision-machined with high definition optics and premium Japanese glass, the Pinnacle 1-6x24 TMD offers crystal clear resolution from edge to edge, free from distortions at any magnification. The red/green illuminated reticle remains in the same visual proportion to the target across the riflescope’s entire magnification range, allowing shooters to rangefind and shoot with holdovers at any magnification effectively. Its true 1x provides both-eyes-open usage for increased situational awareness at close range, while the 6x optical system hones in on far-away targets with ease. The device includes fully adjustable ballistic-tested BDC dials for both 5.56x45 55gr and 7.62x51 180gr loads. The riflescope boasts constant eye relief and a 6:1 zoom ratio for long-range shots, a wide field of view and 5 brightness settings for unmatched clarity in bright to lowlight conditions. Waterproof, fog proof and shock proof, it is fully submergible to 1m of water. Shooters have the luxury of a capped or exposed turret option as well as scratch-resistant lenses, helping to further protect the optic from impact.

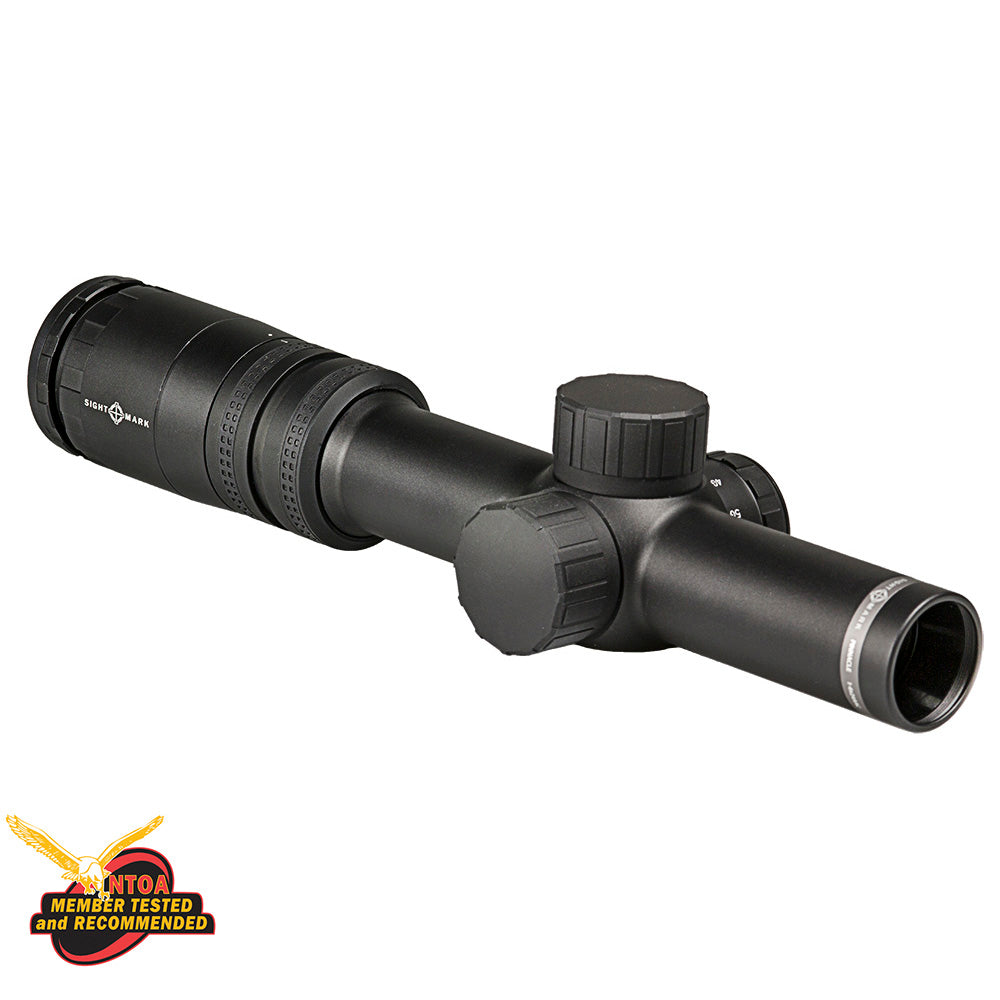

        The Pinnacle has been tested and comes recommended by the National Tactical Officers Association to enhance the performance of law enforcement personnel and tactical response teams.

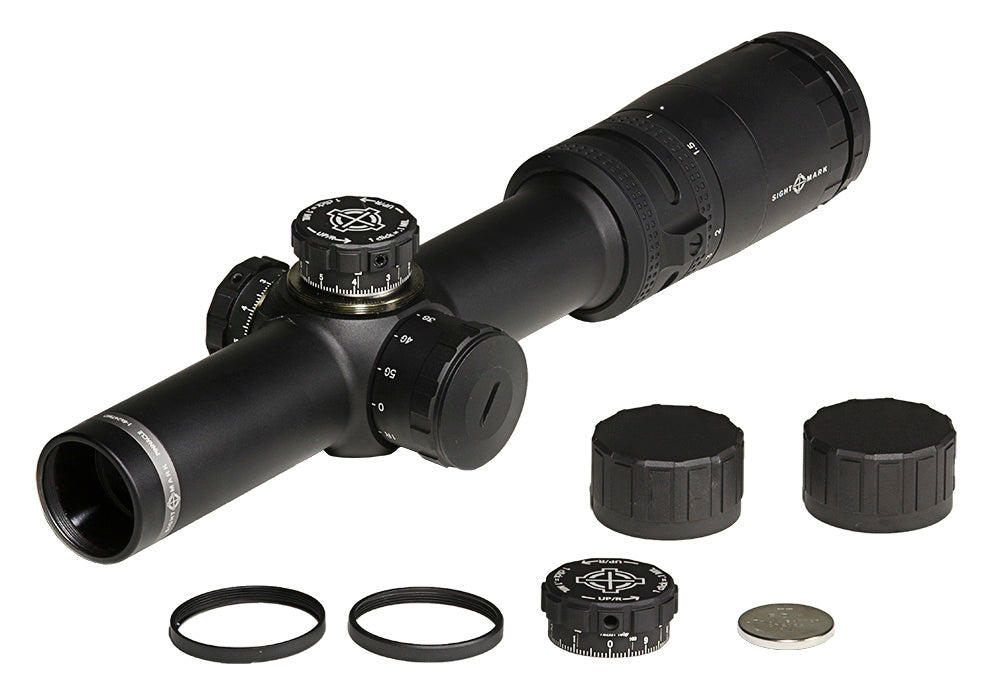

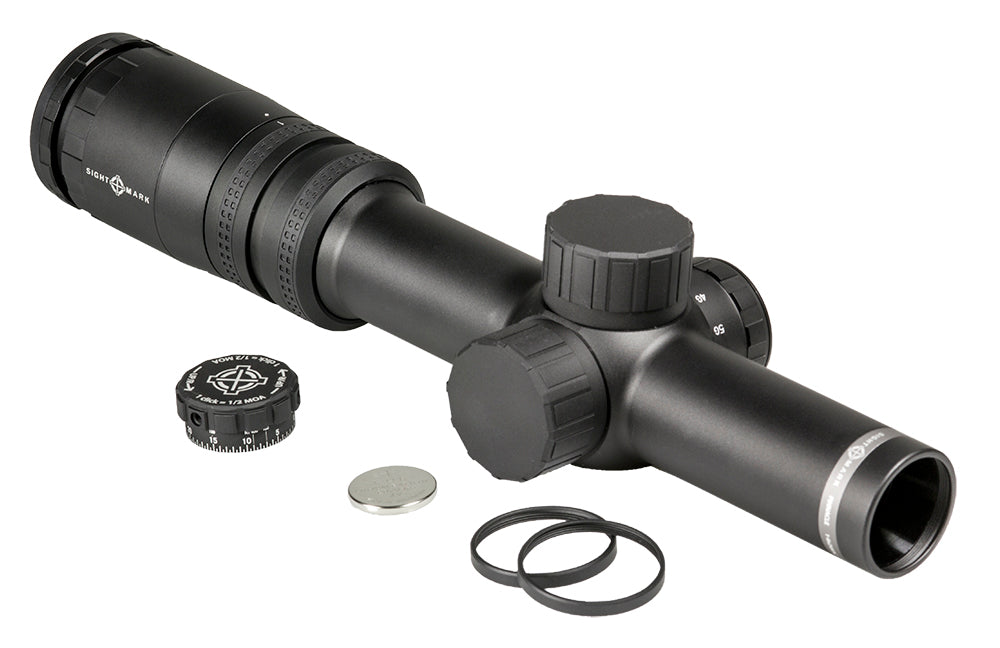

        Included in Package

        • 5.56x45 55gr BDC dial
        • 7.62x51 180gr dial
        • Turret Caps (2)
        • Thread Protector (2)
        • CR2032 Battery
        • Manual

        Batteries Used

        • Type: CR2032
        • Quantity: 1

        Product Downloads

        Features

        • Premium Japanese glass
        • Fully multi-coated optics
        • Scratch resistant lenses
        • Constant eye relief
        • 6:1 Zoom Ratio
        • First focal plane reticle
        • Capped or exposed turret option

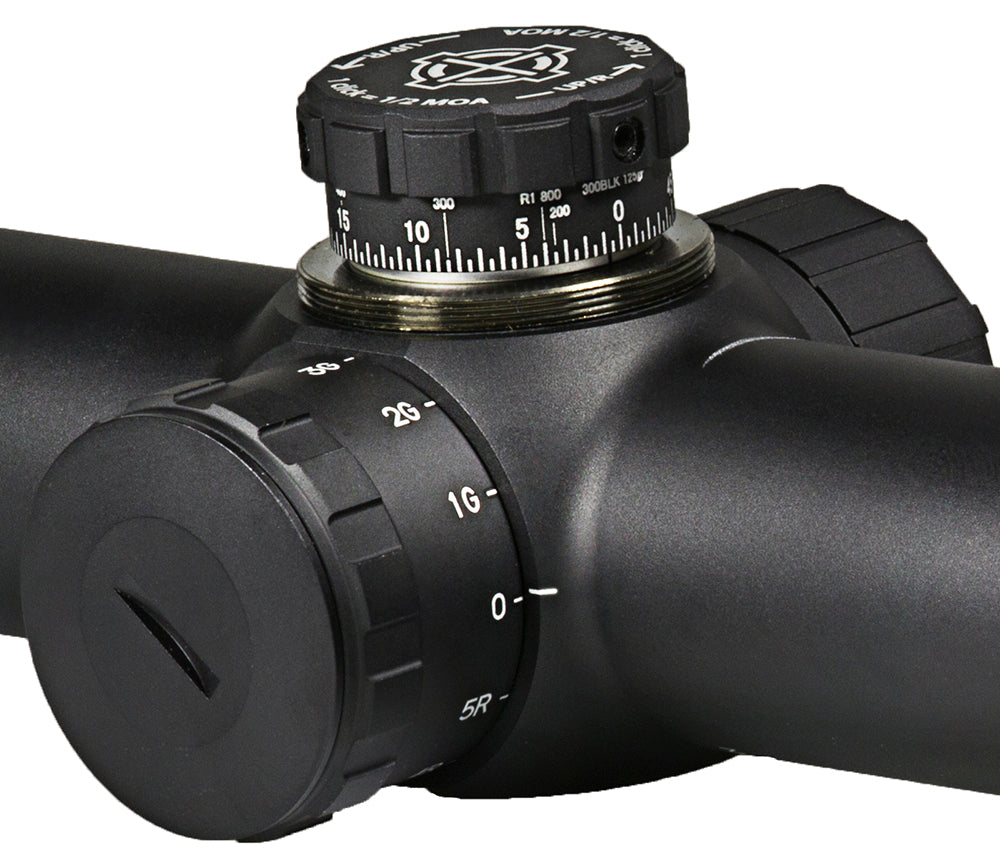

        • 5.56 and 7.62 Ballistic matched BDC dials
        • Red or Green Illuminated reticle
        • Fast focus eyepiece
        • Waterproof, fogproof, shockproof
        • 30mm single piece tube
        • Precision machined
        • Aircraft grade aluminum
        • Hard anodized finish



        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        California Disclaimer

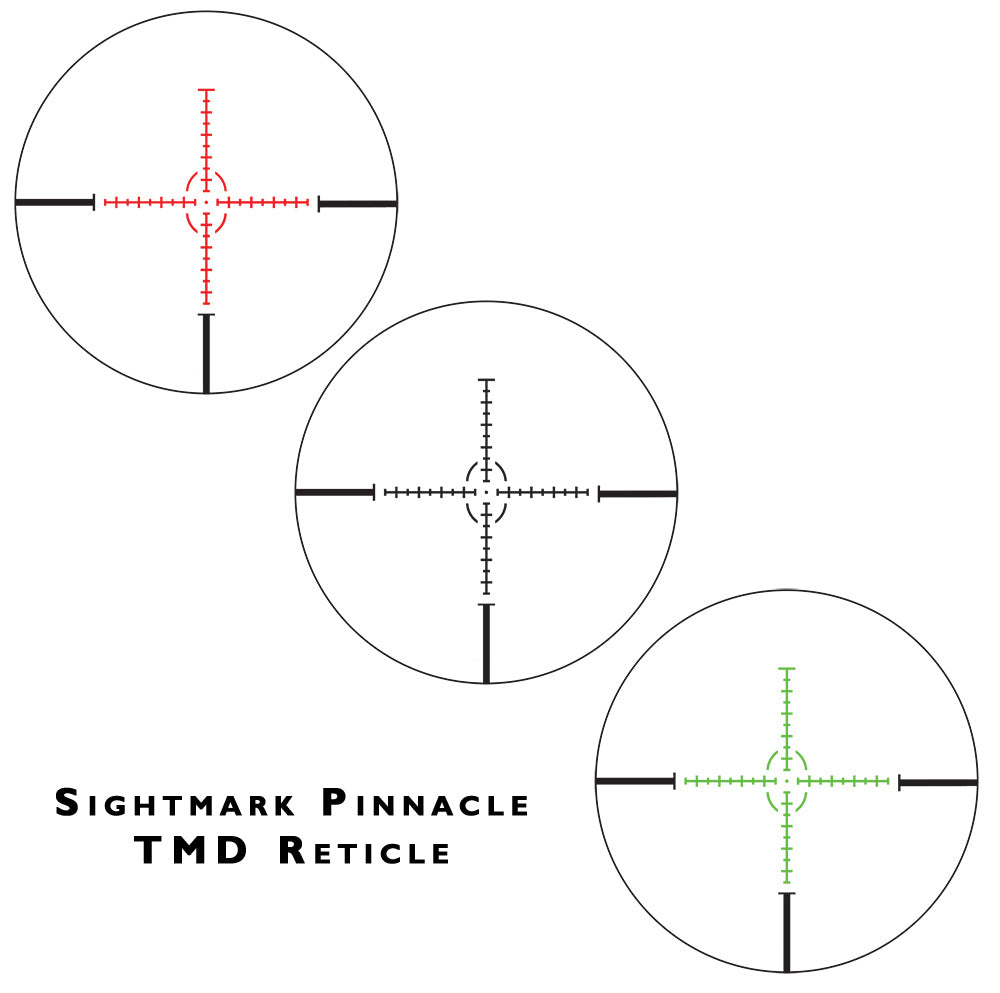

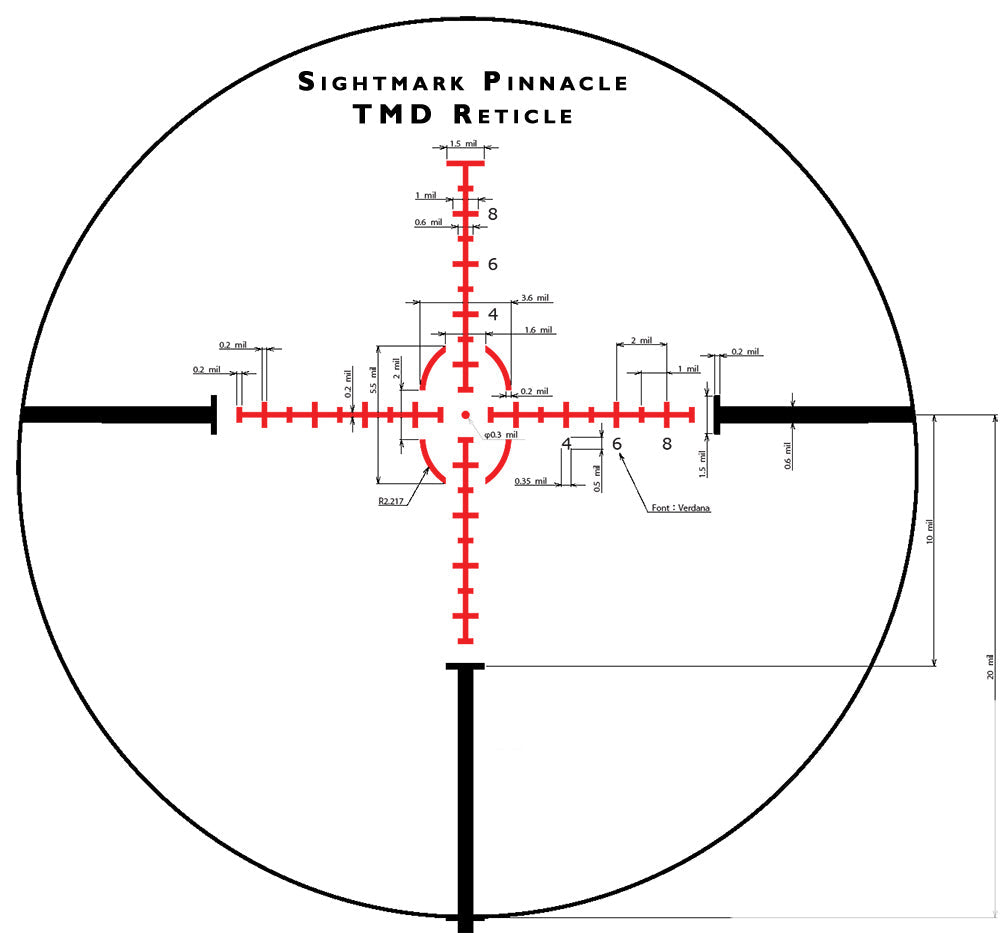

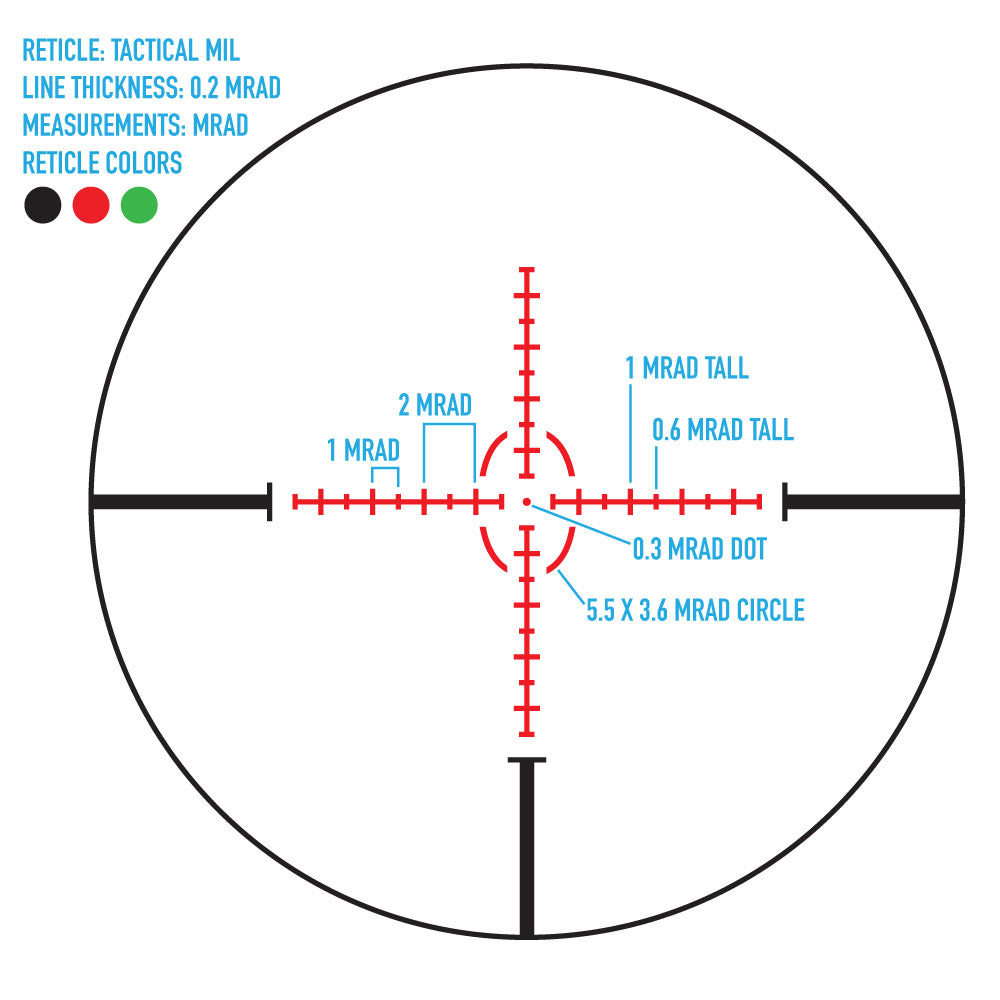

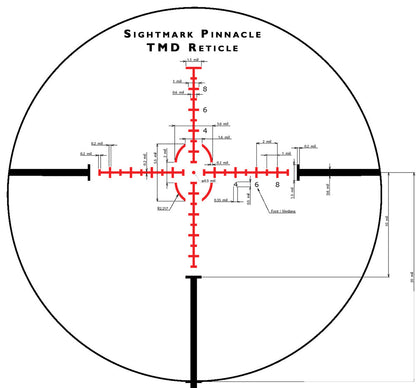

        Reticle, Type TMD
        Reticle, Color Red/Green
        Reticle, Illuminated yes
        Setting, Brightness 5
        Finish/Color Matte black
        Magnification 1 - 6 x
        Diameter, Objective Lens 24 mm
        Diameter, Eyepiece 33 mm
        Diameter, Exit Pupil 24 - 4 mm
        Eye Relief 4.1 / 103 in/mm
        Field of View 29.7 - 5.2 m @100m
        Field of View 29.7 - 5.2 m @100m
        Field of View 29.7 - 5.2 m @100m
        Diopter Adjustment +3.5 to -3.5
        Diameter, Tube 30 mm
        Parallax Setting 100 yds
        Windage Range of Adjustment 40 MRAD
        Elevation Range of Adjustment 40 MRAD
        MRAD Adjustment, 1 click 0.1 MRAD
        Maximum Recoil .338 Win
        Battery Type CR2032
        Battery Life Red: (high) 50 - (low) 2000 / Green: (high) 30 - (high) 800 hours
        Battery Voltage 3 V
        Sunshade no
        Nitrogen Purged yes
        Shockproof yes
        Fog Proof yes
        Focal Plane 1st
        IP Standard IP67 (submergible to 1m)
        Body Material Aluminum
        Material, Lens glass
        Lens Coating Fully multi-coated
        Operating Temp,?F/?C -20 to 160 / -29 to 71 F/C
        Length 10.2 / 260 in/mm
        Width 2.89 / 73.5 in/mm
        Height 2.2 / 56 in/mm
        Weight 20.4 oz

        -

        -

        -
