        SKU : SM13140CR1

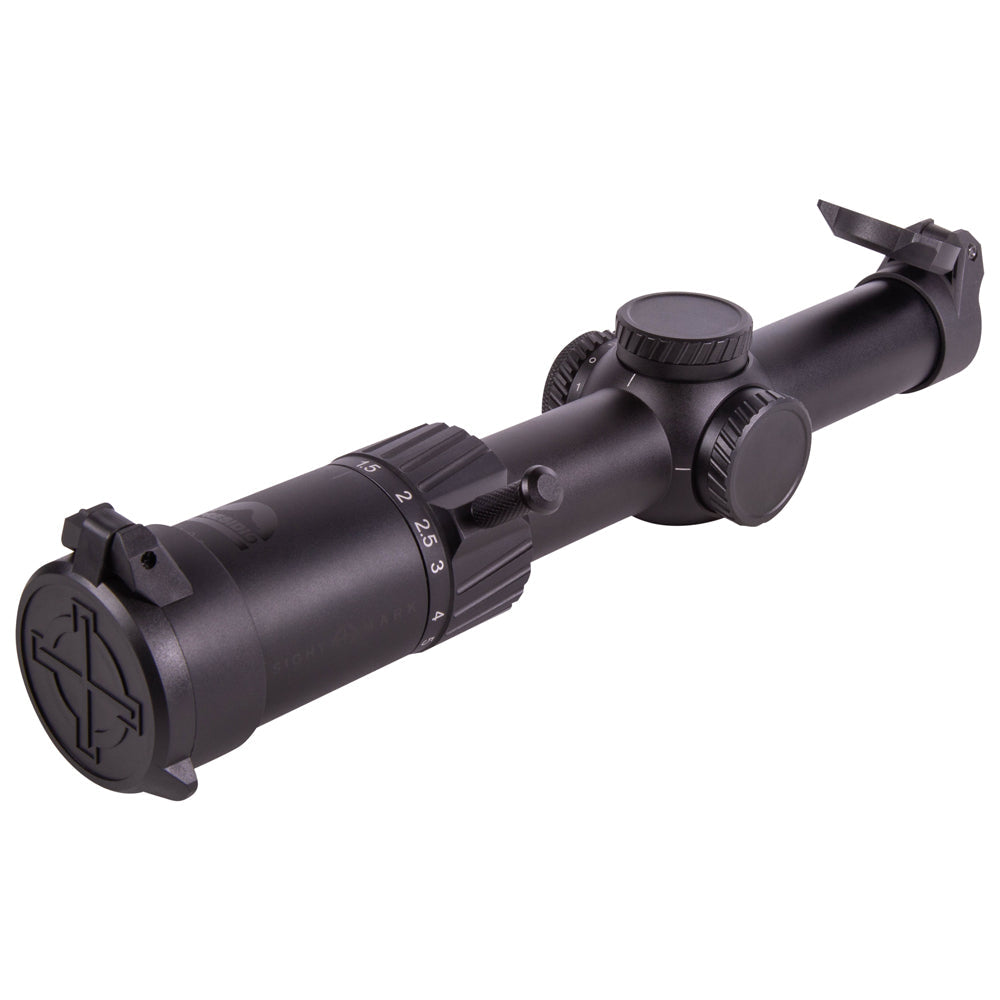

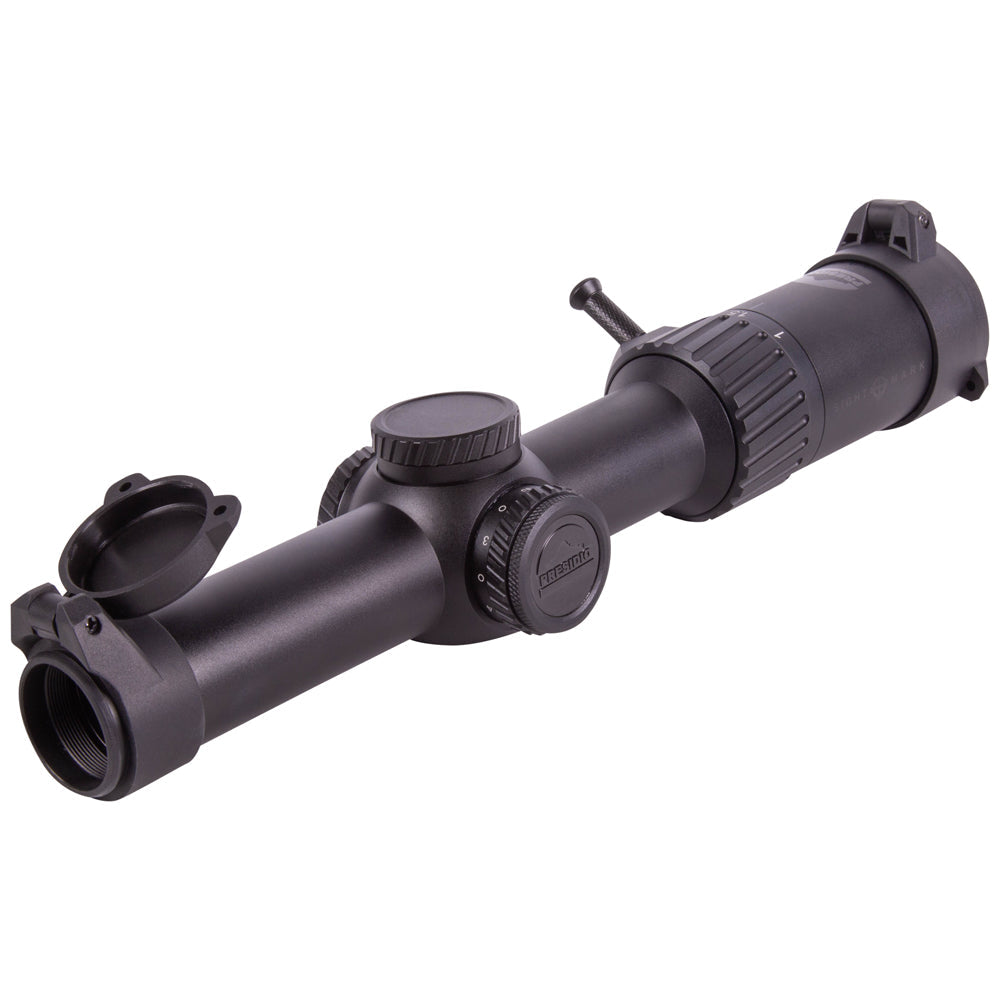

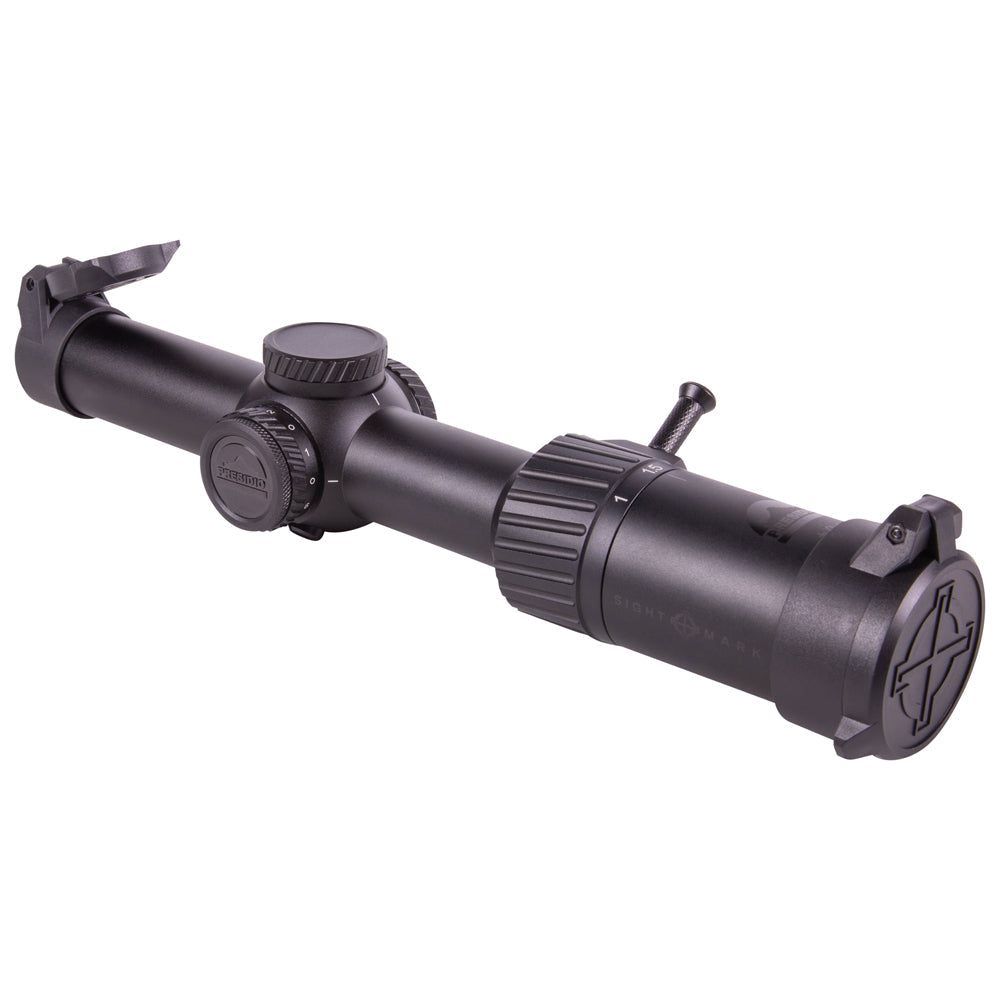

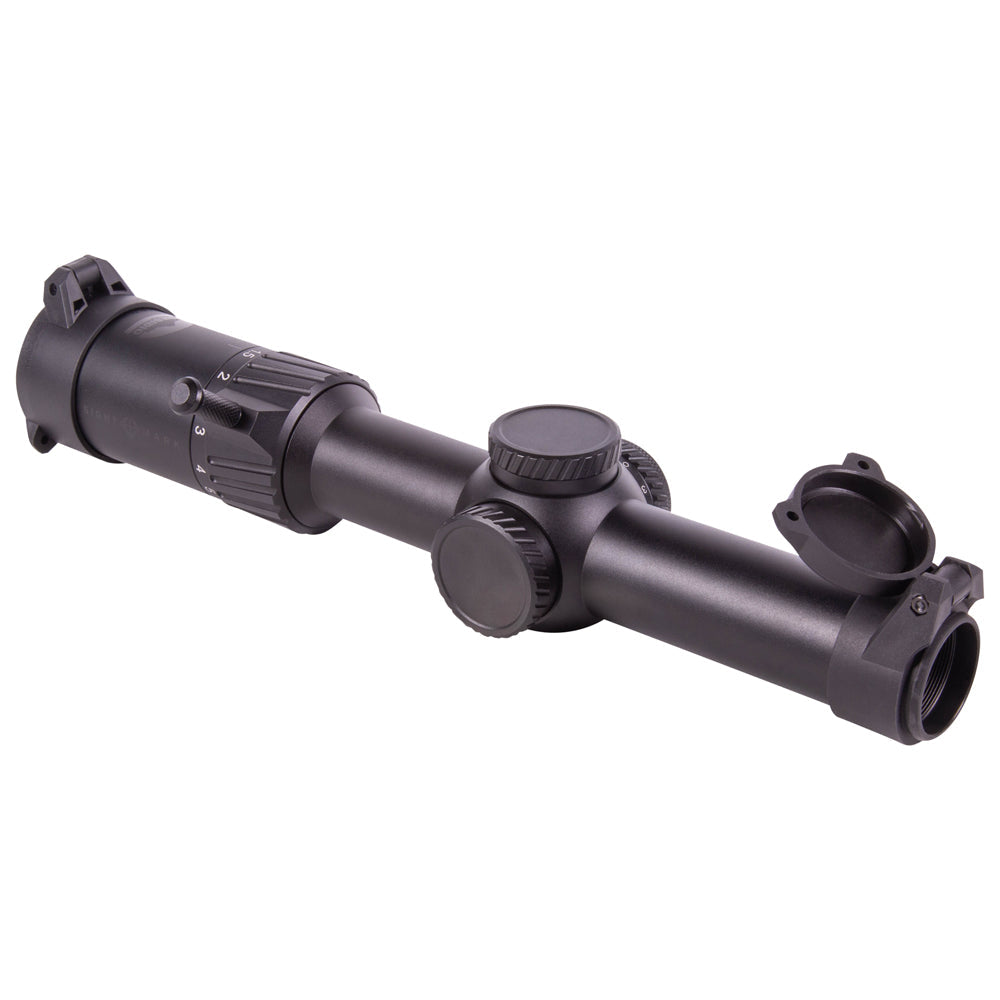

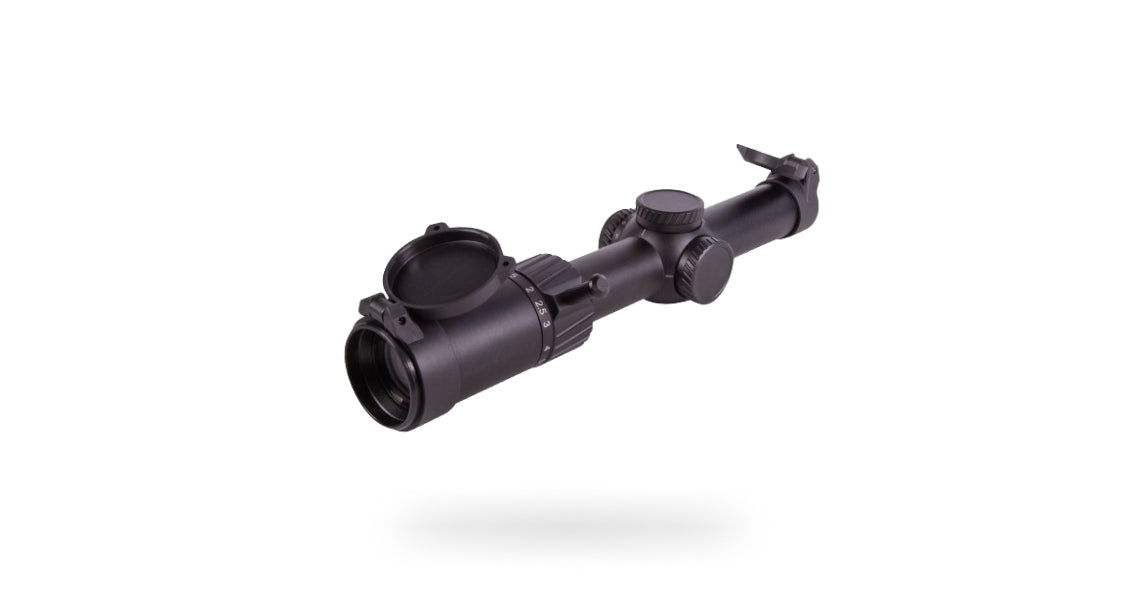

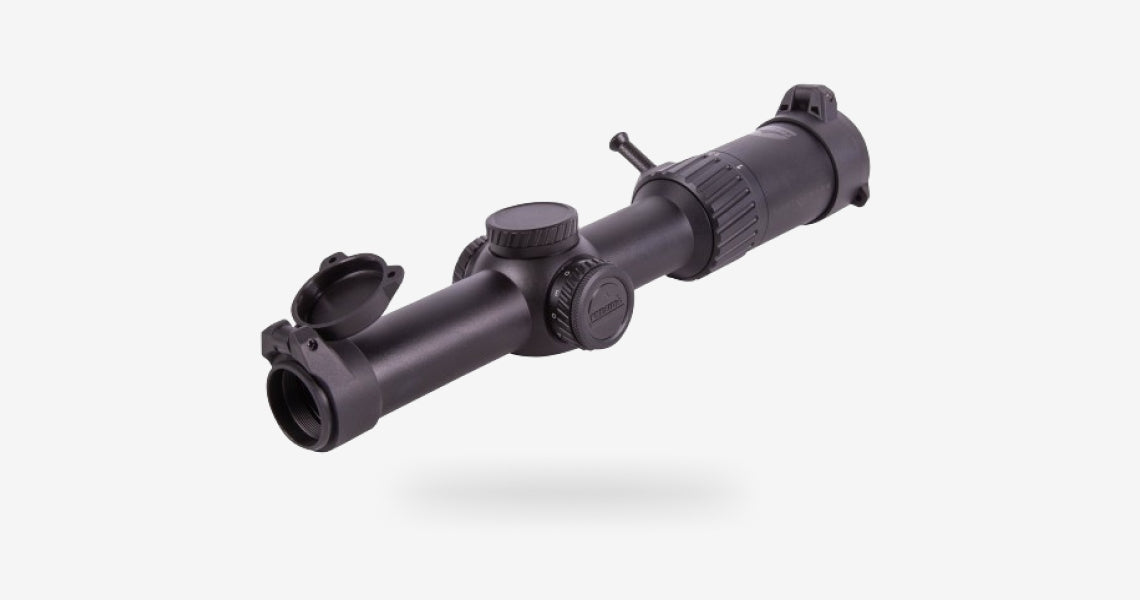

        Offering a wide magnification range for close to mid-range shooting, the Presidio 1-6x24 combines elite performance with a sleek, stealthy appearance. Designed for shooters, the Presidio 1-6x features a second focal plane BDC reticle calibrated for 55gr 5.56/.223, red reticle illumination for contrast against targets and low light shooting, and fully multi-coated optics.

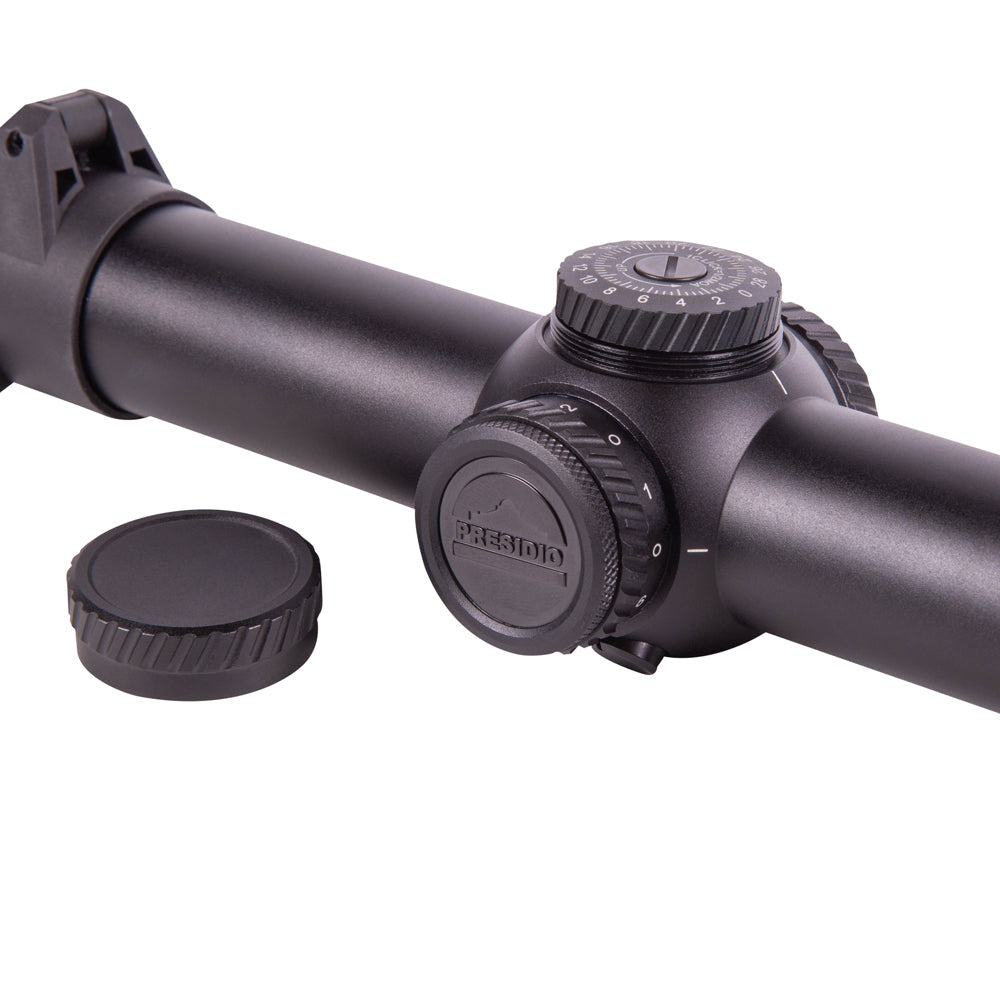

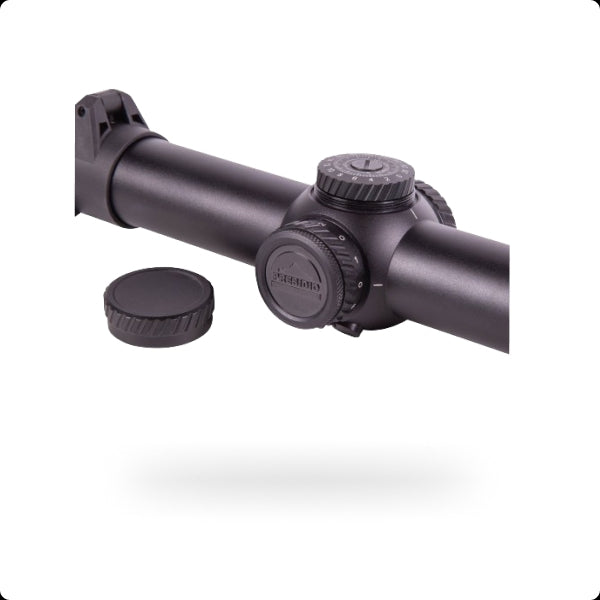

        Its capped, low-profile turrets produce clear, audible clicks and feature aggressive exterior ‘knurling’, to add a distinct tactile feel to give shooters greater confidence when adjusting their windage and elevation. With built-in zero stops, and a single piece, 30mm tube and aircraft grade aluminum construction, the Presidio is extremely accurate and durable.

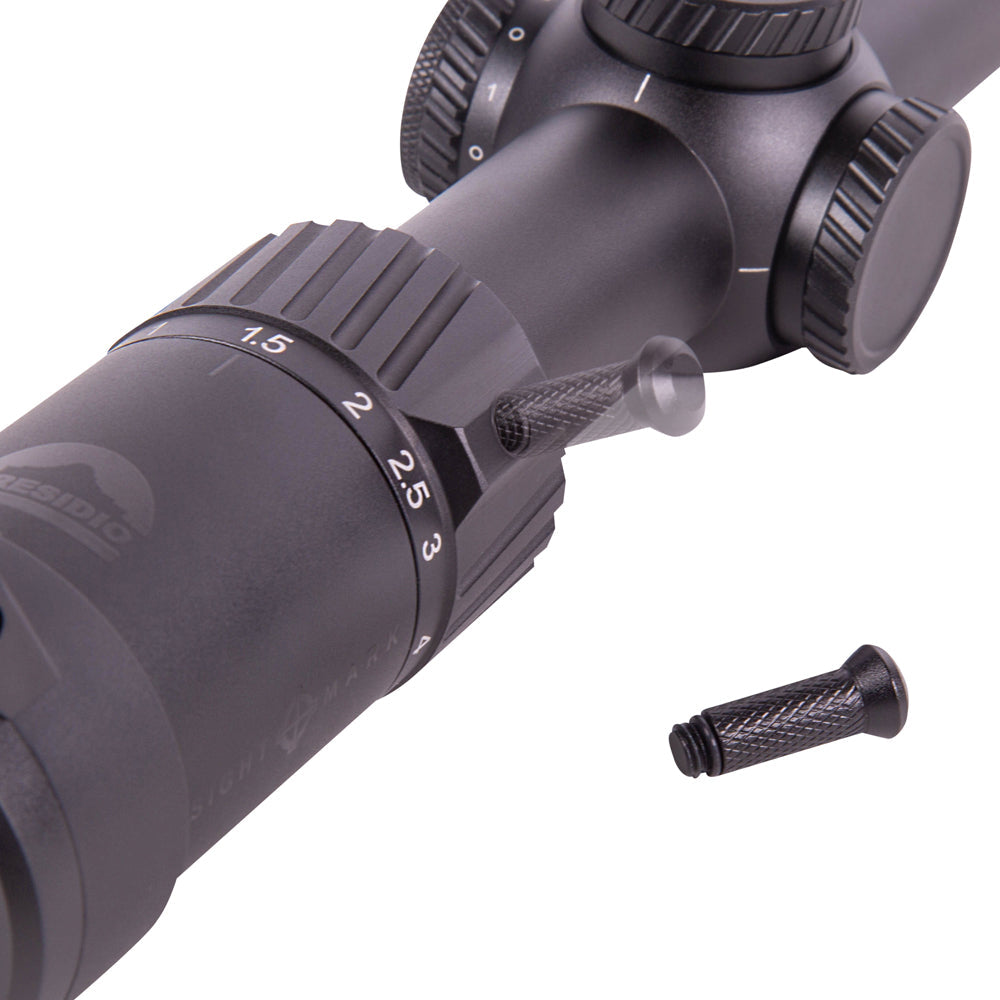

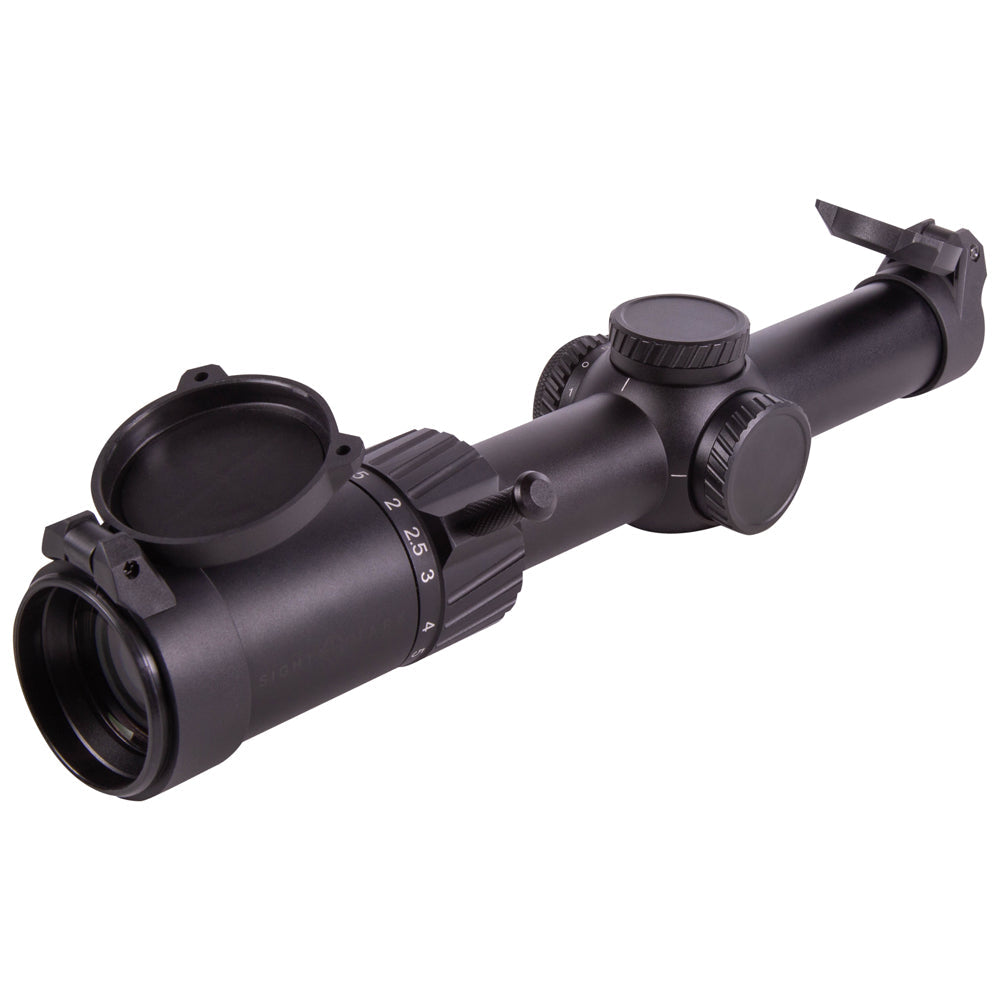

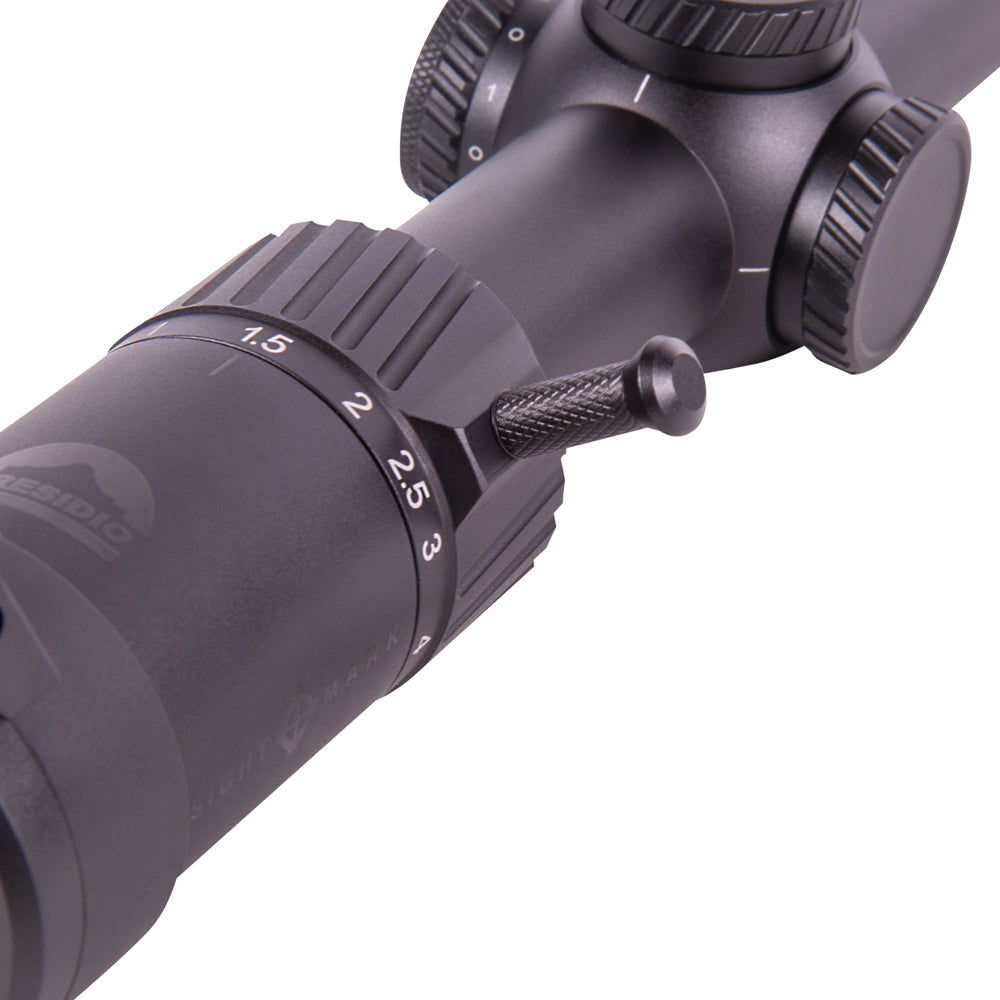

        IP67 waterproof and dust-proof, the Presidio is ideal for a variety of firearms, including ARs and bolt actions rifles. The Presidio 1-6x24 CR1 includes a flip-up lens cap, a handy throw lever and one CR2032 battery.

        Included in Package

        • Flip up lens covers
        • Throw lever attachment
        • Batteries Used: CR2032
        • Quantity: 1

        Batteries Used

        • Type: CR2032
        • Quantity: 1

        Product Downloads

        Features

        • BDC reticle calibrated for .223 55gr
        • 6:1 zoom ratio
        • Capped, tactile, low-profile turrets
        • Second focal plane reticle
        • Red illuminated reticle
        • Single-piece 30mm tube
        • Aircraft-grade Aluminum
        • Shockproof
        • IP67-Rated dustproof and waterproof

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        California Disclaimer

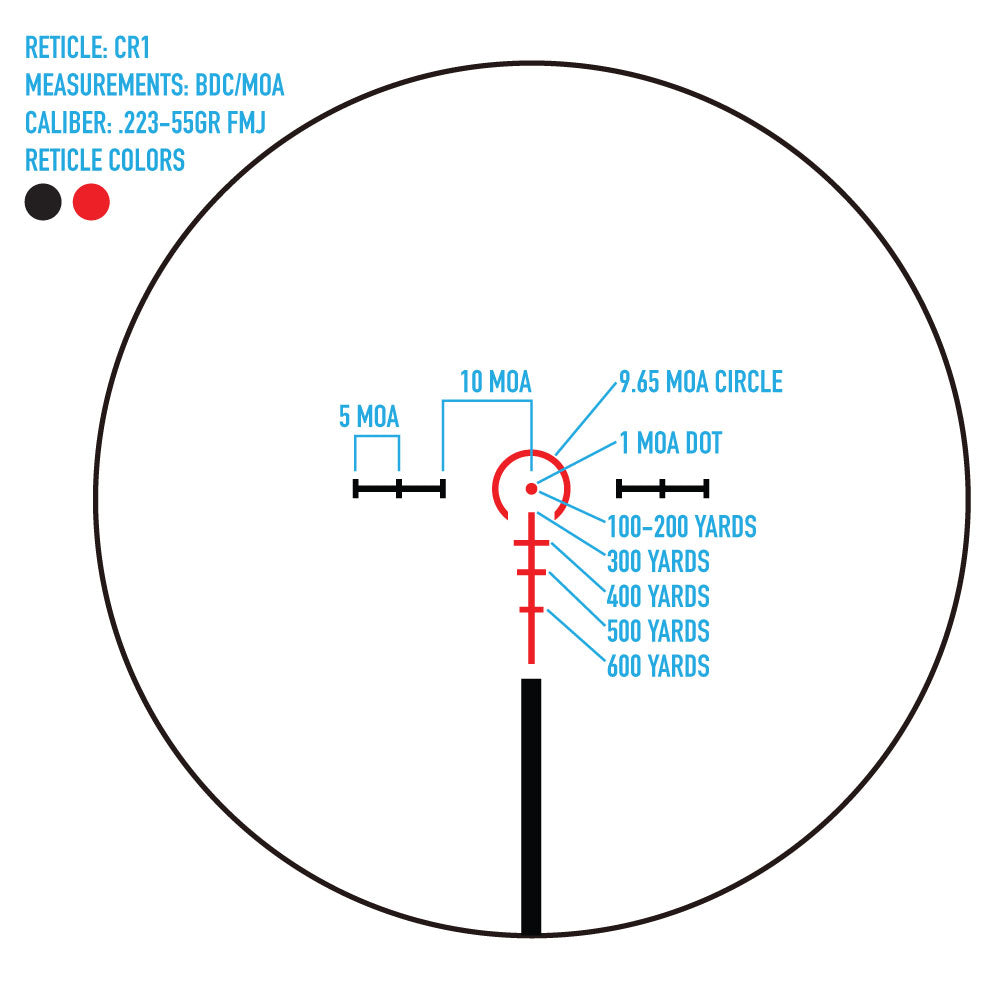

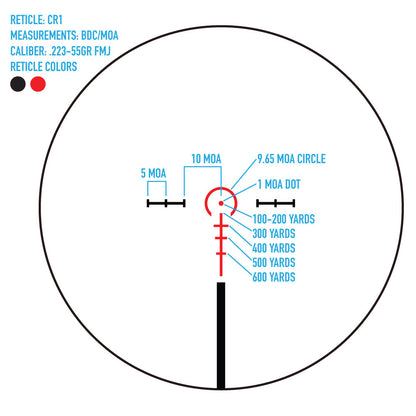

        Reticle type CR1
        Reticle Etched glass
        Reticle color  Red
        Illuminated (yes/no) Yes
        Reticle brightness settings  0-6
        Magnification (x)  1-6
        Objective lens diameter (mm) 24
        Eyepiece diameter (in/mm) 35.5mm
        Exit pupil diameter (mm) 29.14
        Eye relief (in/mm) 2.8-3.3 / 72-85mm
        Field of view (m @100m) 33.89-5.59m
        Field of view (ft @100yd) 111.2-18.33ft
        Diopter adjustment (+/-) +2/-2
        Tube diameter (mm/in) 30 / 1.18
        Parallax setting (yds) 100
        MOA adjustment (one click =)  1/2 MOA
        Windage adjustment range (MOA)  140
        Elevation adjustment range (MOA)  140
        Windage & Elevation lock (yes/no)  No
        Maximum caliber .338
        Battery type  CR2032
        Battery life (hours)  150-500 hrs
        Battery voltage (V)  3
        Sunshade (yes/no) No
        Nitrogen filled (yes/no) Yes
        Shockproof (yes/no) Yes
        Fog proof (yes/no) Yes
        Focal plane  2nd
        IP Standard (water rating) IP67 - waterproof and dustproof
        Body material  Aluminum
        Finish/color Matte black
        Lens coatings Fully multi-coated
        Operating temperature (°F/°C) -20 to 160 / -29 to 71 F/C
        Length (in/mm) 10.48 / 266.41mm
        Width (in/mm) 2.4 / 61.16mm
        Height (in/mm) 1.83 / 46.5mm
        Weight (oz) 18 oz
