        SKU : SM13120AR556

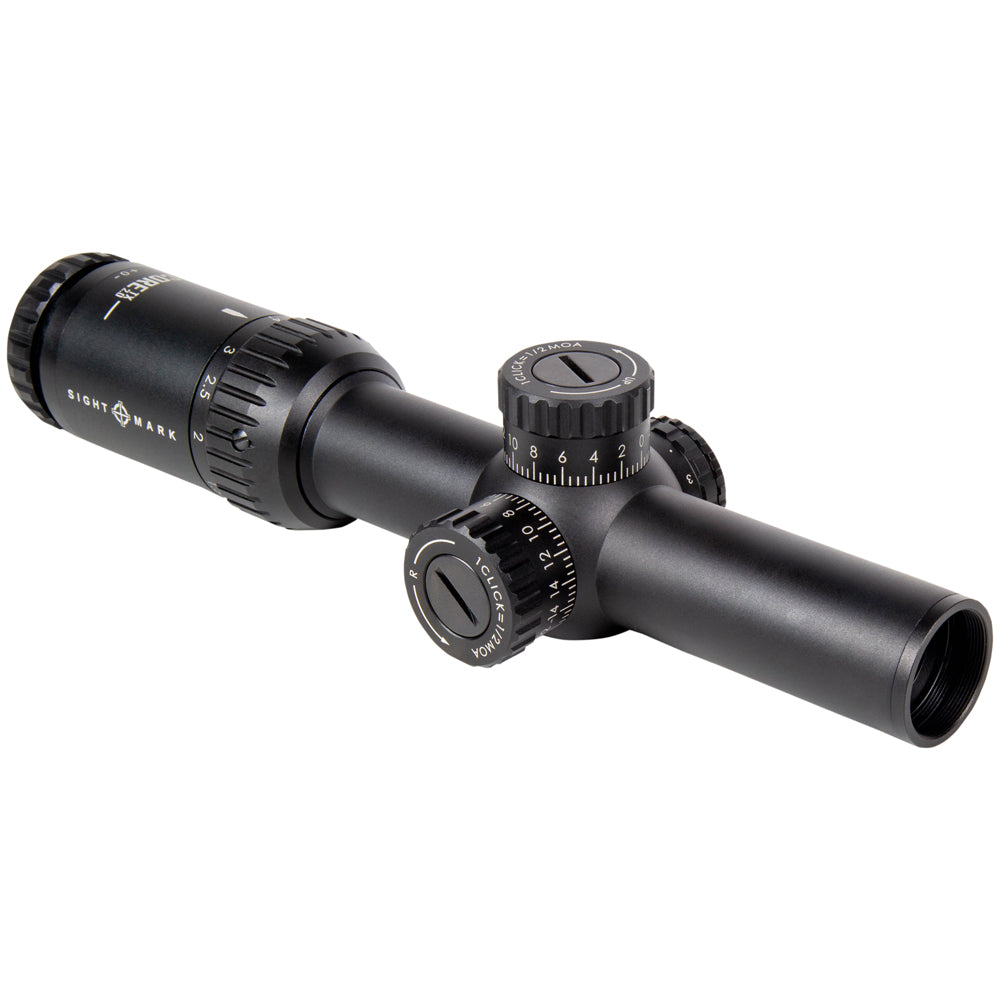

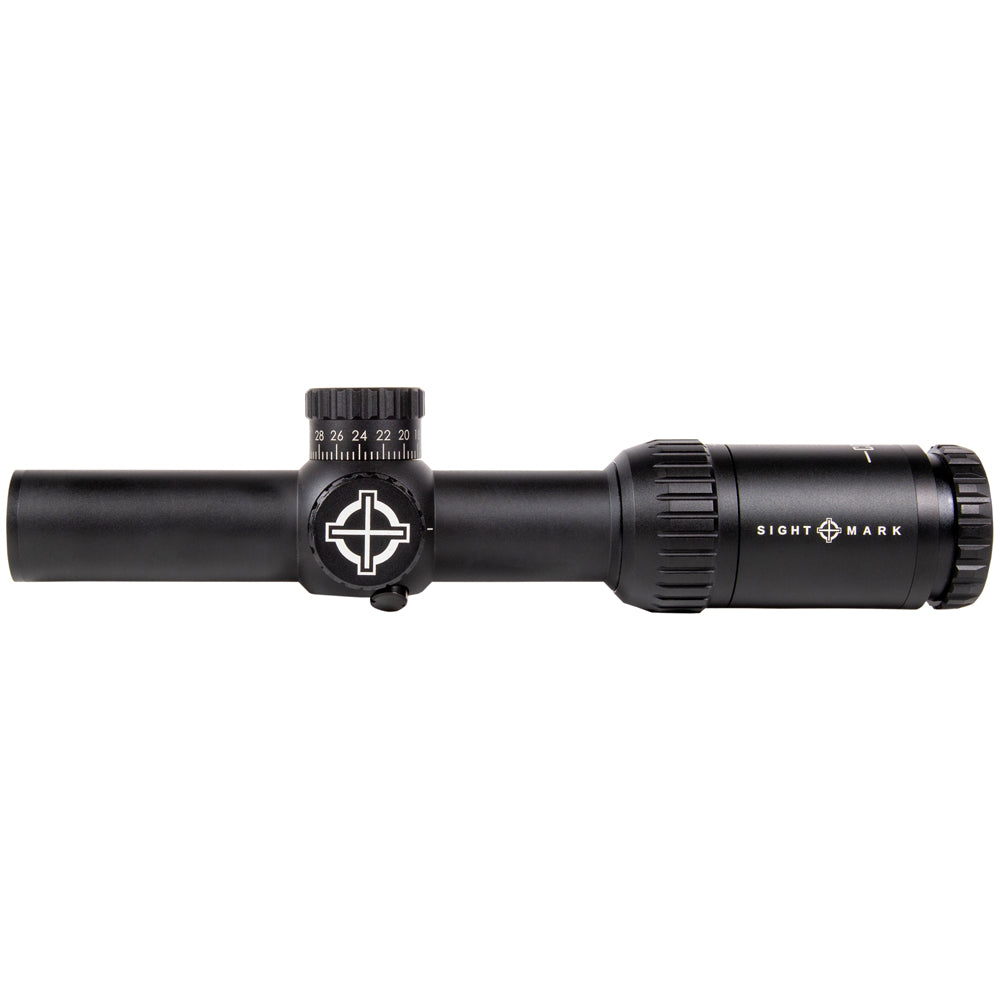

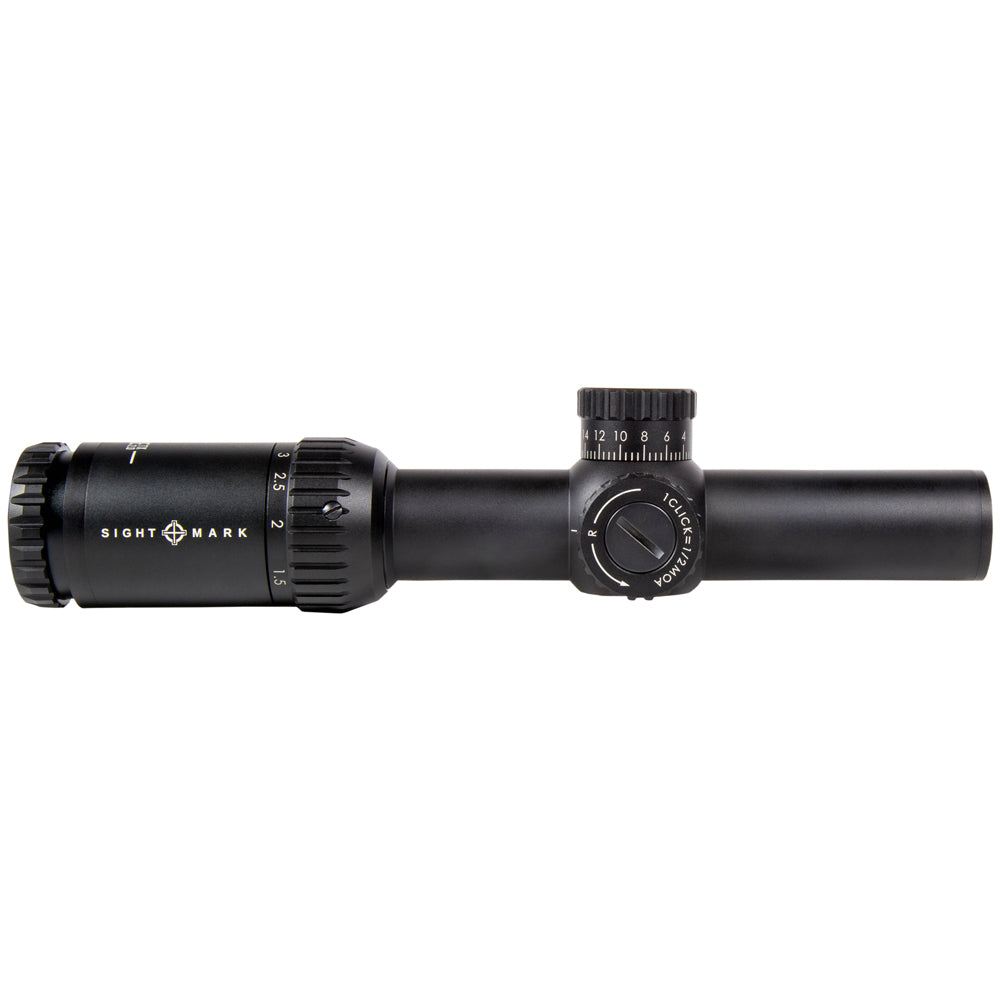

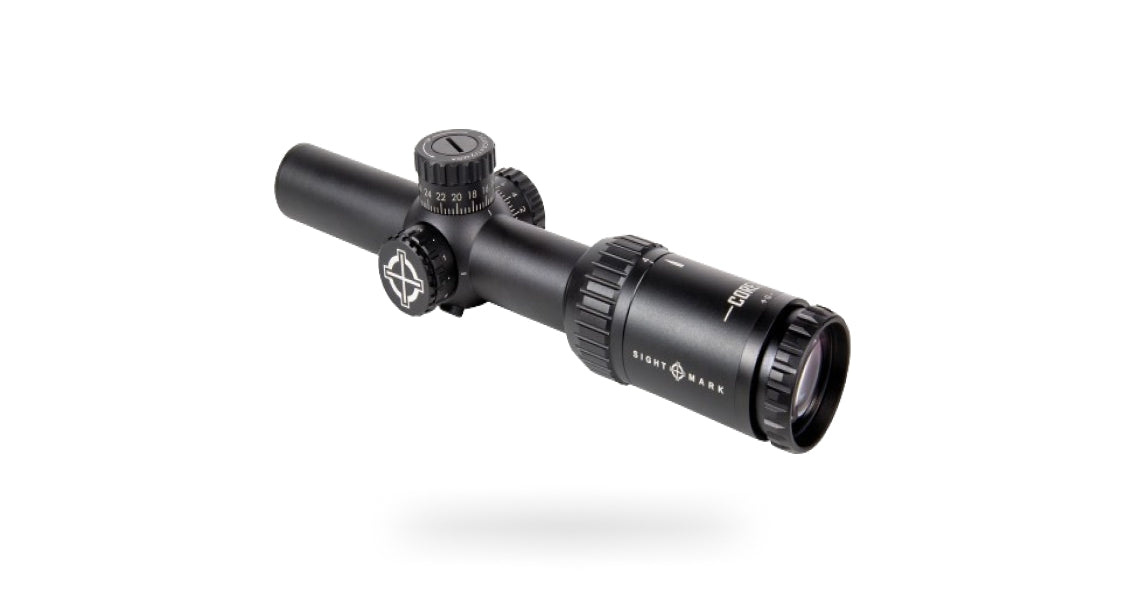

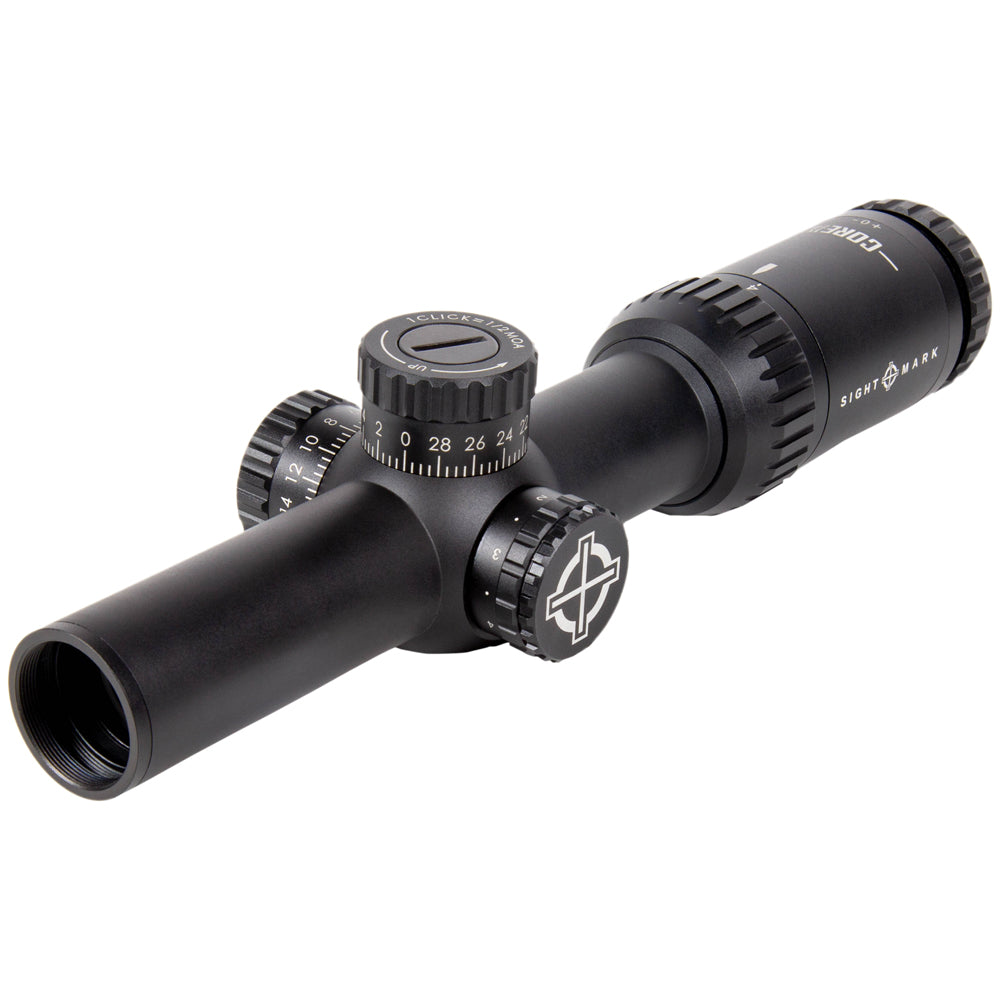

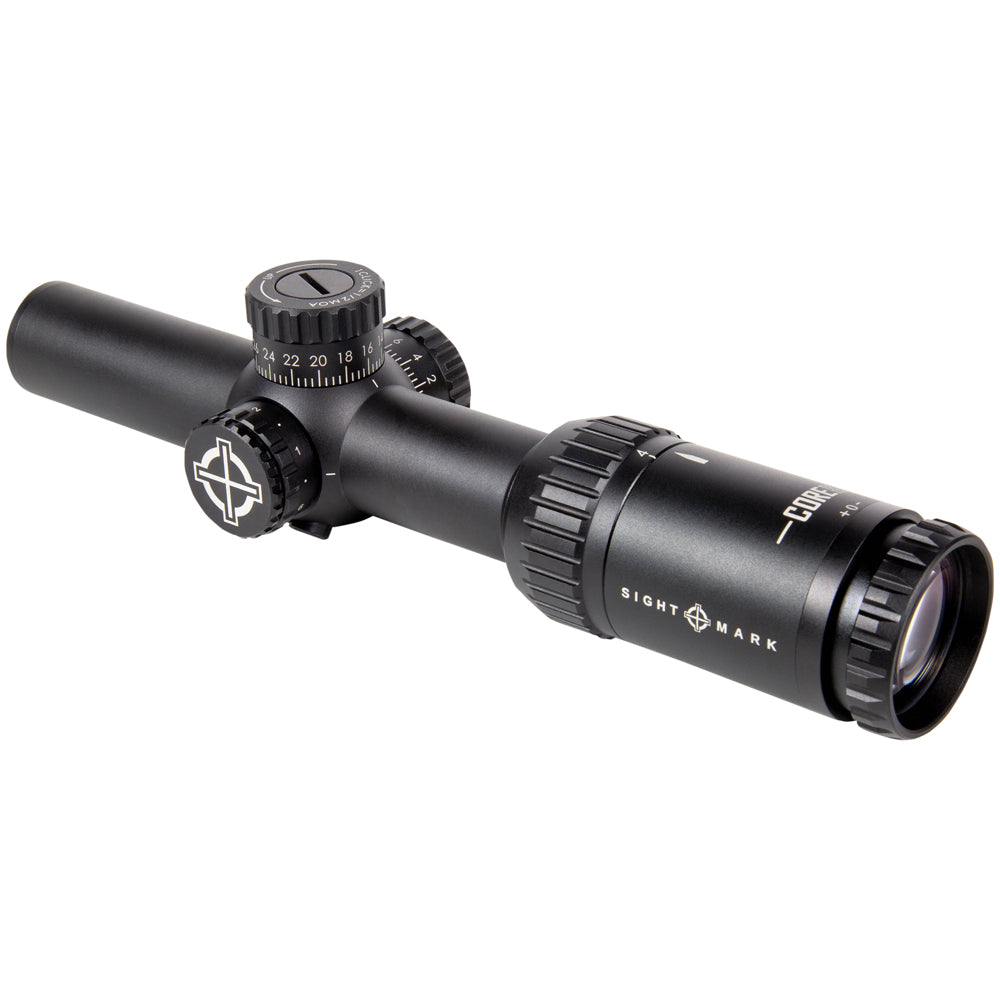

        The new Core TX 2.0 Series of riflescopes from Sightmark is an improvement on the previous Core, offering upgraded glass, finer click adjustments, and improved low light performance. Designed with versatility in mind, the Core TX 2.0 1-4x24mm AR556 SFP MOA comes with a Ballistic Drop Reticle calibrated especially for 55gr 5.56x45mm rounds, ensuring pinpoint precision at its highest magnification.

        As a low-powered variable optic, the Core TX 2.0 offers versatility to its users. This 1-4x24mm optic delivers rapid target acquisition for close or medium range targets. Its robust housing made of aircraft grade aluminum is designed for high intensity tactical shooting. Shoot with confidence knowing the Core TX 2.0’s shockproof body can withstand the rigors of high-speed engagements. With an IPX7 waterproof rating, tread through rivers and lakes with the knowledge that your Core TX 2.0 will still be on target. A nitrogen-filled tube eliminates fog, while its high quality glass provides a crystal clear image.

        Included in Package

        • Scope Rings
        • Lens Flip-Caps
        • Lens Cloth
        • CR2032 Battery

        Product Downloads


        • Ballistic Drop Reticle
        • 1-4x Magnification
        • Objective Lens Diameter 24mm
        • Parallax Settings 100 yards
        • Windage Adjustment Range 140 MOA
        • Elevation Adjustment Range 140 MOA
        • Single-Piece Tube
        • Aircraft Grade Aluminum
        • Hard Anodized Finish

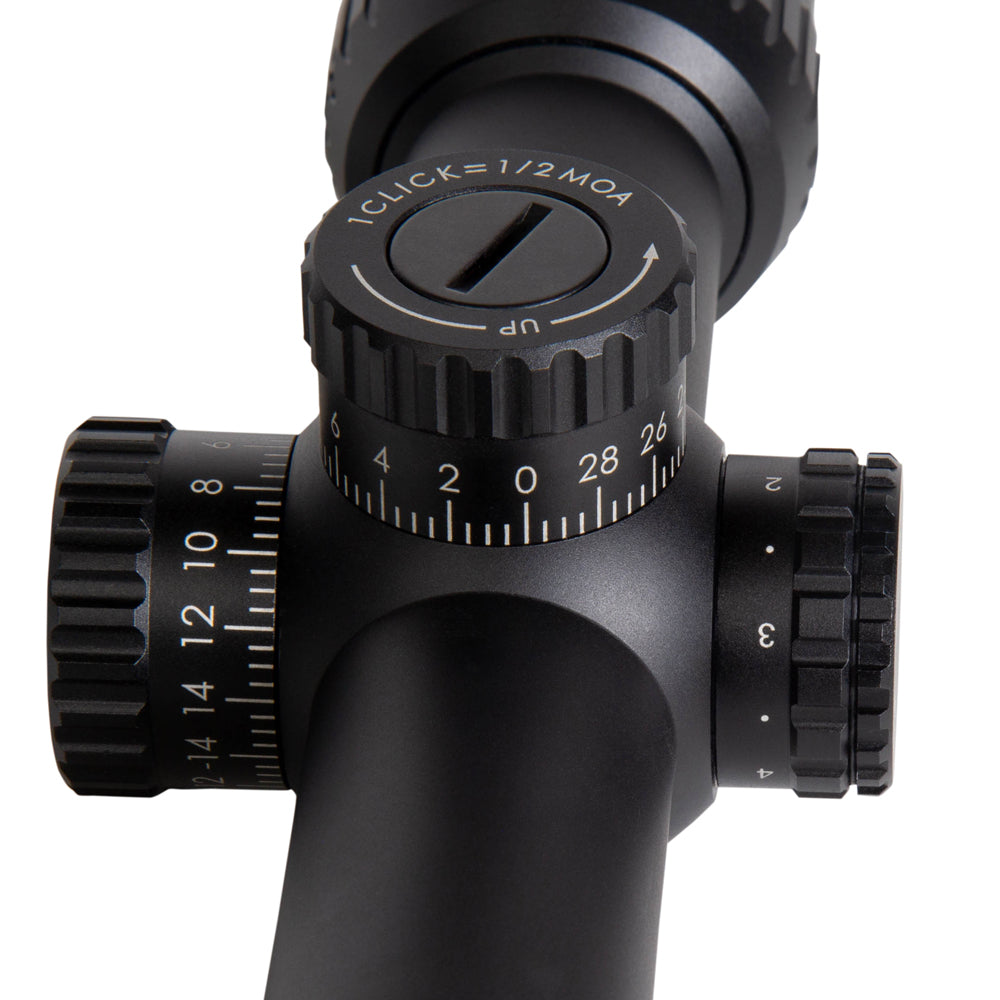

        • Exposed, Locking Turrets
        • Shockproof, Fogproof, Waterproof
        • Fully Multi-Coated Optics
        • Fast-Focus Eyepiece
        • Illuminated Red Reticle

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        Reticle Type AR 556 (Ballistic Drop Reticle)
        Reticle Etched
        Reticle Color Red
        Illuminated (yes/no) Yes
        Reticle Brightness Settings 0-6
        Finish/Color Matte Black
        Magnification (x) 1-4x
        Objective Lens Diameter (mm) 24
        Eyepiece Diameter (mm) 44
        Exit Pupil Diameter (mm) 8.5 - 6
        Eye Relief (in/mm) 3.7 / 94.0
        Field of View (m @100m) 32.25 - 7.99
        Field of View (ft @100yd) 105.80 - 26.20
        Diopter Adjustment (+/-) +2 / -2
        Tube Diameter (in/mm) 1.18 / 30
        Parallax Settings (yds) 100
        Windage Adjustment Range (MOA) 140
        Elevation Adjustment Range (MOA) 140
        Windage & Elevation Lock (yes/no) Yes
        Adjustment Value (one click =) 1/2 MOA
        Maximum Recoil (G's) 1000
        Sunshade (yes/no) No
        Nitrogen Filled (yes/no) Yes
        Shockproof (yes/no) Yes
        Fog Proof (yes/no) Yes
        Focal Plane 2nd
        IP Standard (water rating) IPX7 - waterproof and dust proof
        Body Material Aluminum 6061-T6
        Lens Material/Type Glass
        Lens Coatings Fully Multi-Coated
        Battery Type CR2032
        Battery Life (hours) 80 - 1000
        Operating Temperature (°F/°C) -4° to 149° / -20° to 65°
        Length (in/mm) 10.0 / 254.0
        Width (in/mm) 2.75 / 70.0
        Height (in/mm) 2.15 / 54.5
        Weight w/flip caps (oz) 18.8
