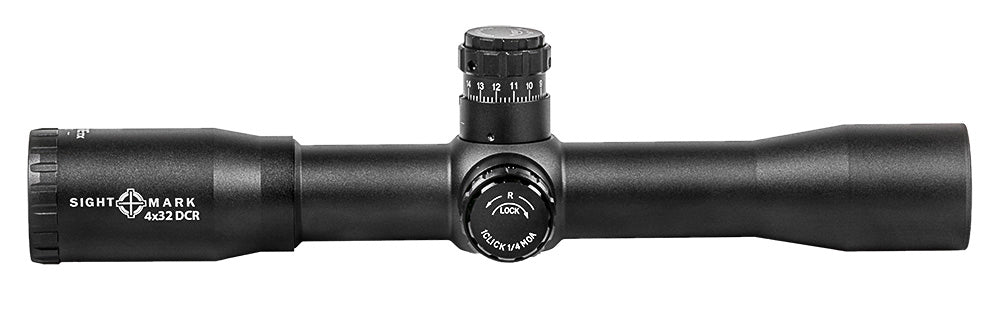

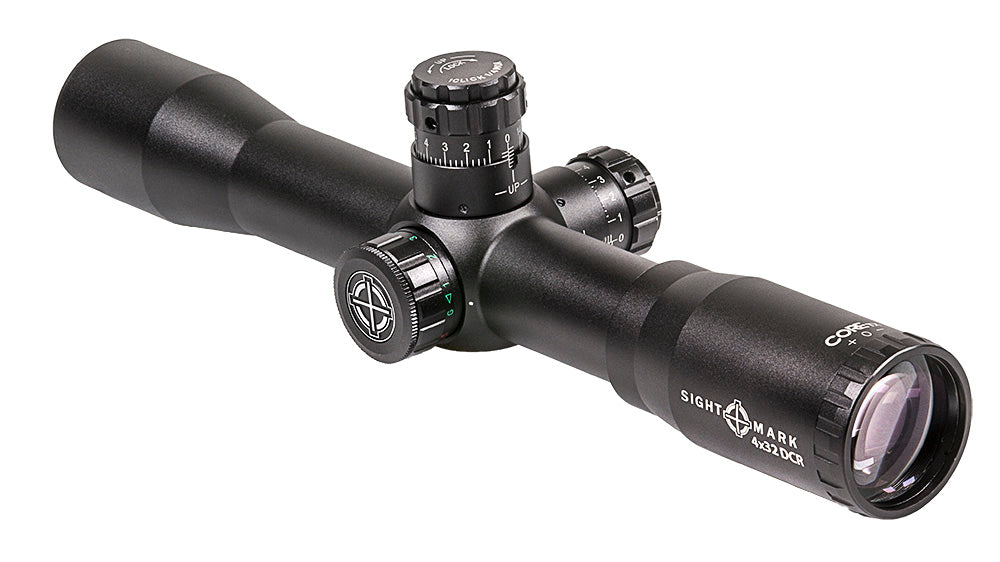

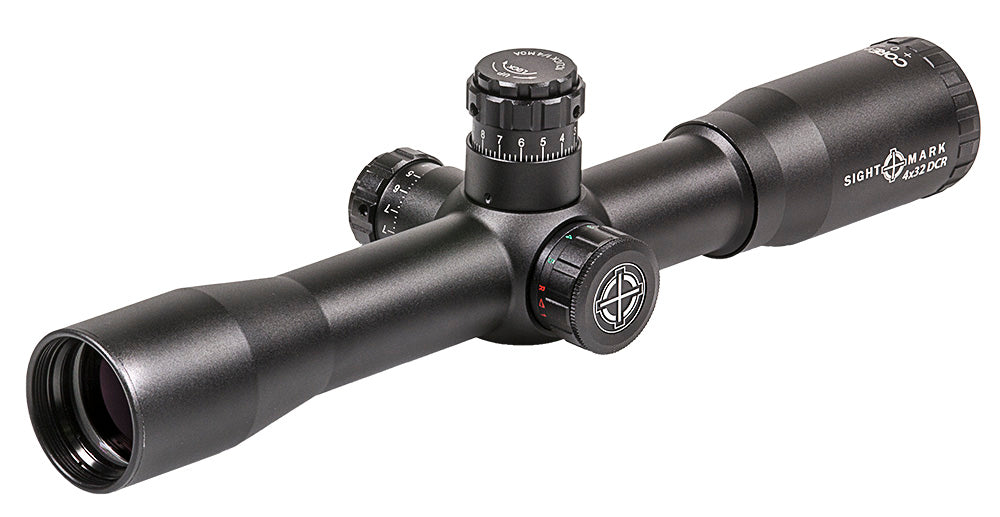

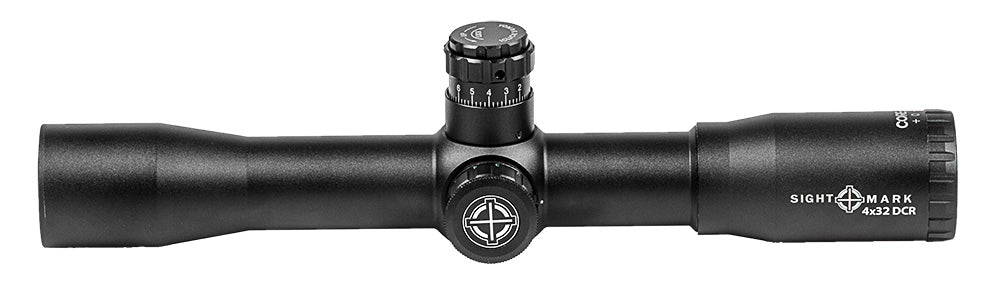

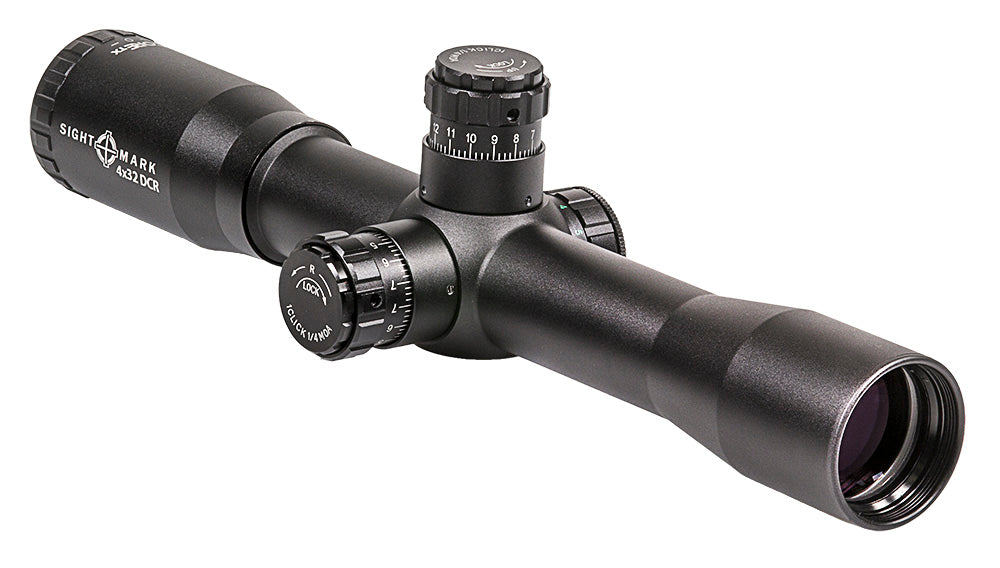

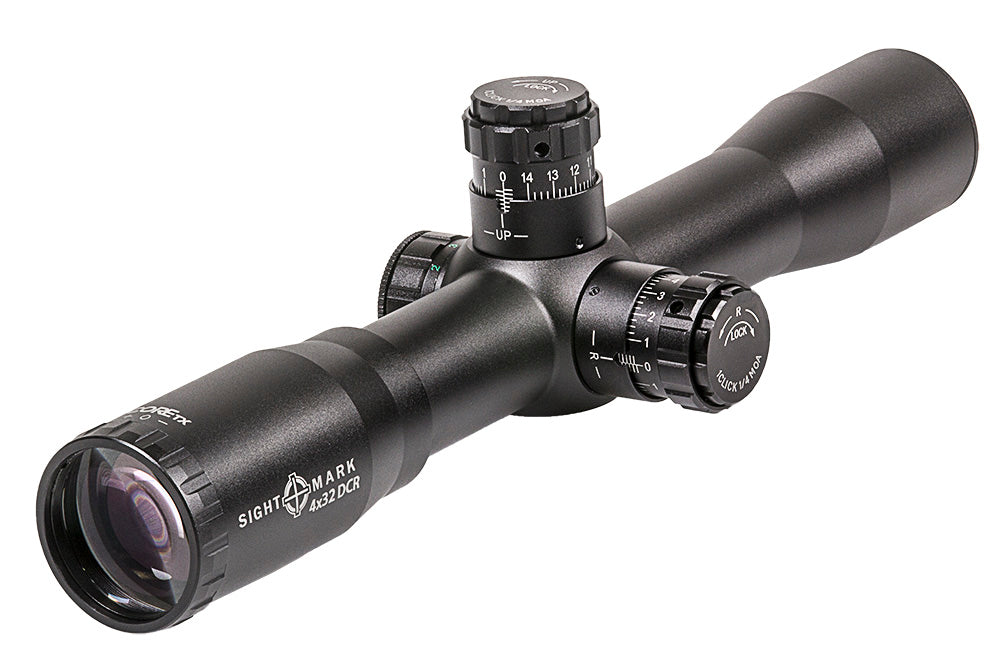

Core TX 4x32 Dual Caliber Rifle Scope

$89.97

BDC reticle calabelbrated for .223 and .308 ammo
Exposed, lockable turrets
Red/Green illuminated reticle
Single-piece, 30mm tube
Aircraft grade aluminum

See all 8 features

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU: SM13071DCR
Availability: Sold out

Product manual (PDF, opens in a new tab) Spec sheet (opens in a new tab)

Overview

Sightmark Core TX riflescopes use fully multi-coated optics to provide optimal light transmission in a variety of conditions. Etched glass reticles, in red or green, are illuminated to deliver optimal shot placement and are durable to withstand years of shooting. The Core TX riflescopes feature exposed, lockable turrets which help maintain a consistent zero. Turrets are quick and easy to adjust to compensate for bullet drop and windage on the fly. The Core TX 4x32DCR is housed in a durable 30mm tube, built from aircraft grade aluminum. This scope features a duplex BDC reticle and is calibrated for .223 and .308 ammo.

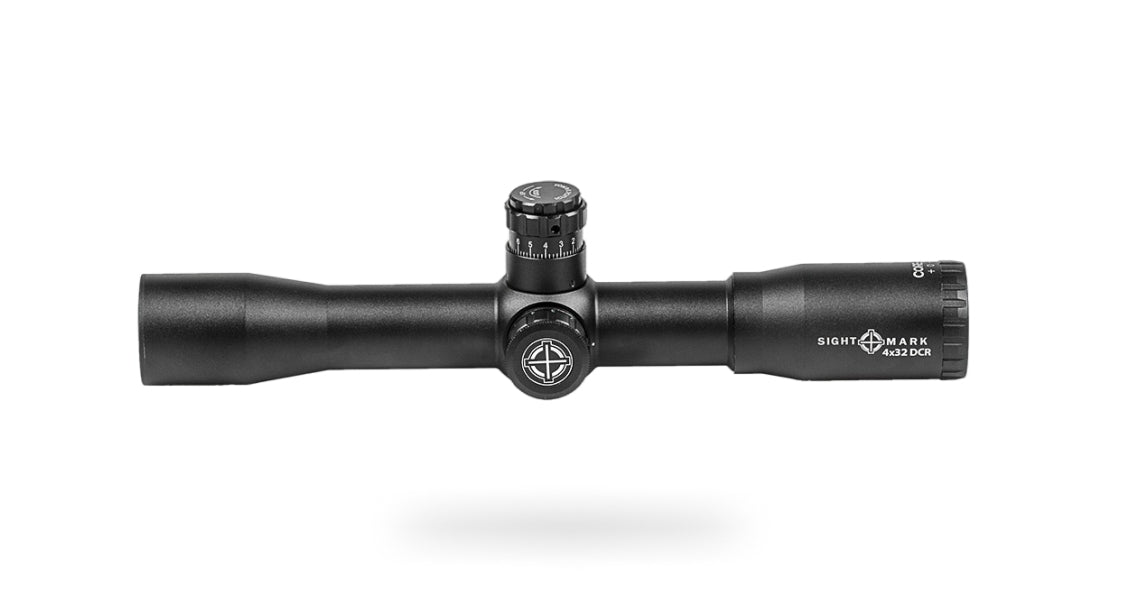

Core TX 4x32 Dual Caliber Rifle Scope

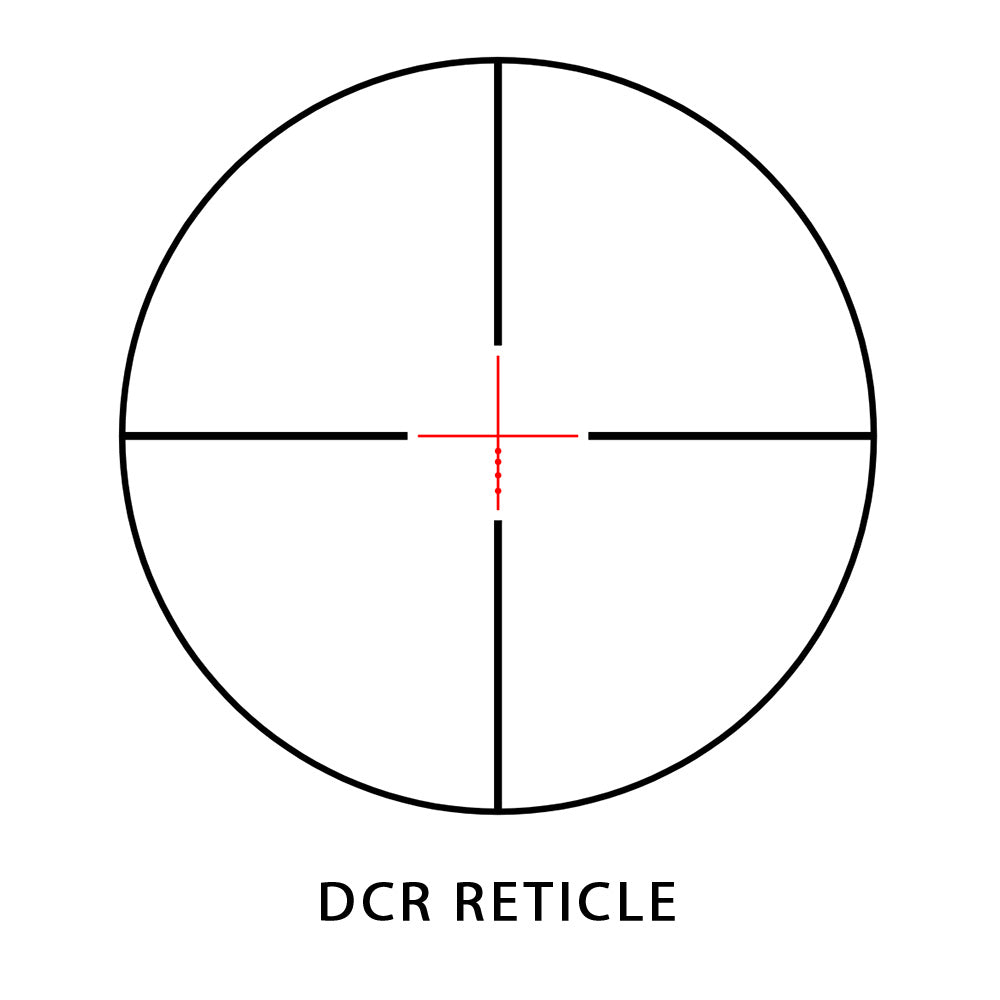

DCR Reticle
Red/Green Reticle Illumination
Red/Green illuminated reticle

Core TX 4x32 Dual Caliber Rifle Scope

Core TX 4x32 Dual Caliber Rifle Scope

Features

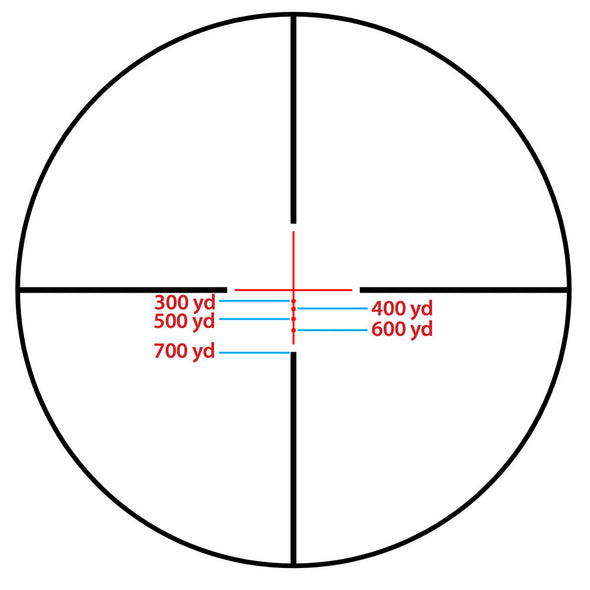

01BDC reticle calabelbrated for .223 and .308 ammo
02Exposed, lockable turrets
03Red/Green illuminated reticle
04Single-piece, 30mm tube
05Aircraft grade aluminum
06Hard anodized finish

All product features

BDC reticle calabelbrated for .223 and .308 ammo
Exposed, lockable turrets
Red/Green illuminated reticle
Single-piece, 30mm tube
Aircraft grade aluminum
Hard anodized finish
Shockproof, fogproof, waterproof
Fully multi-coated optics

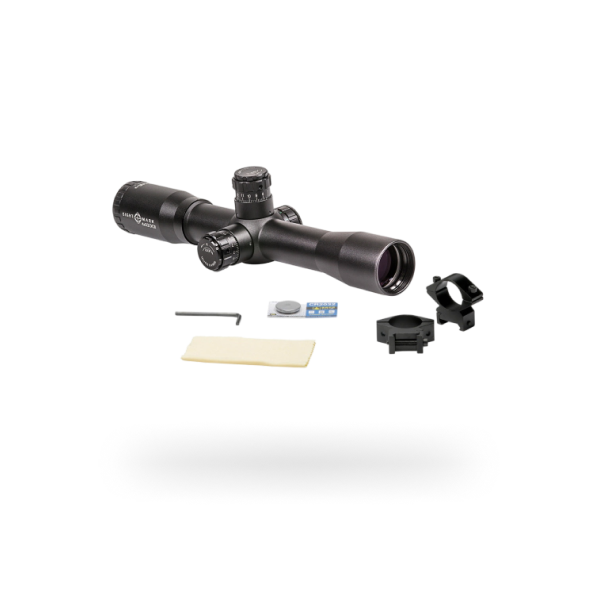

What comes in the box

Included

In the box

Flip up lens covers
30mm scope rings
CR2032 battery

Specifications

Core TX 4x32 Dual Caliber Rifle Scope, SKU SM13071DCR

Reticle, Type: DCR- Dual Caliber Reticle
Reticle: etched glass
Reticle, Color: red and green
Reticle, Illuminated: Yes
Reticle Brightness Setting: 0-5
Finish/Color: matte black
Magnification: 4 x
Diameter, Objective Lens: 32 mm
Diameter, Eyepiece: 1.65 / 42 in/mm
Diameter, Exit Pupil: 8 mm
Eye Relief: 4 / 101.6 in/mm
Field of View: 8.4 m@100m
Field of View: 8.4 m@100m
Diopter Adjustment: +2 to -2 + / -
Diameter, Tube: 30 / 1.18 mm / inch
Parallax Setting: 100 yds
MOA Adjustment: 1/4 MOA
Windage Adjustment: 80 MOA
Elevation Adjustment: 80 MOA
Windage & Elevation. adjustment range, mm: yes
Maximum Recoil: .416 Rem
Battery Type: CR2032
Battery life, hours: 100 - 70
Battery Voltage: 3 V
Sunshade: No
Niliogen Filled: yes
Shockproof: yes
Fog Proof: yes
Focal Plane: 2nd
IP Standard: IP67 - waterproof and dustproof
Body Material: Aluminum
Material, Lens: glass
Lens Coating: Fully multi-coated
Operating Temperature: 0 to 120 / -17 to 49 °F / °C
Lenglabel: 11.26 / 286 in/mm
Widlabel: 3.2 / 81 in/mm
Height: 2.5 / 63 in/mm
Weight: 18 oz
