        SKU : SM13079AR.223

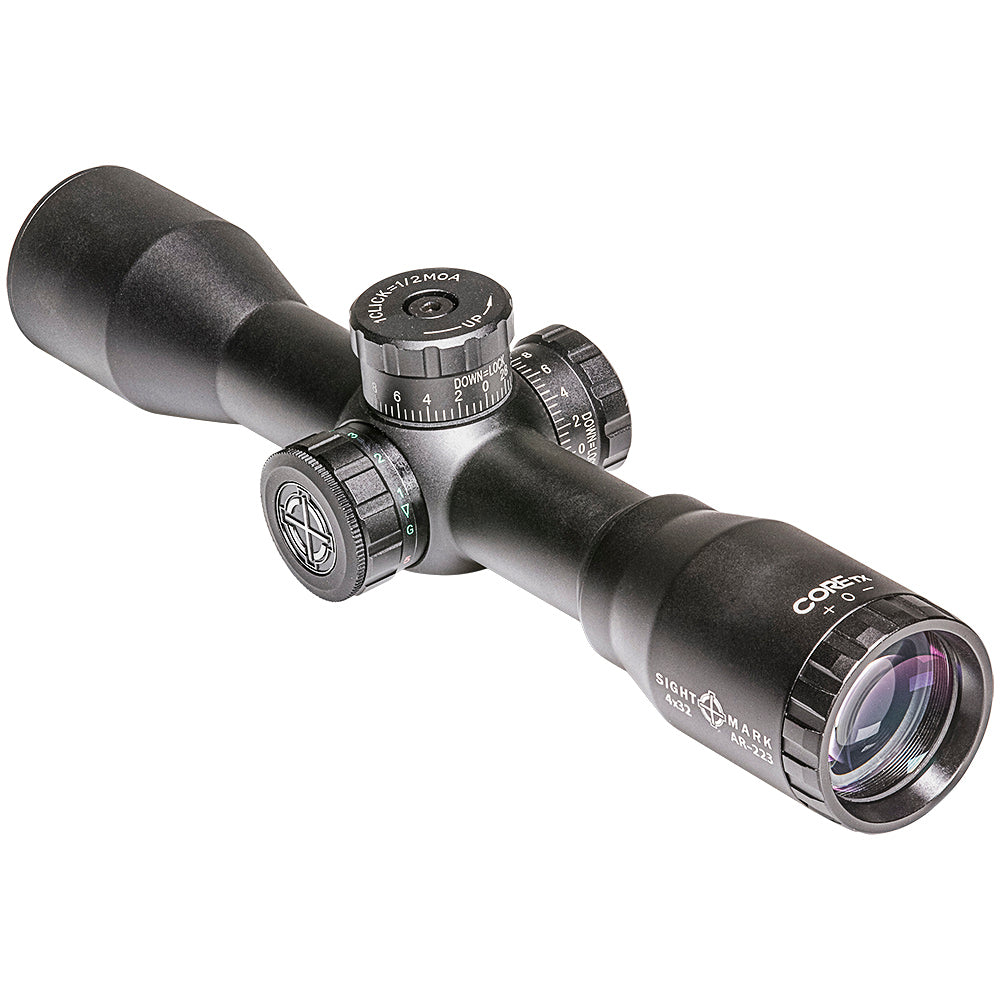

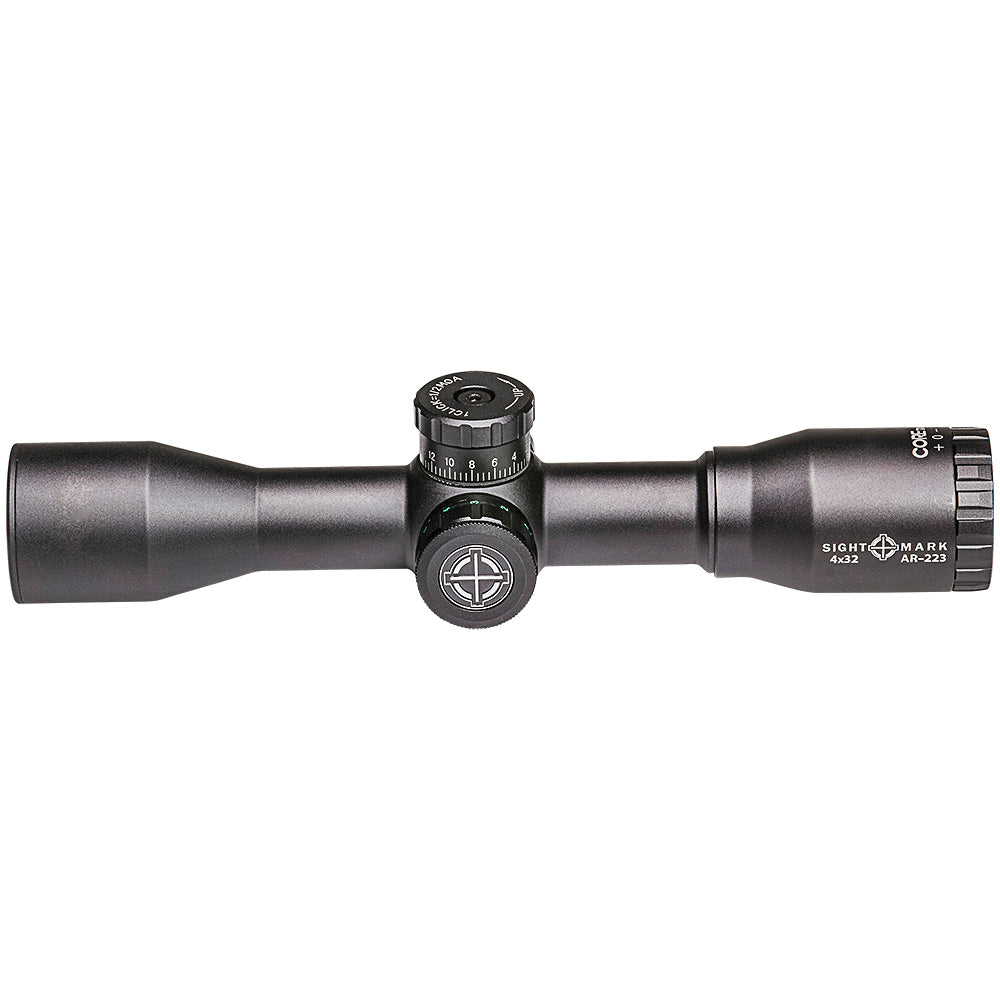

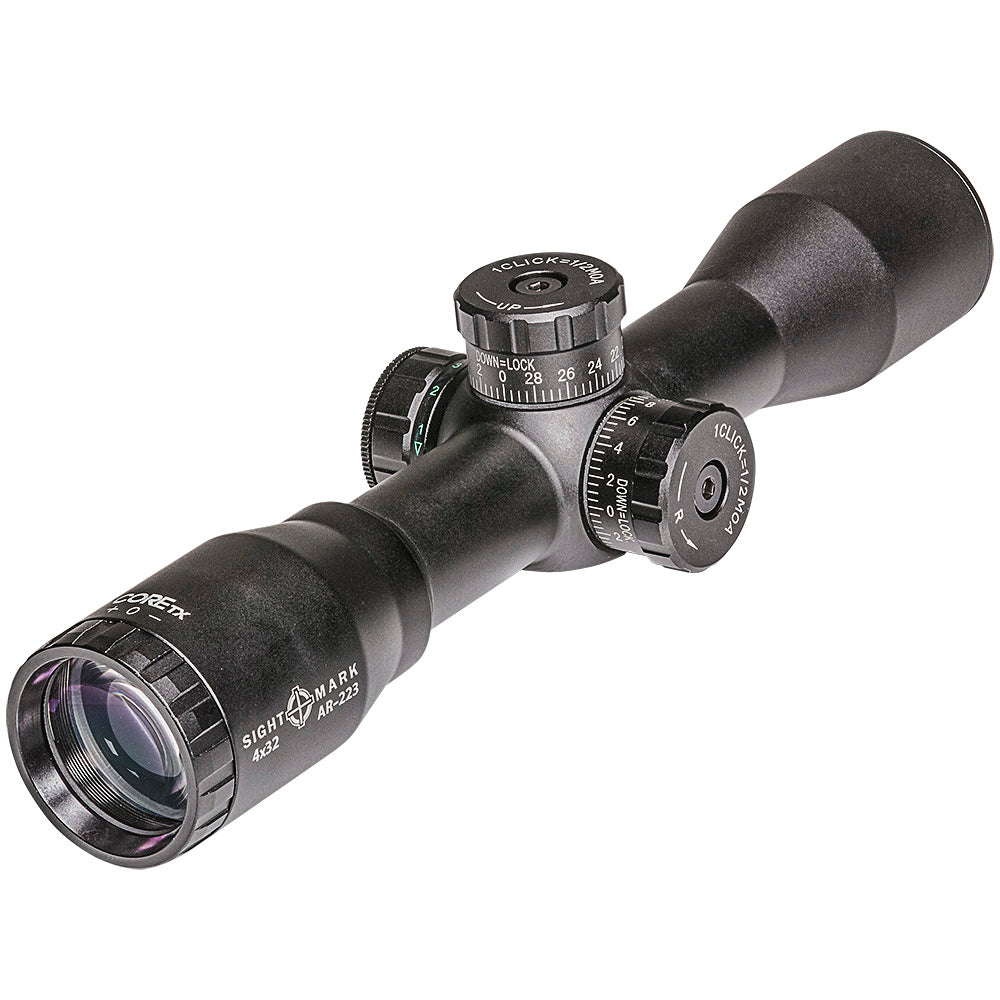

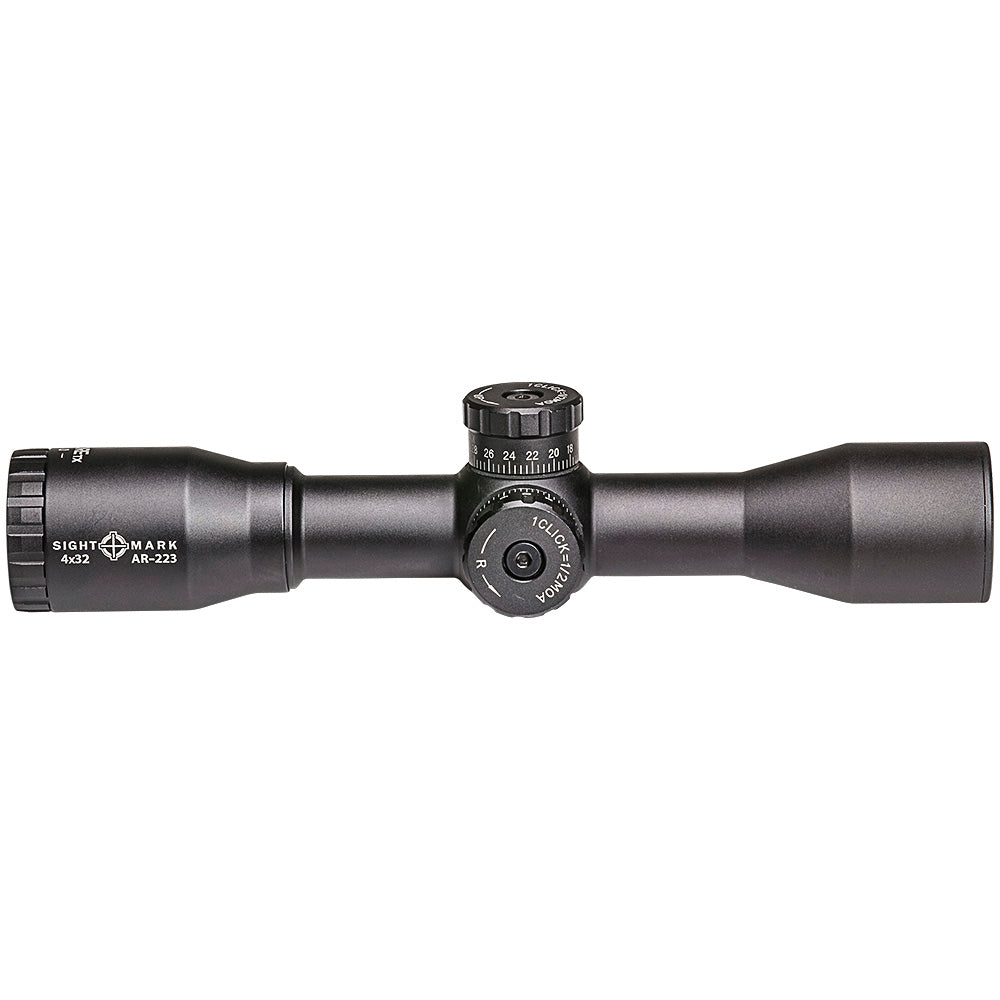

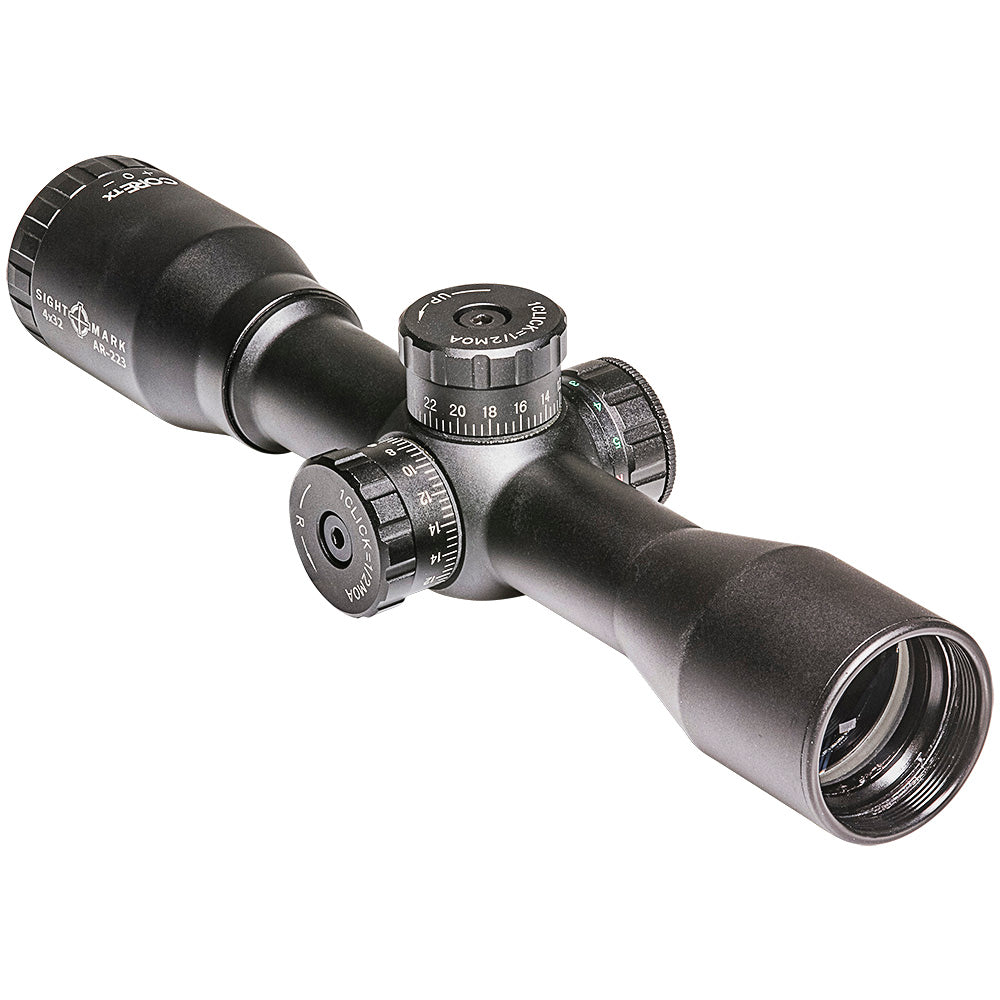

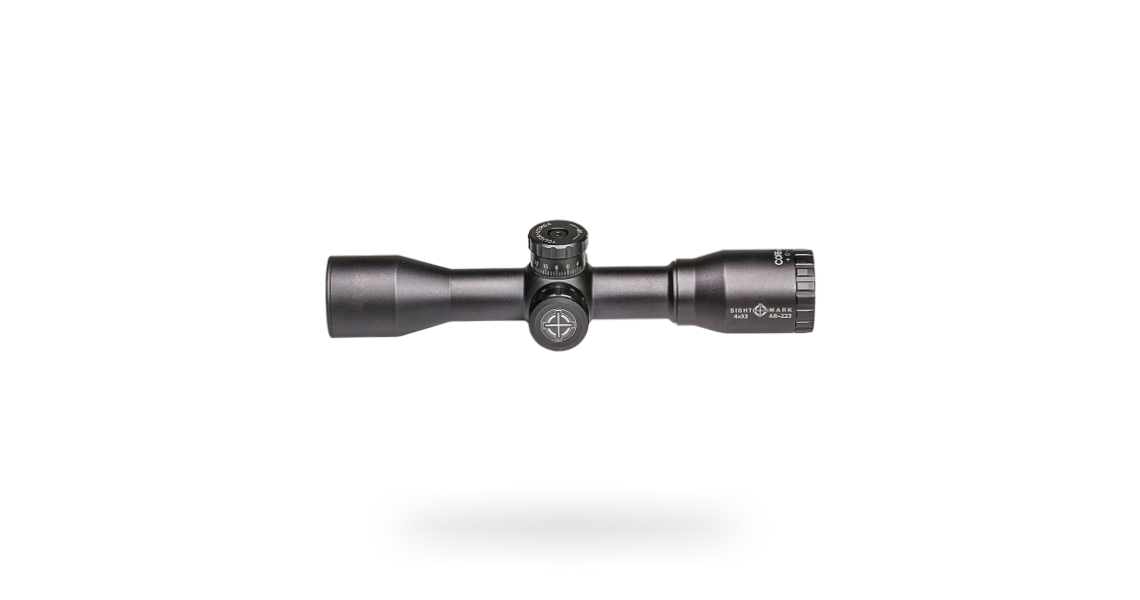

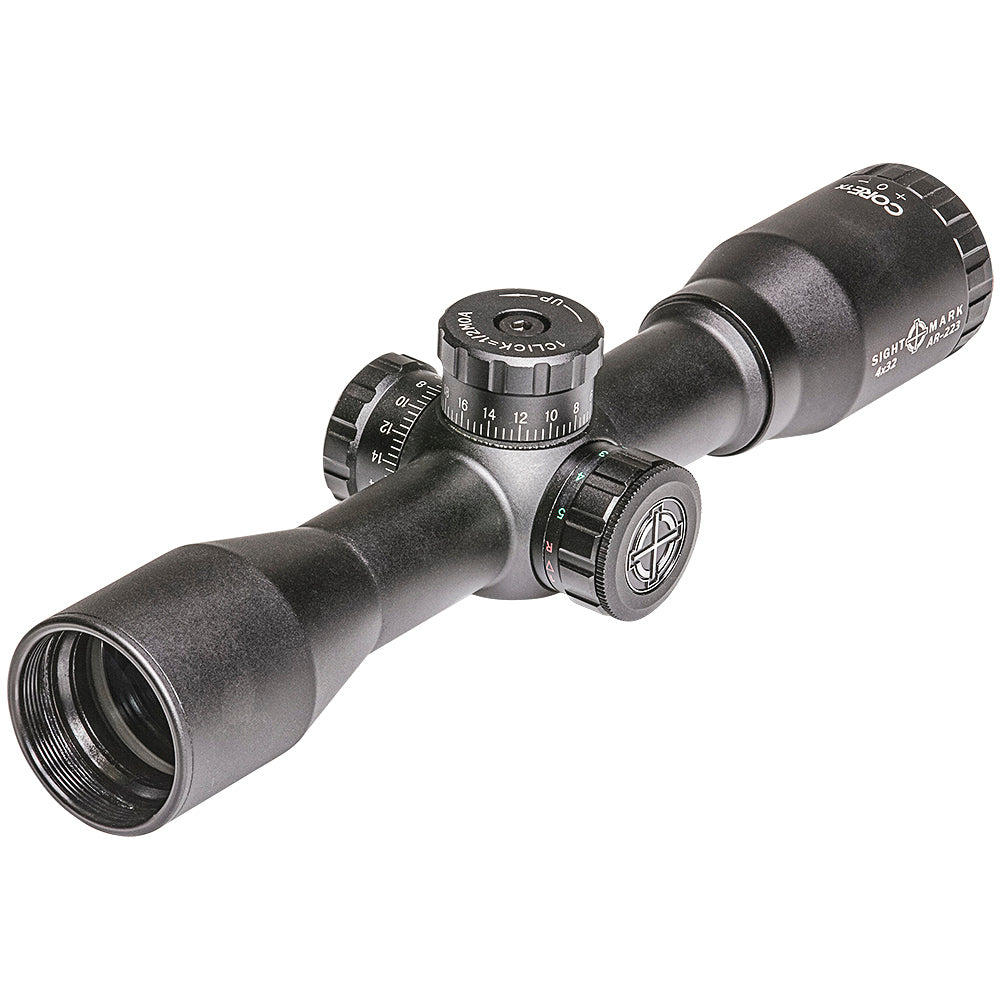

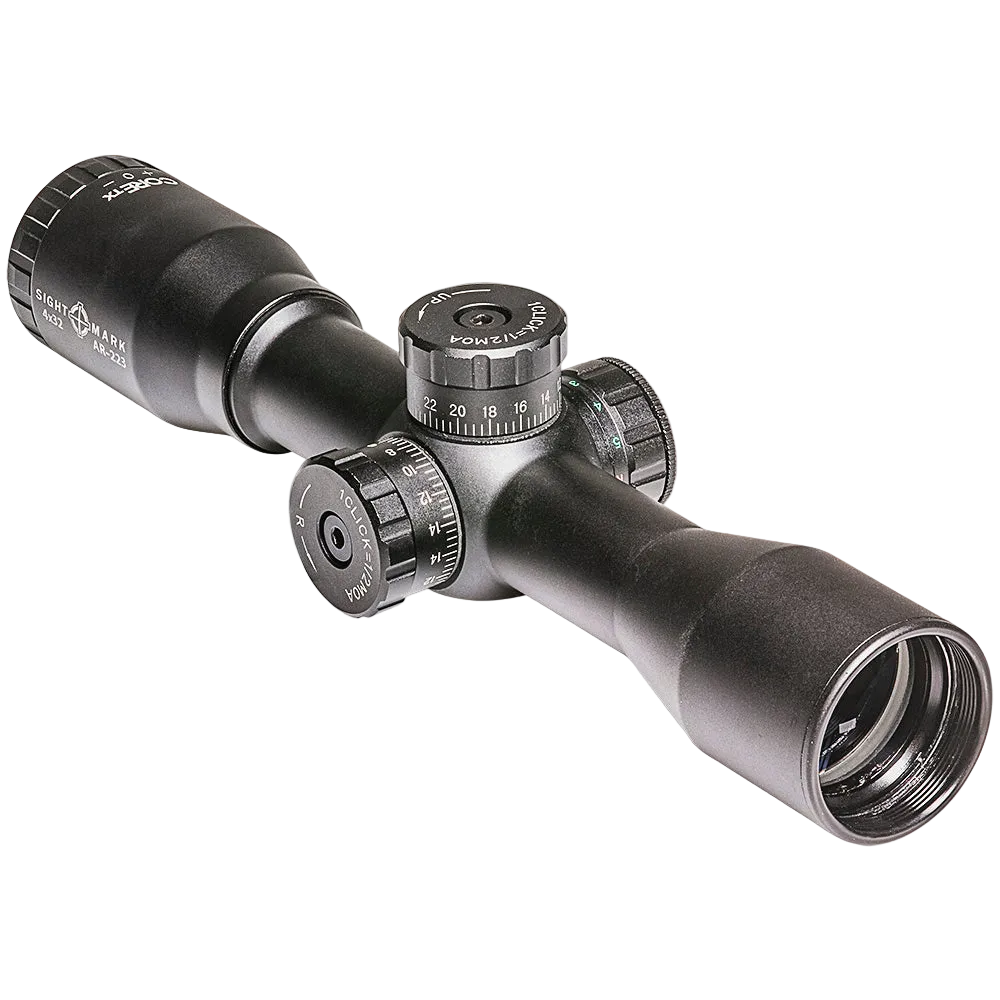

        Specifically calibrated for the .223, the Sightmark Core TX 4x32 AR-223 Riflescope sets the standard when taking close-medium range shots. Perfect for tactical operations, competition, target shooting or hunting, the Core TX 4x32 Riflescope features exposed, pop-up, locking turrets to prevent loss of zero. Fixed 4x magnification and a fine-etched bullet-drop-compensating (BDC) reticle, including adjustable red and green illumination, makes target acquisition faster and easier, even in low-light conditions. Hard-anodized, matte black, 6061-T6 aircraft-grade aluminum construction and advanced, fully multi-coated glass provides the same uncompromising quality and image performance demanding shooters have come to expect from Sightmark. Ready to handle your extreme environments, the Sightmark Core TX 4x32 AR-223 Riflescope is nitrogen-filled, waterproof, fogproof, dustproof and shockproof.

        Included in Package

        • Flip up lens covers
        • 30mm scope rings
        • CR2032 battery

        Batteries Used

        • Type: CR2032
        • Quantity: 1

        Product Downloads

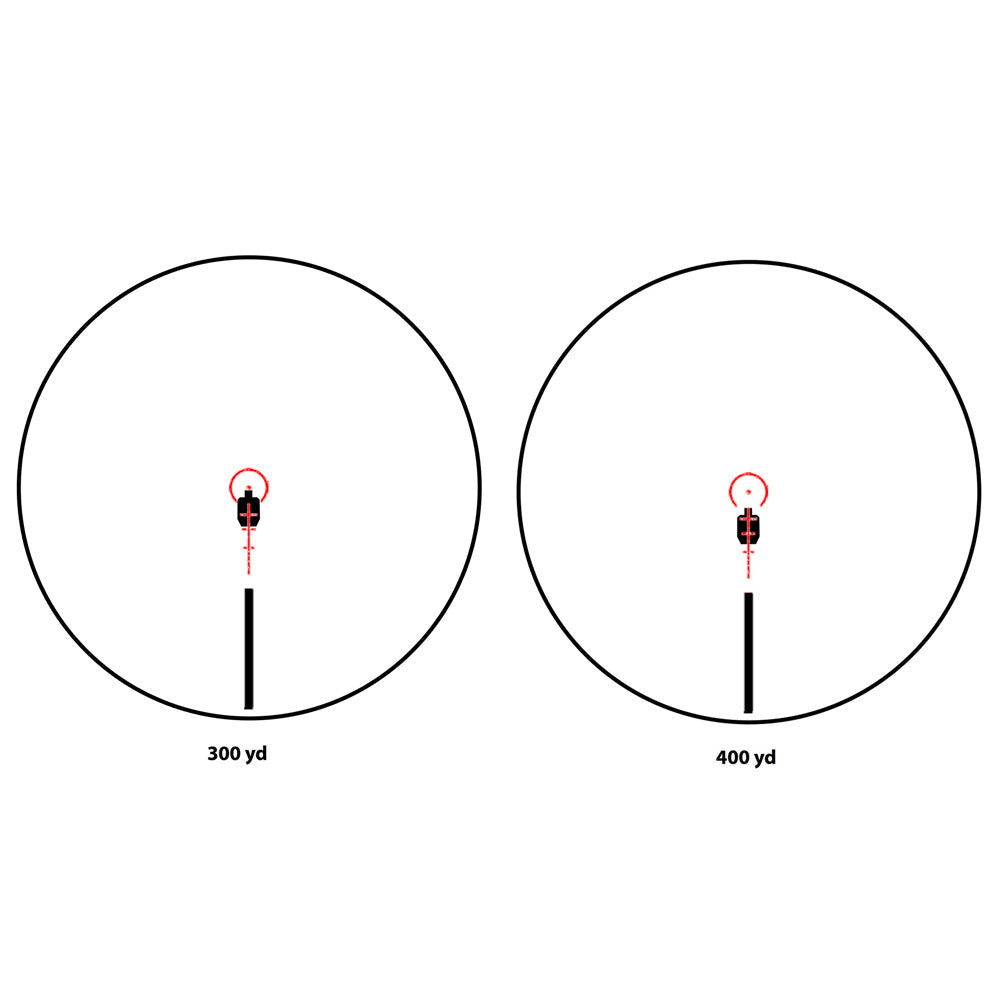

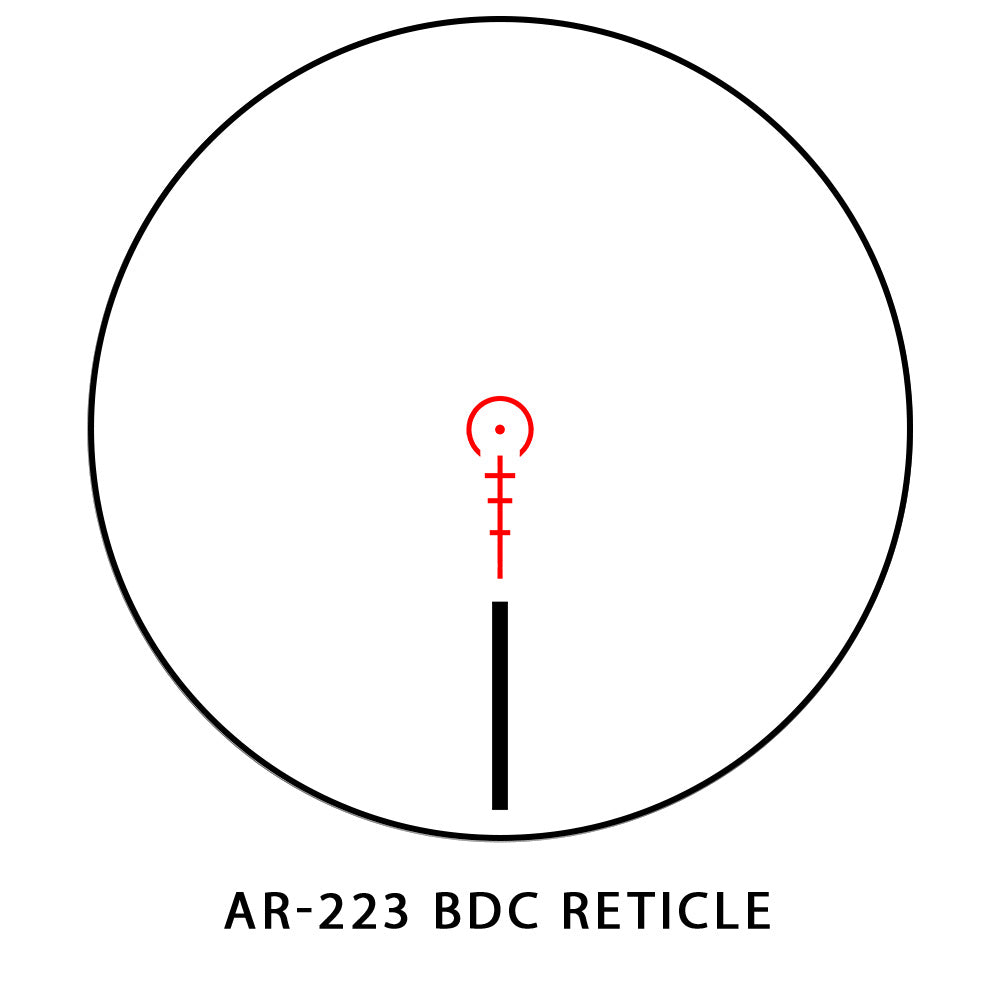

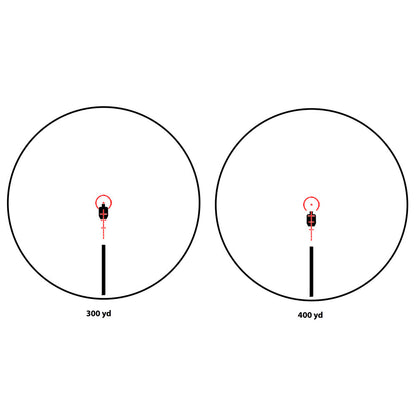

        • BDC reticle calibrated for .223 55 grain

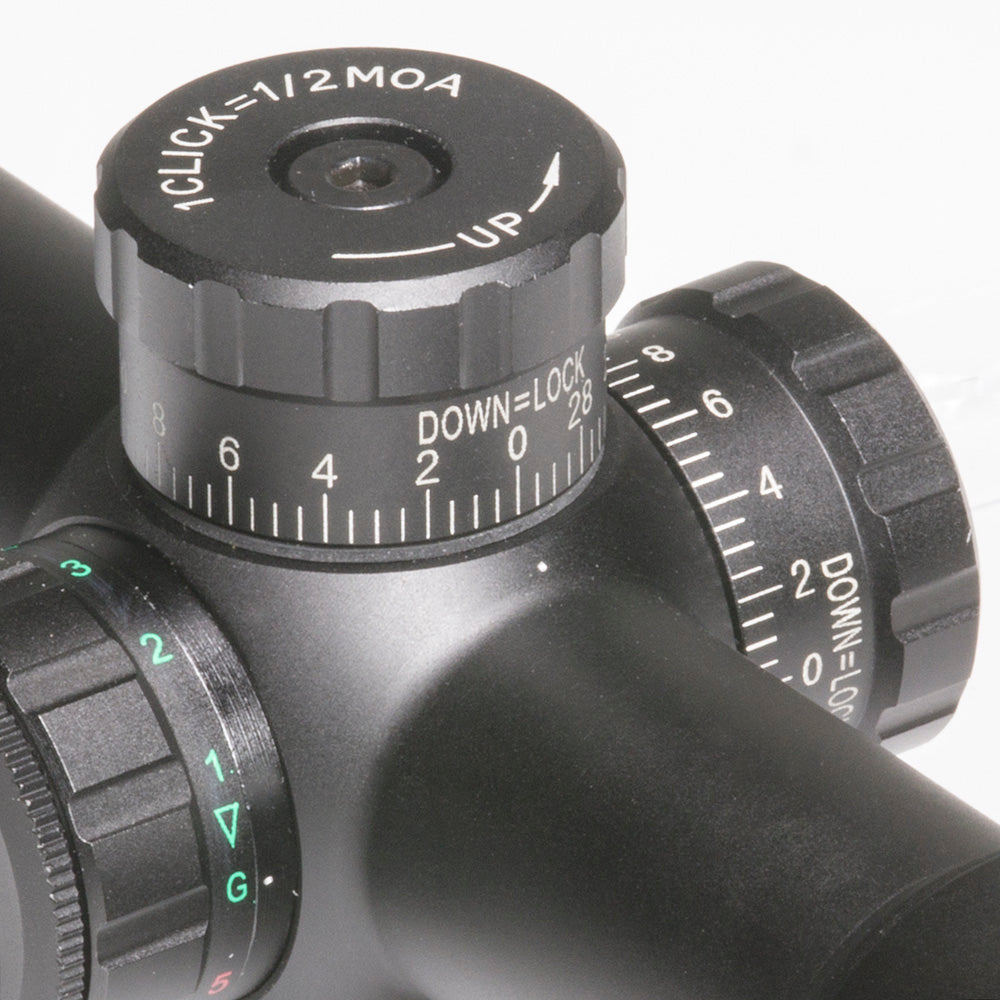

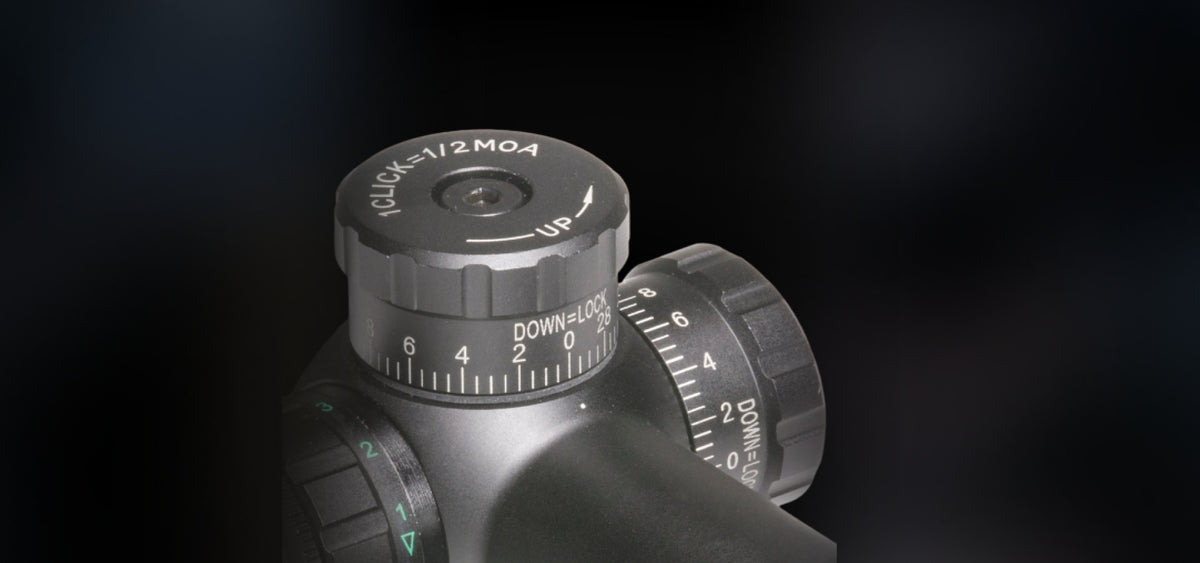

        • Exposed, pop-up locking turrets
        • Red/Green illuminated reticle
        • Single-piece, 1in tube
        • Aircraft grade aluminum
        • Hard anodized finish
        • Compact and lightweight
        • Shockproof, fogproof, waterproof
        • Fully multi-coated optics

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        California Disclaimer

        Reticle, Type AR-223
        Maximum Recoil .416 Rem
        Battery Type CR2032
        Battery life, hours 100-70
        Battery Voltage, V 3V
        Sunshade No
        Nitrogen Filled Yes
        Shockproof Yes
        Fog Proof Yes
        Focal Plane 2nd
        IP Standard IP67 -waterproof and dustproof
        Body Material Aluminum
        Material, Lens Glass
        Lens Coating Fully multi-coated
        Operating Temp,?F/?C 0 to 120 / -17 to 49
        Length (in/mm) 9.1/231
        Width (in/mm) 2.4/62
        Height (in/mm) 1.8/64
        Windage & Elevation, Lock Yes
        Elevation Range of Adjustment 120
        Reticle Etched glass
        Reticle, Color Red/Green
        Illuminated (yes/no) Yes
        Reticle Brightness Setting 0-5
        Finish/Color Matte black
        Magnification 4x
        Diameter, Objective Lens 32
        Diameter, Eyepiece 1.57/40
        Diameter, Exit Pupil 7mm
        Eye relief (in/mm) 4/101.6
        Field of view, m@100m 10.83
        Field of view, ft@100yd 32.5
        Diopter Adjustment +2/-2
        Diameter, Tube 1 inch
        Parallax Setting 100yds
        MOA Adjustment 1/2MOA
        Windage Range of Adjustment 120
        Weight, oz 13.4
