        SKU : SM26034

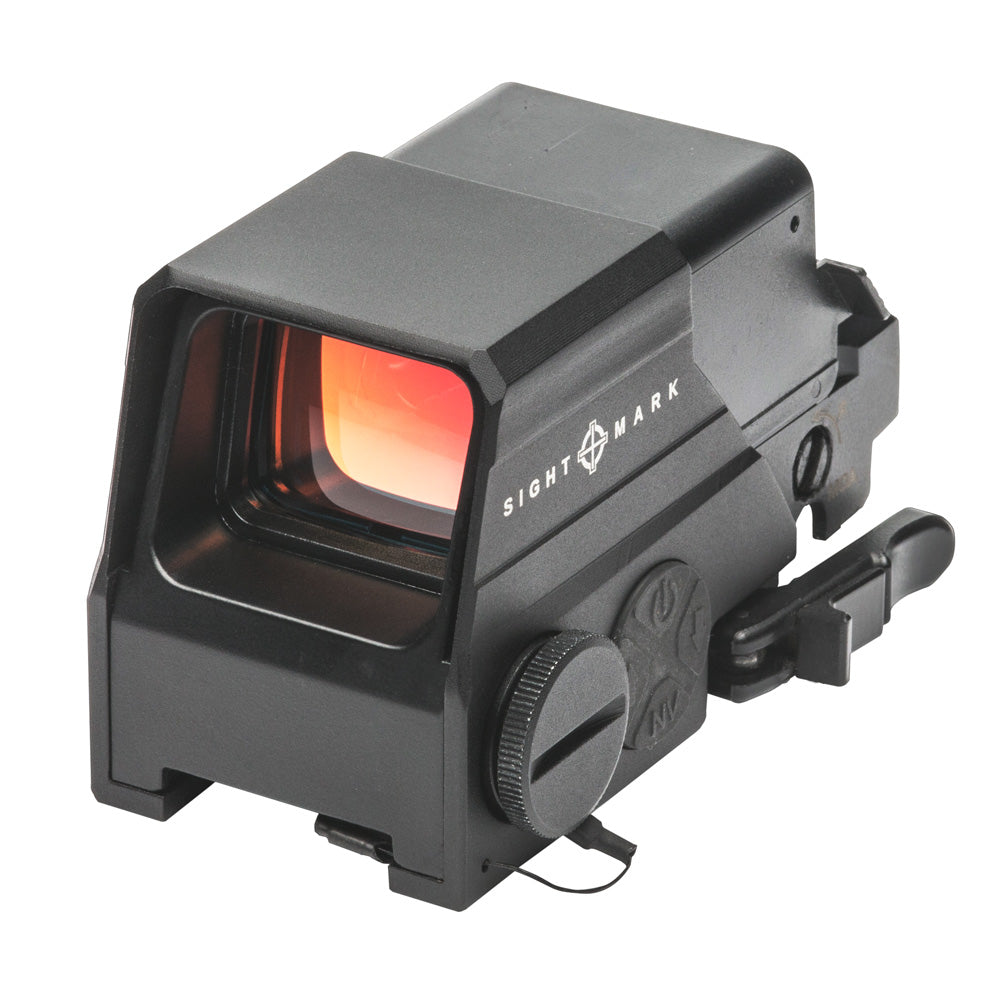

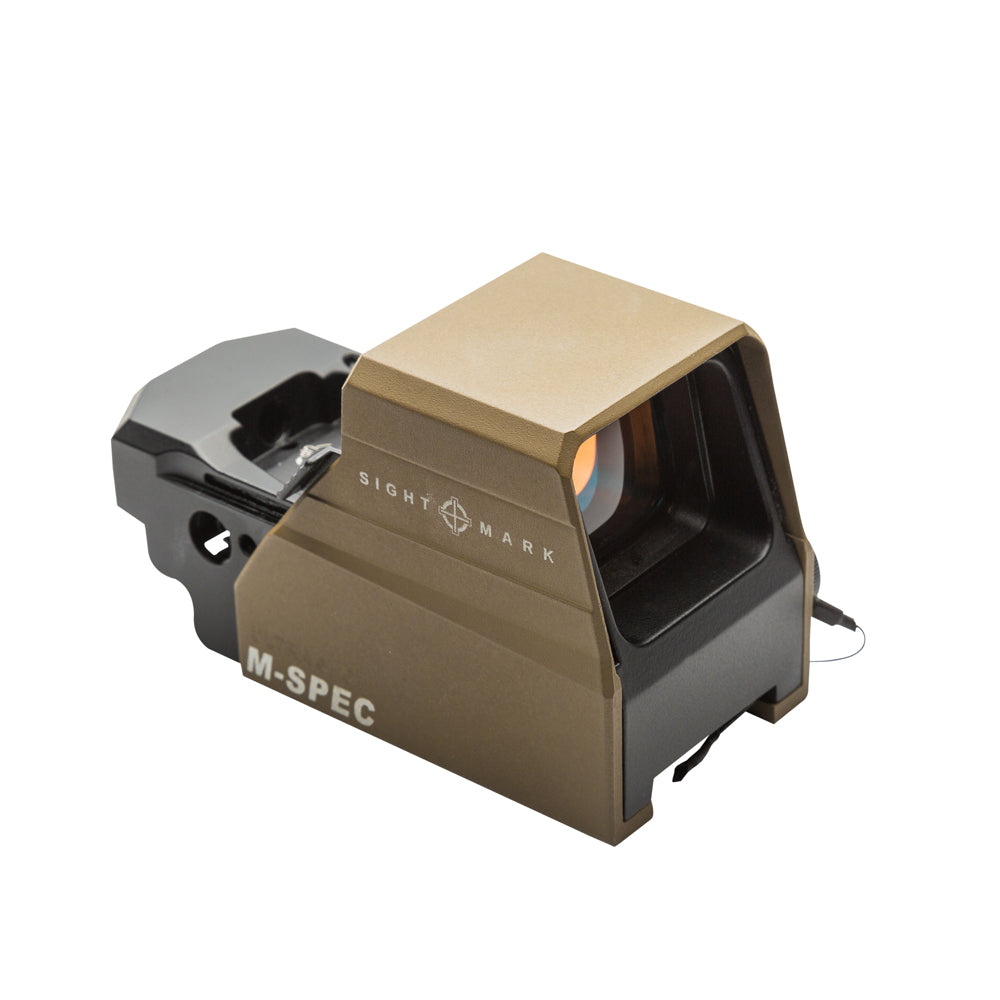

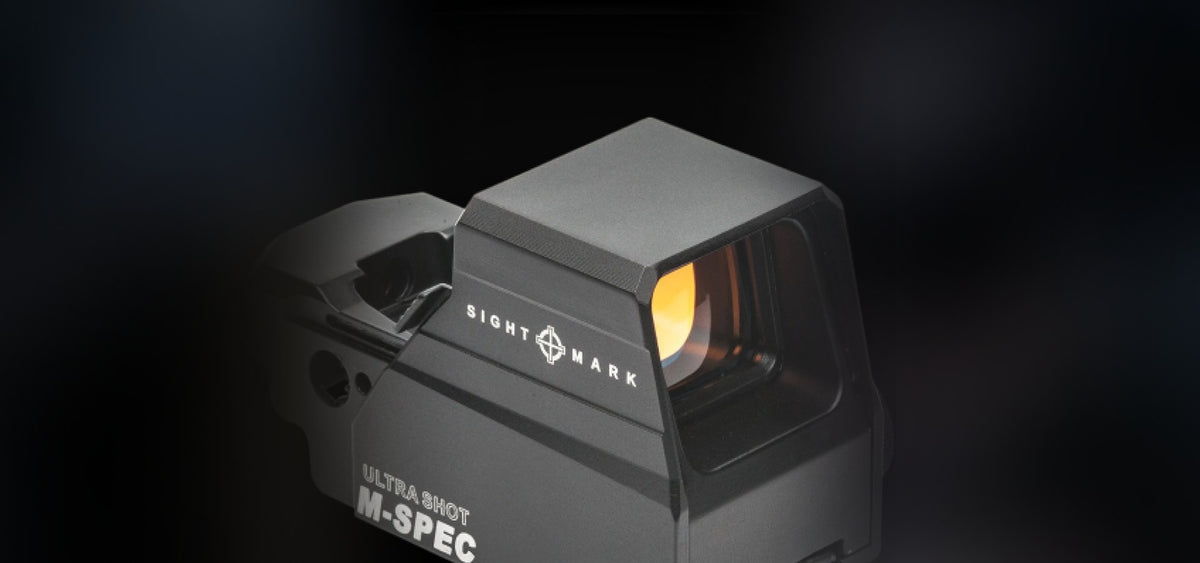

        Specially designed to handle your hardcore shooting needs, the Sightmark RAM Series Ultra Shot M-Spec LQD Reflex Sight / Dark Earth promises repeatable accuracy, ultra-fast target acquisition and rugged mil-spec reliability in virtually any environment. The Ultra Shot M-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective red coating, patented integrated sunshade, illuminated red 65-MOA circle-dot reticle with 10 brightness settings, night vision brightness modes, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even in low light and when perfect sight alignment isn’t an option. Built tough, the Ultra Shot M-Spec Reflex Sight / Dark Earth is shockproof, dustproof, IP68 waterproof, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminum protective shield and magnesium alloy body. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot M-Spec Reflex Sight / Dark Earth also features a low battery indicator, motion sensing auto on/off activation, digital switch controls, 12-hour auto shut-off, locking quick-detach Picatinny mount and Sightmark’s lifetime warranty. The Ultra Shot M-Spec LQD Reflex Sight / Dark Earth is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and Neoprene cover.

        US Pat. 10139197B1

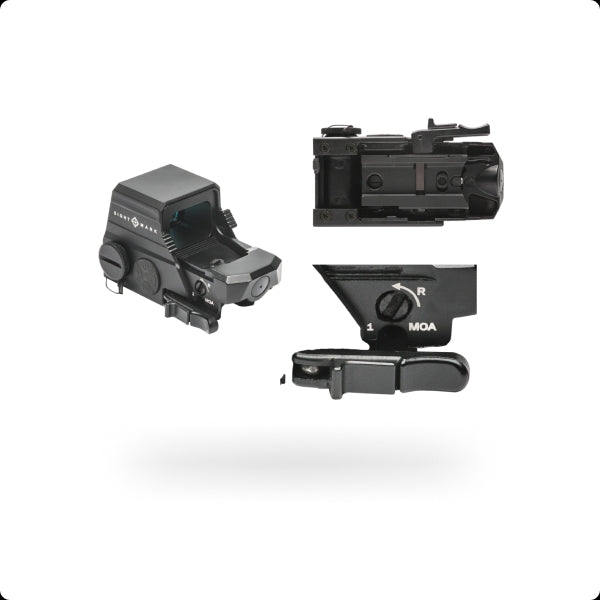

        Included in Package

        • CR123A battery
        • Manual
        • Adjustment tools
        • Neoprene cover

        Batteries Used

        • Type: CR123A
        • Quantity: 1

        Product Downloads

        Features

        • Patented integrated sunshade
        • Advanced AR coated, scratch resistant lens system

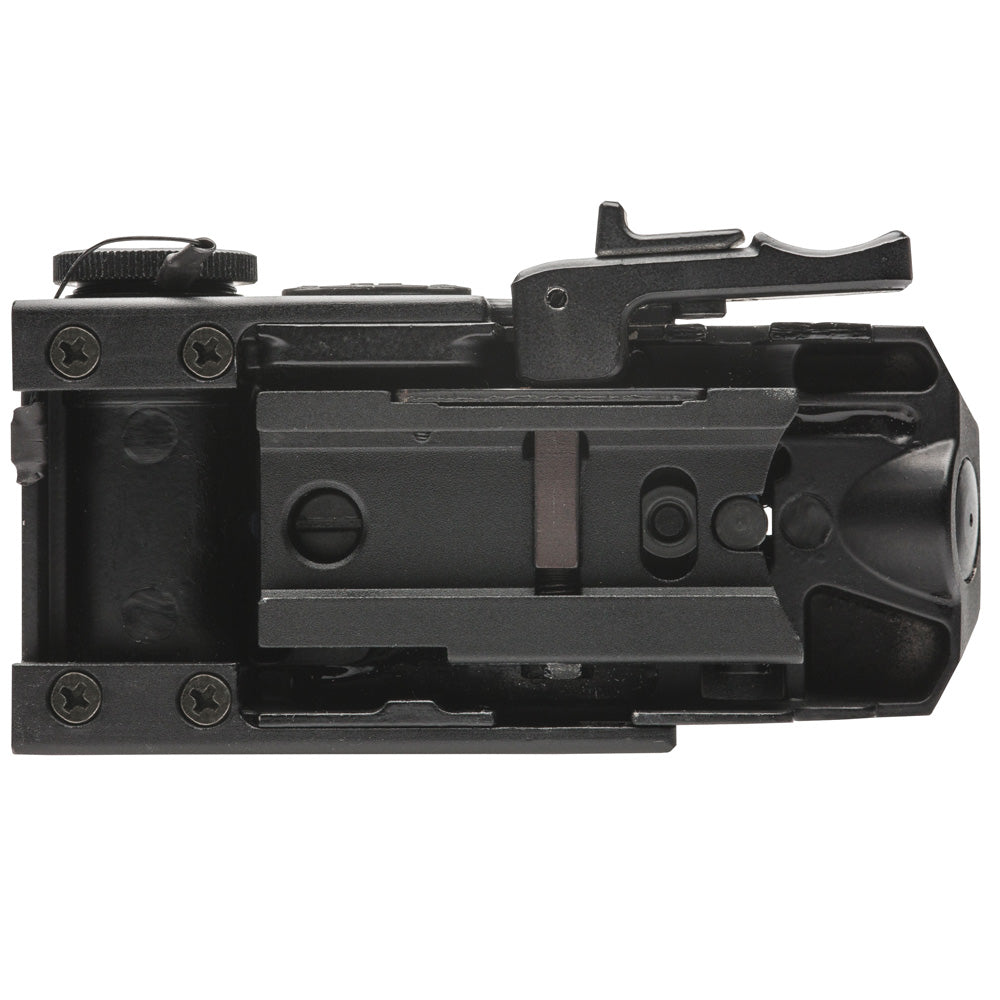

        • Locking quick-detach picatinny mount
        • 12-hr. auto shut-off
        • Motion sensing on/off activation
        • Low battery indicator
        • Red 65-MOA circle-dot reticle with 10 brightness settings
        • Night vision brightness modes
        • Parallax corrected optical system
        • IP55 weather resistant protection
        • Rugged lightweight magnesium alloy housing
        • Protective aluminum shield
        • Advanced parallax free lens design
        • Wide lens provides quick target acquisition

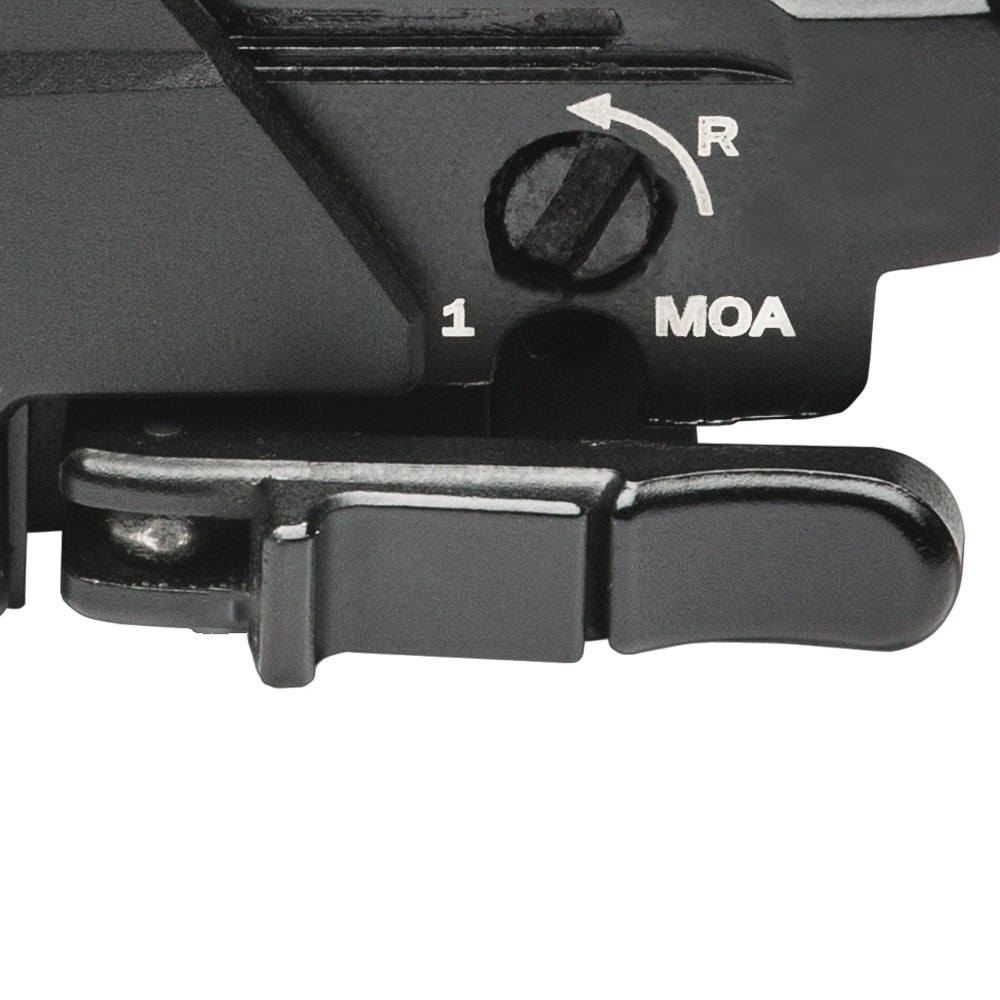

        • Slotted windage and elevation adjustments
        • Red reticle illumination
        • Digital switch controls
        • 10 reticle brightness settings
        • 100% waterproof and dustproof
        • Scratch resistant lens coating
        • Interlok internal locking adjustment system

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

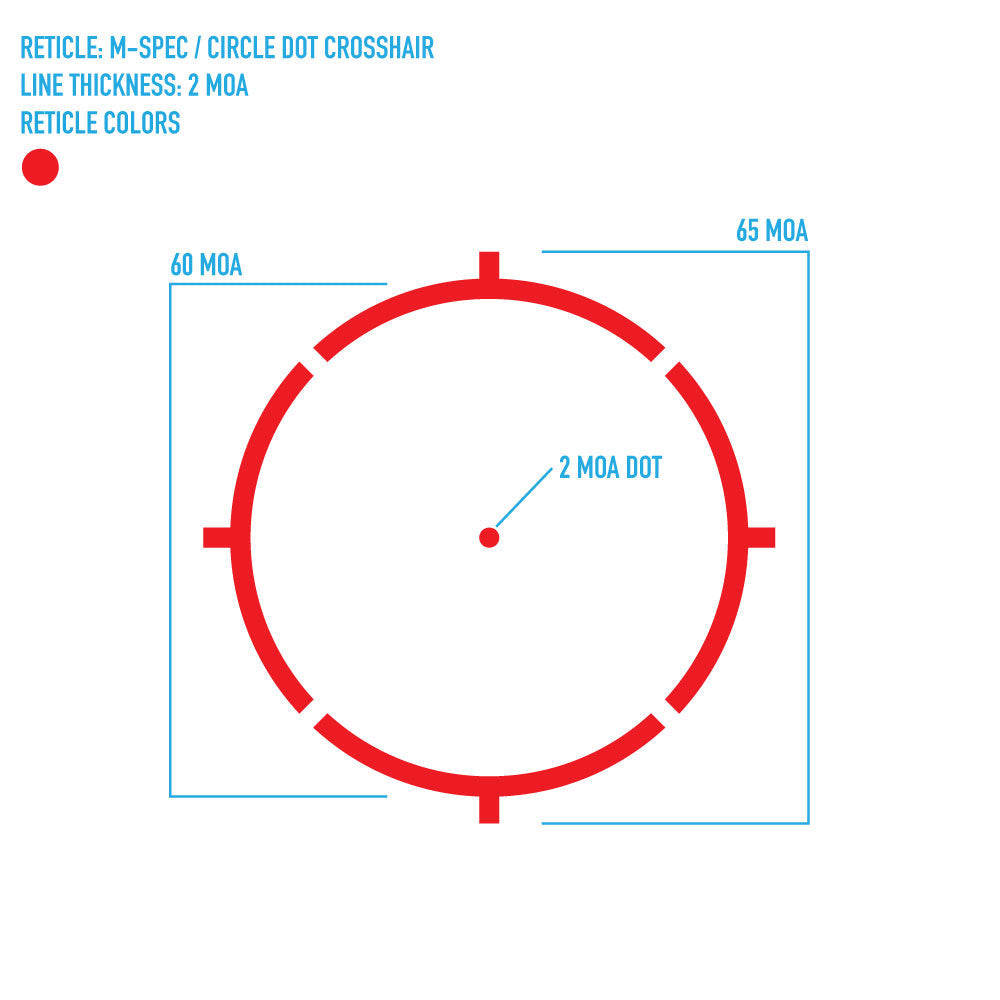

        Reticle, Type 65 MOA Circle Dot Crosshair (60 MOA circle w/ 5 MOA subtension, 2 MOA central dot)
        Reticle, Color Red
        Reticle Brightness Setting Off, 1-10, NV
        Magnification 1
        Objective overall dimension (mm) 33x24 mm
        Eye Relief Unlimited
        Elevation Range of Adjustment 120 MOA
        Windage Range of Adjustment 120 MOA
        Adjustment Value 1 MOA
        Parallax Setting 10 / 9.1 (yd/m)
        Finish/Color Matte black
        Body Material Magnesium alloy
        Maximum Recoil .50 BMG
        IP Rating (waterproof) IP68 - waterproof to 40ft/12m
        Nitrogen Filled No
        Shock-proofness Yes, 8ft / 2.4m
        Fog Proof No
        Lens Coating AR red
        Mount Type Picatinny
        Battery Type CR123A
        Battery Life 200-2,000 Hours
        Battery Voltage, V 3 V
        Operating temperature, F/C -22 to 160 / -30 to 71 F/C
        Length (in/mm) 4.01 / 102 (in/mm)
        Width (in/mm) 2.24 / 57 (in/mm)
        Height (in/mm) 2.32 / 59 (in/mm)
        Weight, oz 10.2 oz.
