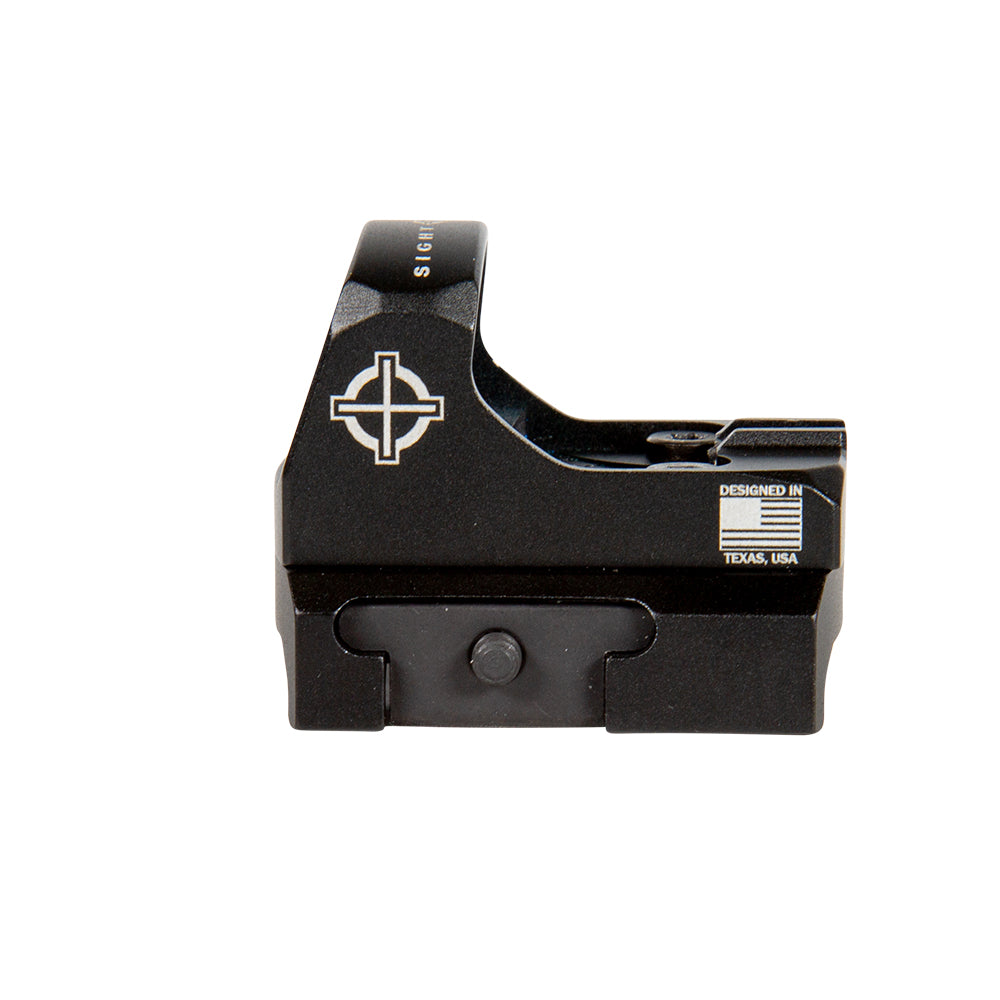

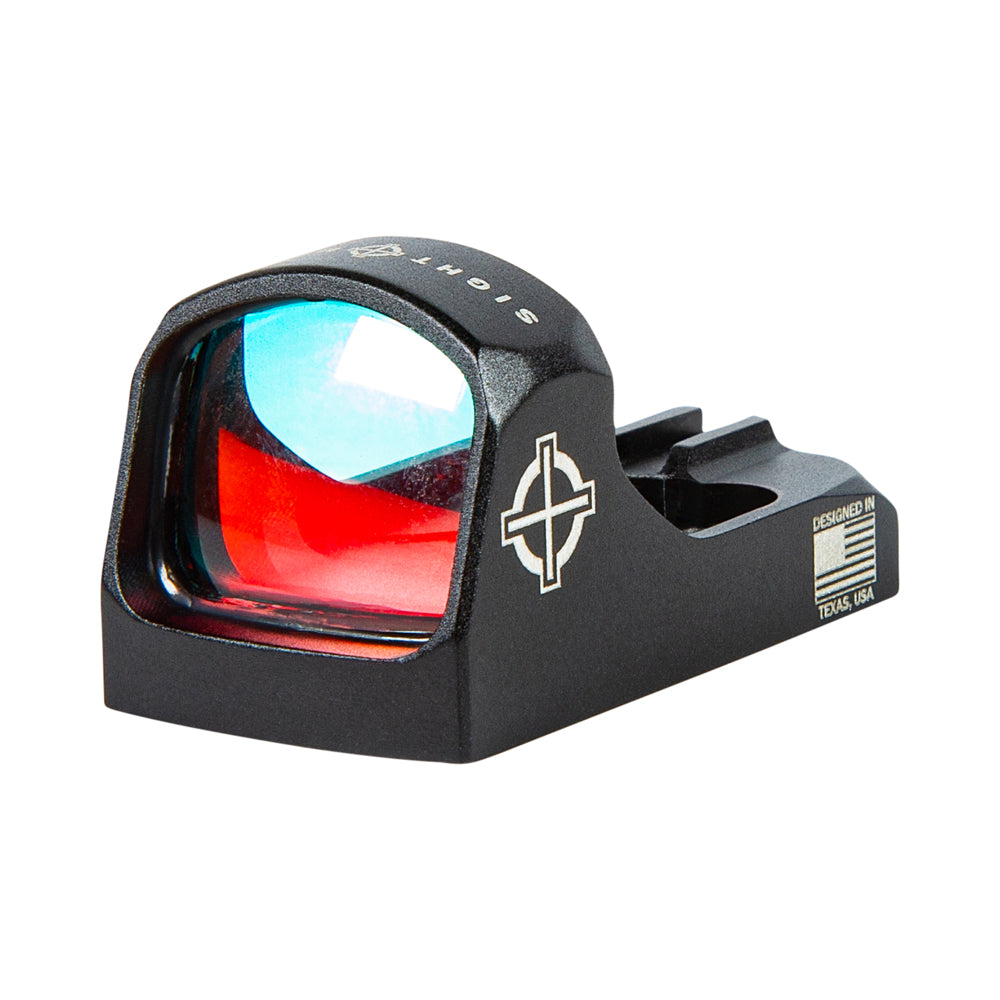

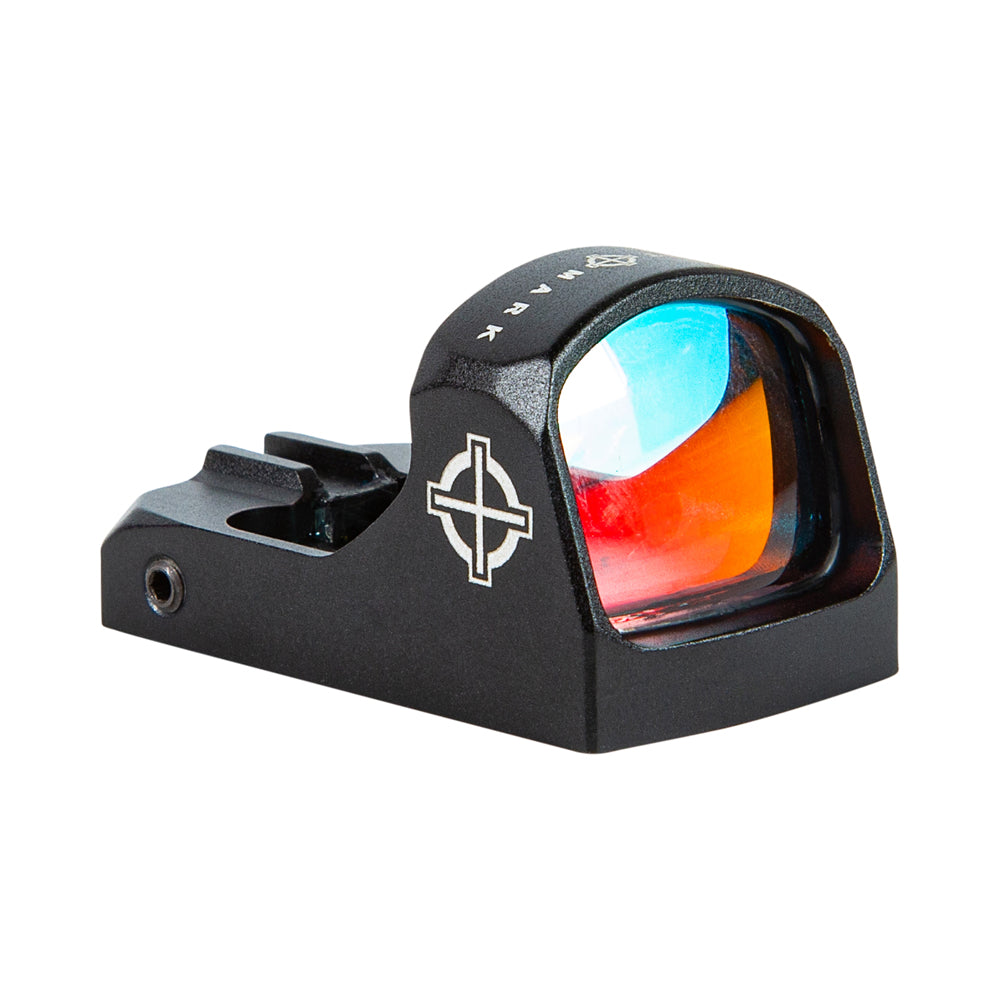

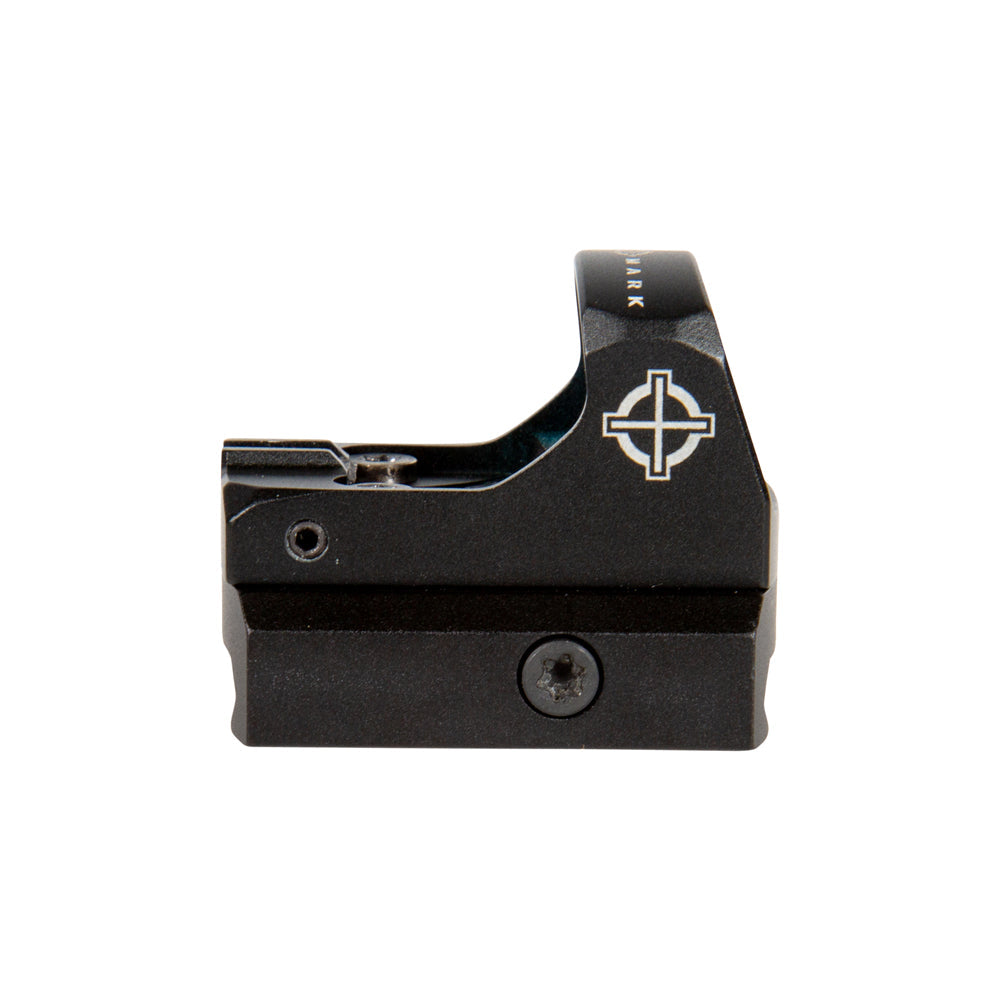

• Mini Shot A-Spec M3 Reflex Sight (RMS-C footprint)

Mini Shot A-Spec M3 Reflex Sight (RMS-C footprint)

$203.97
  • IP55 water resistant
  • Shockproof
  • Fits pistols with Shield RMS-C® footprint
  • Auto-brightness control reticle
  • Cowitness with standard pistol sights
  • Red reticle illumination
  • Lightweight compact aluminum alloy housing
See all 9 features
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM26049
Availability
In stock
Product manual (PDF, opens in a new tab) Spec sheet (opens in a new tab)

Overview

The A-Spec M3 is manufactured to be compatible for uses with a Shield RMS-C® footprint, and it boasts a red auto-brightness control reticle to accommodate shooting at any time, day or night. This optic is perfect for subcompact guns, and is notoriously durable – aluminum alloy housing, IP55 water-resistant, shockproof, able to withstand up to .375 H&H caliber and operate in temperatures from -22F to 122F. With a battery life up to 100,000 hours and an included rubber cover, low-profile fixed mount and manual, the A-Spec M3 is guaranteed to help you Make Your Mark.

Mini Shot A-Spec M3 Reflex Sight (RMS-C footprint)

  1. Fits pistols with Shield RMS-C® footprint

  2. Auto-brightness control reticle

  3. Cowitness with standard pistol sights

Mini Shot A-Spec M3 Reflex Sight (RMS-C footprint)

Mini Shot A-Spec M3 Reflex Sight (RMS-C footprint)

Features

  1. 01Fits pistols with Shield RMS-C® footprint
  2. 02Auto-brightness control reticle
  3. 03Cowitness with standard pistol sights
  4. 04Red reticle illumination
  5. 05Lightweight compact aluminum alloy housing
  6. 06Rugged aluminum alloy housing

All product features

  • IP55 water resistant
  • Shockproof
  • Fits pistols with Shield RMS-C® footprint
  • Auto-brightness control reticle
  • Cowitness with standard pistol sights
  • Red reticle illumination
  • Lightweight compact aluminum alloy housing
  • Rugged aluminum alloy housing
  • IP55 water-resistant
  • Shockproof
  • Battery life up to 100,000 hours

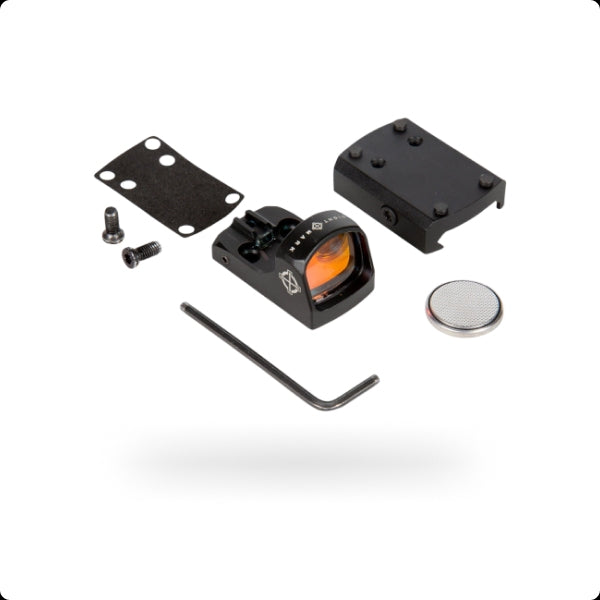

What comes in the box

Included

In the box

  • Protective Cover
  • Objective lens cover

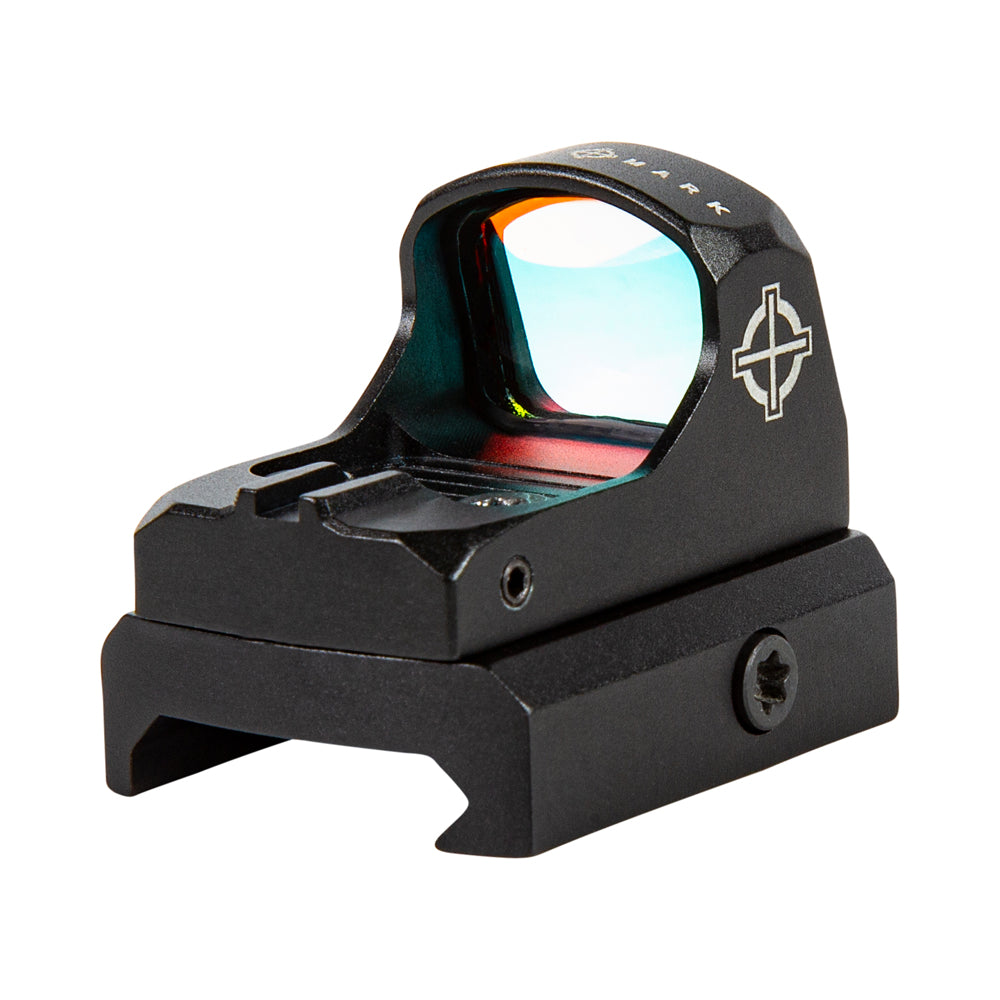

  • Low Profile Fixed Mount
  • CR2032 Battery

Specifications

Mini Shot A-Spec M3 Reflex Sight (RMS-C footprint), SKU SM26049

Reticle, Type
3 MOA
Reticle, Color
Red
Setting, Brightness
Auto
Magnification (x)
1
Objective overall dimension (mm)
20 X 16
Eye relief (in/mm)
Unlimited
Elevation adjustment range (MOA)
80
Windage adjustment range (MOA)
130
Adjustment value (one click =)
Continuous
Parallax Setting
25yd - ∞
Finish/Color
Matte Black
Body Material
6061-T6 aluminum
Maximum Caliber
.375 H&H
IP Rating (waterproof)
IP55 - Water Resistant
Nitrogen Filled
No
Shockproof (yes/no)
Yes, 3ft / .9m
Fog Proof
No
Lens Coating
AR Red
Mount Type
Weaver/Picatinny
Footprint
Shield RMS-C®
Battery Type
CR2032
Battery life, hours
500 - 100,000
Battery Voltage, V
3V
Operating Temp,?F/?C
- 22 to 122 / -30 to 50
Length sight only (in/mm)
1.6 / 40.8
Width sight only mount (in/mm)
.9 / 23
Height sight only mount (in/mm)
.89 / 22.8
Weight sight only mount (oz/g)
.7 / 20
Length w/ low mount (in/mm)
1.6 / 40.8
Width w/ low mount (in/mm)
1.2 / 30.4
Height w/ low mount (in/mm)
1.33 / 33.9
Weight w/ low mount (oz.)
1.6 / 46
