• Core Shot A-Spec FMS Reflex Sight

Core Shot A-Spec FMS Reflex Sight

$129.97
  • Auto shutoff
  • Scratch-resistant lenses
  • Compact, lightweight aluminum alloy housing
  • Protective aluminum shield
  • Fixed picatinny mount
  • Wide lens provides quick target acquisition
  • Slotted windage and elevation adjustments
See all 12 features
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM26017
Availability
Sold out
Product manual (PDF, opens in a new tab) Spec sheet (opens in a new tab)

Overview

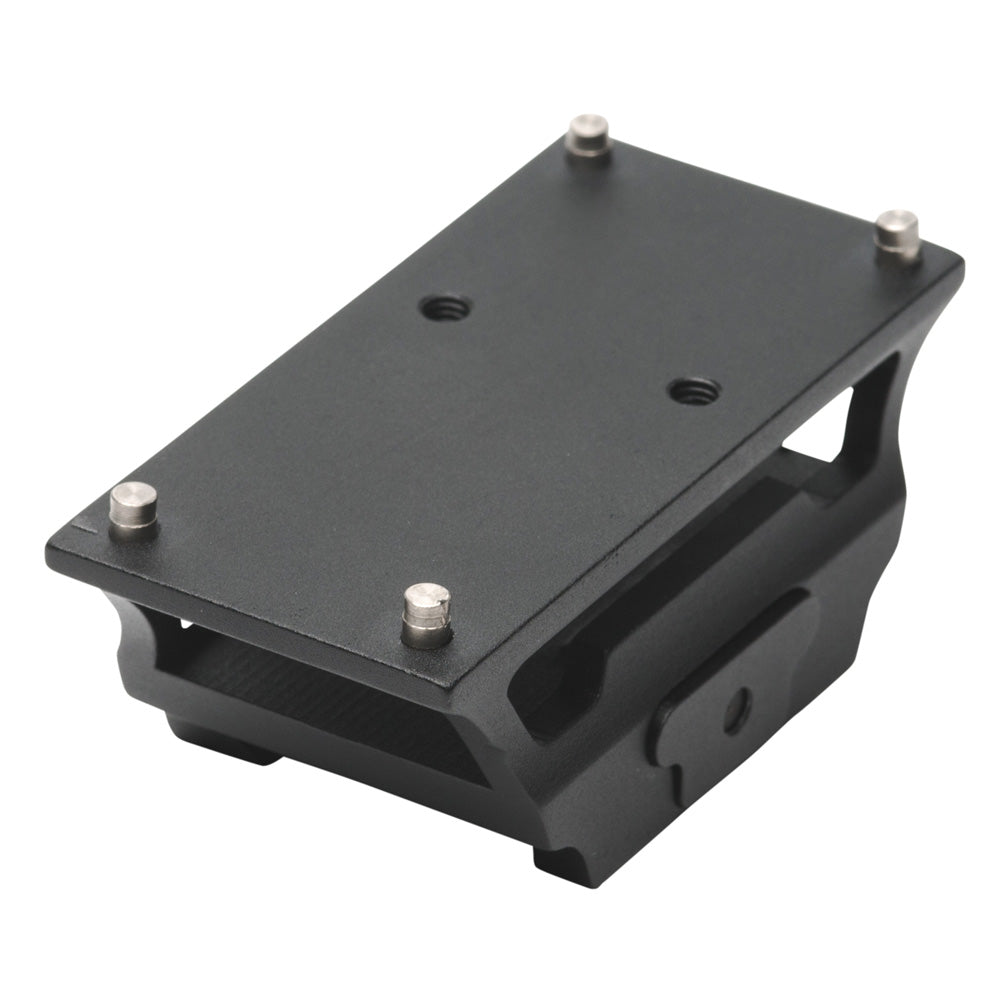

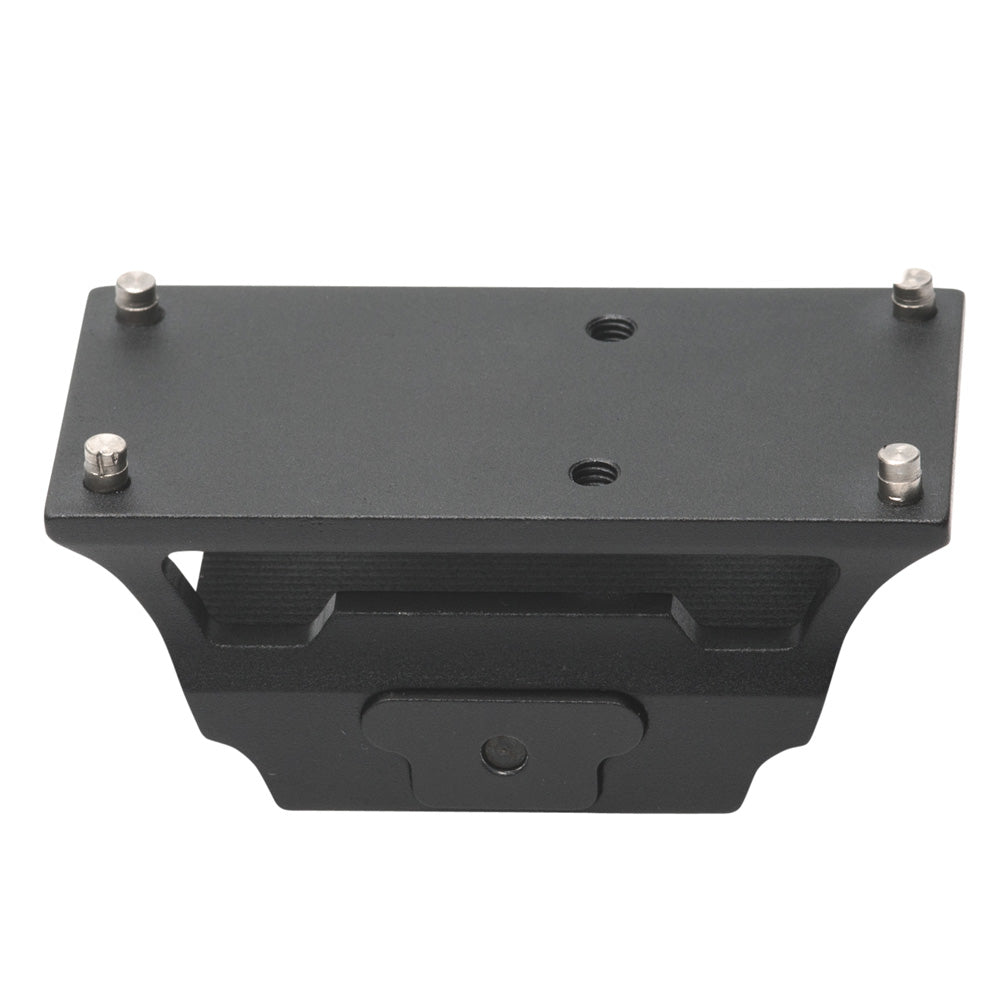

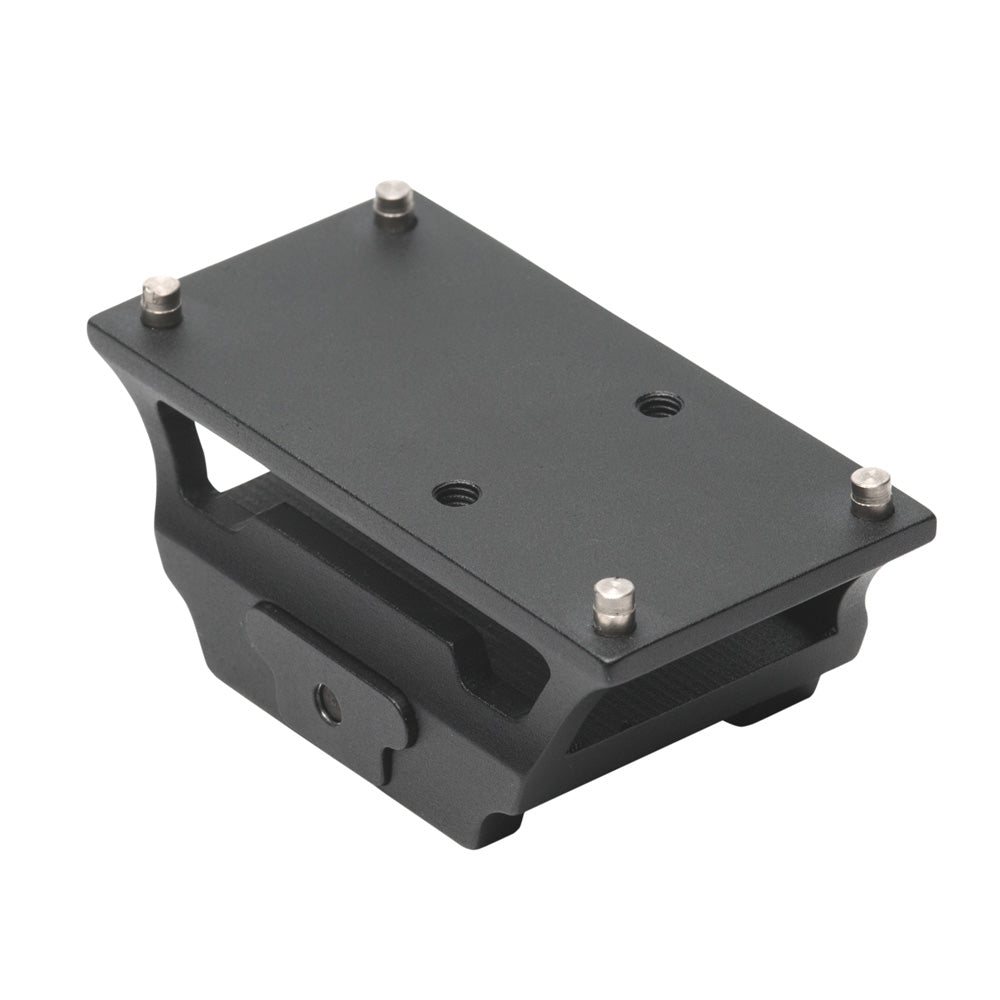

For avid shooters, the Sightmark Core Shot A-Spec FMS Reflex Sight brings precision accuracy and reliability to high-stakes competition shooting and hunts of a lifetime. Designed to deliver better optic performance, the shooters A-Spec FMS Reflex Sight improves accuracy for recreational, professional and competitive environments. The Core Shot bridges the gap between the Mini Shot and Ultra Shot for avid shooters wanting a compact sight. Made out of aircraft-grade aluminum for a dependable compact lightweight housing and includes external battery compartment for easier access to the battery. The Core Shot Includes a riser mount to work effectively on ARs.

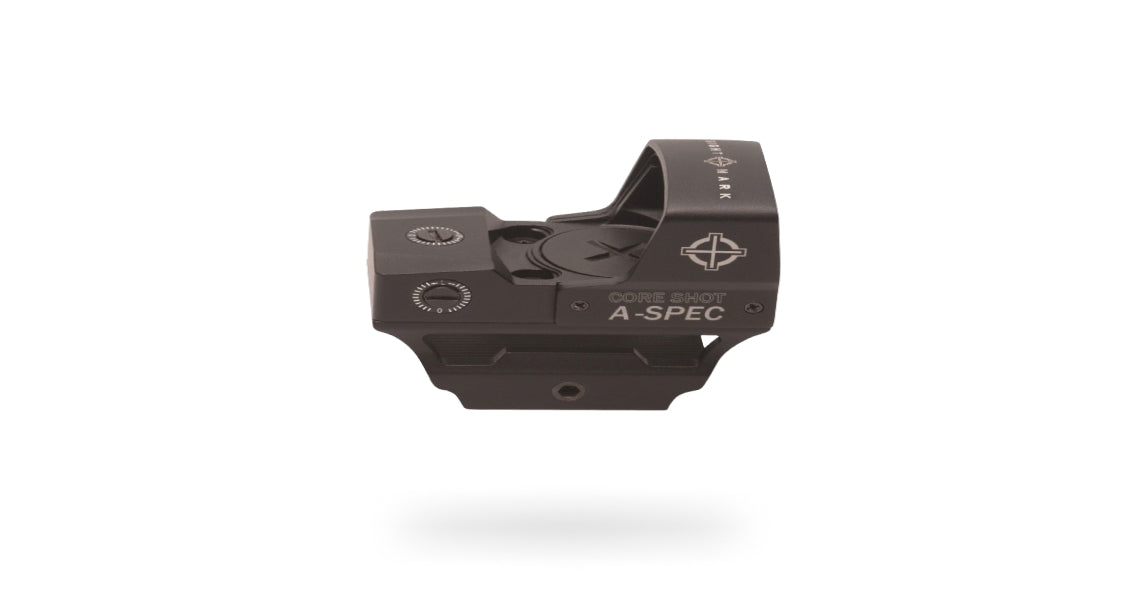

Core Shot A-Spec FMS Reflex Sight

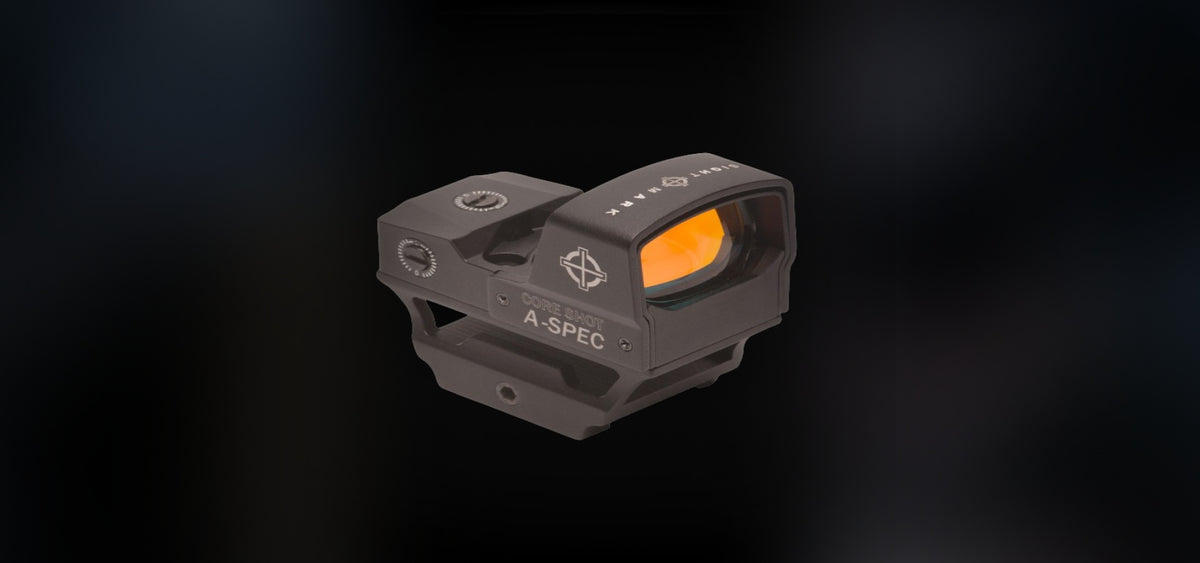

  1. Optimized Precision

  2. Uncompromising Durability

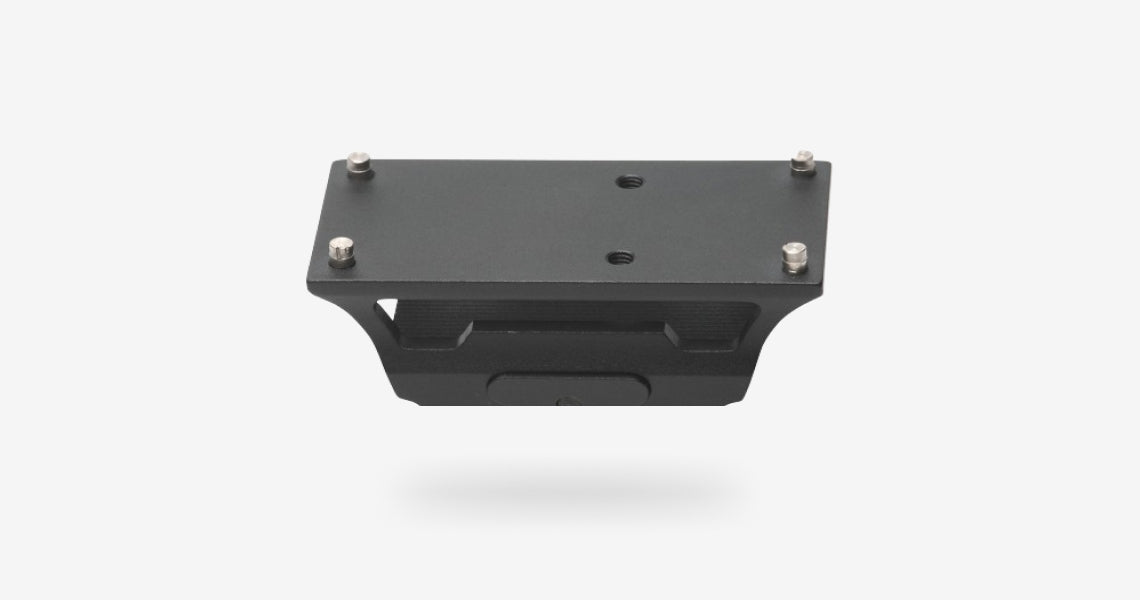

  3. Fixed picatinny mount

Core Shot A-Spec FMS Reflex Sight

Core Shot A-Spec FMS Reflex Sight

Features

  1. 01Compact, lightweight aluminum alloy housing
  2. 02Protective aluminum shield
  3. 03Fixed picatinny mount
  4. 04Wide lens provides quick target acquisition

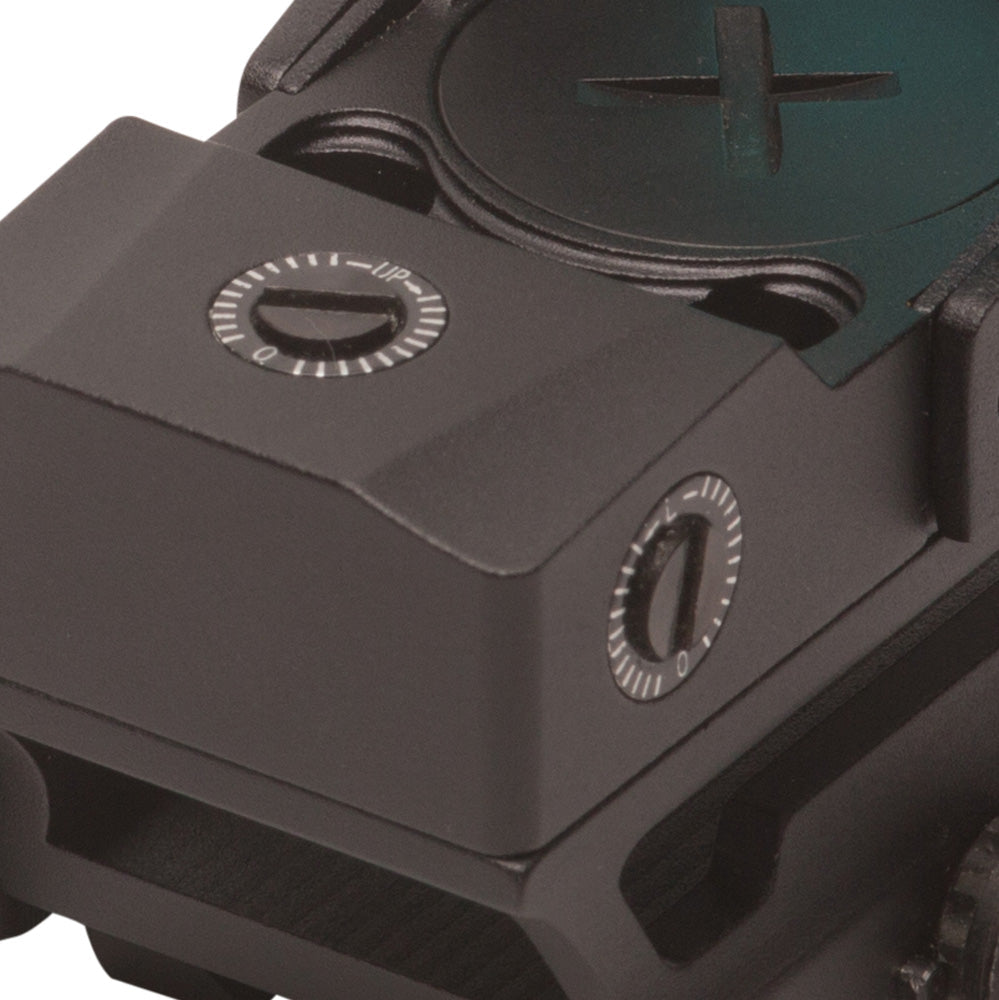

  5. 05Slotted windage and elevation adjustments
  6. 06Red reticle illumination

All product features

  • Auto shutoff
  • Scratch-resistant lenses
  • Compact, lightweight aluminum alloy housing
  • Protective aluminum shield
  • Fixed picatinny mount
  • Wide lens provides quick target acquisition
  • Slotted windage and elevation adjustments
  • Red reticle illumination
  • Digital switch controls
  • 8 reticle brightness levels
  • Night vision compatible
  • 1 hour auto shutoff
  • Low battery indication
  • Scratch resistant lens coating

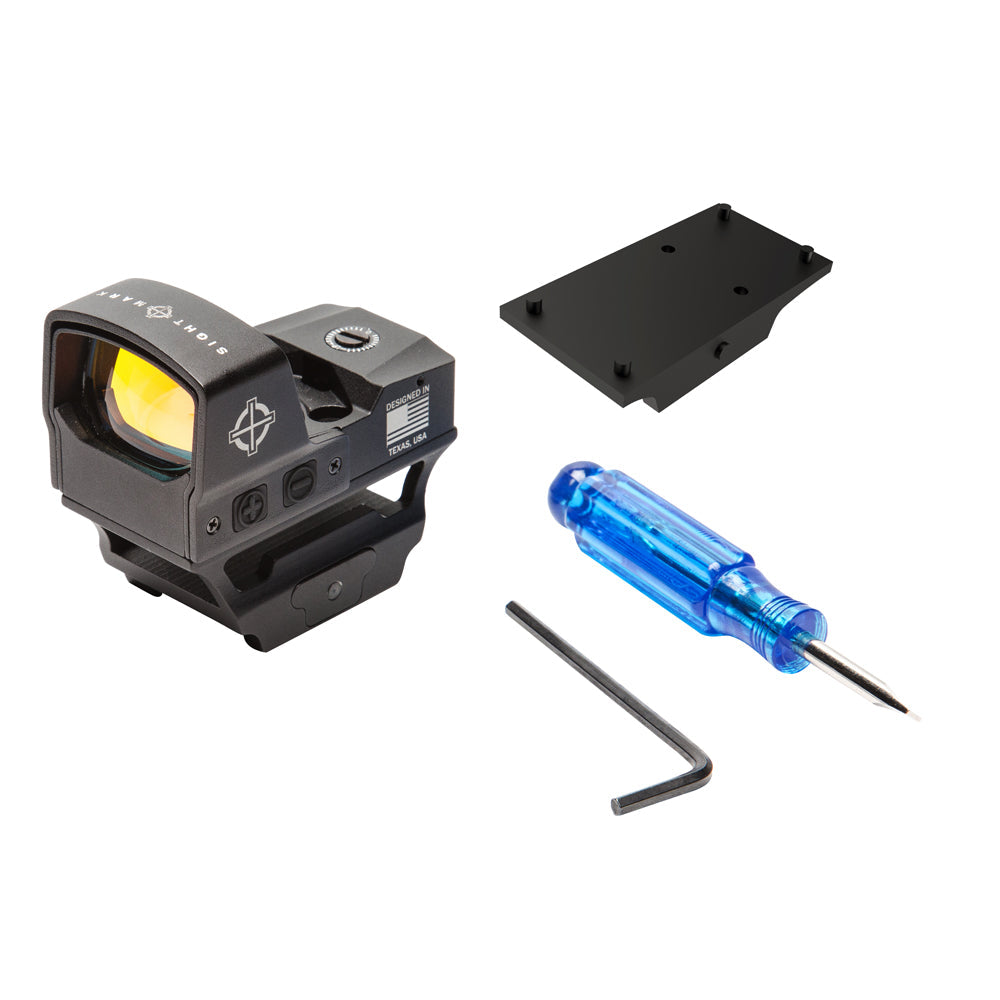

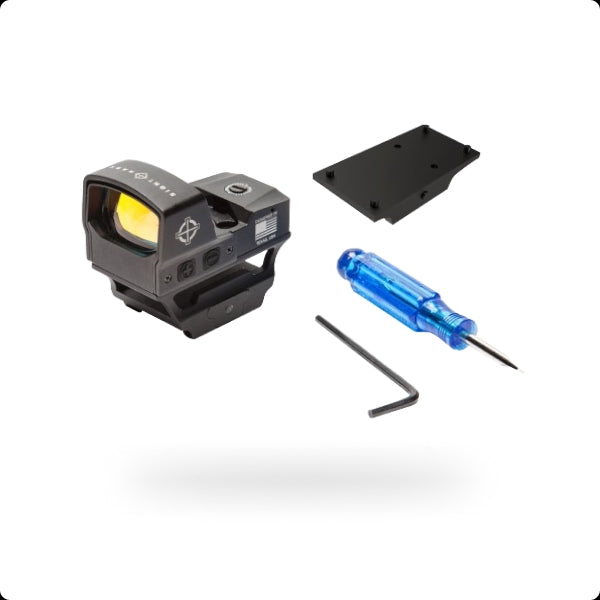

What comes in the box

Included

In the box

  • Adjustment Tools
  • Battery
  • Manual

Specifications

Core Shot A-Spec FMS Reflex Sight, SKU SM26017

Reticle, Type
5 MOA Dot
Reticle, Color
Red
Reticle Brightness Setting
Off, 0 - 8 NV 1 - 2
Magnification
1
Objective Lens
28 x 18 mm
Eye Relief
Unlimited
Elevation Adjustment
100 MOA
Windage Range of Adjustment
100 MOA
Parallax Setting
10 yds
Finish/Color
Matte black
Body Material
Aluminum 6061-T6
Maximum Recoil
.50 BMG G's
IP Standard
IP55 - water resistant
Nitrogen Filled
No
Shockproof
Yes, 4ft, 1.2m
Fog Proof
No
Lens Coating
AR Red
Mount Type
Picatinny
Battery Type
CR2032
Battery life, hours
20 - 1,400 hrs
Battery Voltage, V
3
Operating temperature, F/C
-22 to 160 / -30 to 71 F/C
Length (in/mm)
2.3 / 59 in / mm
Width (in/mm)
1.2 / 30 in / mm
Height (in/mm)
2.2 / 56 in / mm
Weight
4.4 oz

Downloads

Customer reviews

4out of 5

Based on 1 review

  • 5 star0
  • 4 star1
  • 3 star0
  • 2 star0
  • 1 star0

  1. We will see

    I have other full size Sightmarks and I like them a lot. This is very compact size sight I put on a AR9. I mounted it without the riser. I ran out of elevation while bore sighting it so I may hav wrong end up using the riser. Not too happy with lack of elevation adjustment. I should have just gone with the tried and true full size Sightmark sights.
