        SKU : SM18041

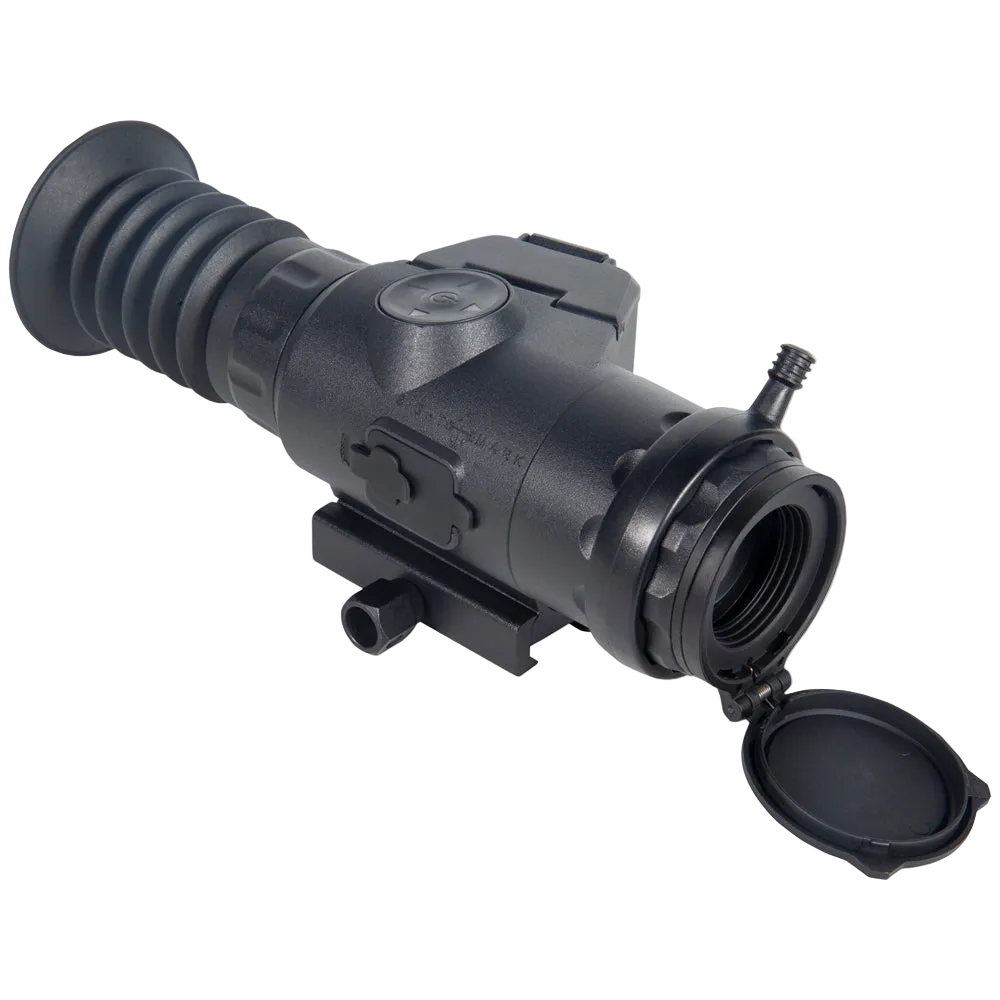

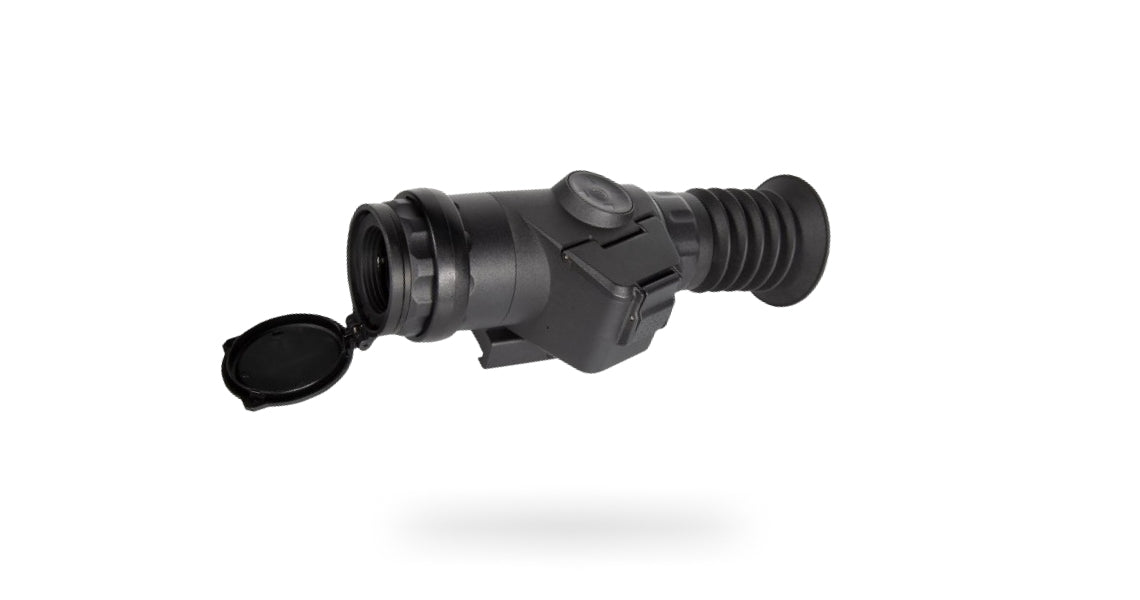

        The Wraith 4K Mini Digital Riflescope combines Sightmark’s rugged quality with the most advanced digital optic technology available to deliver the finest day/night riflescope known to the firearms industry. Boasting an incredible 4K (3840x2160) CMOS sensor, the Wraith 4K Mini detects objects up to 300 yards away in the darkest of nights and displays them on a flawless 1280x720 FLCOS screen.

        Although it’s extremely light and compact, the Wraith 4K Mini features big-time capabilities. The Wraith 4K Mini’s built-in recorder produces .AVI-format videos in 1080p and/or 4K resolution, ensuring every shooting memory is captured and preserved in incredible detail. With 8x digital zoom, full-color HD imaging during the daytime and two digital night vision color palettes (black & white or black-white custom), 850nm IR illuminator and first-focal-plane reticle options, USB-C external power connector, the Wraith 4K Mini enables shooters to locate and engage targets, near or far, with speed and precision.

        Supremely durable, the Wraith 4K Mini is a solid aluminum scope that operates in temperatures ranging from 32F to 140F (0 to 60C), shockproof for drops up to 3 ft., IPX6 water resistant and capable of handling recoil up to .308 Winchester.

        Models:

        • SM18041
          • Magnification: 2-16x32
          • Field of View, Ft @ 100 Yds: 40
        • SM18042
          • Magnification: 4-32x32
          • Field of View, Ft @ 100 Yds: 21

        Included in Package

        • 850nm IR Illuminator
        • Flip-up lens cover
        • Focus throw lever
        • Eye cup
        • Fixed picatinny mount
        • User manual

        Battery Used

        • Type: 2x CR123A
        • Quantity: 1

        Product Downloads

        Features

        • 4K Digital Imaging
        • 300-yard night detection range
        • Night vision mode
        • Daytime color mode
        • Built-in 4K video recording with audio capabilities
        • 14 reticle options with 9 colors

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        California Disclaimer

        Electronic components
        Type of sensor CMOS sensor
        Sensor resolution, pixels  4K (3840x2160)
        Display type FLCOS
        Display Resolution, pix. 1280x720
        Built-In Video Recorder Availability Yes
        Maximum memory card supported, Gb 256
        Format of video clip AVI
        Resolution of video clip 1080/4K
        Format of photo files JPEG
        Resolution of photo files 4k
        Memory capacity Approximately 1.75 hours video with 64gb SD card  on 4k@30  quality level.
        Optical characteristics
        Lens diameter, mm  32
        Magnification:
        Mini 4K 2-16x32 (SM18041)
        2-16x
        Mini 4K 4-32x32 (SM18042)
        4-32x
        Field of View, Ft @ 100 Yds:
        Mini 4K 2-16x32 (SM18041)
        40
        Mini 4K 4-32x32 (SM18042)
        21
        IR-illuminator
        Emitter LED
        IR Wavelength, nm 850nm
        Equivalent IR Power, mW ~1060 on high, ~540 on medium, ~400 on low
        Battery Life 2 hours on high
        Battery type 2x CR123A
        Range of Detection
        Night Vision detection range, yd/m 300/274
        Power Supply
        Power Supply, v 6
        Battery type 2x CR123A
        Battery life 3.6Hrs Video Mode/ 4.4Hrs Preview Mode
        External Power Supply 5V via USB-C
        Reticle
        Windage & Elevation click value 1 pixel/ ~X0.4MOA
        Adjustment range, elevation ~ 150 MOA
        Adjustment range, windage ~ 350 MOA
        Number of reticle options 10 SFP 4FFP
        Colors Black, white, red, blue, green, cyan, orange, yellow, magenta
        Physical & operational characteristics
        Body Material Aluminum
        Accessory rail mount  Picatinny
        Operating Temp,°F / C° 32 to 140 / 0 to 60
        Waterproof rating IPX6 - water resistant
        Nitrogen Purged, yes/no no
        Shockproof, yes/no yes, 3ft
        Maximum recoil, caliber .308
        Tube diameter n/a
        Length, in/mm 6.299/160
        Width, in/mm 3.031/77
        Height, in/mm 2.913/74
        Weight (with batteries), oz 21.6 oz

        -

        Wraith 4K Mini 2-16x32
        Firmware Version 02.22.21
        Name SKU/Model Number Language
        Wraith 4K Mini 2-16x32 SM18041 SM18041-English
        Wraith 4K Mini 2-16x32 SM18041 SM18041-Bulgarian
        Wraith 4K Mini 2-16x32 SM18041 SM18041-Czech
        Wraith 4K Mini 2-16x32 SM18041 SM18041-Finnish
        Wraith 4K Mini 2-16x32 SM18041 SM18041-Hungarian
        Wraith 4K Mini 2-16x32 SM18041 SM18041-Italian
        Wraith 4K Mini 2-16x32 SM18041 SM18041-Portuguese
        Wraith 4K Mini 2-16x32 SM18041 SM18041-Russian
        Wraith 4K Mini 2-16x32 SM18041 SM18041-Slovenian
        Wraith 4K Mini 2-16x32 SM18041 SM18041-Swedish



        Wraith 4K Mini 4-32x32
        Firmware 05.22.04
        Name SKU/Model Number Language
        Wraith 4K Mini 4-32X32 SM18042 SM18042-English
        Wraith 4K Max 4-32x32 SM18042 SM18042-Bulgarian
        Wraith 4K Max 4-32x32 SM18042 SM18042-Czech
        Wraith 4K Max 4-32x32 SM18042 SM18042-Hungarian
        Wraith 4K Max 4-32x32 SM18042 SM18042-Italian
        Wraith 4K Max 4-32x32 SM18042 SM18042-Portuguese
        Wraith 4K Max 4-32x32 SM18042 SM18042-Russian
        Wraith 4K Max 4-32x32 SM18042 SM18042-Slovenian
