Ultra Shot A-Spec Reflex Sight

$179.97
  • Scratch-resistant lenses
  • Auto shutoff
  • XT-3 Magnifier compatible
  • Advanced AR coated
  • Scratch resistant lens system
  • Night vision brightness modes
  • 4 red reticle options with 10 brightness settings
See all 22 features
Color: Ultra Shot A-Spec Reflex Sight
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM26032
Availability
In stock
Product manual (PDF, opens in a new tab) Spec sheet (opens in a new tab)

Overview

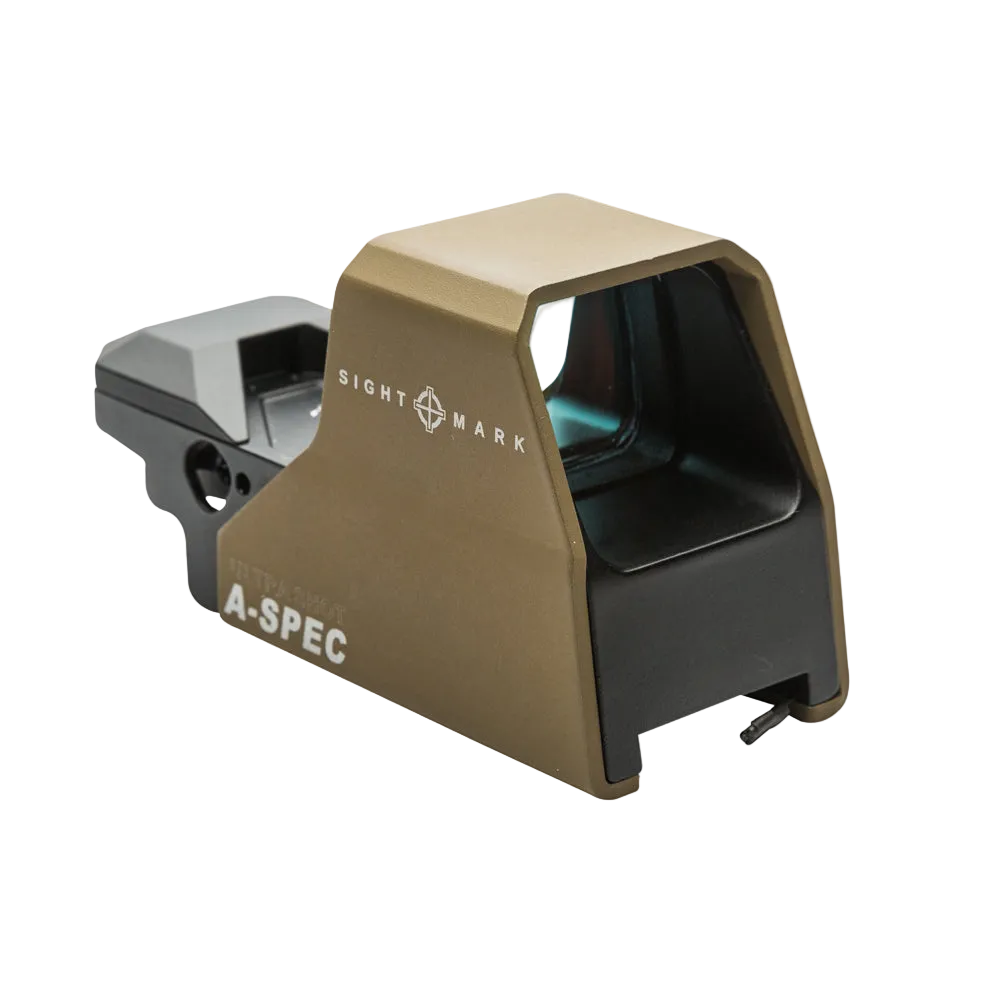

Designed to deliver advanced optic performance, the Sightmark Ultra Shot A-Spec Reflex Sight / Dark Earth promises repeatable accuracy and ultra-fast target acquisition for recreational, professional and competition shooting environments. The Ultra Shot A-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective red coating, 4 illuminated red reticle options with 10 brightness settings, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even when perfect sight alignment isn’t an option. Built tough, the Ultra Shot A-Spec Reflex Sight is shock proof, IP55 weather-resistant, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminum body and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot A-Spec Reflex Sight also features a low battery indicator, digital switch controls, 1-hour auto shut-off, quick-detach picatinny mount and Sightmark’s lifetime warranty.  The Ultra Shot A-Spec Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and neoprene cover.

US Pat. D872219     US Pat. D872219S1

Ultra Shot A-Spec Reflex Sight

  1. XT-3 Magnifier compatible

  2. Advanced AR coated

  3. Scratch resistant lens system

Ultra Shot A-Spec Reflex Sight

Ultra Shot A-Spec Reflex Sight

Features

  1. 01XT-3 Magnifier compatible
  2. 02Advanced AR coated
  3. 03Scratch resistant lens system
  4. 04Night vision brightness modes
  5. 054 red reticle options with 10 brightness settings
  6. 06Quick detach mount for easy on/off application

All product features

  • Scratch-resistant lenses
  • Auto shutoff
  • XT-3 Magnifier compatible
  • Advanced AR coated
  • Scratch resistant lens system
  • Night vision brightness modes
  • 4 red reticle options with 10 brightness settings
  • Quick detach mount for easy on/off application
  • Auto-off capabilities
  • Low battery indicator
  • Recoil rated up to .50 BMG
  • Up to 2000 hours of battery life
  • Parallax corrected optical system
  • Rugged lightweight aluminum alloy housing
  • Protective aluminum shield
  • Advanced parallax free lens design
  • Wide lens provides quick target acquisition
  • Slotted windage and elevation adjustments
  • Red reticle illumination
  • Digital switch controls
  • 10 reticle brightness levels
  • 1 hour auto shutoff
  • Multiple reticle options
  • Interlok internal locking adjustment system

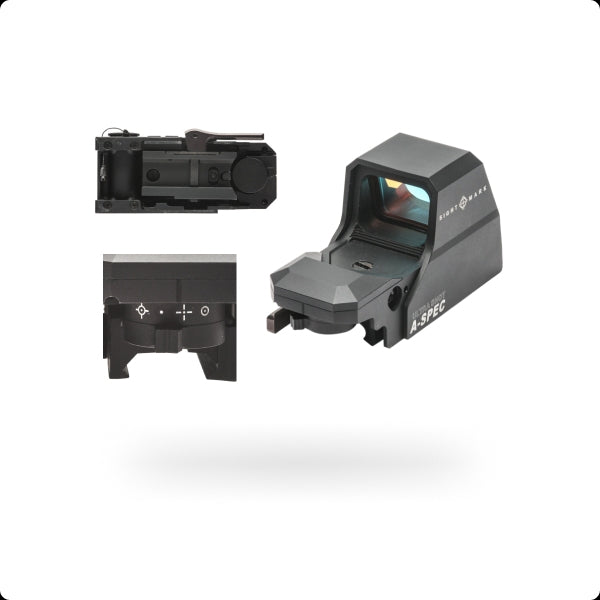

What comes in the box

Included

In the box

  • CR123A battery
  • Manual
  • Adjustment tools
  • Neoprene cover

Specifications

Ultra Shot A-Spec Reflex Sight, SKU SM26032

Reticle, Type
4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA)
Reticle, Color
Red
Reticle Brightness Setting
Off, 1-10, NV
Magnification
1
Objective overall dimension (mm)
33x24 mm
Eye relief (in/mm)
Unlimited
Elevation Range of Adjustment
120 MOA
Windage Range of Adjustment
120 MOA
Adjustment value
1 MOA
Parallax Setting
10 / 9.1 yd/m
Finish/Color
Matte black or Dark Earth
Body Material
Aluminum 6061-T6
Maximum Recoil
.50 BMG Max caliber
IP Rating (waterproof)
IP55 - Water Resistant
Nitrogen Filled
No
Fog Proof
No
Shock-proofness
Yes, 8ft / 2.4m
Lens Coating
AR Red
Mount Type
Picatinny
Battery Type
CR123A
Battery life
200-2,000 Hours
Battery Voltage, V
3 V
Operating Temp, F/C
-22 to 160 / -30 to 71 F/C
Length (in/mm)
4.33 / 110 in/mm
Width (in/mm)
1.96 / 50 in/mm
Height (in/mm)
2.28 / 58 in/mm
Weight, oz
10.8 oz.
