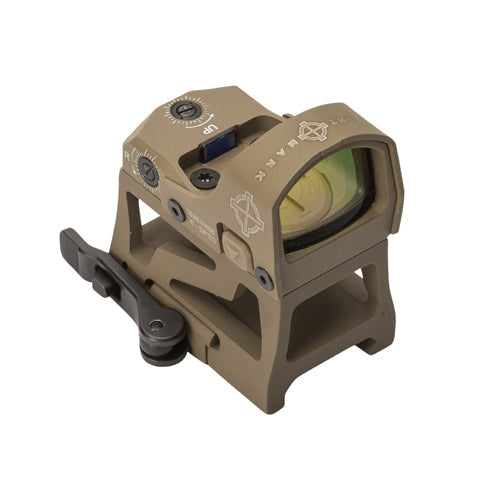

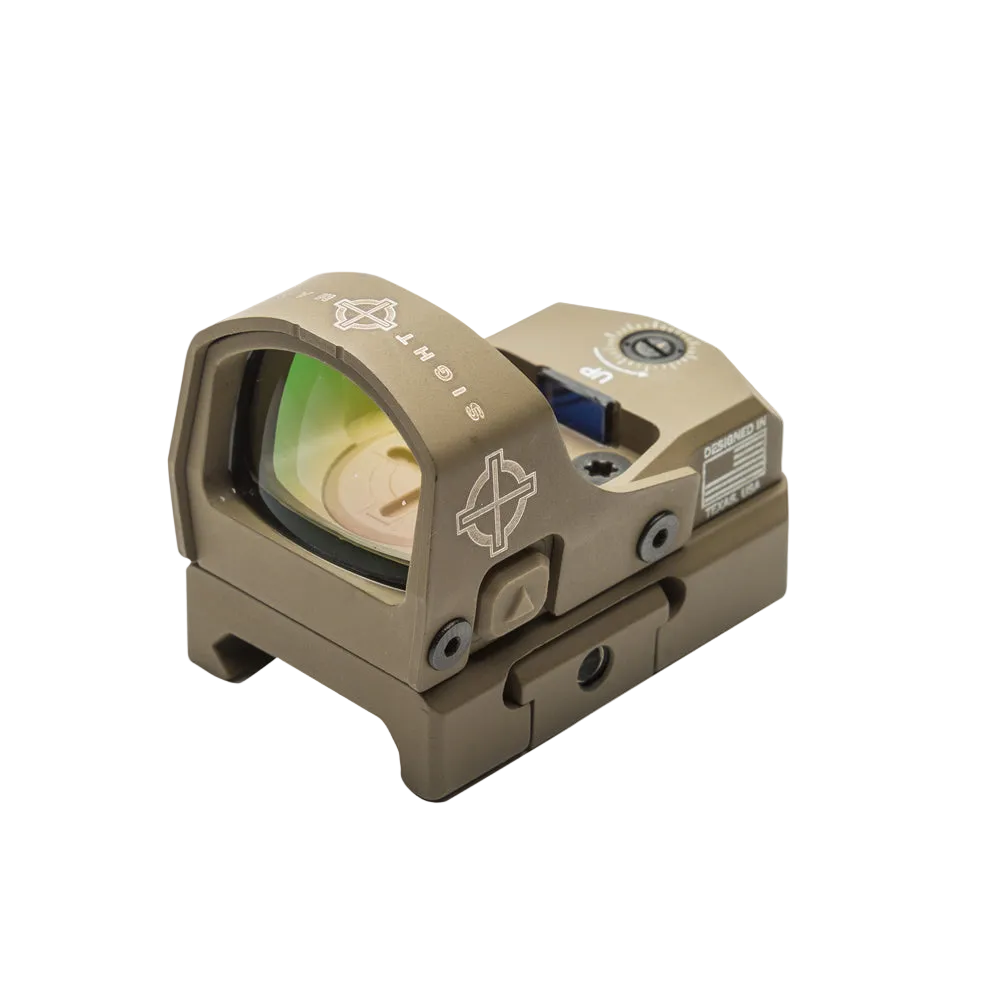

Mini Shot M-Spec M1 LQD Reflex Sight

$299.97
  • Scratch-resistant lenses
  • Auto shutoff
  • Very low power consumption
  • Locking quick detach mount
  • Windage and elevation click adjustments
  • 10 reticle brightness levels
  • 100% waterproof and dustproof
See all 15 features
Color: Dark Earth: Mini Shot M-Spec M1 LQD Reflex Sight
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM26043-LQDDE
Availability
In stock
Spec sheet (opens in a new tab)

Overview

Inspired by law enforcement, the Sightmark Mini M-Spec LQD DE (SM26043-LQD) is an ideal optic for hunting, competition shooting and home defense. The Mini M-Spec is built from aluminum alloy with a steel protective shield making it one of the toughest compact optics out there. With 10 brightness settings, the Mini M-Spec reticle is visible in virtually any environment, from day time to extreme low light conditions. Mini M-Spec users benefit from the addition of ambidextrous switch controls to fit the needs of both left- and right-handed users. Mini M-Specs boast a coated and scratch resistant lens, 12hour auto shut-off and is IP67 rated waterproof, dustproof and shockproof. The optic comes complete with a locking quick-detach mount and AR riser mount perfect for ARs, AKs, shotguns and pistols.

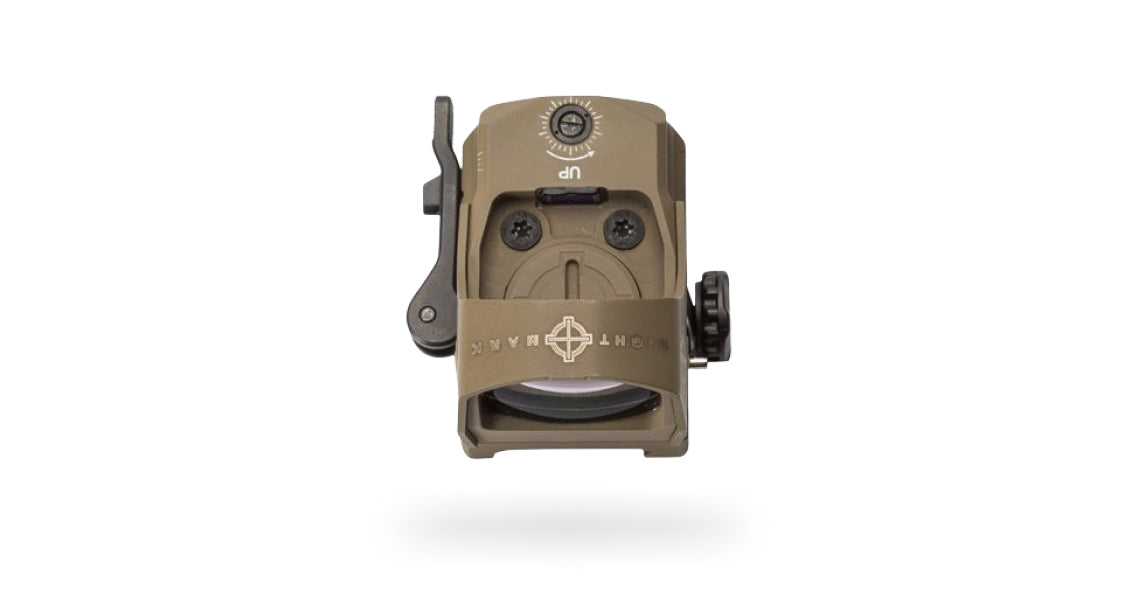

Mini Shot M-Spec M1 LQD Reflex Sight

  1. Very low power consumption

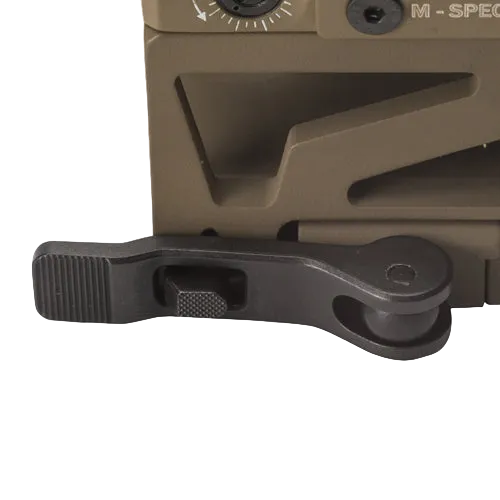

  2. Locking quick detach mount

  3. Windage and elevation click adjustments

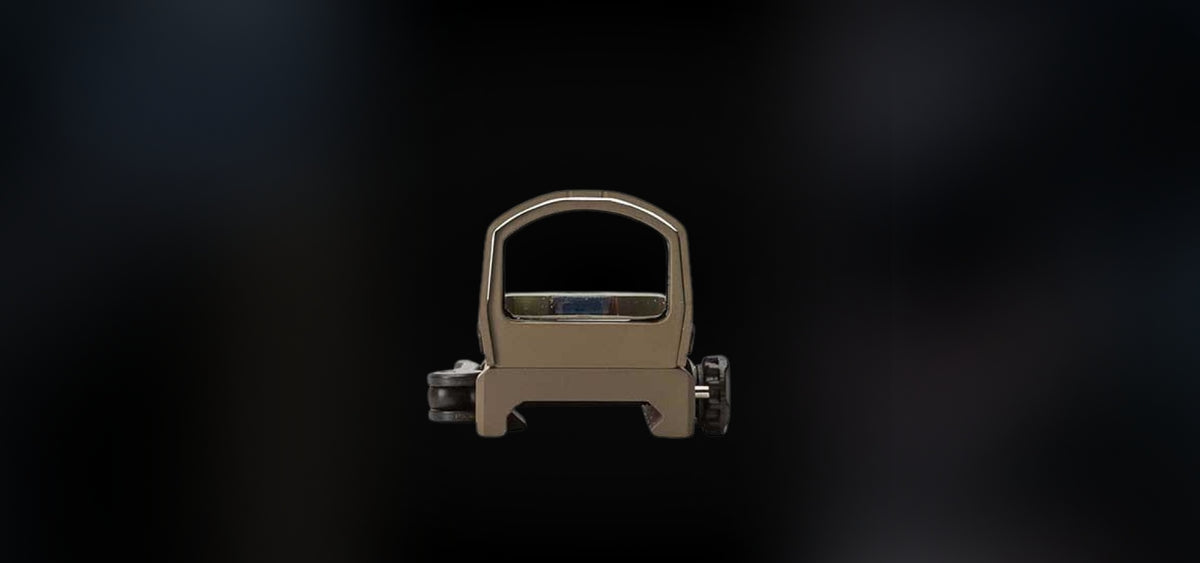

Mini Shot M-Spec M1 LQD Reflex Sight

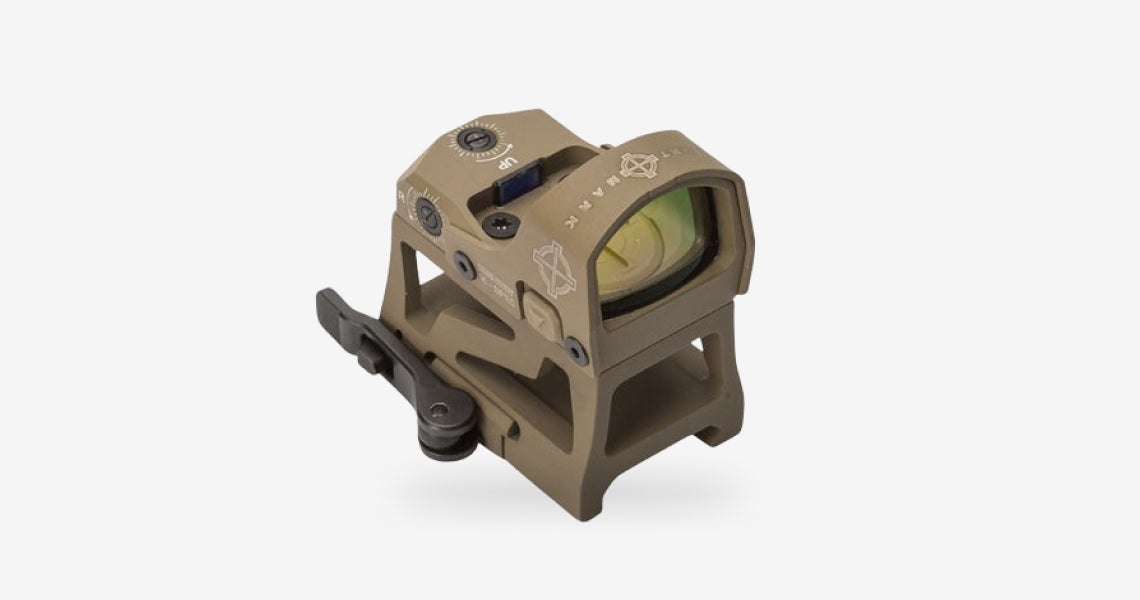

Mini Shot M-Spec M1 LQD Reflex Sight

Features

  1. 01Very low power consumption
  2. 02Locking quick detach mount
  3. 03Windage and elevation click adjustments
  4. 0410 reticle brightness levels
  5. 05100% waterproof and dustproof
  6. 06Ambidextrous digital switch brightness controls

All product features

  • Scratch-resistant lenses
  • Auto shutoff
  • Very low power consumption
  • Locking quick detach mount
  • Windage and elevation click adjustments
  • 10 reticle brightness levels
  • 100% waterproof and dustproof
  • Ambidextrous digital switch brightness controls
  • Steel shield protects optics
  • Advanced parallax free lens design
  • Red reticle illumination
  • Rugged lightweight aluminum alloy housing
  • Scratch resistant lens coating
  • 3 MOA red dot reticle
  • 12 hour auto shut off
  • Advanced, parallax free lens design
  • Fits Docter/Noblex footprint

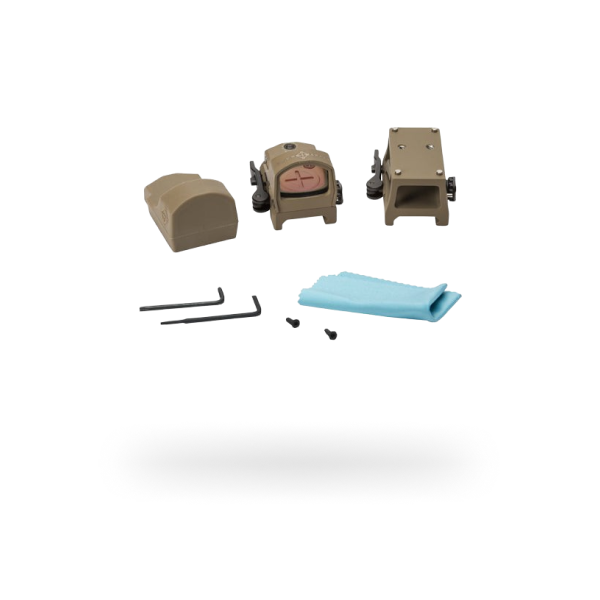

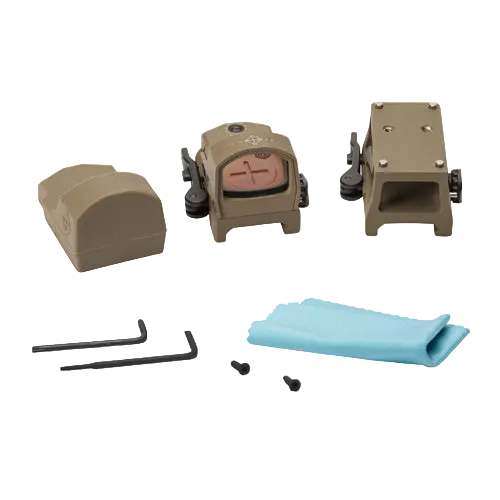

What comes in the box

Included

In the box

  • Rubber Cover

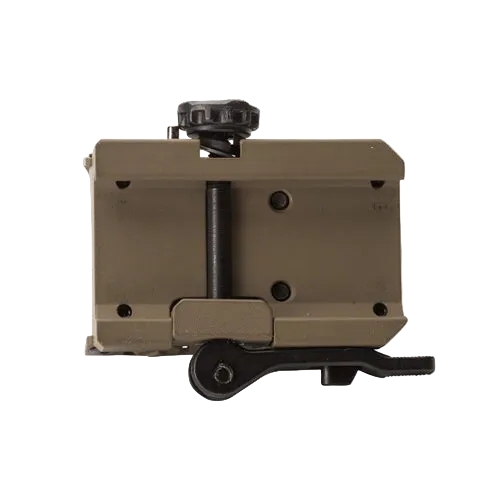

  • Low Profile QD mount
  • AR riser QD mount
  • CR1632 Battery
  • Manual

Specifications

Mini Shot M-Spec M1 LQD Reflex Sight, SKU SM26043-LQDDE

Reticle, Type
3 MOA
Reticle, Color
Red
Setting, Brightness
Off, 1-10
Magnification
1 x
Objective Lens
21 x 15 mm
Eye Relief
Unlimited
Elevation Range of Adjustment
110 MOA
Windage Range of Adjustment
110 MOA
Adjustment Value
1 MOA
Finish/Color
Dark Earth or Matte black
Body Material
6061-T6 aluminum
Maximum Recoil
.308
IP Rating (waterproof)
IP67 - waterproof to 1m/3ft for 1 hour
Nitrogen Filled
No
Shockproof
yes, 3ft / .9m
Fog Proof
No
Lens Coating
AR Red
Footprint
Docter/Noblex, Burris
Mount Type
Weaver / Picatinny
Battery Type
CR1632
Battery Life
300 - 30,000 Hours
Battery Voltage, V
3
Operating Temperature
-22 to 122 / -30 to 50 F / C
Length
2.2 / 56 with low mount in / mm
Width
1.85 / 47 with low mount in / mm
Height w/ low mount
1.34 / 34 in / mm
Weight w/ low mount
2.7 oz
Length w/ riser mount
2.2 / 56 in / mm
Width w/ riser mount
1.85 / 47 in / mm
Height w/ riser mount
2.2 / 56 in / mm
Weight w/ riser mount
3.4 oz
Parallax Setting
25yd - ∞
