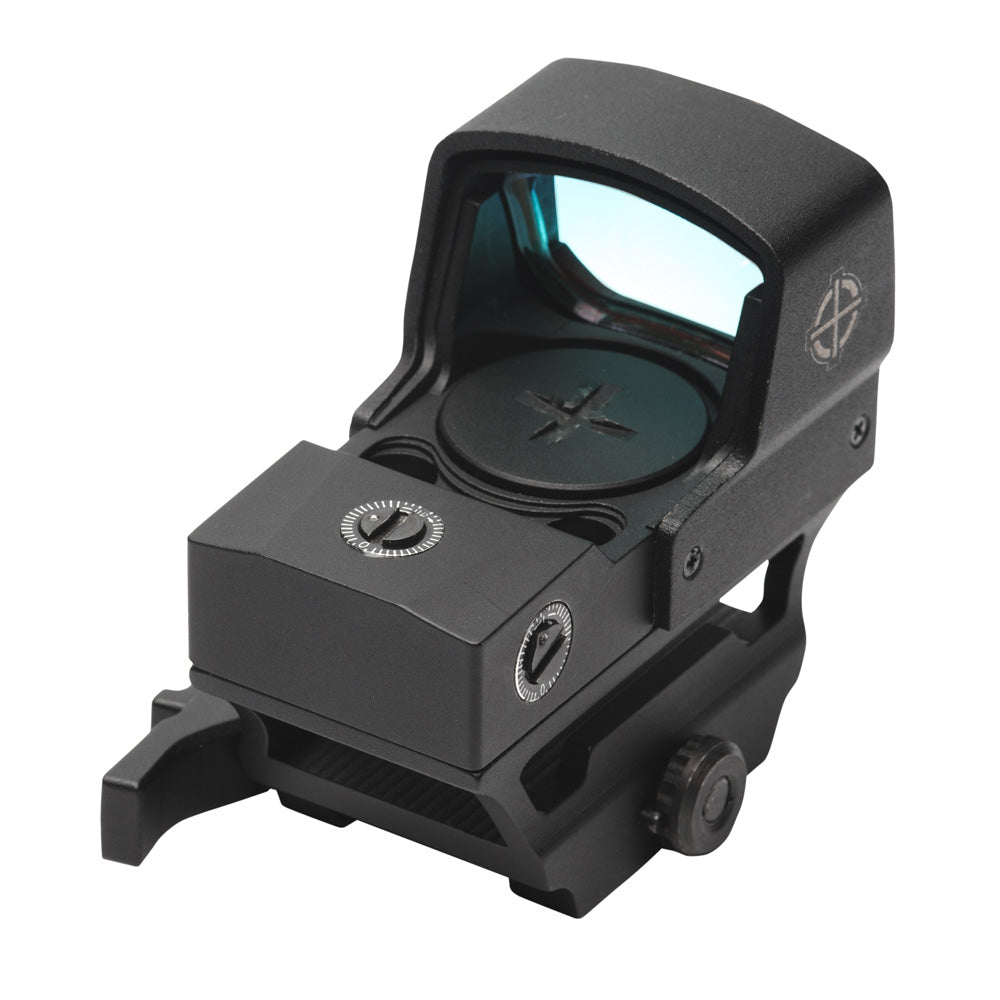

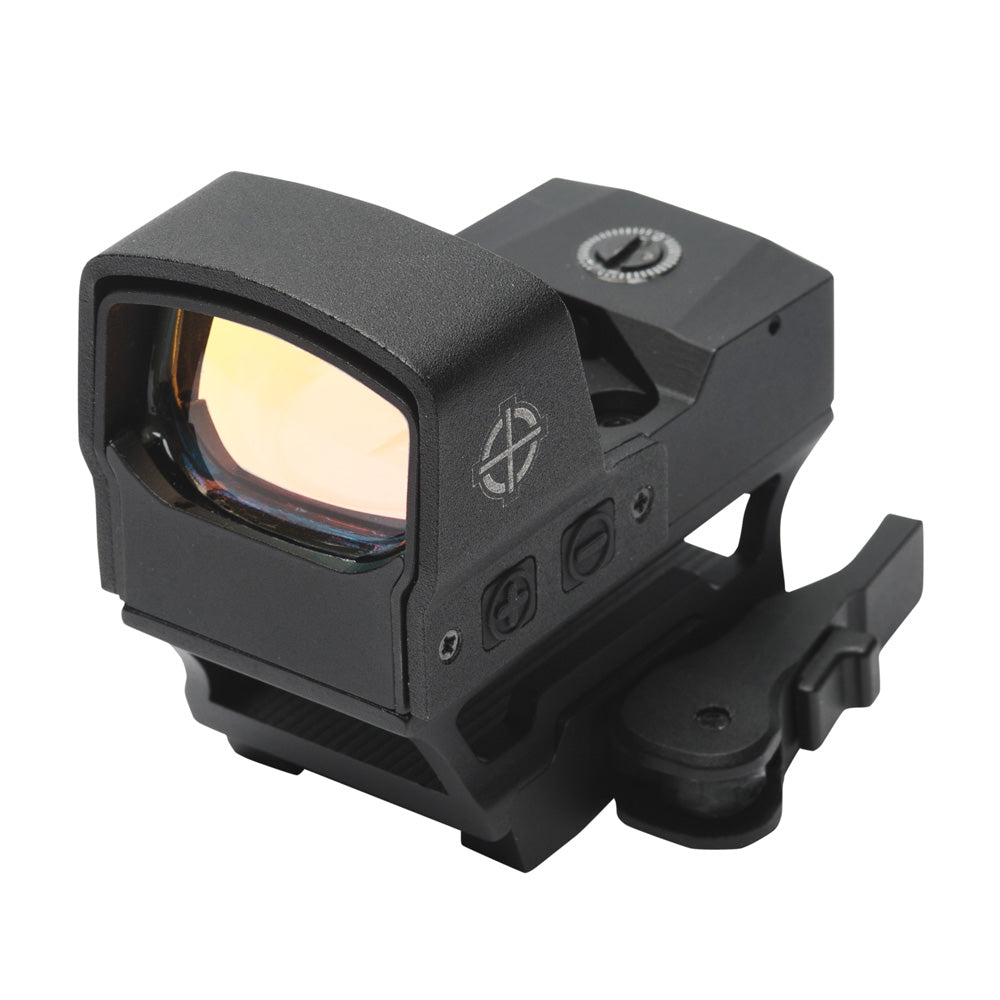

• Core Shot A-Spec LQD Reflex Sight

Core Shot A-Spec LQD Reflex Sight

Write a review
$149.97
  • Auto shutoff
  • Scratch-resistant lenses
  • Compact, lightweight aluminum alloy housing
  • Protective aluminum shield
  • Locking, quick detach picatinny mount
  • Wide lens provides quick target acquistion
  • Slotted windage and elevation adjustments
See all 12 features
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM26018
Availability
In stock
Product manual (PDF, opens in a new tab) Spec sheet (opens in a new tab)

Overview

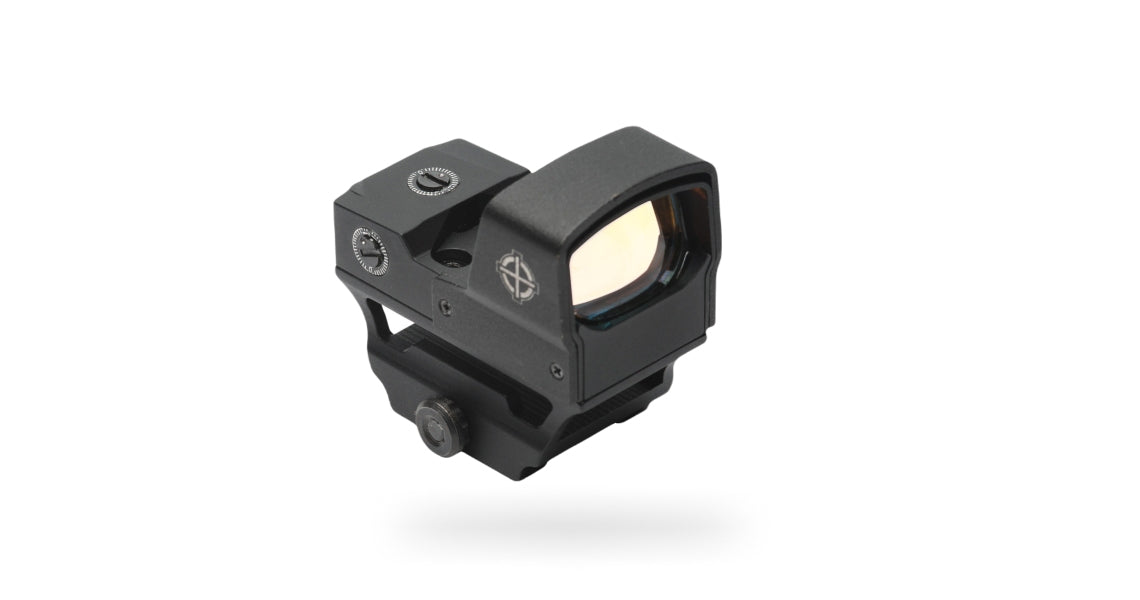

For your avid shooters, who like to be out on the range, the Sightmark Core Shot A-Spec LQD Reflex Sight, stimulates precision accuracy and reliability in high-stakes competition shooting and hunts of a lifetime. Designed to deliver elite optic performance, A-Spec LQD Reflex Sight guarantees precision for all recreational, professional and competitive environments. The Core Shot bridges the gap between the Mini Shot and Ultra Shot for all customers wanting a compact sight. It is made out of aircraft grade 6061-T6 aluminum, for a dependable compact lightweight housing. The sight includes windage and elevation click adjustments to dial in quickly and an external battery compartment for easier access to the battery. Includes a riser mount to work effectively on AR’s.

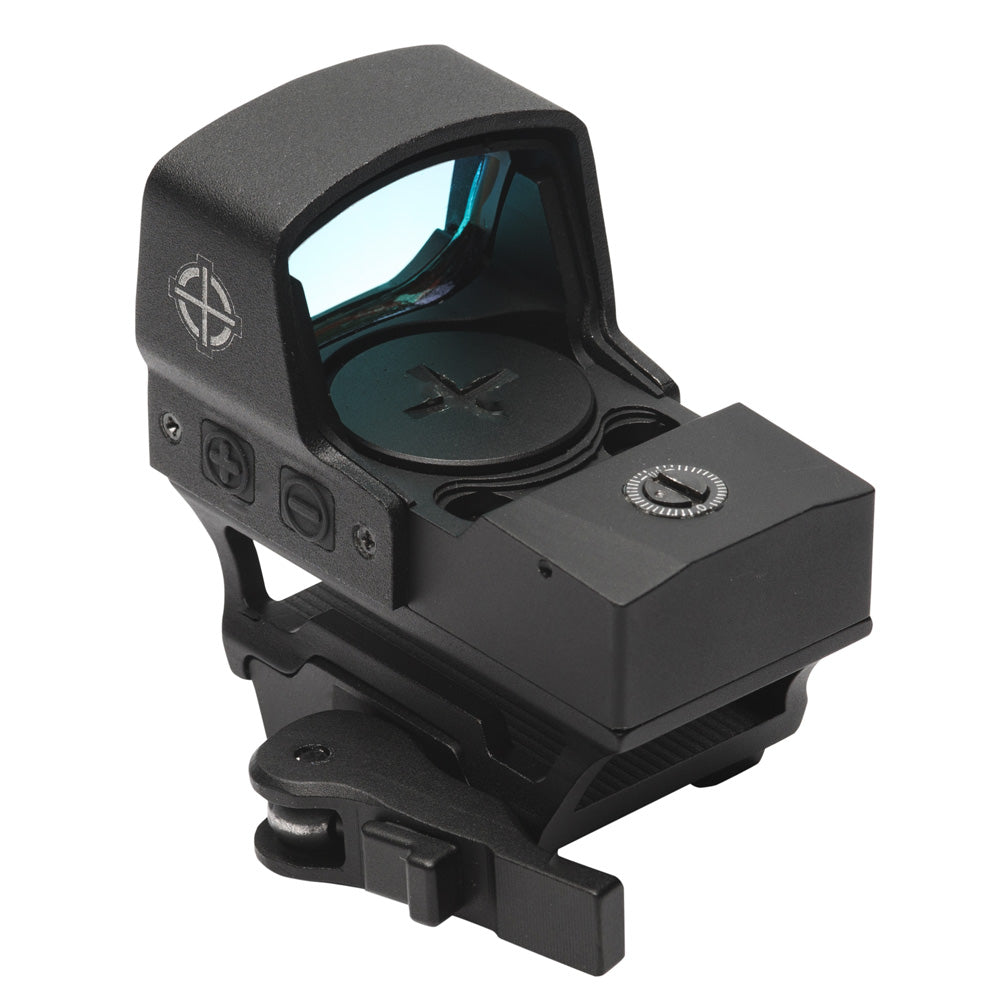

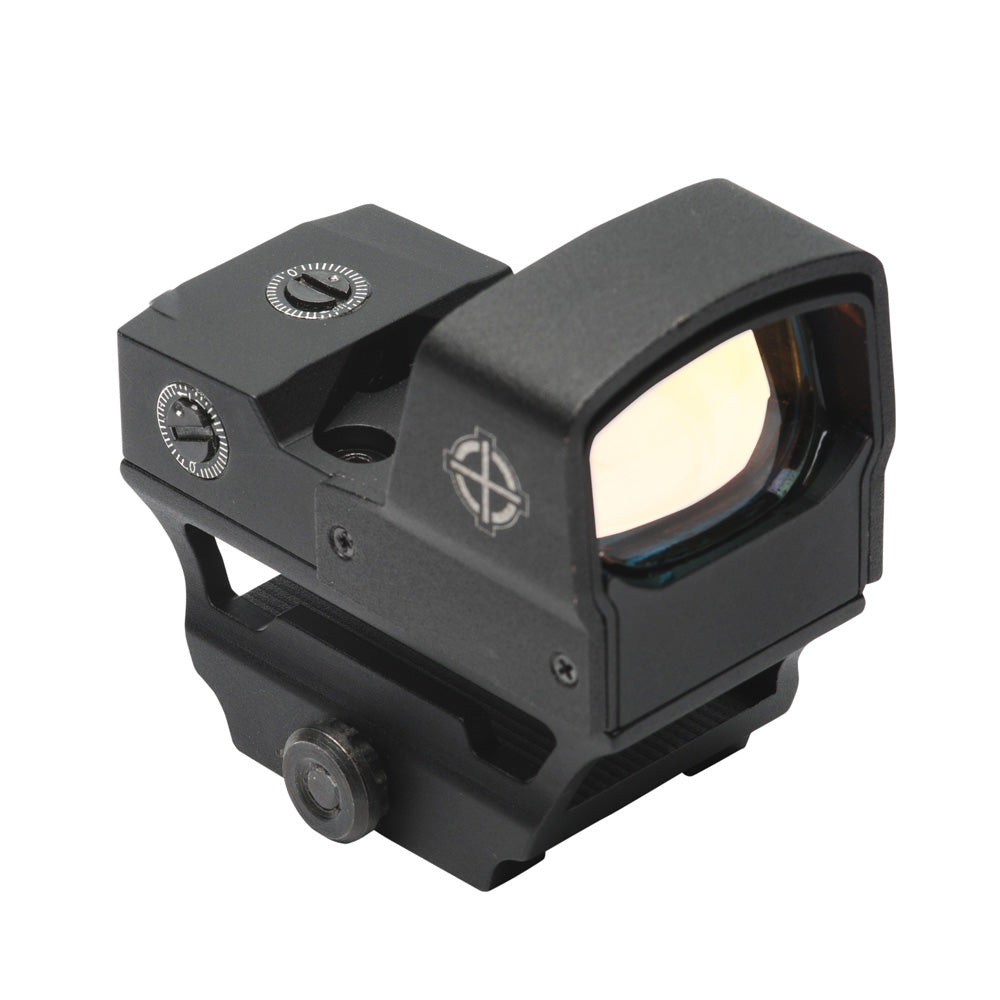

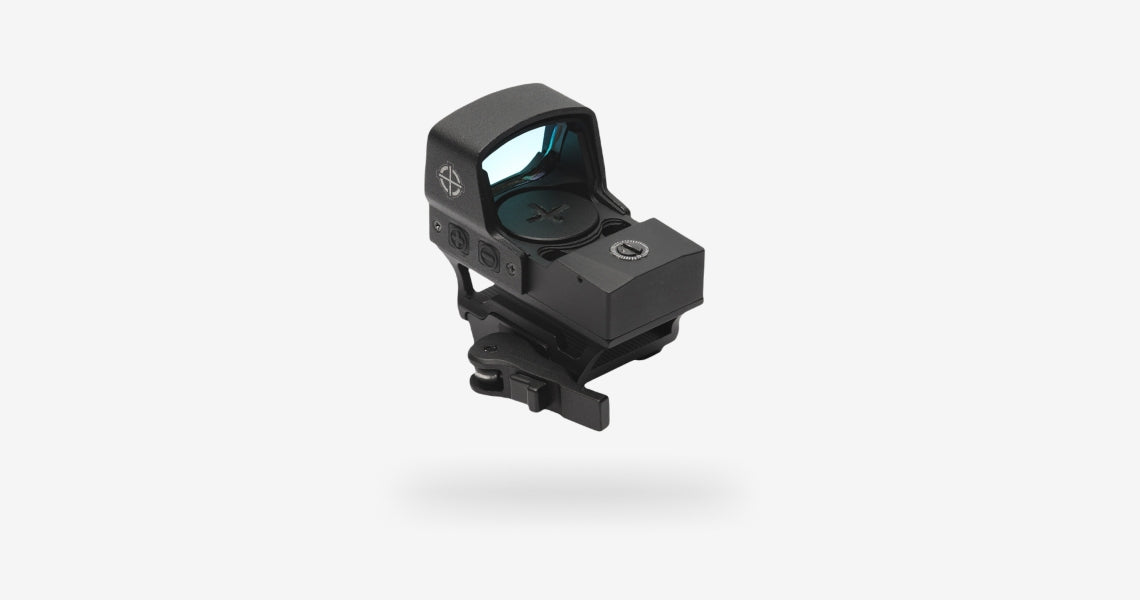

Core Shot A-Spec LQD Reflex Sight

  1. Compact, lightweight aluminum alloy housing

  2. Protective aluminum shield

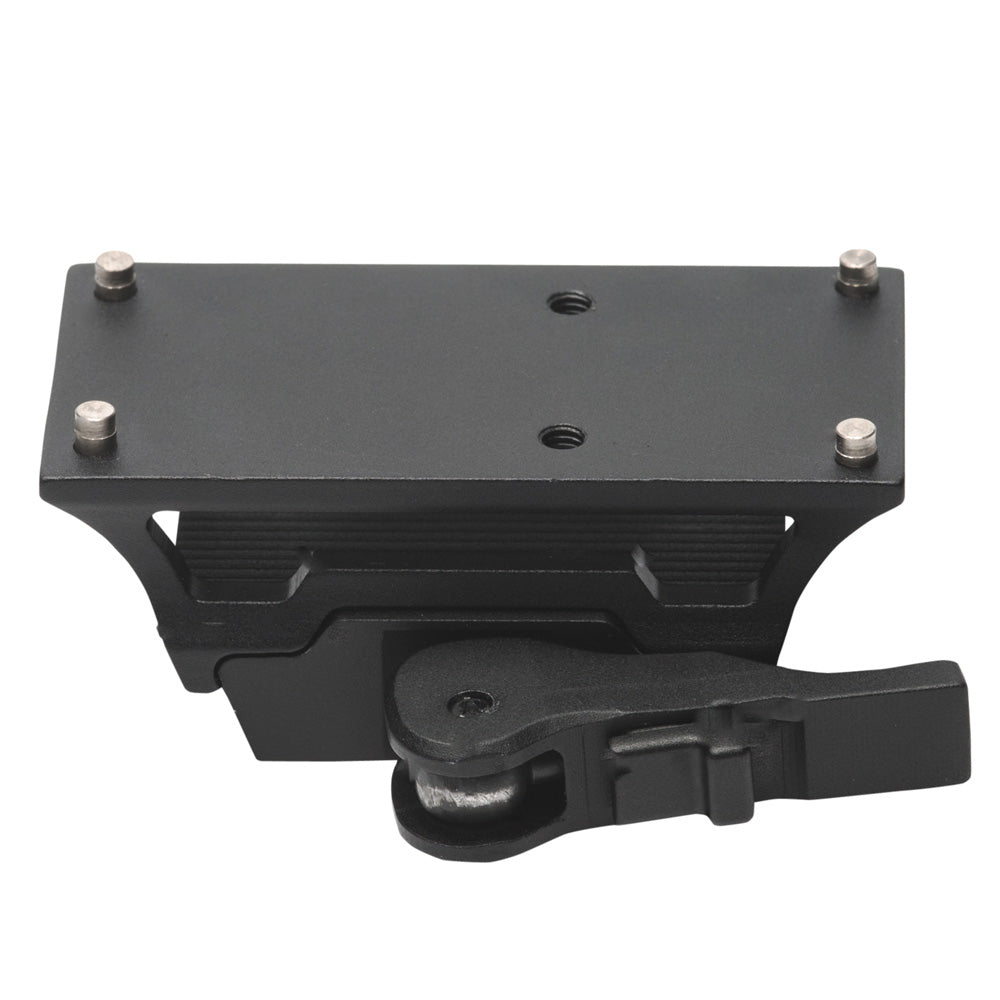

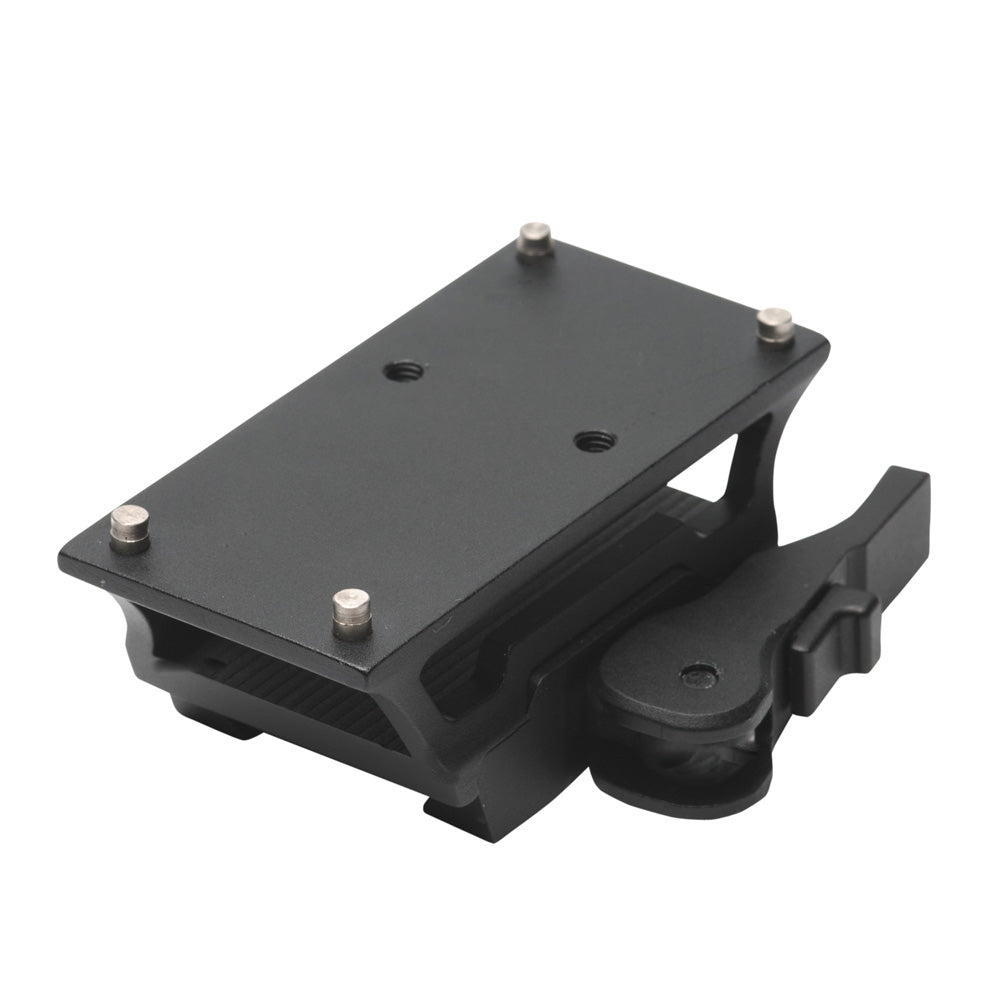

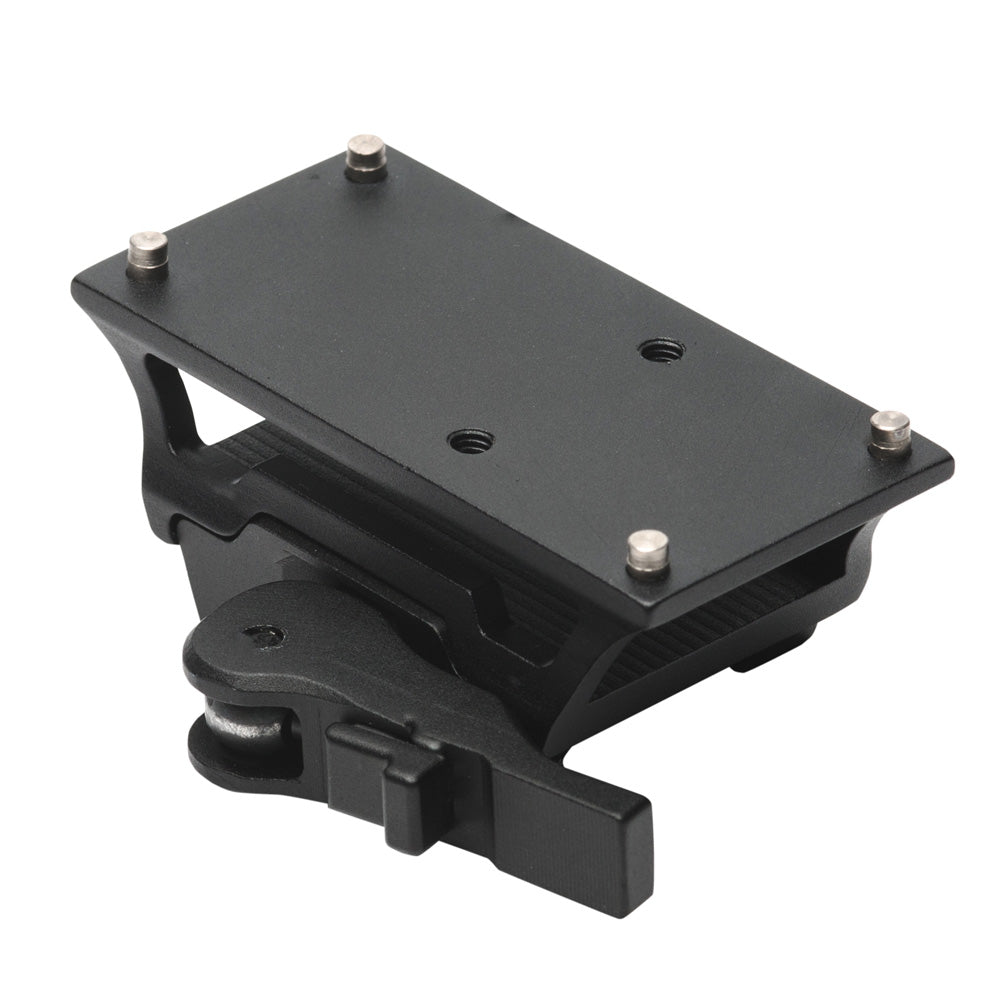

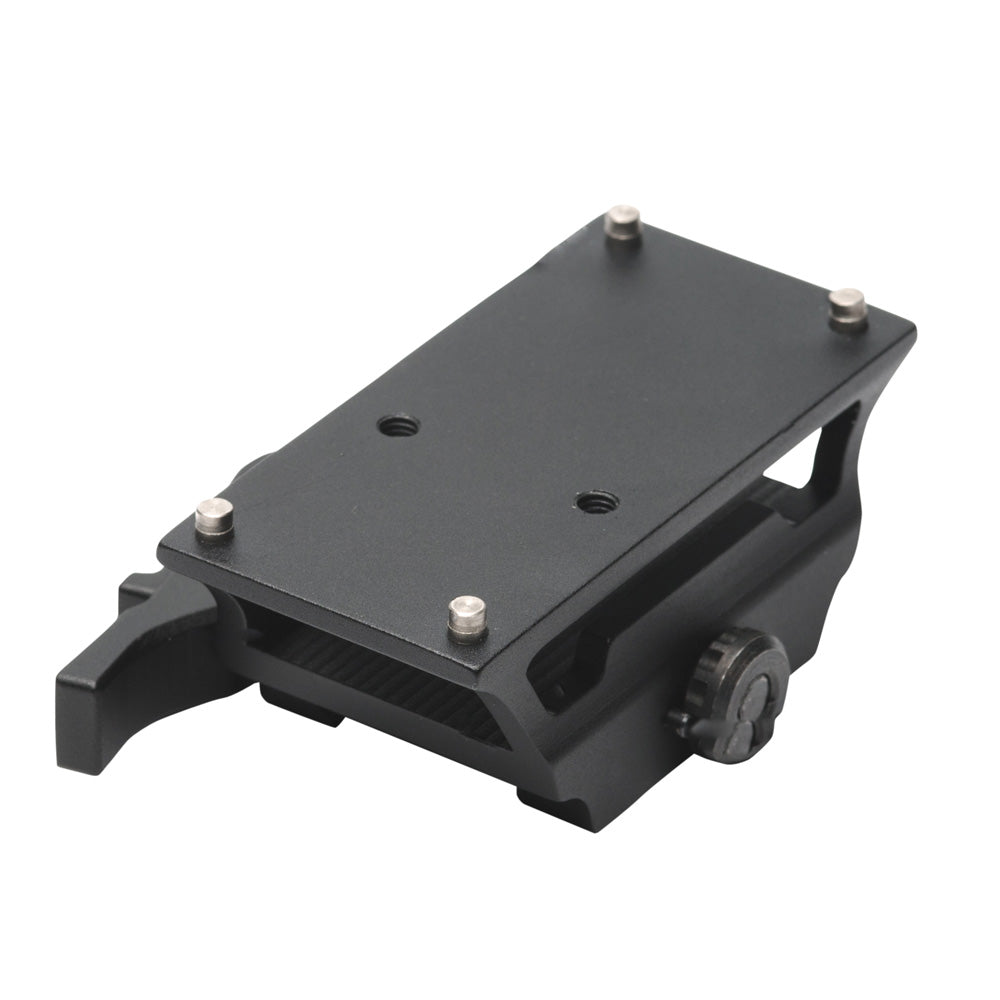

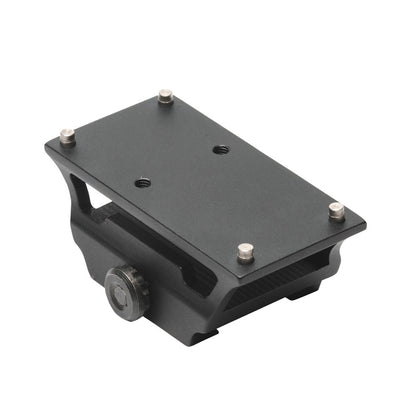

  3. Locking, quick detach picatinny mount

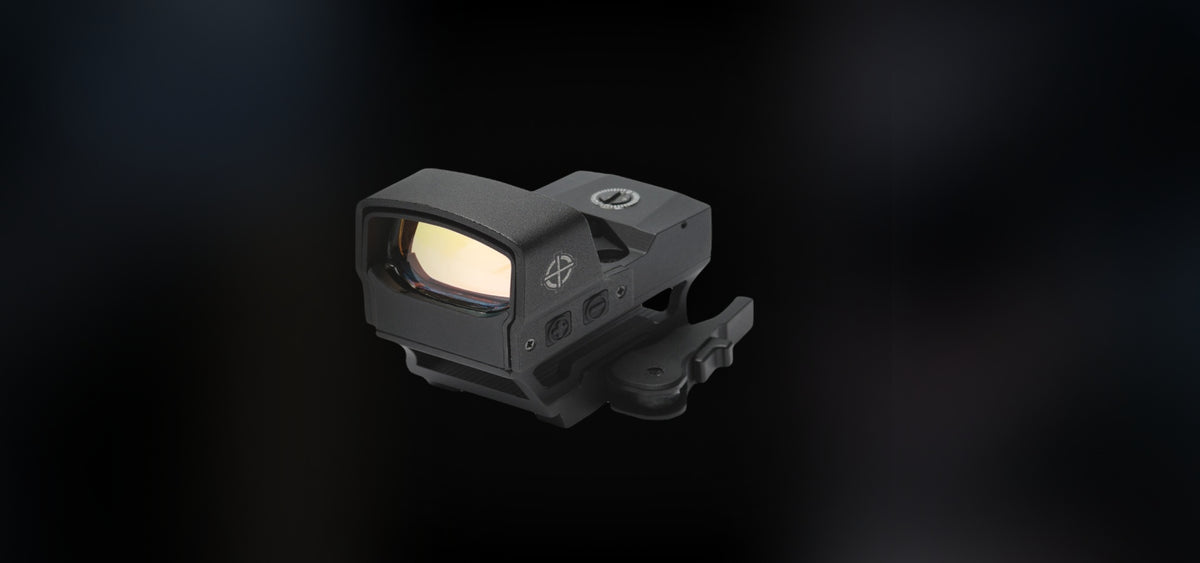

Core Shot A-Spec LQD Reflex Sight

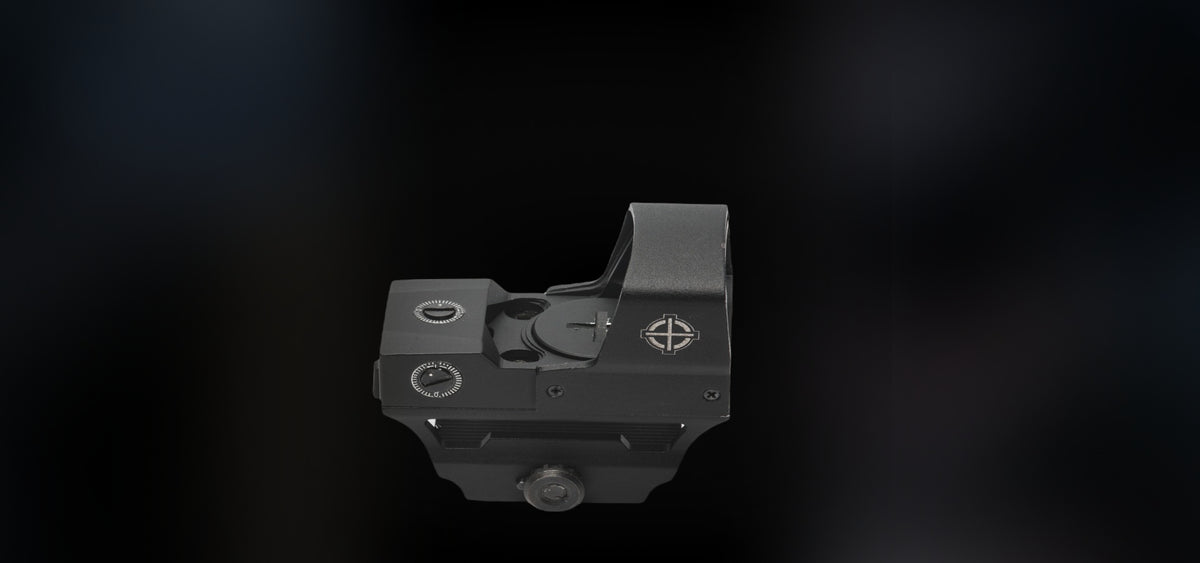

Core Shot A-Spec LQD Reflex Sight

Features

  1. 01Compact, lightweight aluminum alloy housing
  2. 02Protective aluminum shield

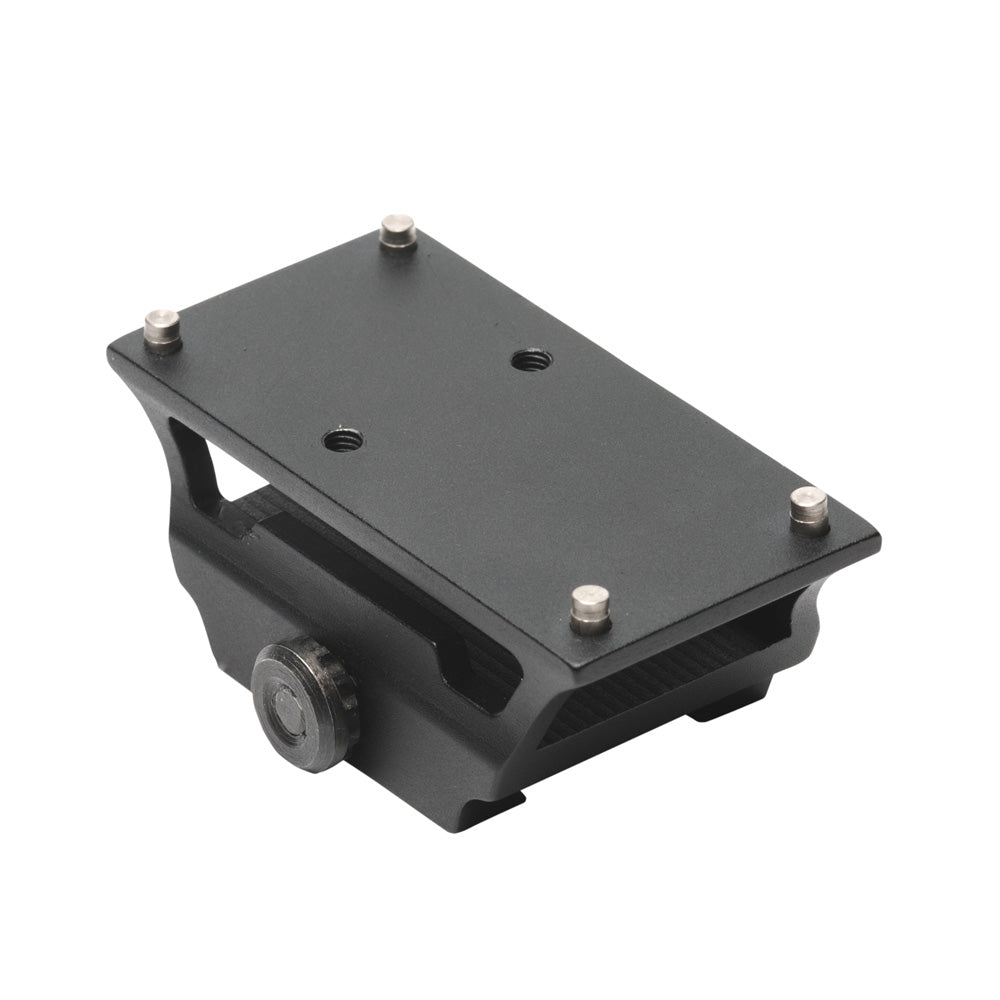

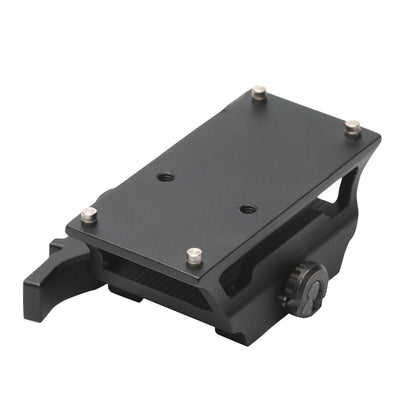

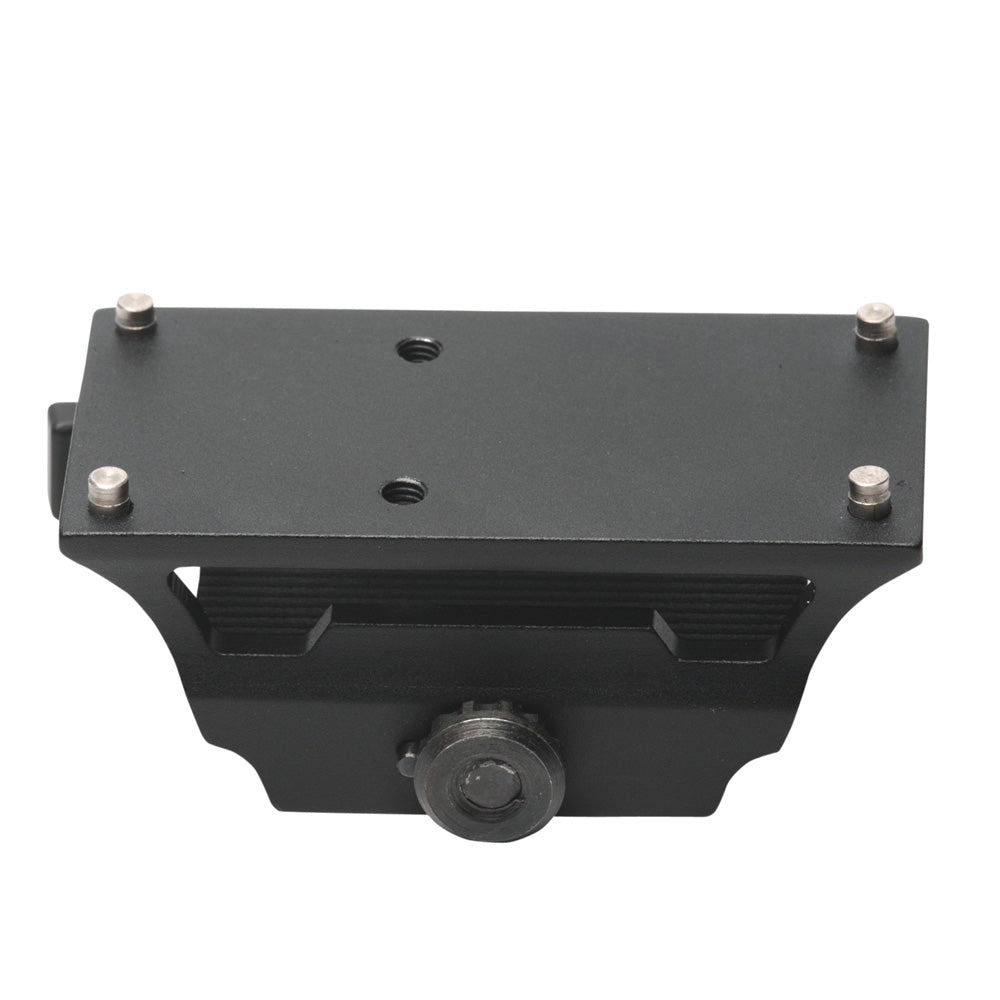

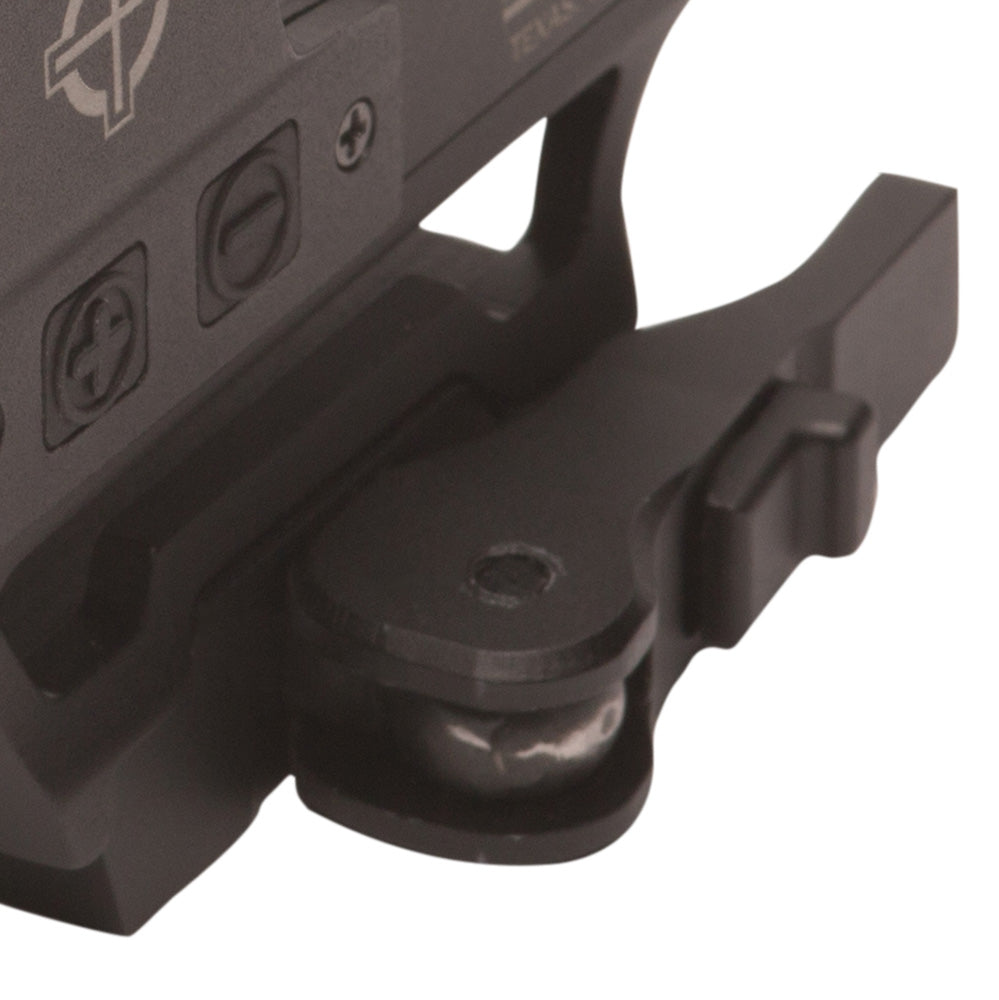

  3. 03Locking, quick detach picatinny mount
  4. 04Wide lens provides quick target acquistion

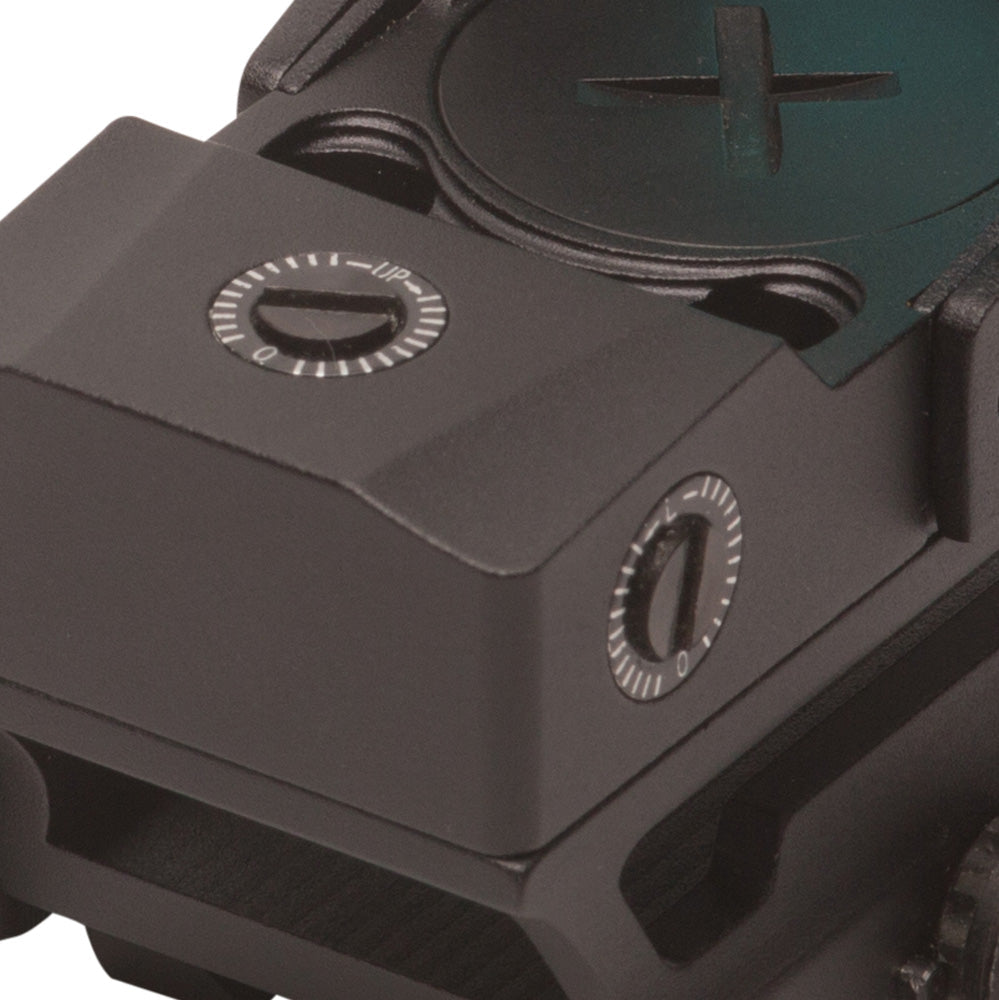

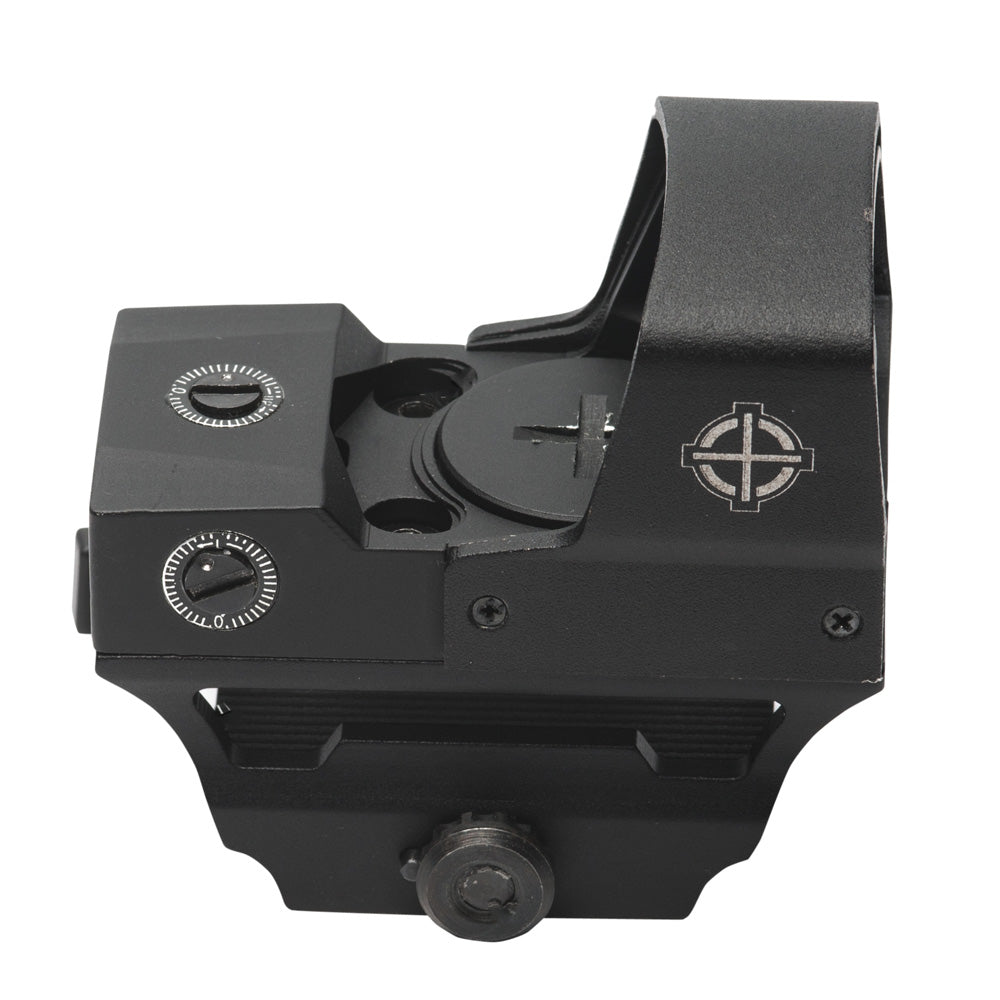

  5. 05Slotted windage and elevation adjustments
  6. 06Red reticle illumination

All product features

  • Auto shutoff
  • Scratch-resistant lenses
  • Compact, lightweight aluminum alloy housing
  • Protective aluminum shield
  • Locking, quick detach picatinny mount
  • Wide lens provides quick target acquistion
  • Slotted windage and elevation adjustments
  • Red reticle illumination

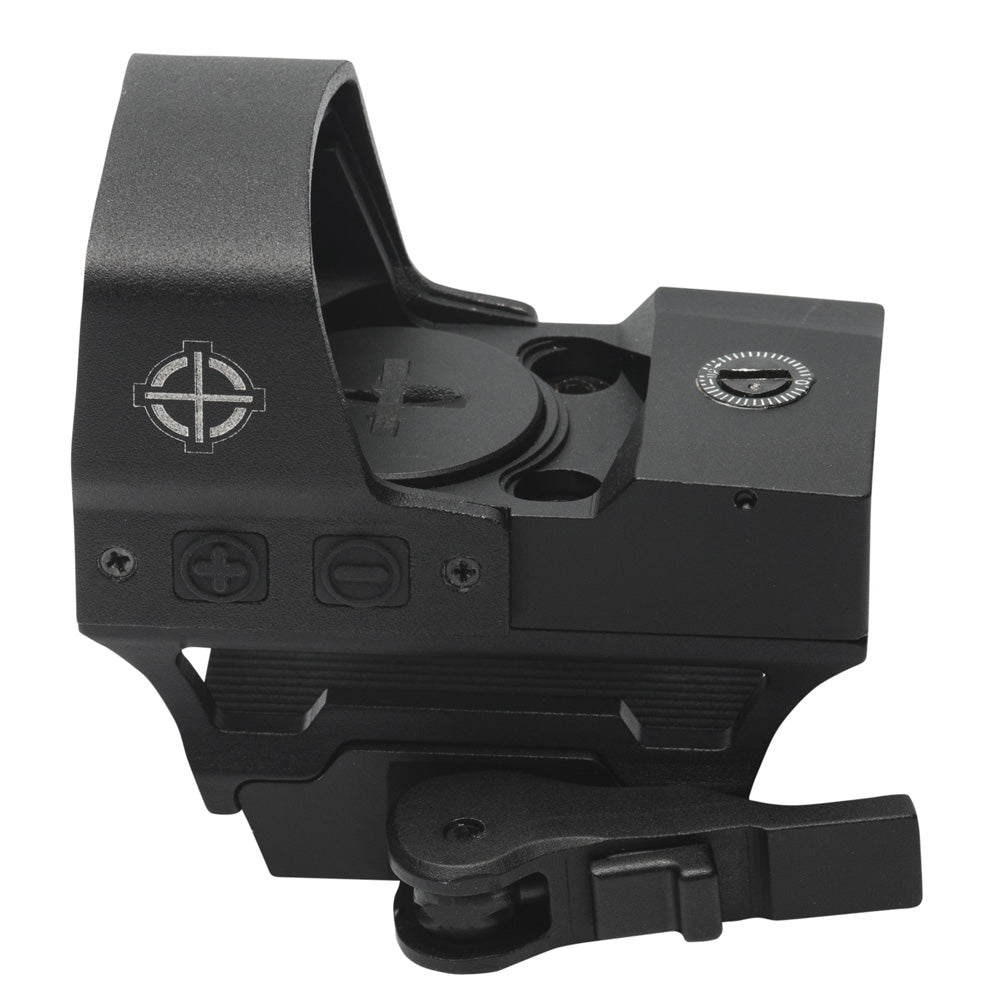

  • Digital switch controls
  • 8 reticle brightness levels
  • Night vision compatible
  • 1 hour auto shutoff
  • Low battery indication
  • Scratch resistant lens coating

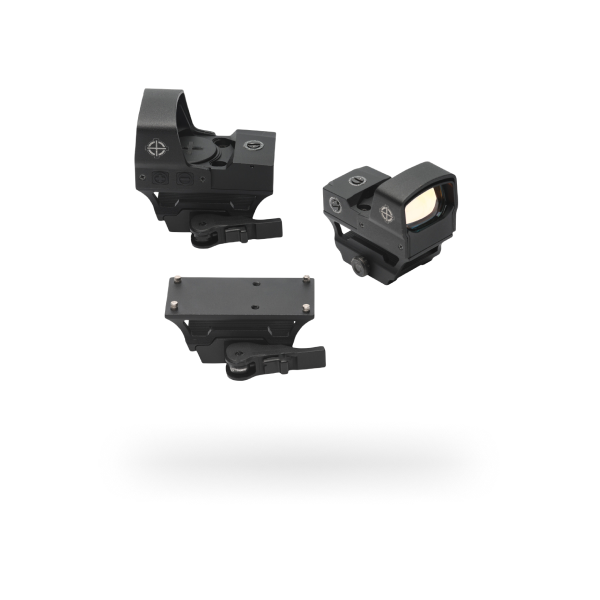

What comes in the box

Included

In the box

  • Adjustment Tools
  • Battery
  • Manual

Specifications

Core Shot A-Spec LQD Reflex Sight, SKU SM26018

Reticle type
5 MOA Dot
Reticle, Color
Red
Reticle Brightness Setting
Off, 0 - 8 NV 1 - 2
Magnification
1
Objective Lens
28 x 18 mm
Eye Relief
Unlimited
Elevation Adjustment
100 MOA
Windage Range of Adjustment
100 MOA
Adjustment Value
One Click = 1 MOA
Parallax Setting
10 yds
Finish/Color
Matte black
Body Material
Aluminum 6061-T6
Maximum Recoil
.50 BMG G's
IP Standard
IP55 - water resistant
Nitrogen Filled
No
Shockproof
Yes, 4ft, 1.2m
Fog Proof
No
Lens Coating
AR Red
Mount Type
Picatinny
Battery Type
CR2032
Battery life, hours
20 - 1,400 hrs
Battery Voltage
3 V
Operating temperature, F/C
-22 to 160 / -30 to 71 F/C
Length (in/mm)
2.3 / 59 in / mm
Width (in/mm)
1.9 / 48 in / mm
Height (in/mm)
2.2 / 56 in / mm
Weight
4.9 oz

Downloads
