• Wraith Mini 2-16x35 Thermal Rifle Scope

Wraith Mini 2-16x35 Thermal Rifle Scope

$1,699.97
  • OLED display
  • 384x288 Thermal Resolution
  • Lightweight and Compact
  • OLED Display
  • 5 Color Palettes
  • 9 Reticle Colors
See all 8 features
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM17001
Availability
In stock
Product manual (PDF, opens in a new tab) Spec sheet (opens in a new tab)

Overview

The Wraith Mini has evolved once again. Sightmark’s high performance digital night vision optic is now offered in thermal with the same peerless image quality, rugged durability and adaptability that customers have come to expect from the Wraith name.

No longer limited to digital day and night vision, the Wraith Mini Thermal Riflescope can now harness the power of digital infrared through its 384x288 resolution thermal sensor to provide users with crisp images. With five thermal color palette modes and nine reticle colors to choose from, the Wraith Mini Thermal is perfectly suited for any time of day and any game animal.

The OLED display provides rich color and temperature operation while its five configurable weapon profiles allow it to hold multiple zeroes for different types of weapons, eliminating the need to re-zero the Wraith Mini Thermal every time it’s mounted on a different rifle.

Aside from these already impressive features, the Wraith Mini Thermal scope also comes equipped with a built-in camera with audio recording, capable of preserving the very best moments of a user’s hunt on a high-capacity memory card (256gb max).

The Wraith Mini Thermal scope boasts a 1400 yard detection range and 2x optical magnification with 1-8x digital zoom. Combined with its 1024x768 display resolution, this gives the Wraith Mini Thermal optimal image quality for close or medium engagements.

With rugged and dependable aluminum housing and temperature resistance from -4°F to 122°F, the Wraith Mini Thermal is designed for difficult outdoor environments and is built to last. With its battery life of 3.5 hours on video mode and 4.4 hours on preview mode as well as USB charging capability, the Wraith Mini Thermal is a necessity for night hunters everywhere.

  1. Sharp Thermal Imagery

  2. Five Thermal Color Palettes

  3. High Quality Thermal Sensor

Wraith Mini 2-16x35 Thermal Rifle Scope

Wraith Mini 2-16x35 Thermal Rifle Scope

Features

  1. 01384x288 Thermal Resolution
  2. 02Lightweight and Compact
  3. 03OLED Display
  4. 045 Color Palettes
  5. 059 Reticle Colors
  6. 0610 Reticles

All product features

  • OLED display
  • 384x288 Thermal Resolution
  • Lightweight and Compact
  • OLED Display
  • 5 Color Palettes
  • 9 Reticle Colors
  • 10 Reticles
  • 5 Weapon Profiles
  • Built-in Recording w/ Sound: EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

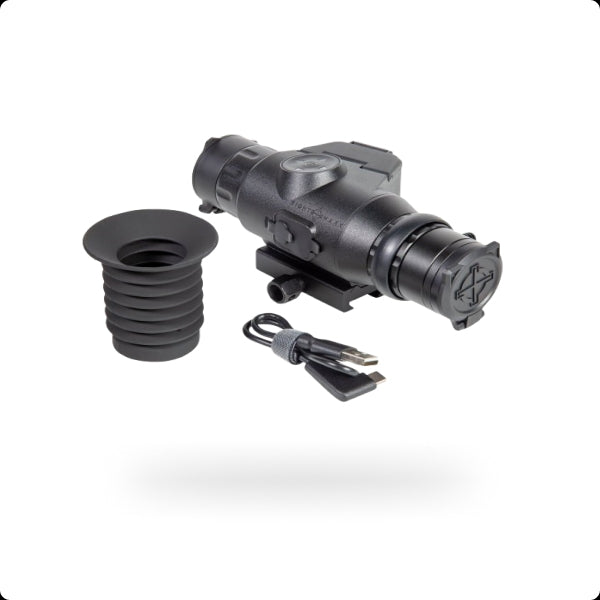

What comes in the box

Included

In the box

  • Flip-Up Covers (Front and Back)
  • Rubber Eyecup
  • CR123A Batteries x2
  • USB Cable

Specifications

Wraith Mini 2-16x35 Thermal Rifle Scope, SKU SM17001

Type of Sensor
Thermal sensor
Caliber Rating
.308 Winchester
NEDT Sensitivity
<40mK
Waterproof Rating
IPX6 - Water resistant
Sensor Resolution, Pixels
384x288
Display Type
OLED
Display Resolution
1024x768
Built-In Video Recorder Availability
Yes
Maximum Memory Card Supported, GB
256
Pixel Pitch (µm)
17
Spectral Range (μm)
8-14
Magnification
2x optical
Lens Diameter, mm
35
Digital Zoom
1-8x
Field of View (degrees)
13
Detection Range (yards/meters)
1400/1280
Battery Type
2x CR123A
Battery Life
3.5Hrs Video Mode / 4.4Hrs Preview Mode
External Power Supply
5V via USB
Body Material
Aluminum
Accessory Rail Mount
Picatinny
Length, in/mm (with flip up caps)
6.653/169
Width, in/mm
3.031/77
Height, in/mm
2.913/74
Weight, oz
19.3 oz
Operating Temperature Range (°F)
-4°F - 122°F
Color Modes
White Hot, Black Hot, Green Hot, Rainbow, Magenta

Downloads

Customer reviews

5out of 5

Based on 4 reviews

  • 5 star4
  • 4 star0
  • 3 star0
  • 2 star0
  • 1 star0

  1. Impressed for the cost! Only

    Impressed for the cost! Only thing I would add is a way to transfer data from SD card but really not necessary, that would increase cost. Keep up The good work!

    Jeff L. Verified buyer

  2. Super easy to set up,

    Super easy to set up, excited to use it!

    Corey T. Verified buyer

  3. 1st Time Flyer!!!

    This is my first thermal, but I'm a long time night vision guy! This thing is awesome. Quick pick-up, refresh rates don't interfere with target acquisition, and with an external battery pack it's absolutely an all night hunt! Very happy!

    D B. Verified buyer

  4. Great scope and fun to

    Great scope and fun to use.

    Cathy H. Verified buyer

Recommended products

WHEN NIGHT FALLS

INTRODUCING THE NEWEST
ADDITION TO THE
WRAITH FAMILY

SIGHTMARK WRAITH
MINI THERMAL RIFLESCOPE

After two years of development building on the success of the Wraith digital night vision riflescope, Sightmark is ready to take your marksmanship game to the next step with this digital thermal optic.

Lightweight, compact, and easy to use, the Wraith Thermal is truly a great choice for all hunters.

ORDER NOW

HEAT UP YOUR NIGHT LIFE

SUPERB THERMAL DETECTION

Boasting a 384x288 thermal sensor with a sensitivity of <40mK, the Wraith Thermal can detect minute temperature differences at great distances with the sharpness and clarity that all hunters appreciate.

EASY TO USE FIVE-BUTTON INTERFACE

Easier to operate than any smartphone, the Wraith Thermal has a simple, intuitive interface even the most technologically challenged hunter could figure out.

Everything from zeroing your optic to choosing palettes and customizing profiles for individual weapons is done with only five buttons. Simply confirm options with the power button and navigate with the directional keys.

CONVENIENT QUICK-SNAP BATTERY COMPARTMENT

No need for screwdrivers here. Tactically reload your two CR123A batteries with the press of a button. The textured thumb pad allows you to find the release button quickly even in no light situations, making this one of the easiest thermals to switch batteries on mid-hunt.

The Wraith Thermal runs for 3.5 hours on video mode and 4.4 hours on preview mode.

EXTERNAL BATTERY PORT AND MICRO SD SLOT

Not just a thermal riflescope, the Wraith Thermal boasts the features of an HD thermal camera.

Supporting a maximum memory card size of 256GB, record hours of footage with high quality sound on your Wraith Thermal to preserve your hunting memories and use the convenient USB-C port to charge your device or connect it to a battery pack to prolong your hunting experience.

CHOOSE BETWEEN 5 COLOR MODES
AND 10 DIFFERENT RETICLES AND 9 DIFFERENT COLORS

Alongside the traditional black hot and white hot color palettes, the Wraith offers its unique green hot, rainbow, and magenta color palettes for added background contrast and more precise heat detection
