        SKU : SM18021

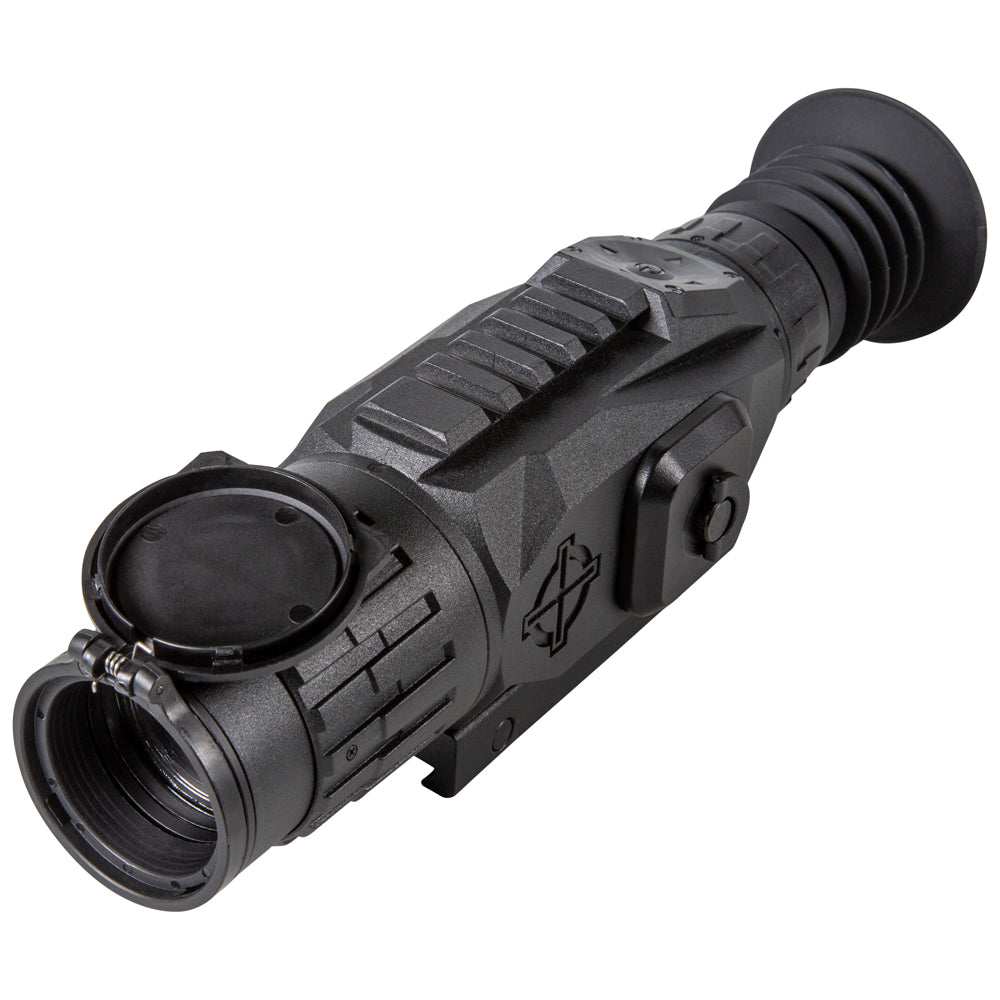

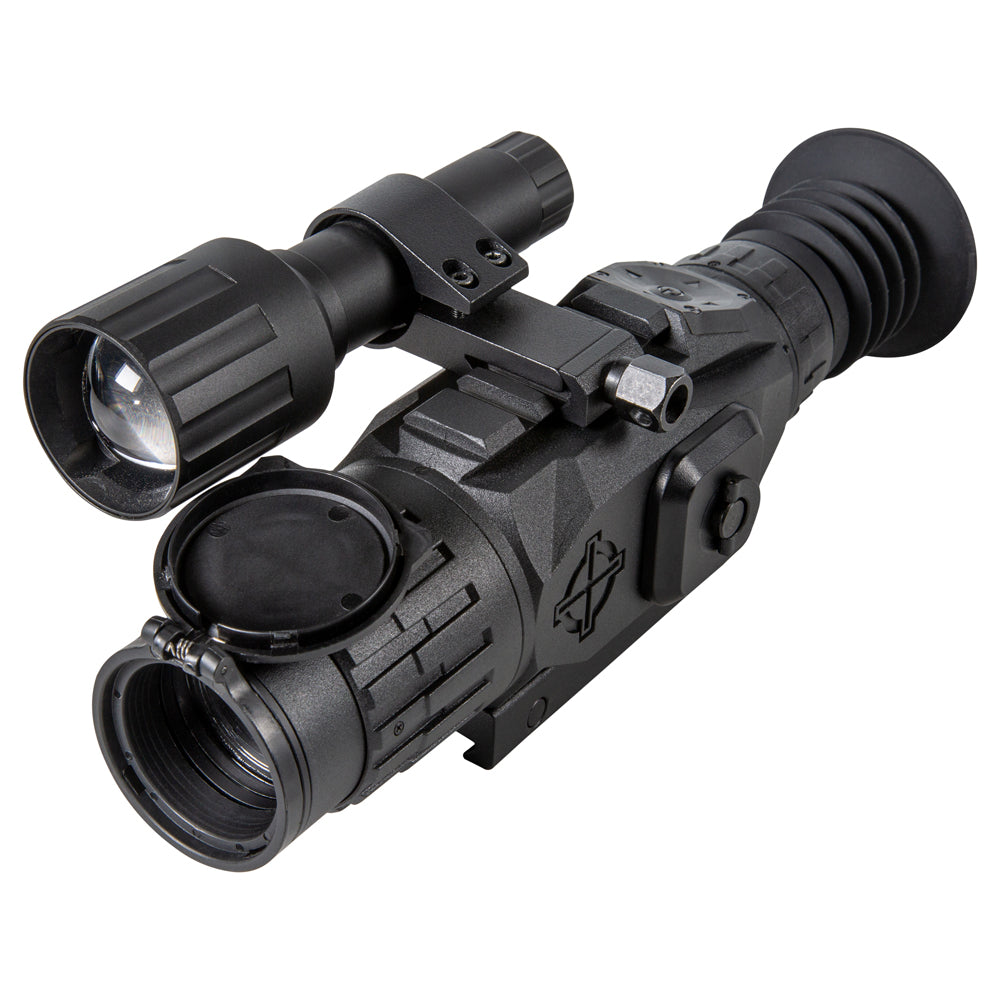

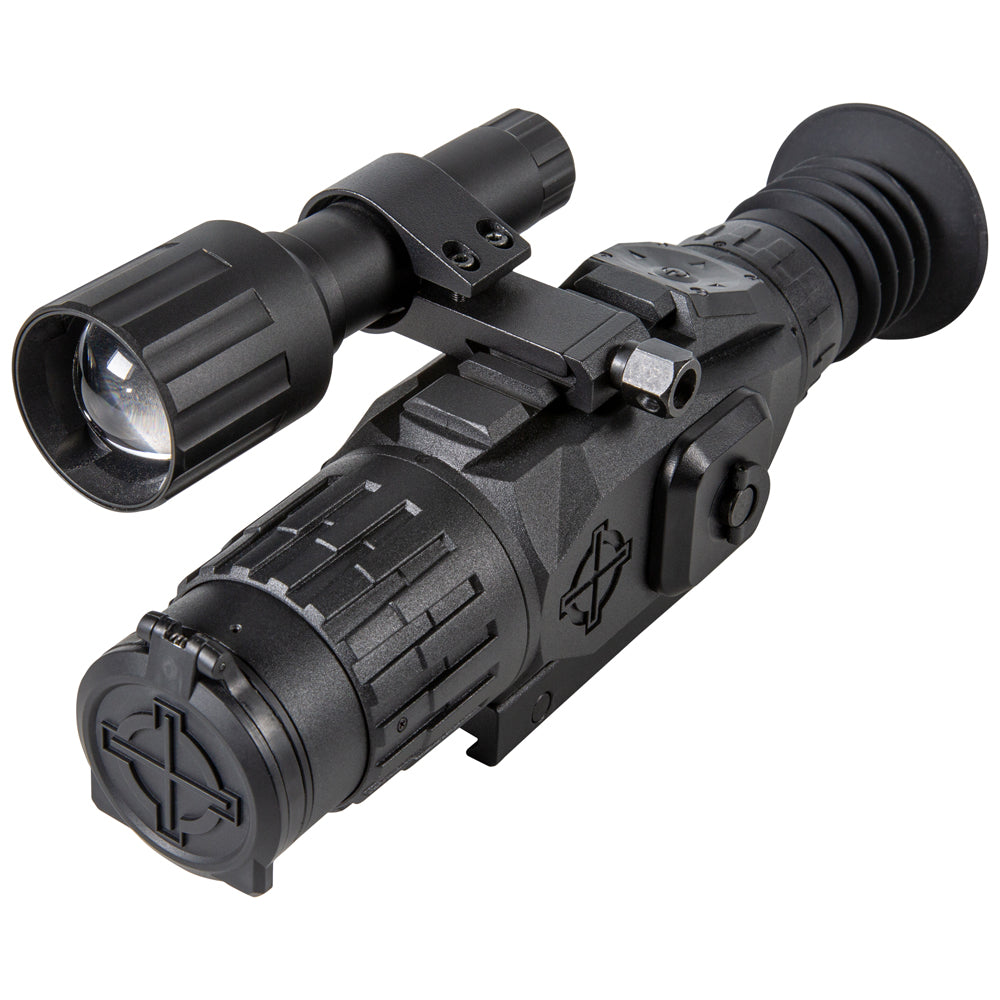

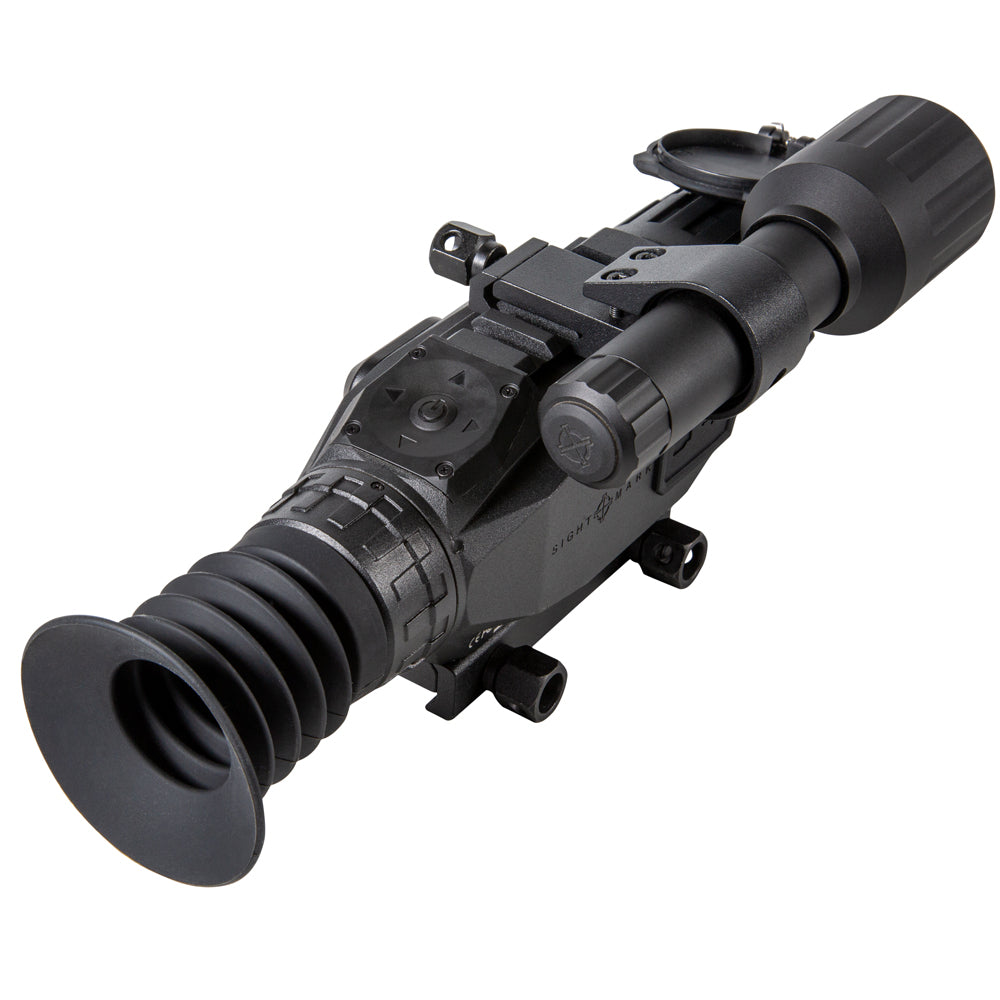

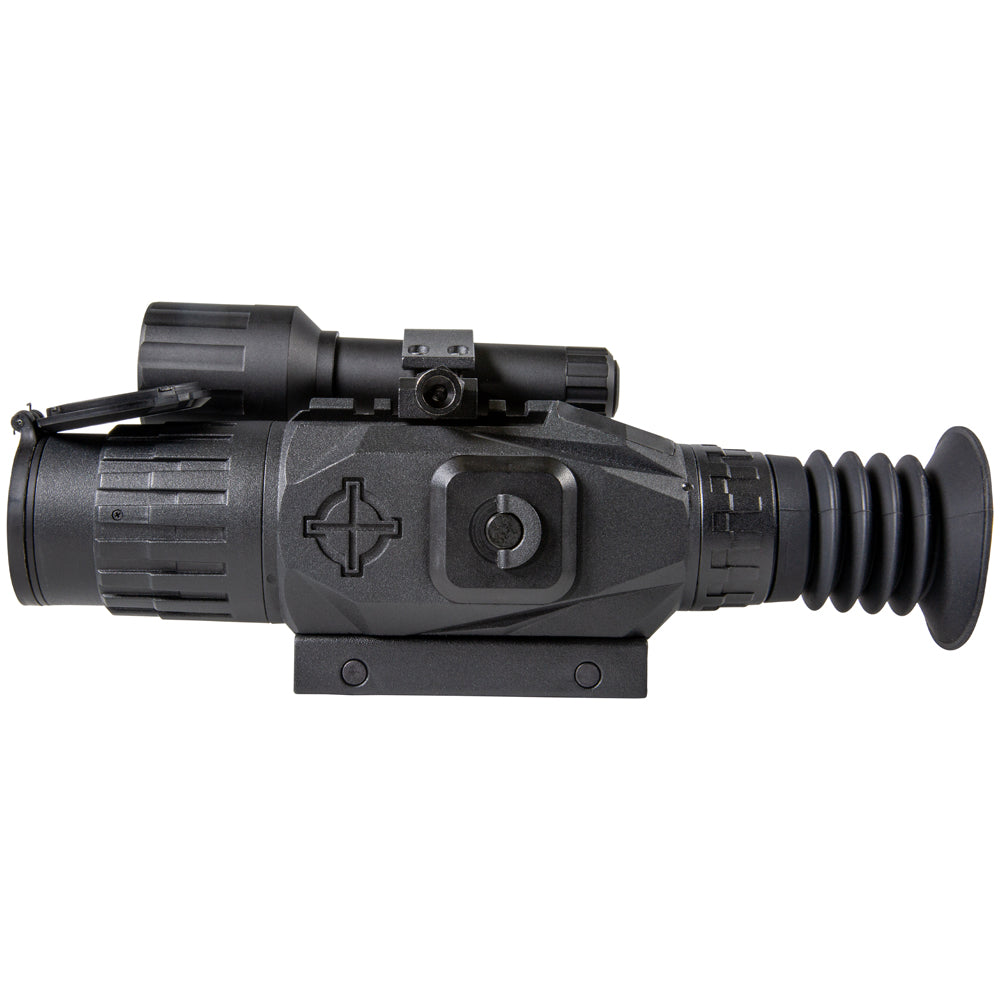

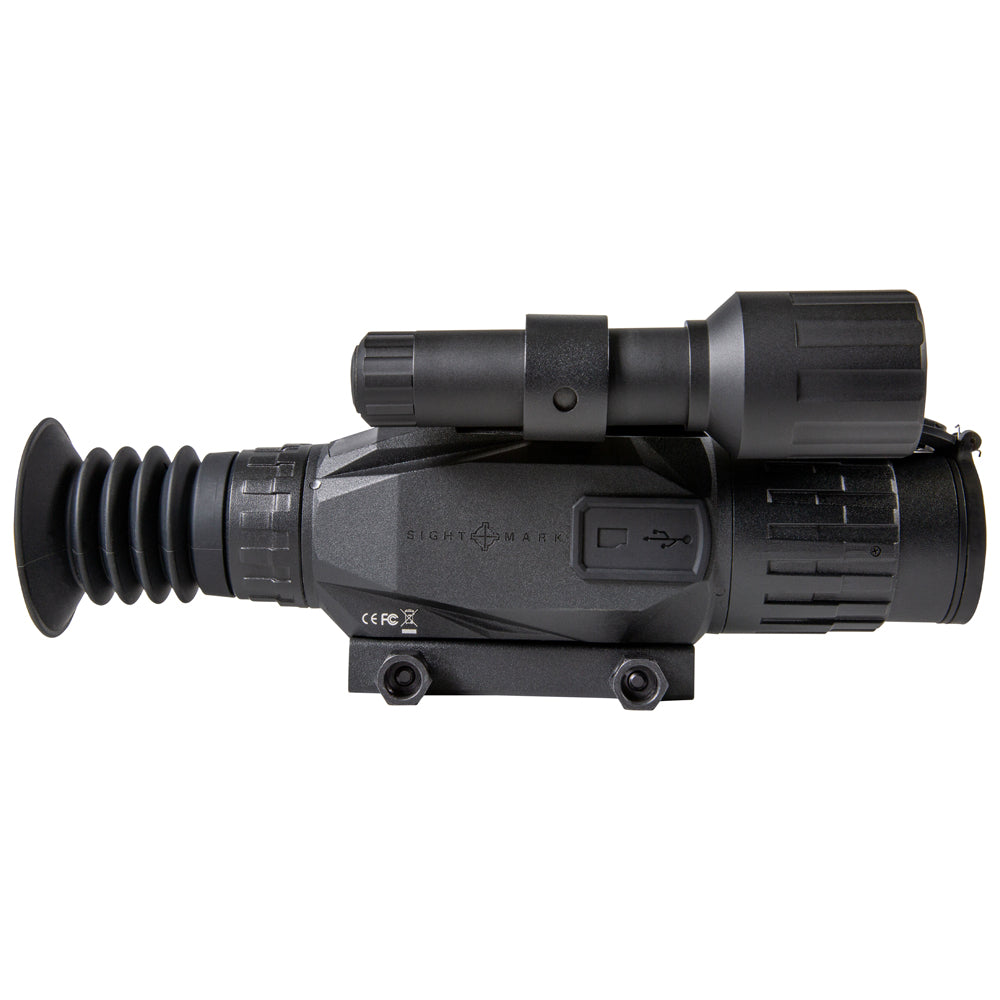

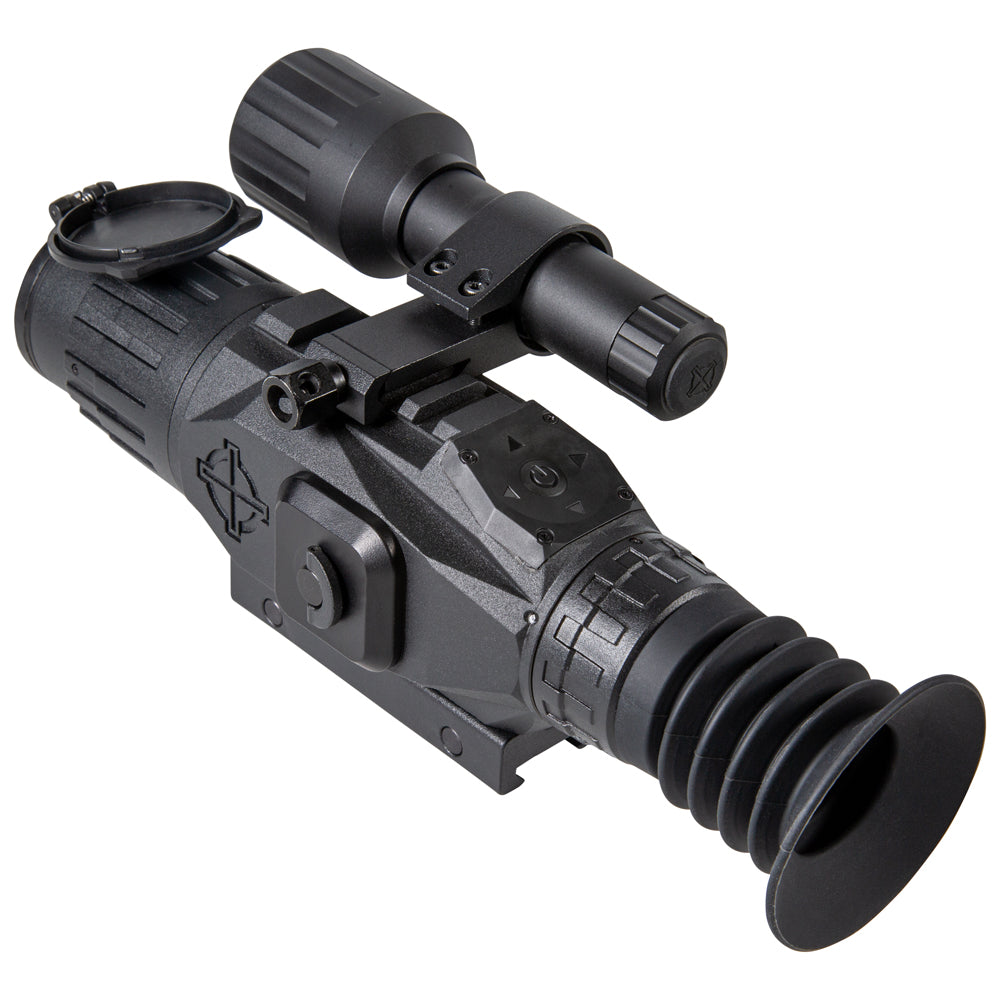

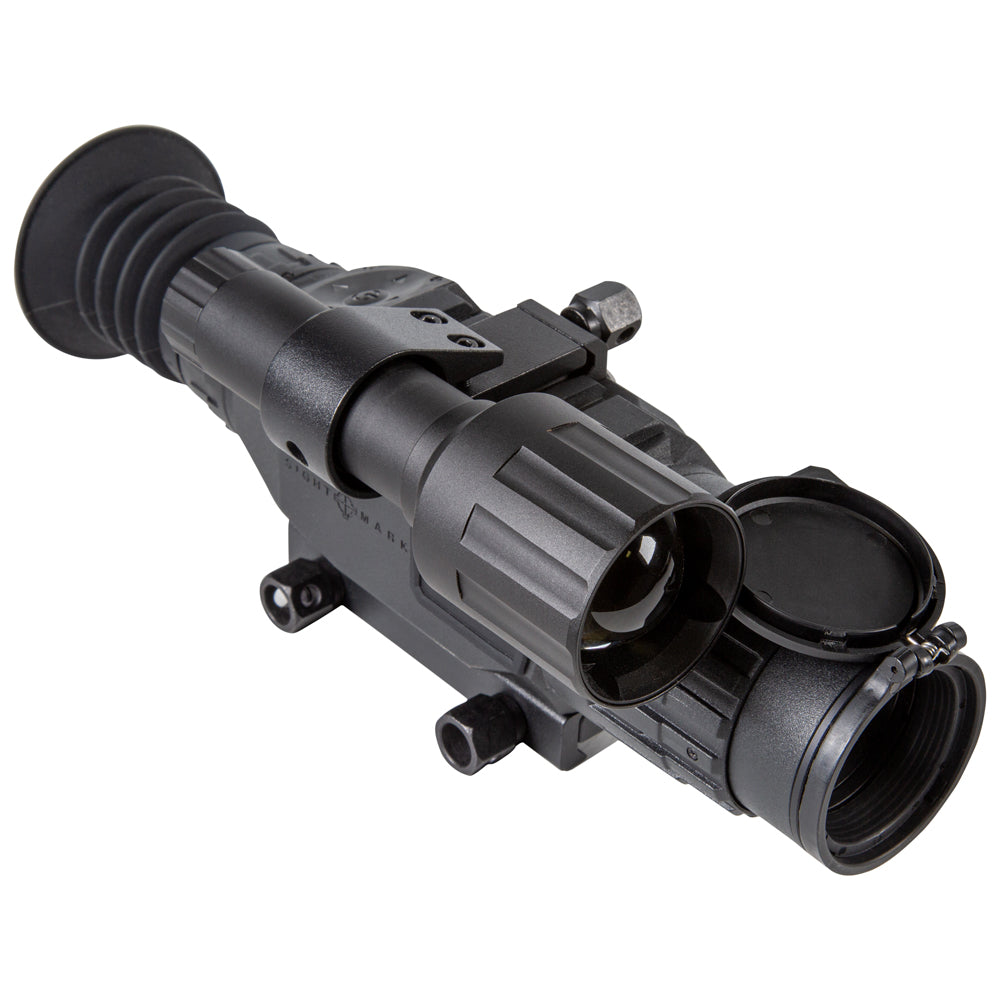

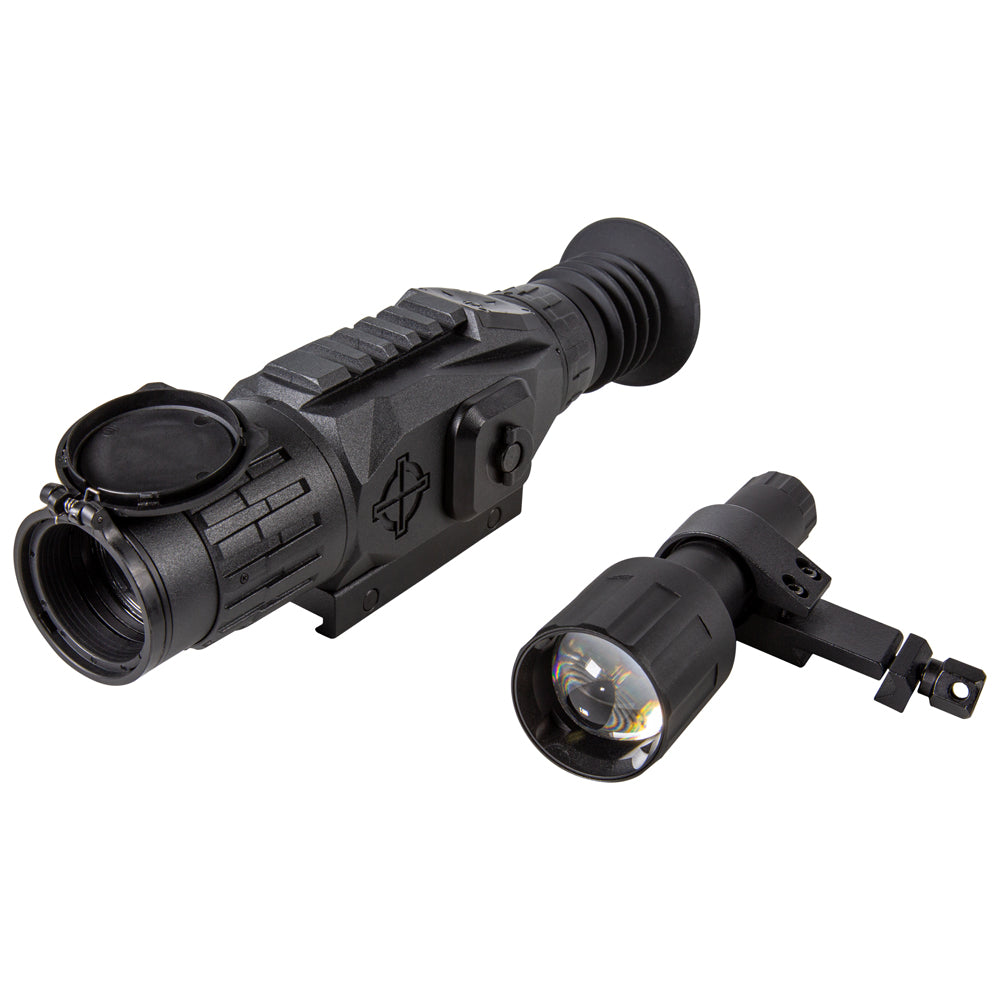

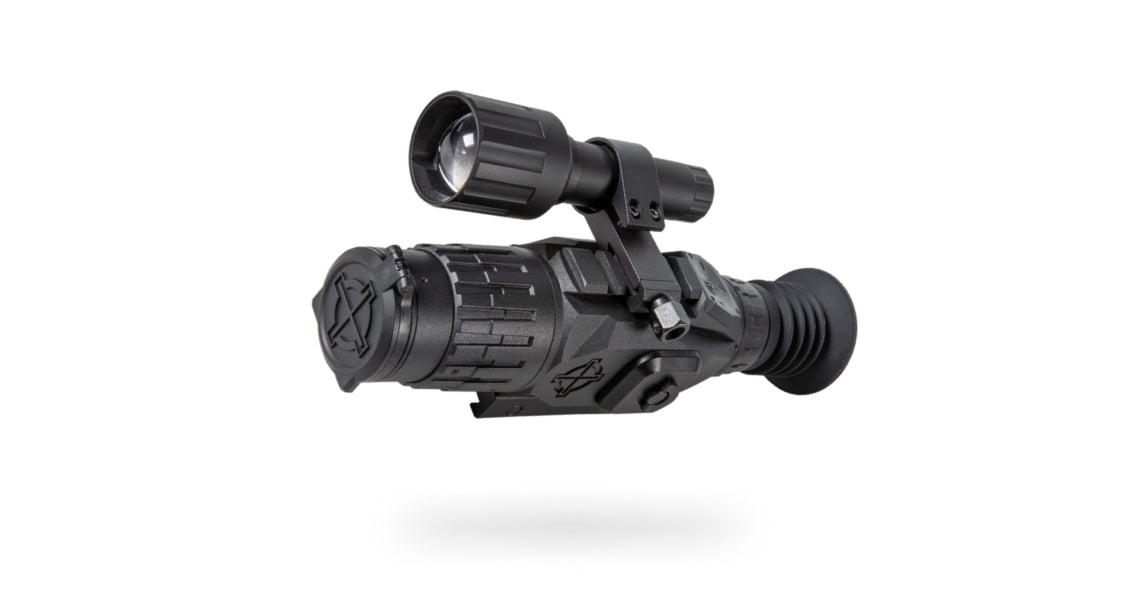

        View the world in ultra-crisp high definition through Sightmark’s Wraith HD 2-16x28 Digital Day/Night Riflescope! Coupled with its 850nm IR Illuminator, this riflescope employs a 1920x1080 CMOS sensor to detect objects up to 200 yards away at night. The Wraith’s 8x digital zoom and 1280x720 FLCOS screen delivers fine-detail imaging, and the Wraith boasts black-and-white, or green, night vision and daytime color mode, displaying images in sharp, full-color clarity. With its lower base magnification range, paired with a wider field of view, the Wraith 2x is ideal for fast-moving hog and varmint hunting. 10 reticle options in 9 colors, 5 weapon profile saves and built-in 1080p HD video recording enables users to preserve their memories. Housed in a durable aluminum body, with an IP55 water-resistant rating and 20° to 122° operating temperature range, the Wraith can withstand harsh conditions for many years. Included with the Wraith are an IR Illuminator, objective lens cover, fixed picatinny mount, additional weaver rail for accessories and user manual.

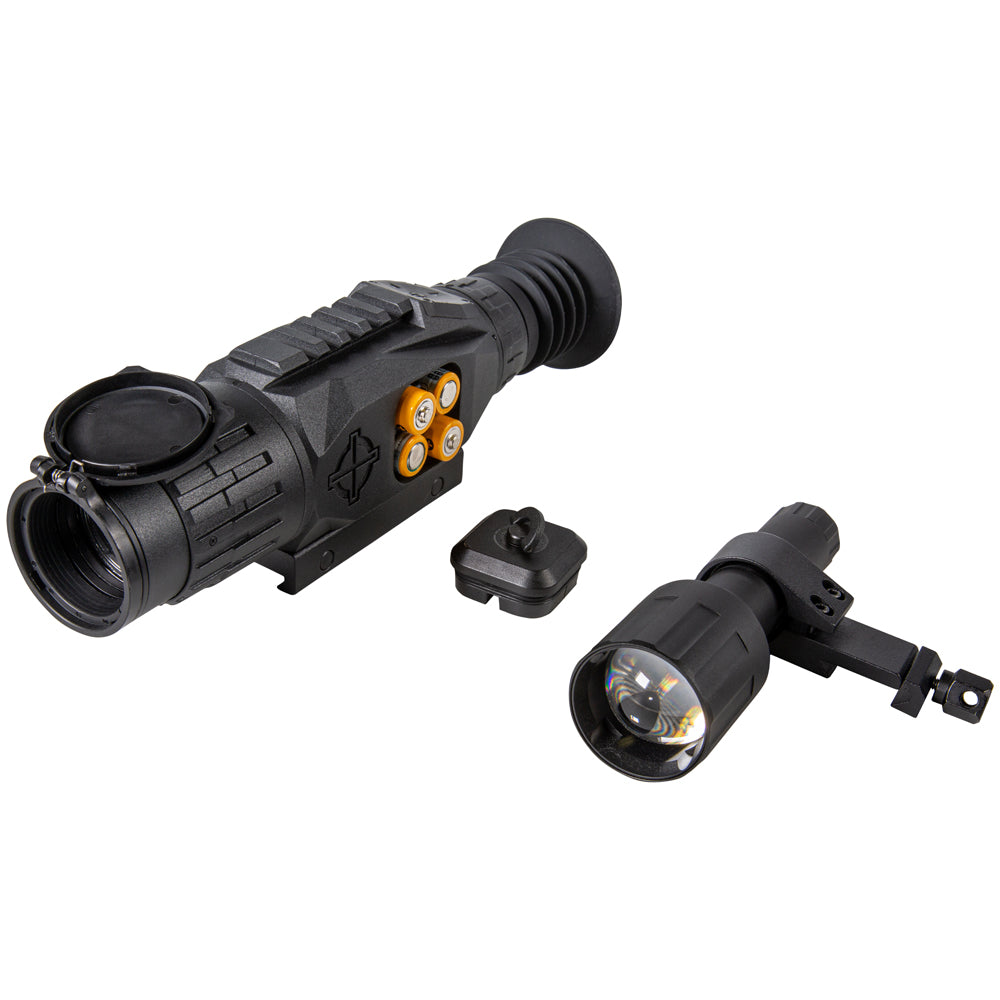

        Included in Package

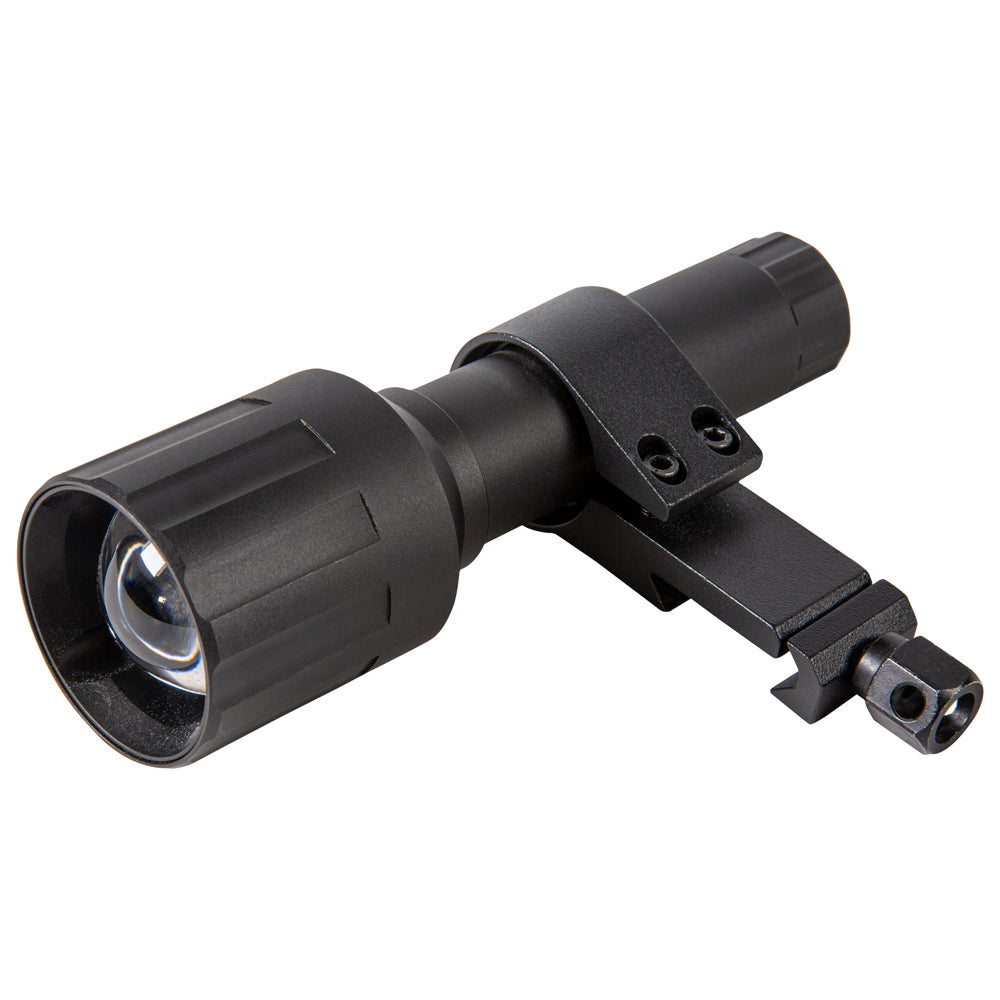

        • IR flashlight

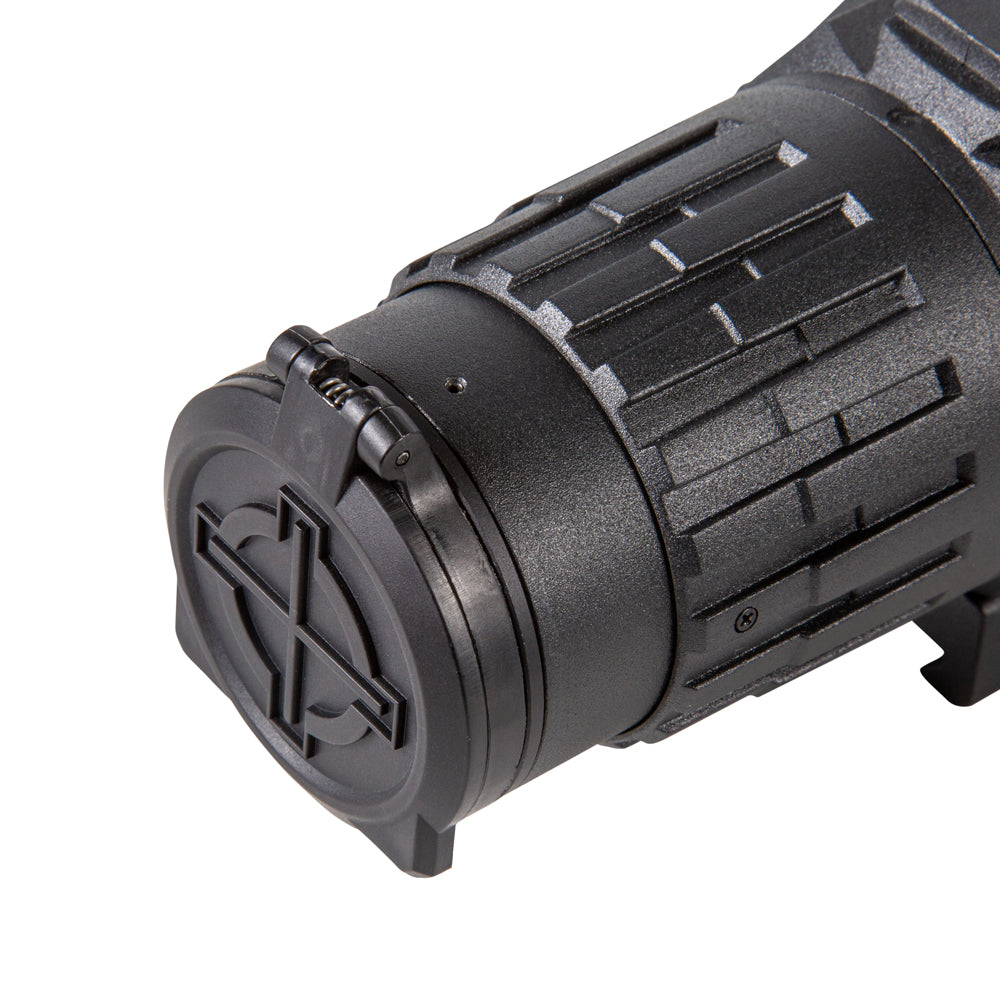

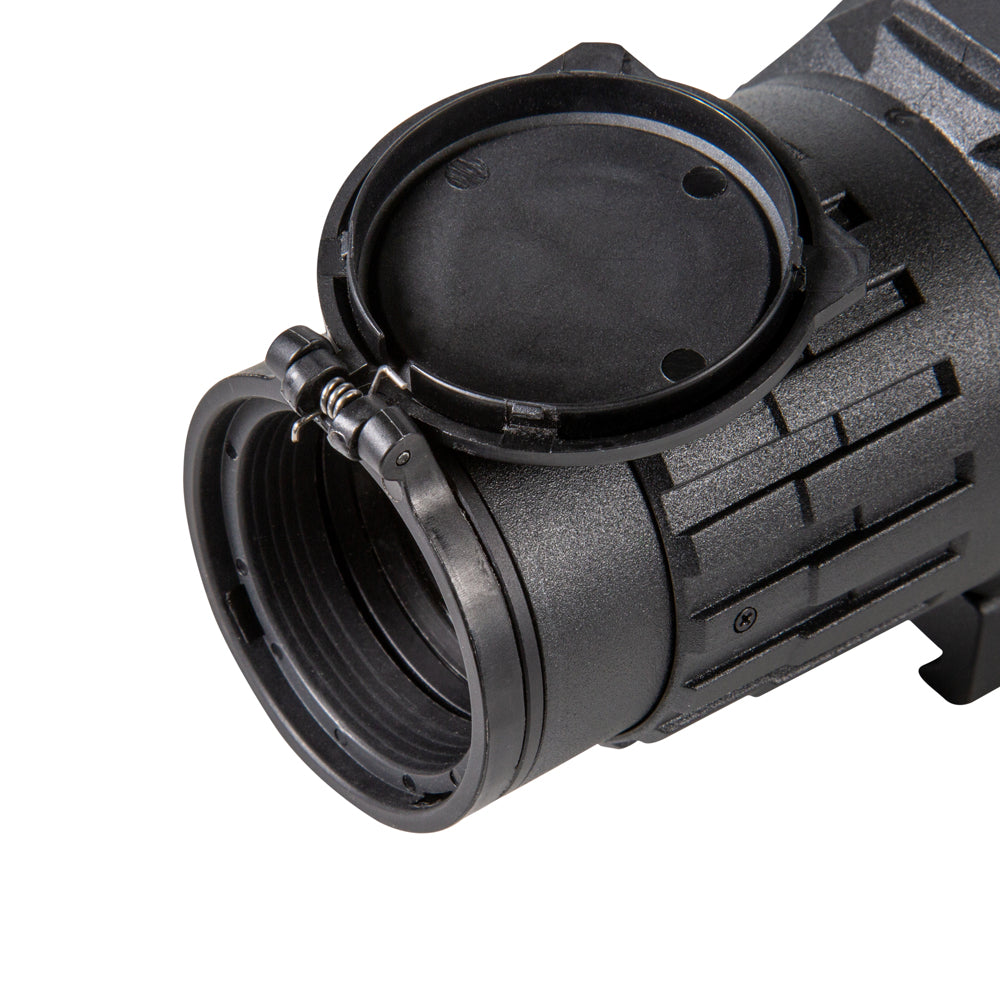

        • Objective lens cover
        • Fixed picatinny mount
        • Quick start guide

        Batteries Used

        • Type: AA
        • Quantity: 4

        Product Downloads

        Features

        • 2x magnification
        • 1080P HD digital imaging
        • Daytime color mode
        • Night vision mode
        • Built-in HD video recording
        • 8x digital zoom

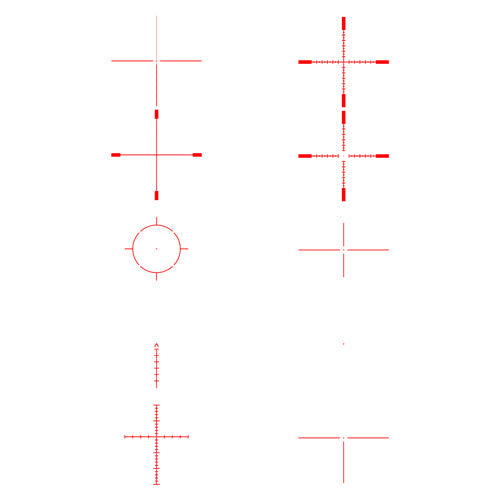

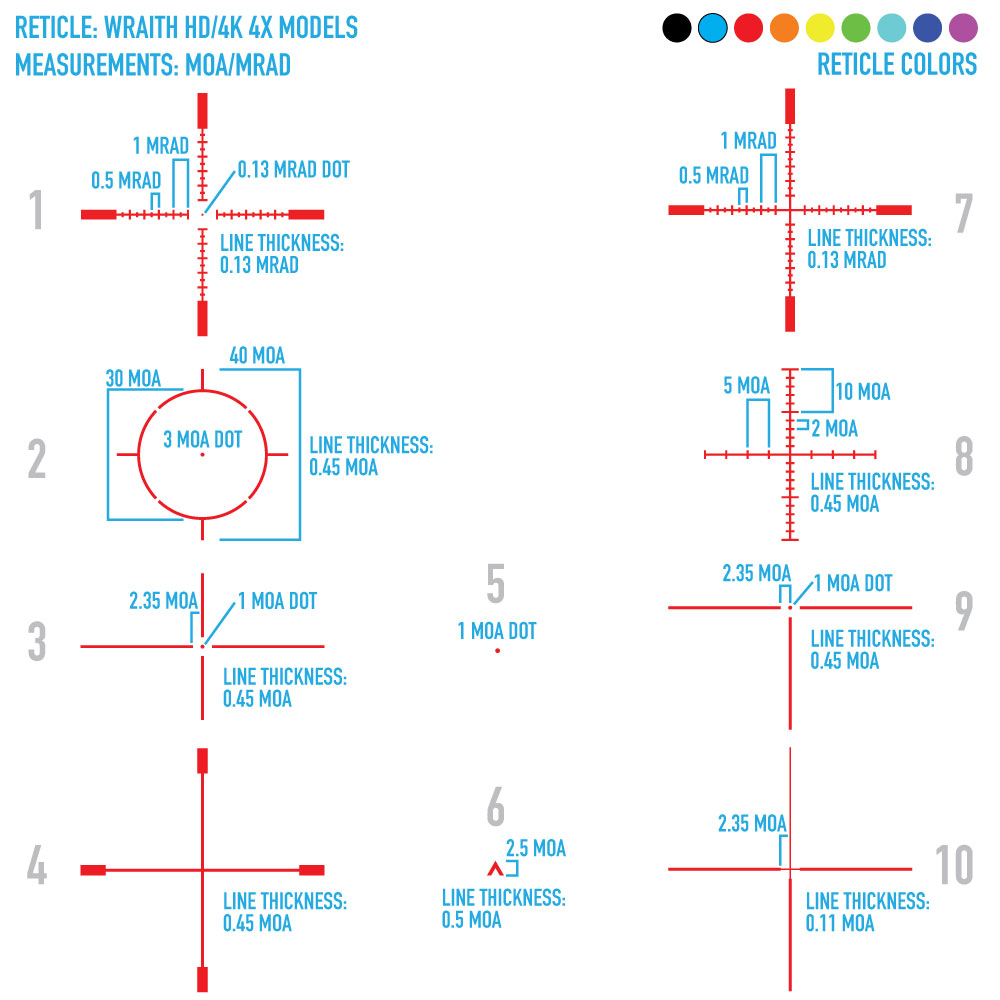

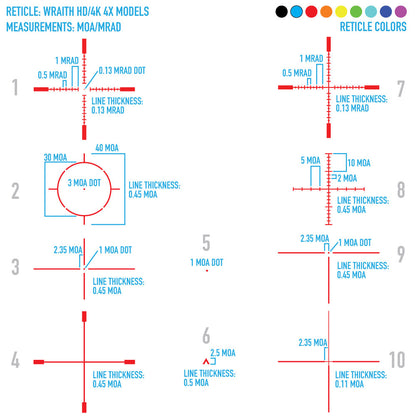

        • 10 reticle options with 9 colors
        • Power input
        • Additional weaver rail for accessories
        • 5 weapon profile saves

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        California Disclaimer

        Type of Sensor CMOS sensor
        Sensor resolution, pixels 1920x1080
        Display Type FLCOS
        Display Resolution, pix. 1280x720
        Built-in Video Recorder Availability Yes
        Maximum memory card supported, Gb 256
        Format of video clip AVI
        Resolution of video clip 1080/720
        Format of photo files JPEG
        Resolution of photo files 1080/720
        Memory capacity Approximately 7 hours video with 64Gb SD card
        Magnification 2 - 16 x
        Diameter, Lens, mm 28
        Digital Zoom 1-8x
        Lens Focus, mm 40.1
        Relative aperture, D/f' 2.4
        Field of view, m@100m 14
        Field of view, ft@100yd 42
        Minimum focusing distance, ft/m 16.4 / 5
        Eye Relief 2.4 / 60 in / mm
        Diopter Adjustment -6 to +3
        Emitter LED
        IR Wavelength 850nm
        Equivalent IR Power, mW ~1060 on high, ~540 on medium, ~400 on low
        Battery Life (with IR) 2 hours on high (2x CR123A Battery Type for IR)
        Night Vision Detection Range 200 / 183 yd / m
        Power Supply 6 v

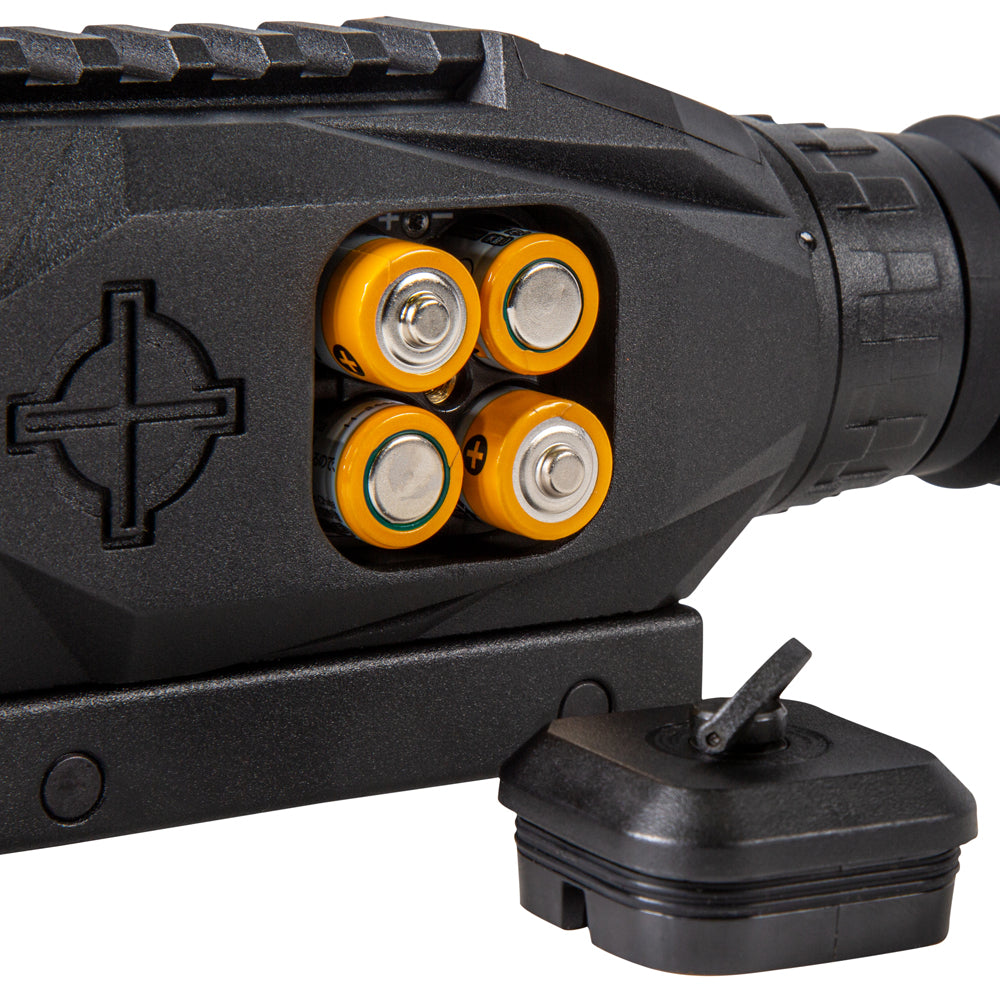

        Battery Type 4xAA
        Battery life, hours 3.5 video mode / 4.5 preview mode
        External Power Supply 5V via microUSB
        Windage & Elevation click value 1/5 MOA
        Elevation Range of Adjustment 70 MOA
        Windage Range of Adjustment 170 MOA
        Number of Preloaded Reticles 10
        Colors Black, white, red, blue, green, cyan, orange, yellow, magenta
        Body Material Aluminum
        Accessory rail mount Picatinny
        Operating Temperature 20 to 122 / - 6 to + 50 F / C
        Waterproof Rating IP55 - water resistant
        Nitrogen Purged No
        Shockproof Yes, 3ft
        Maximum Recoil .308
        Tube size, in/mm N/A
        Length 10 / 255 in / mm
        Width 2.6 / 65.5 in / mm
        Height 3 / 77 in / mm
        Weight, oz 33.3 (with batteries)


        -

        Model# SM18021
        FIRMWARE DOWNLOADS

        Wraith HD 2-16x28
        Firmware Version 01.21.12
        Name SKU/Model Number Language
        Wraith HD 2-16x28 SM18021 SM18021-English
        Wraith HD 2-16x28 SM18021 SM18021-Bulgarian
        Wraith HD 2-16x28 SM18021 SM18021-Czech
        Wraith HD 2-16x28 SM18021 SM18021-Danish
        Wraith HD 2-16x28 SM18021 SM18021-Finnish
        Wraith HD 2-16x28 SM18021 SM18021-French
        Wraith HD 2-16x28 SM18021 SM18021-German
        Wraith HD 2-16x28 SM18021 SM18021-Italian
        Wraith HD 2-16x28 SM18021 SM18021-Norwegian
        Wraith HD 2-16x28 SM18021 SM18021-Portuguese
        Wraith HD 2-16x28 SM18021 SM18021-Russian
        Wraith HD 2-16x28 SM18021 SM18021-Slovac
        Wraith HD 2-16x28 SM18021 SM18021-Spanish
        Wraith HD 2-16x28 SM18021 SM18021-Swedish
