SKU : SM13028AAC
- Description
- Specifications

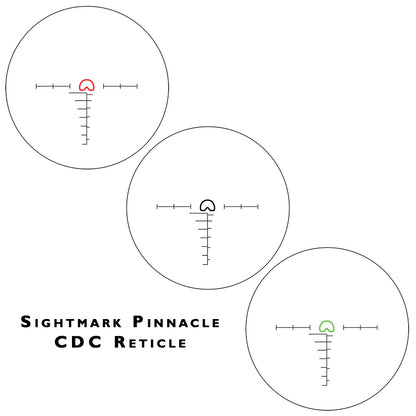

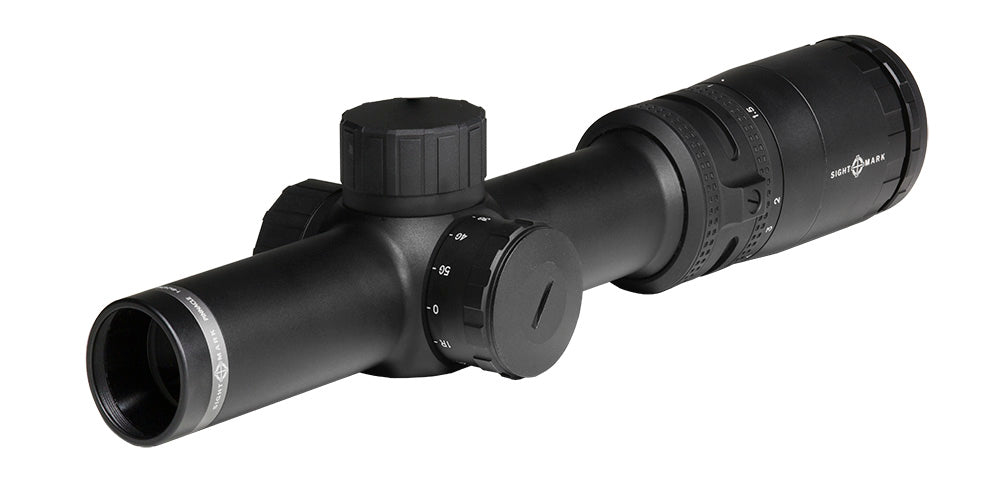

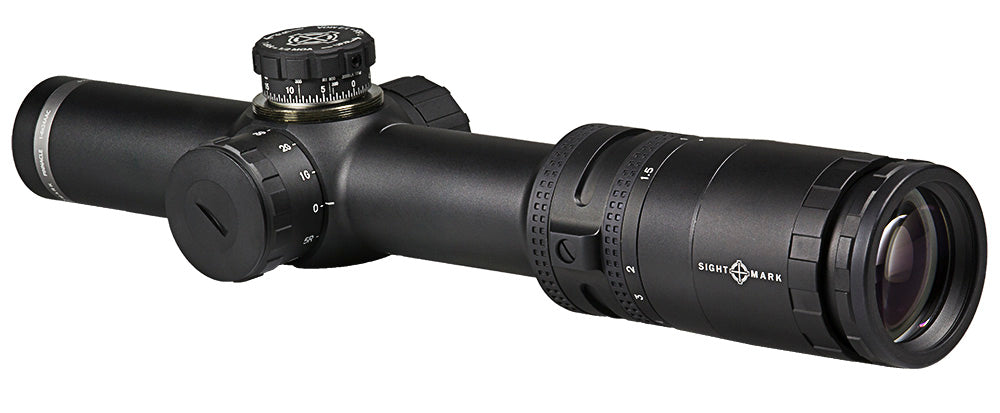

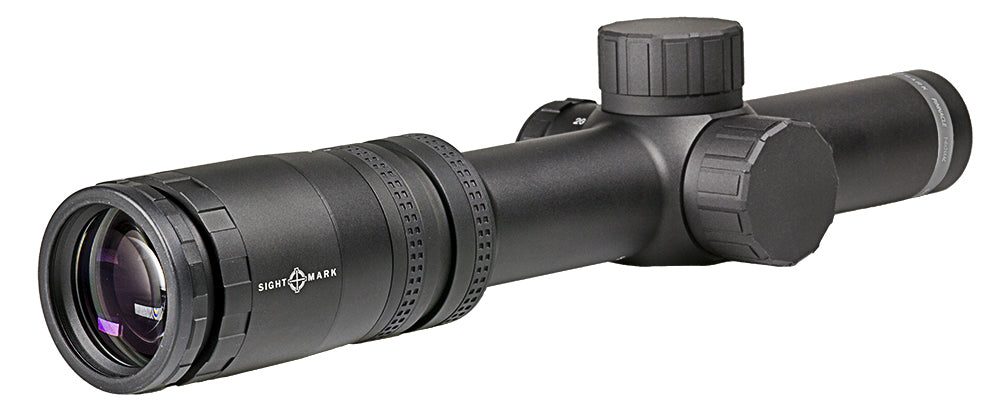

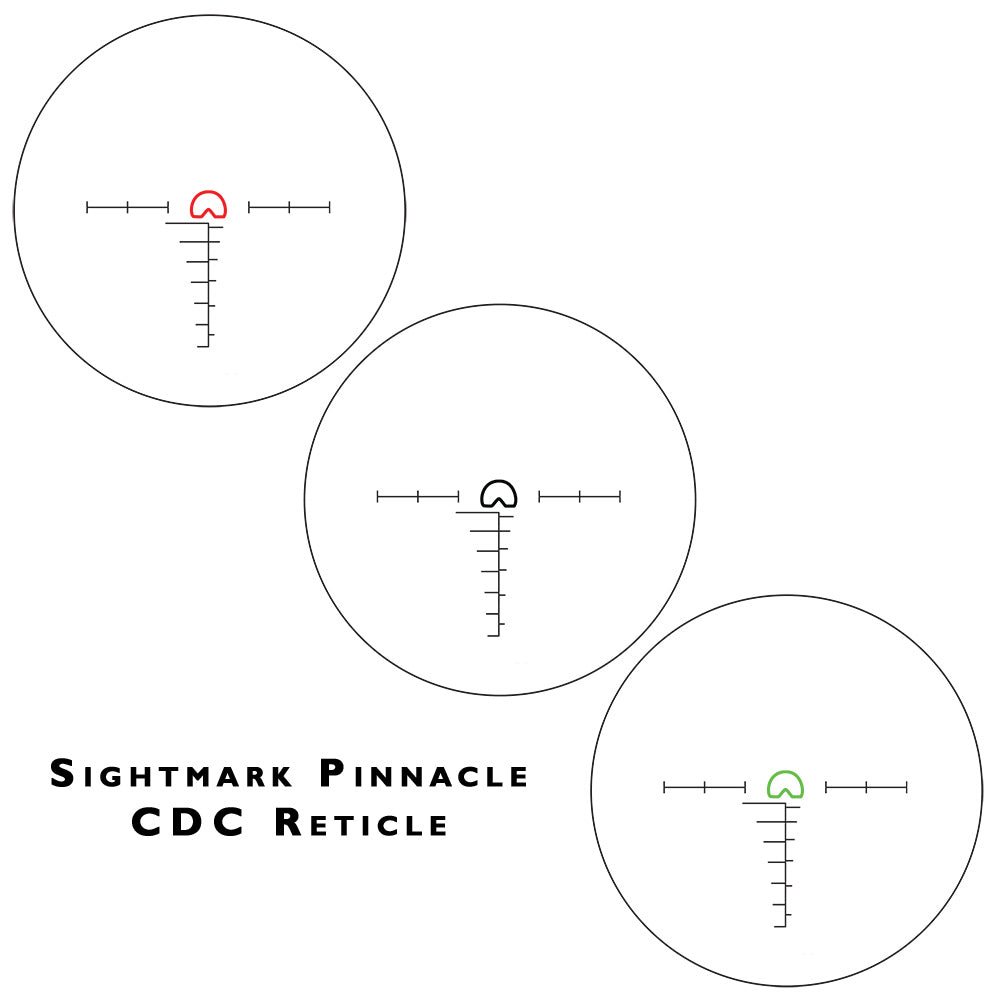

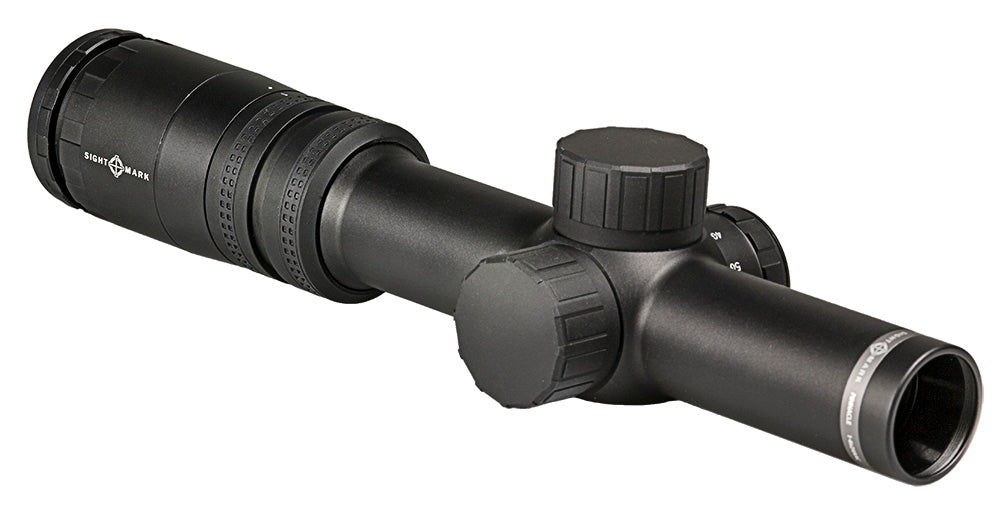

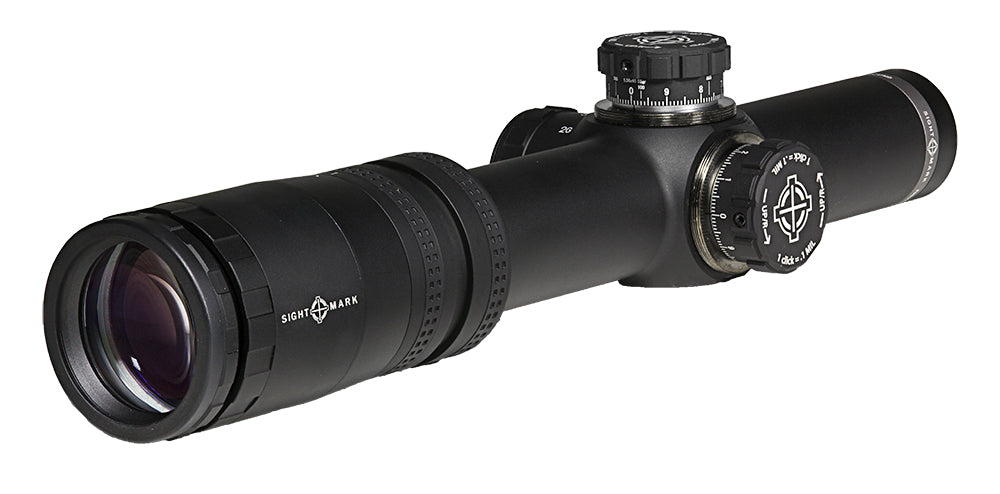

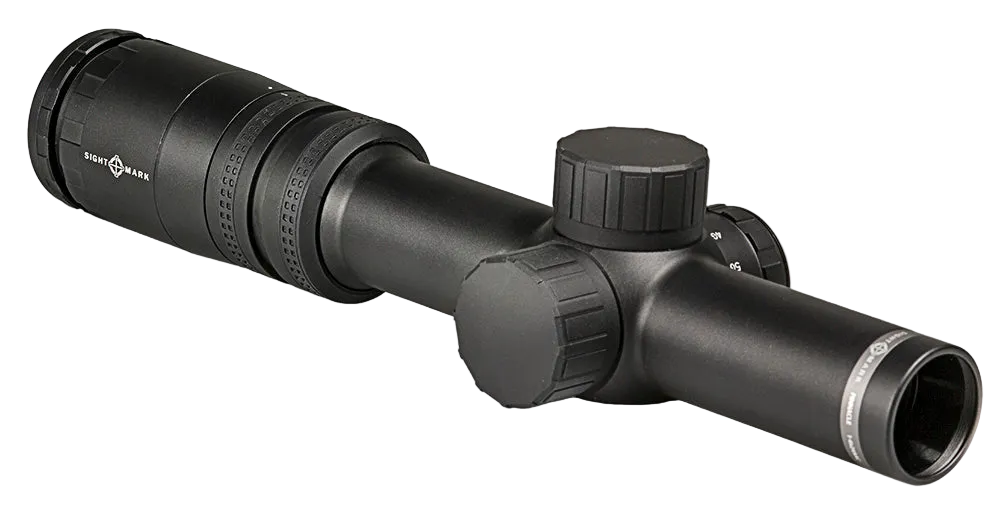

Precision-machined with high definition optics and premium Japanese glass, the Sightmark® Pinnacle 1-6x24ACC offers crystal clear resolution from edge to edge, free from distortions at any magnification. The riflescope yields a first-focal plane ballistically-matched CDC-300 reticle for subsonic and supersonic 300 Blackout. Its red/green illuminated reticle accomplishes holdovers from 100-800 yards, allowing shooters to utilize this versatile round more effectively at all distances. The red/green illuminated reticle remains in the same visual proportion to the target across the riflescope’s entire magnification range, allowing shooters to rangefind and shoot with holdovers effectively. Its true 1x provides both-eyes-open usage for increased situational awareness at close range, while the 6x optical system hones in on far-away targets with ease. Shooters have the luxury of a capped or exposed turret option as well as scratch-resistant lenses, helping to further protect the optic from impact.

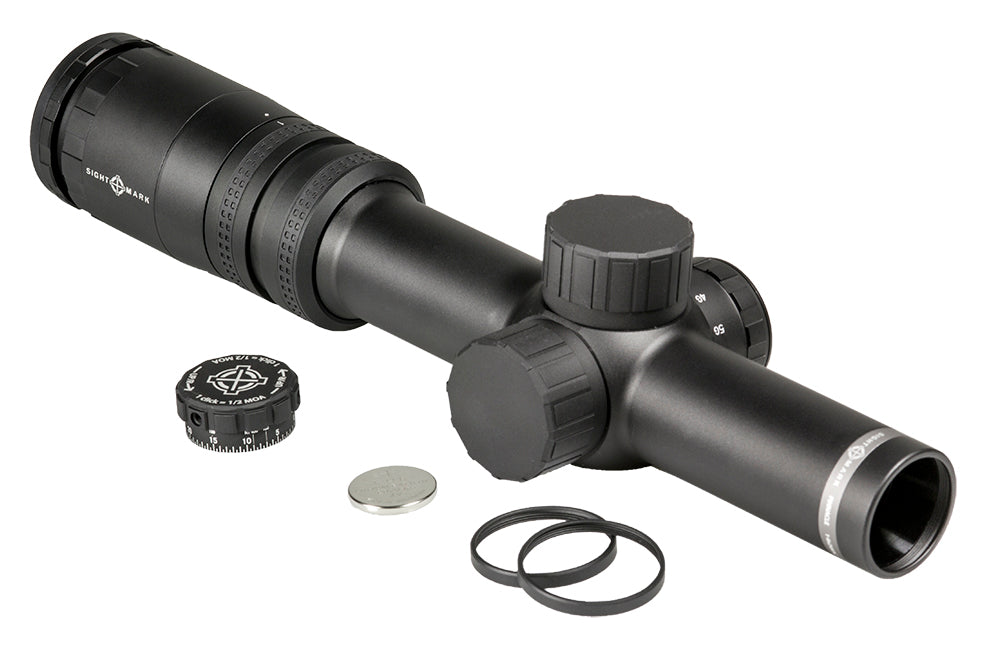

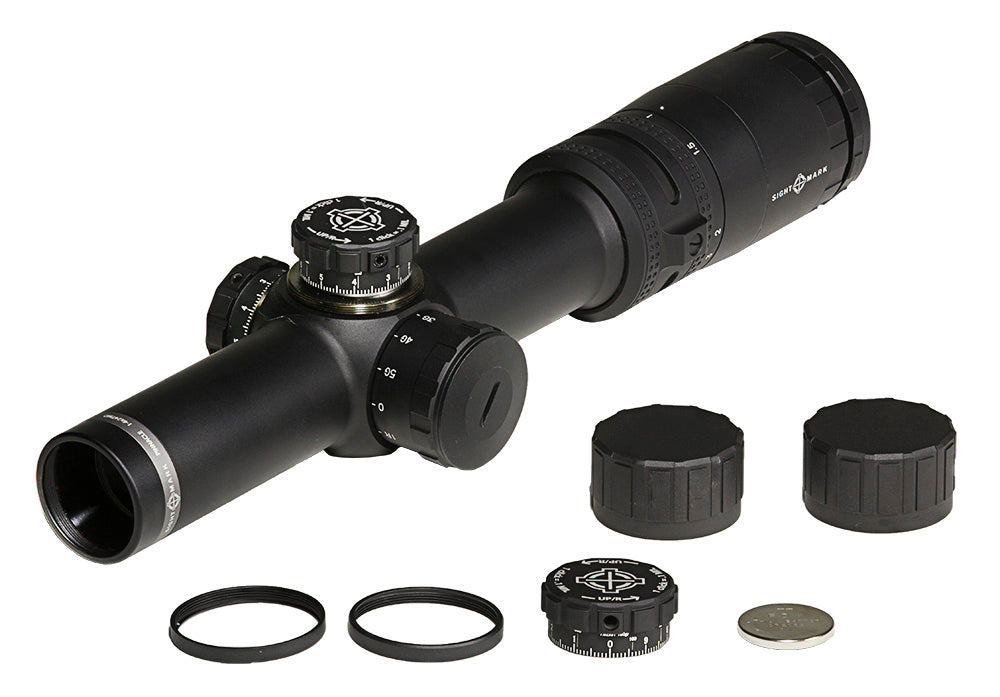

Included in Package
- 300 AAC Blackout (7.62x35) 125gr BDC dial
- 300 AAC Blackout (7.62x35) 220gr BDC dial

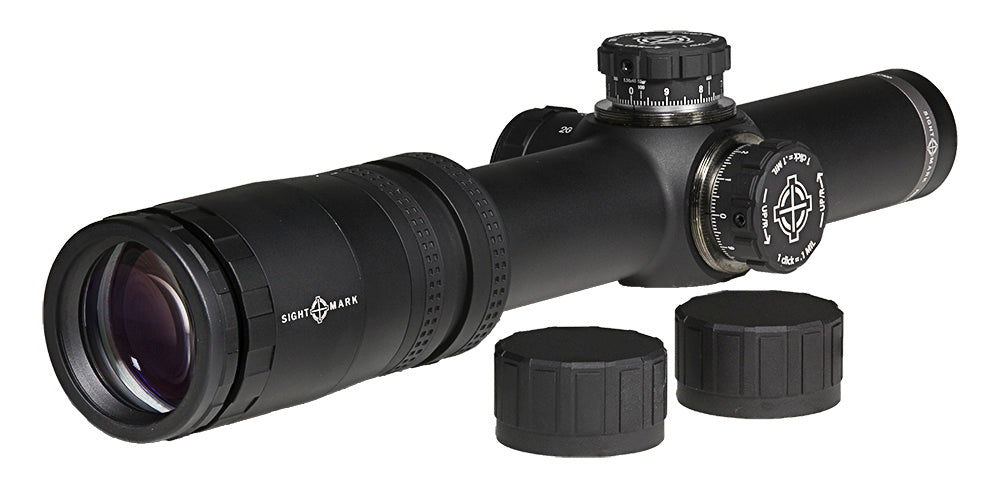

- Turret caps (2)
- Thread protector (2)
- CR2032 Battery
- Manual
Batteries Used
- Type: CR2032
- Quantity: 1
Product Downloads
Features
- Premium Japanese glass
- Fully multi-coated optics
- Scratch resistant lenses
- Constant eye relief
- 6:1 Zoom Ratio
- First focal plane reticle

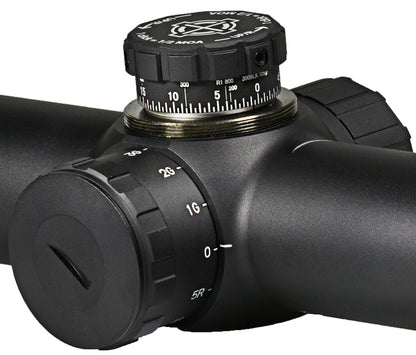

- Capped or exposed turret option
- Ballistic matched BDC dials
- Red or Green Illuminated reticle
- Fast focus eyepiece
- Waterproof, fogproof, shockproof
- 30mm single piece tube
- Precision machined
- Aircraft grade aluminum
- Hard anodized finish
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Reticle, Type | CDC-300 |
---|---|
Reticle, Color | Red/Green |
Reticle, Illuminated | Yes |
Setting, Brightness | 1 - 5 |
Finish/Color | Matte black |
Magnification | 1 - 6 x |
Diameter, Objective Lens | 24 mm |
Diameter, Eyepiece | 33 mm |
Diameter, Exit Pupil | 24 - 4 mm |
Eye Relief | 103 mm |
Field of View | 29.7 - 5.2 m @ 100m |
Field of View | 29.7 - 5.2 m @ 100m |
Field of View | 29.7 - 5.2 m @ 100m |
Diopter Adjustment | 3.5 to -3.5 |
Diameter, Tube | 30 mm |
Parallax Setting | 100 yds |
Windage Range of Adjustment | 140 MOA |
Elevation Range of Adjustment | 140 MOA |
MOA Adjustment | 1/2 MOA |
Maximum Recoil | .338 Win |
Battery Type | CR2032 |
Battery Life | 3 hours |
Battery Voltage | 3 V |
Nitrogen Purged | yes |
Shockproof | yes |
Fog Proof | yes |
Focal Plane | first |
IP Standard | IP67 (submergible to 1m) |
Body Material | aluminum - 6061 |
Material, Lens | glass |
Lens Coating | fully multicoated AR green |
Operating Temp,?F/?C | -20 to 160 / -29 to 71 F/C |
Length | 10.2 / 260 in/mm |
Width | 2.89 / 73.5 in/mm |
Height | 2.2 / 56 in/mm |
Weight | 20.4 oz |
