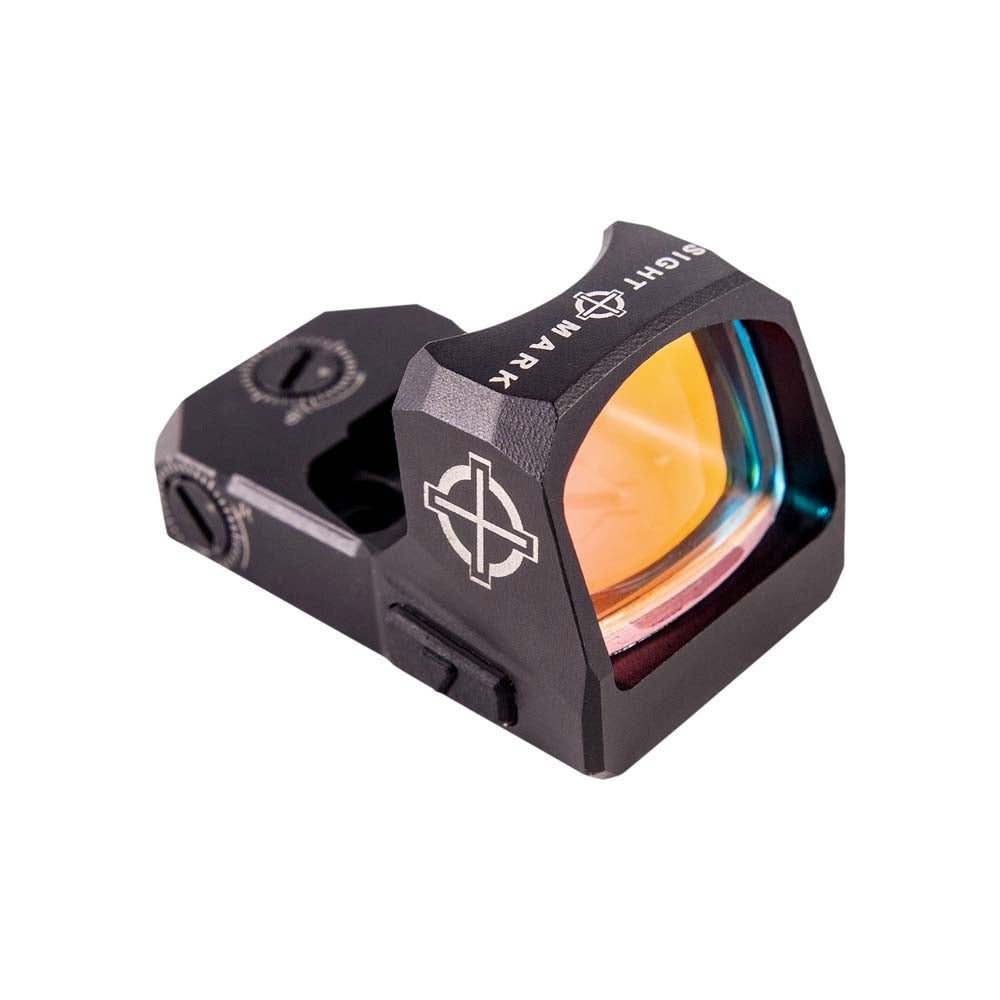

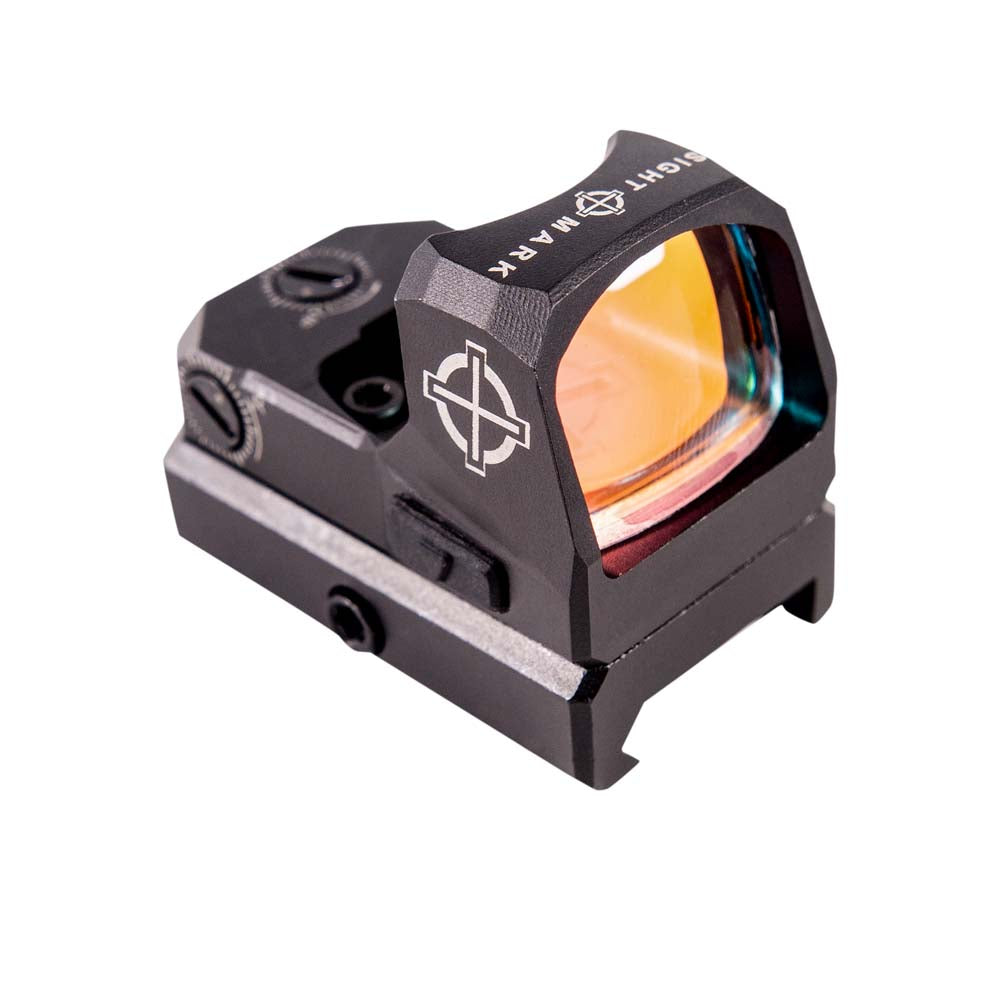

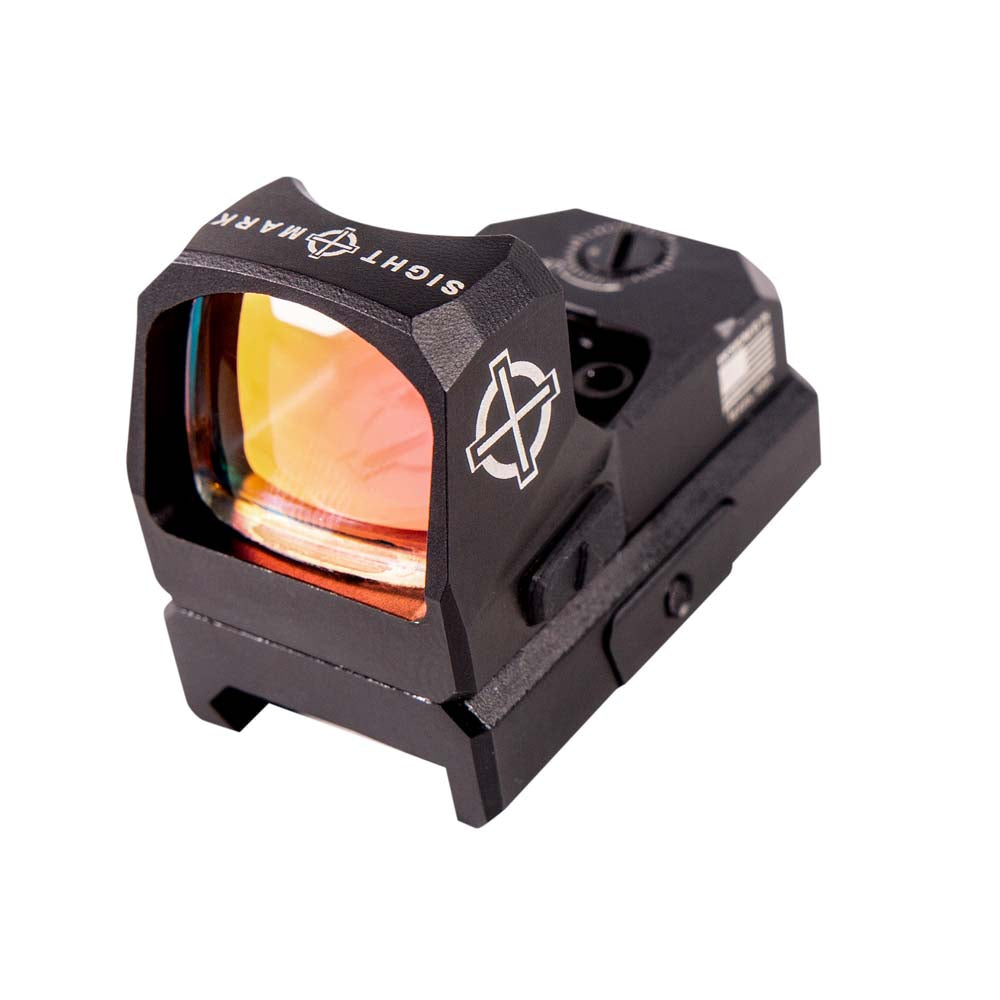

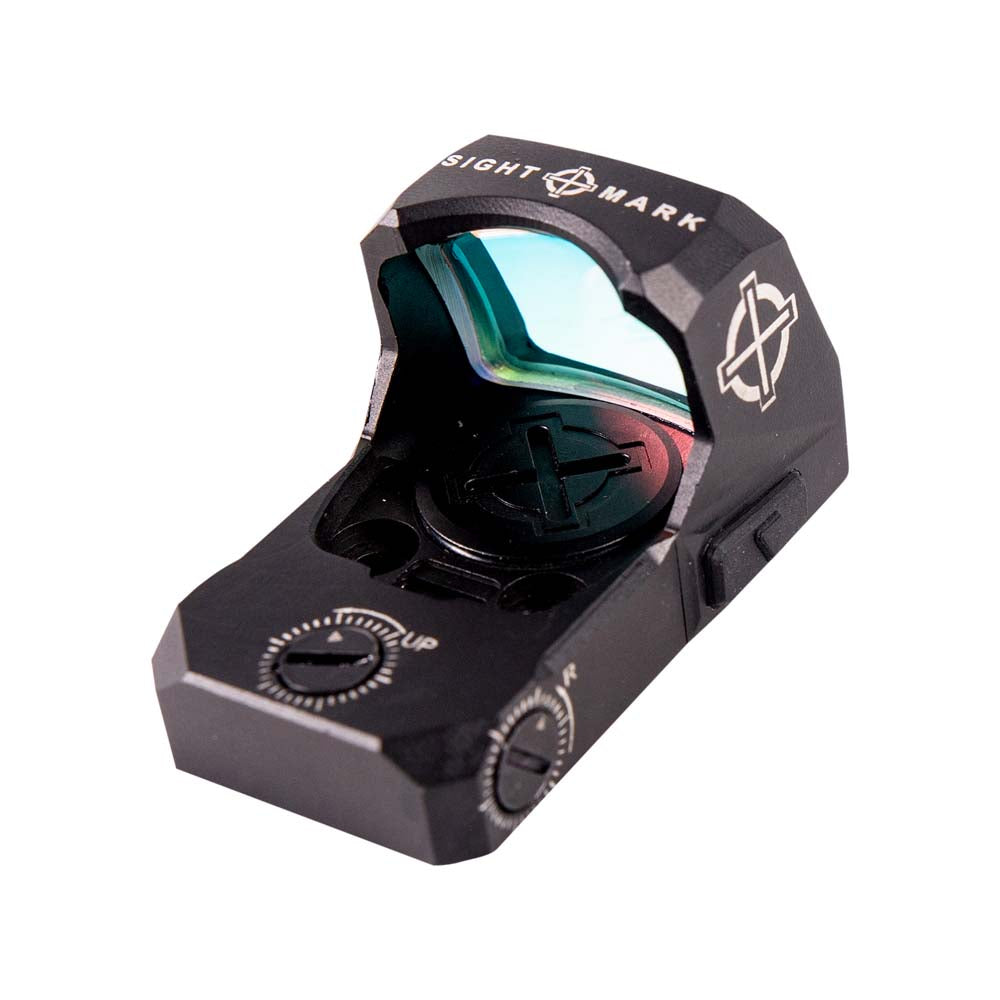

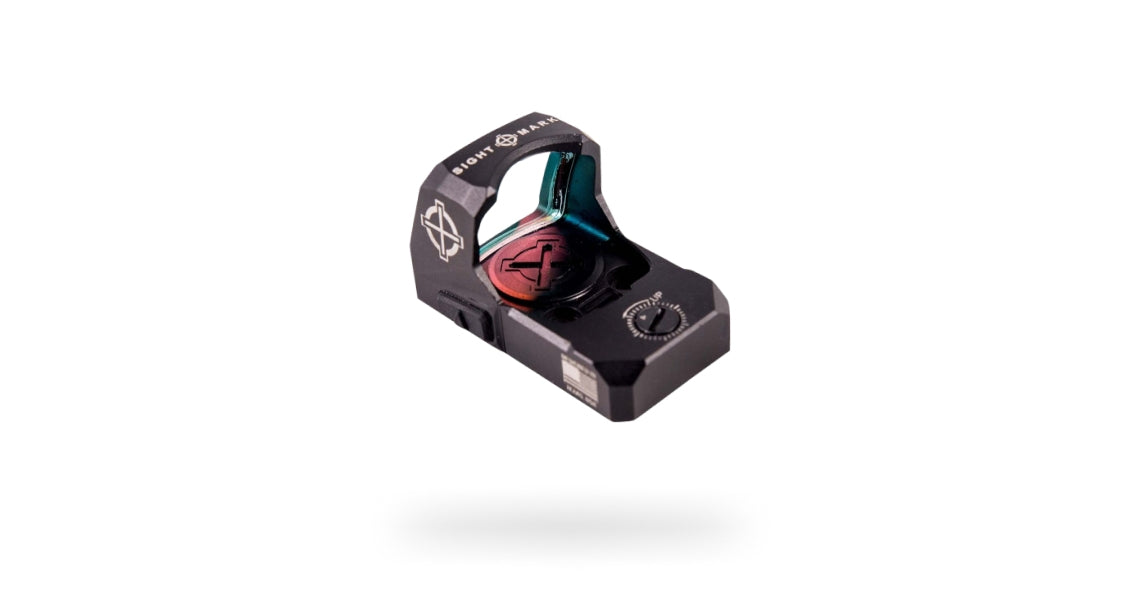

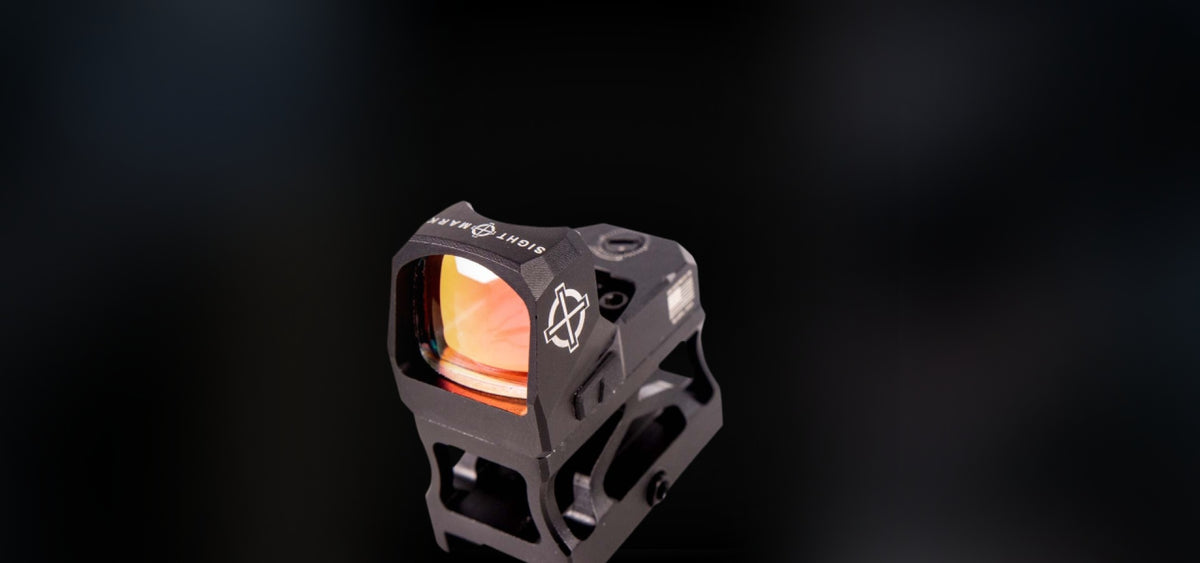

Sightmark Mini Shot A-Spec M1 Reflex Sight - Red

SKU# SM26045

  • Sales Price:   $119.99
  • Regular price $137.99
  • Sezzle Payment Program will increase handling time.
  • Tax & Shipping calculated at checkout.

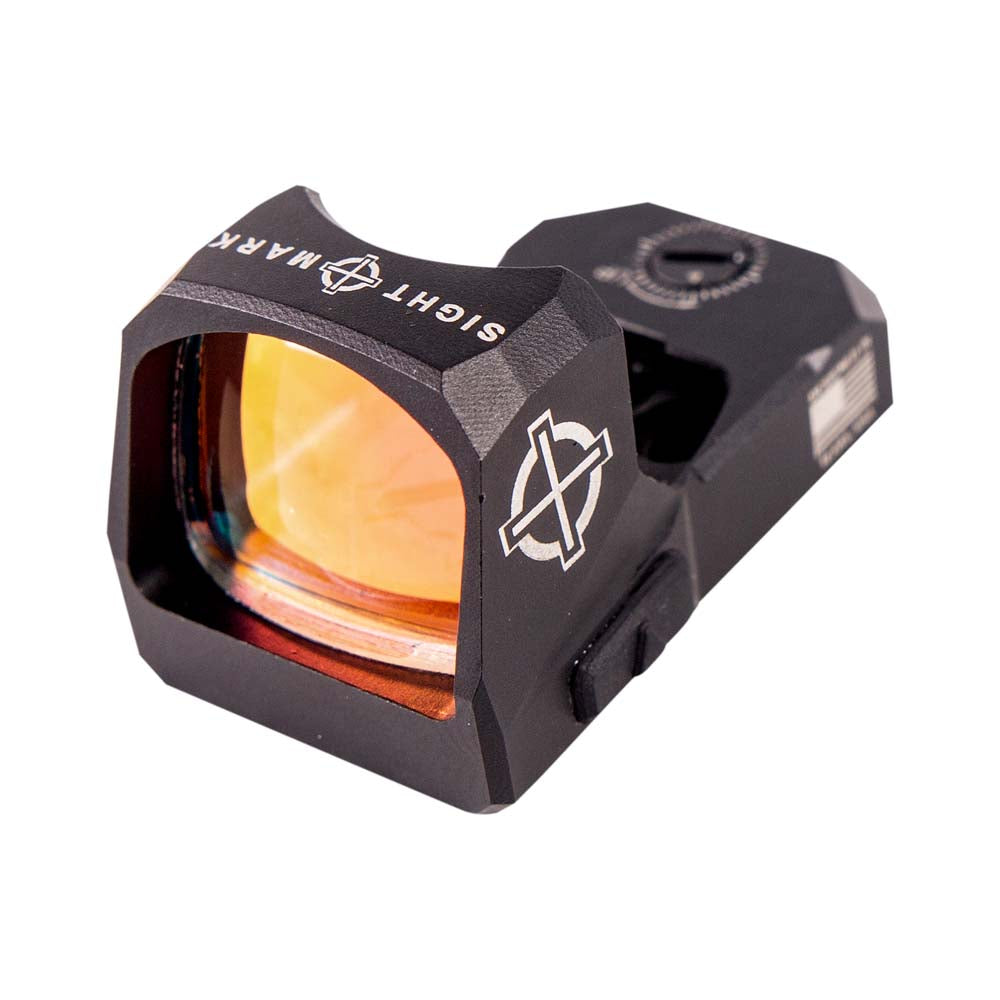

A rugged, micro red dot optic ideal for a wide-range of shooting applications, the Mini Shot A-Spec reflex sight’s wide field of view, 2 MOA red dot reticle and included AR riser and low-profile mounts allow it to be used effectively and comfortably on pistols, rifles and even shotguns. Built to last, the Mini A-Spec features a rugged steel protective shield and aluminum alloy housing. Ten reticle brightness settings and user-friendly ambidextrous digital brightness controls permit the A-Spec to be used in virtually any environment, from bright sunny days to low-light conditions. All Mini A-Specs boast a coated and scratch-resistant lens, IP55 waterproof rating and are both shockproof and dustproof.

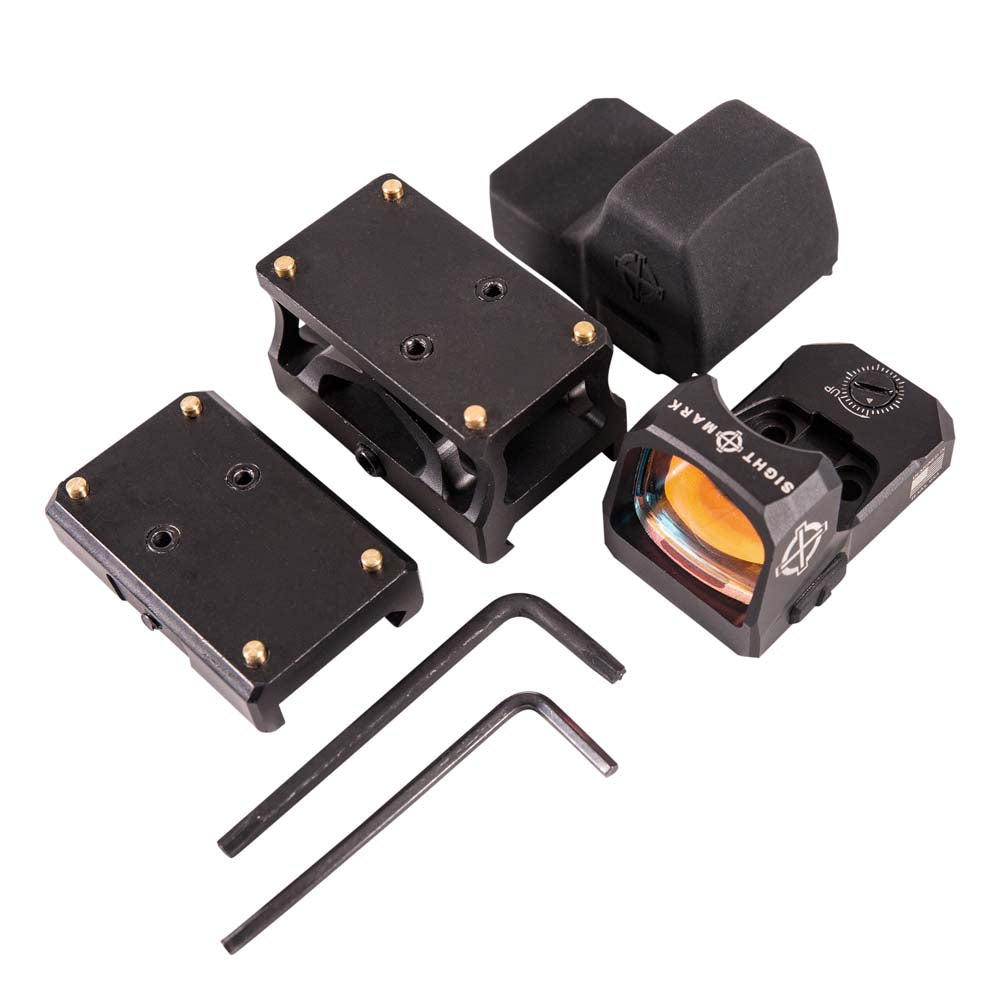

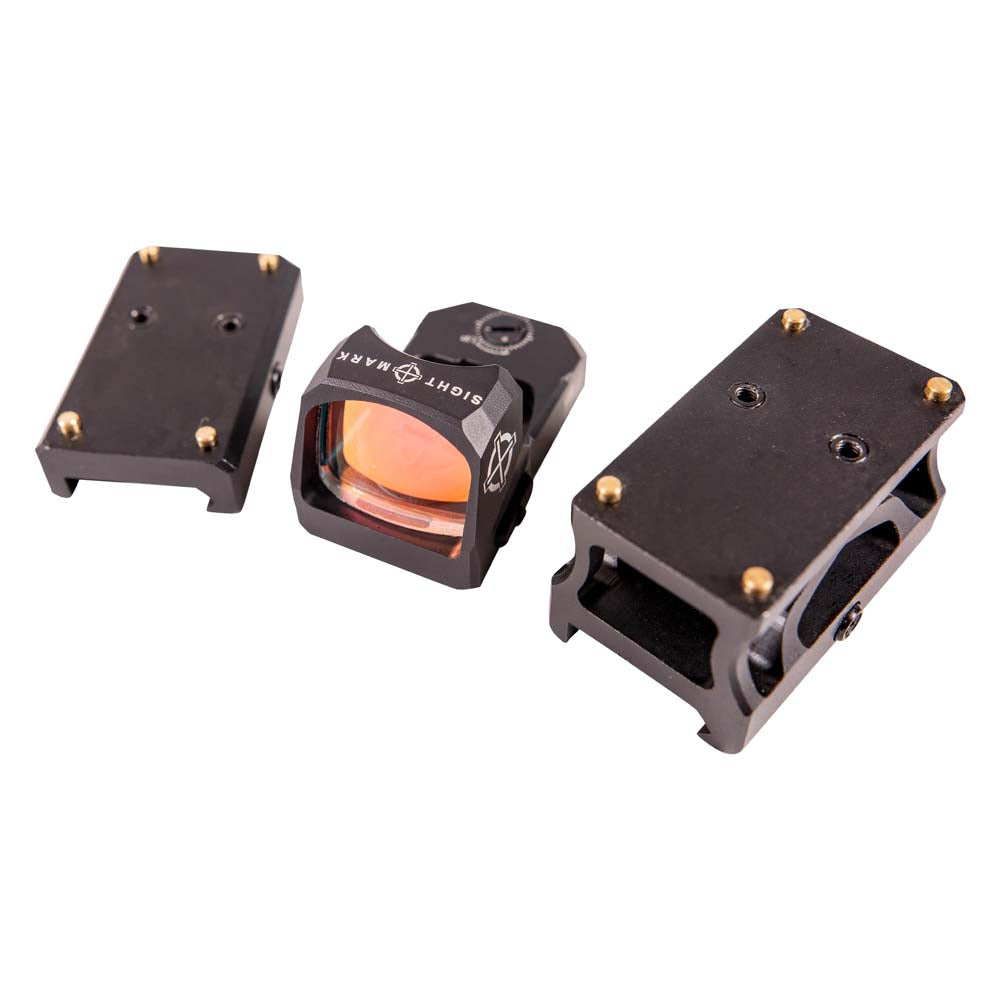

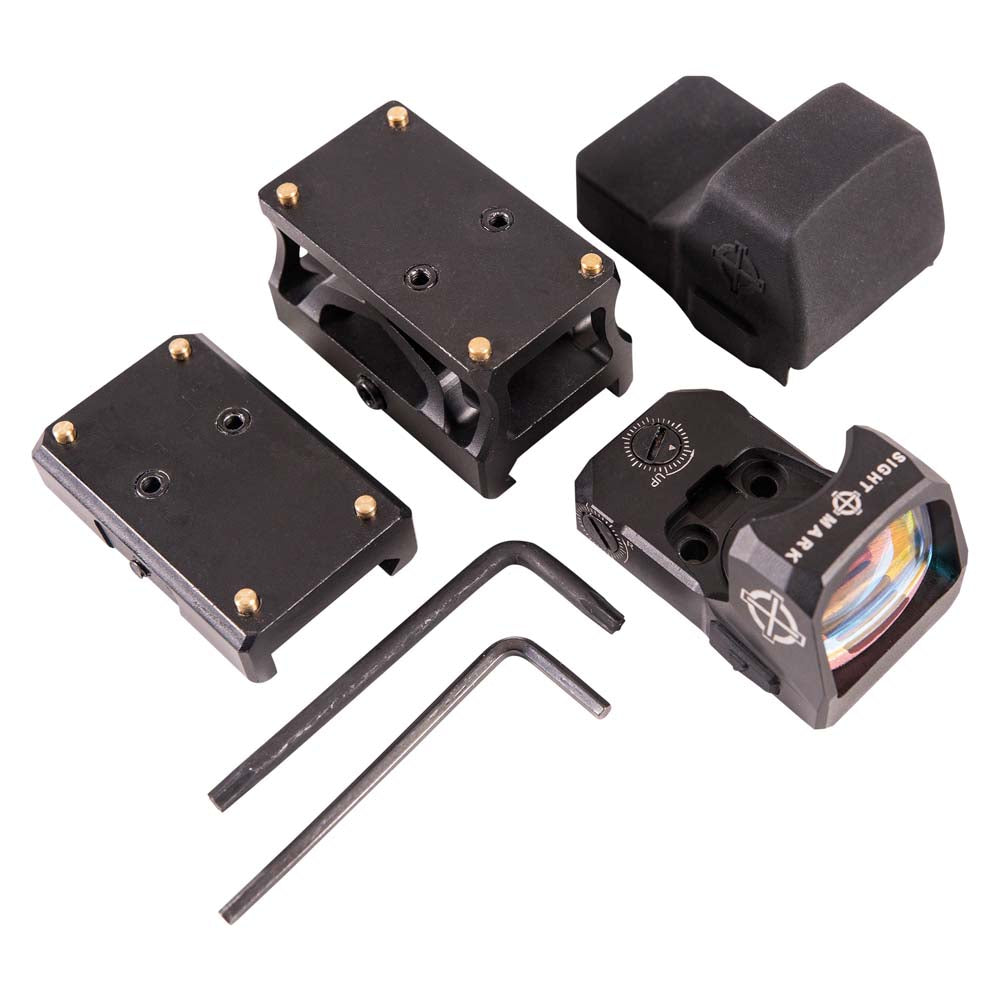

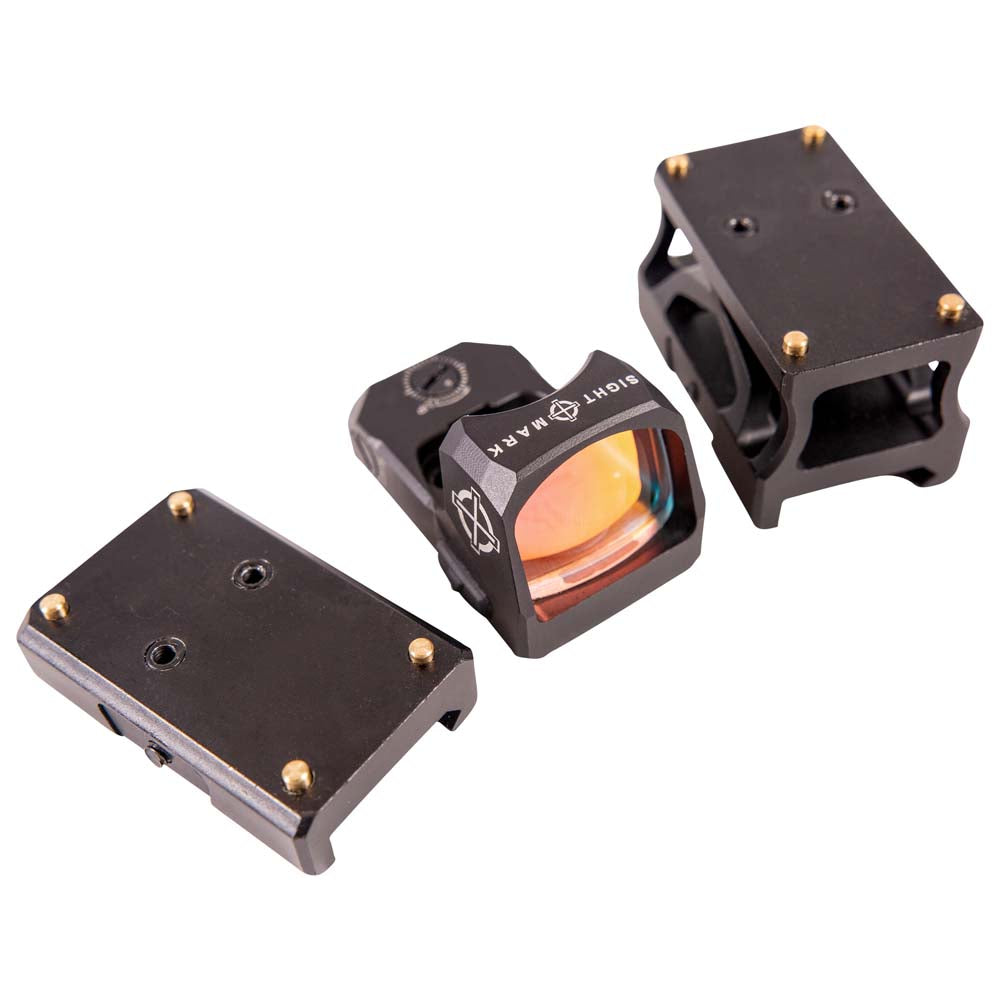

Included in Package

  • Rubber Cover

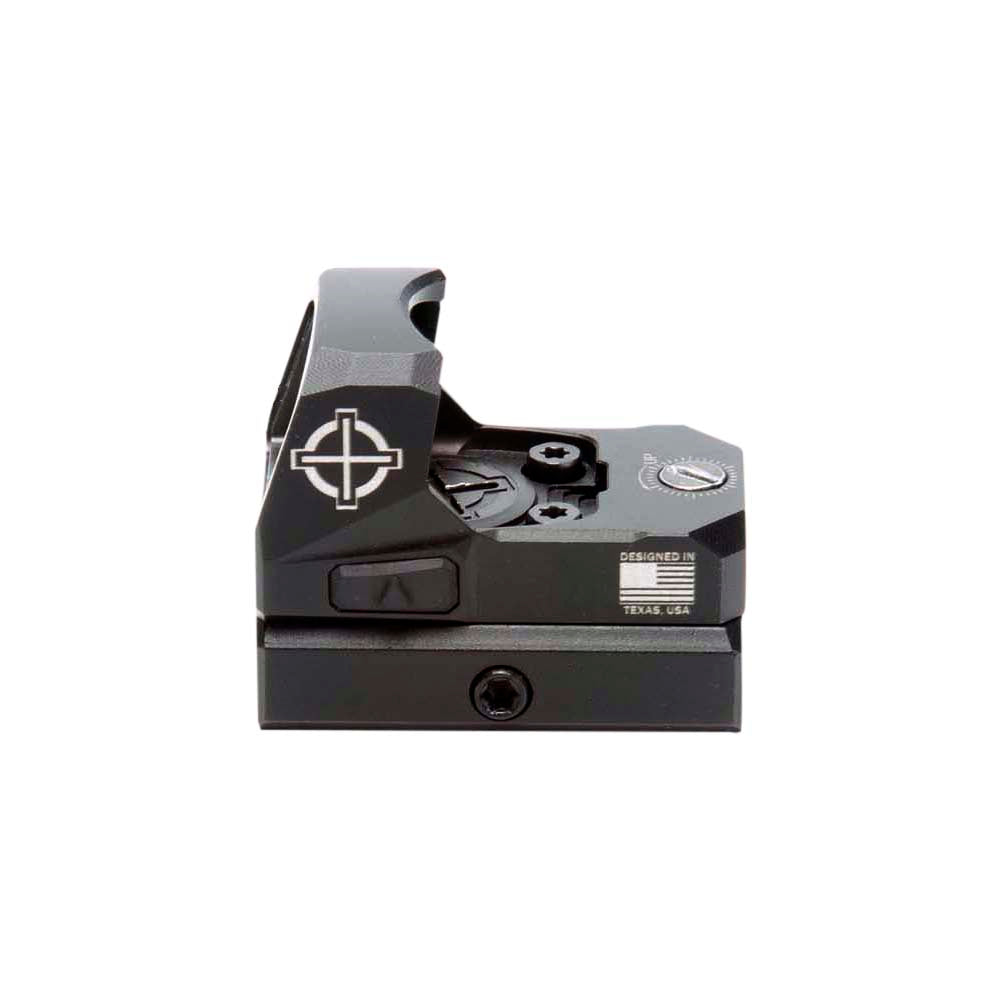

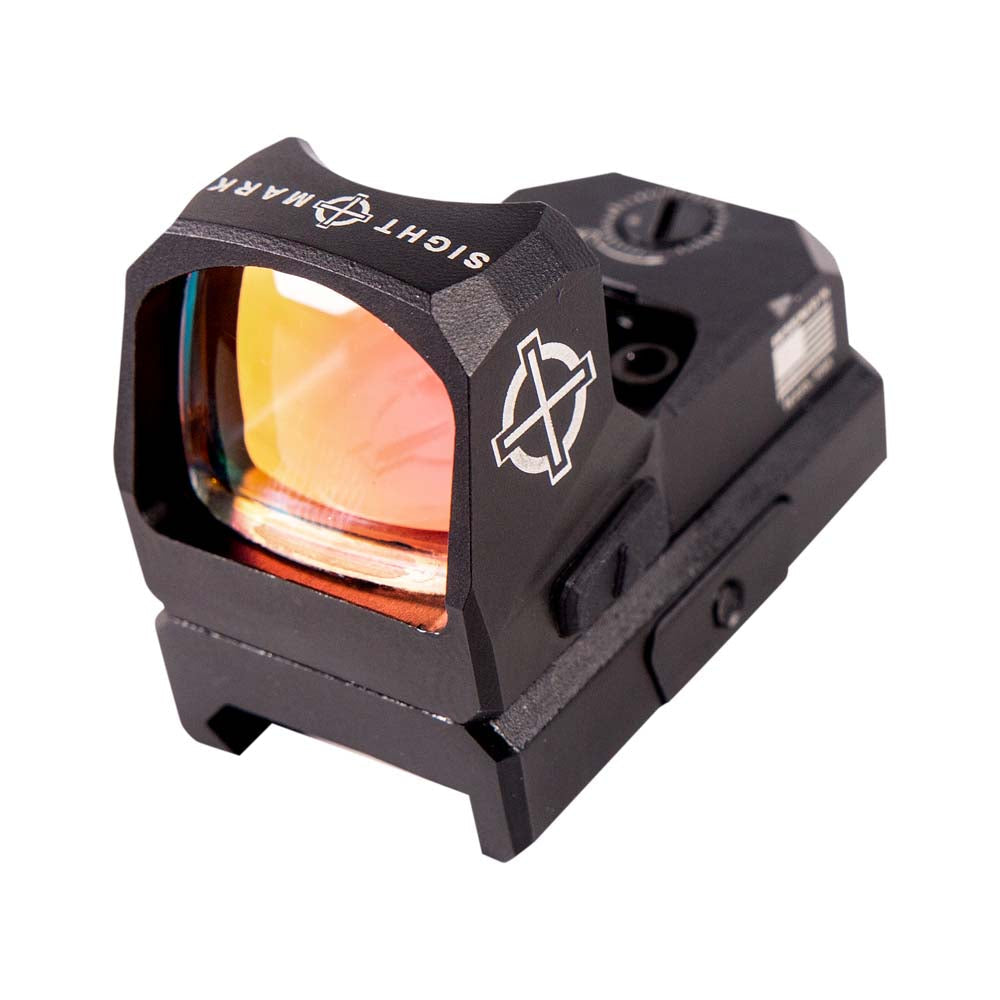

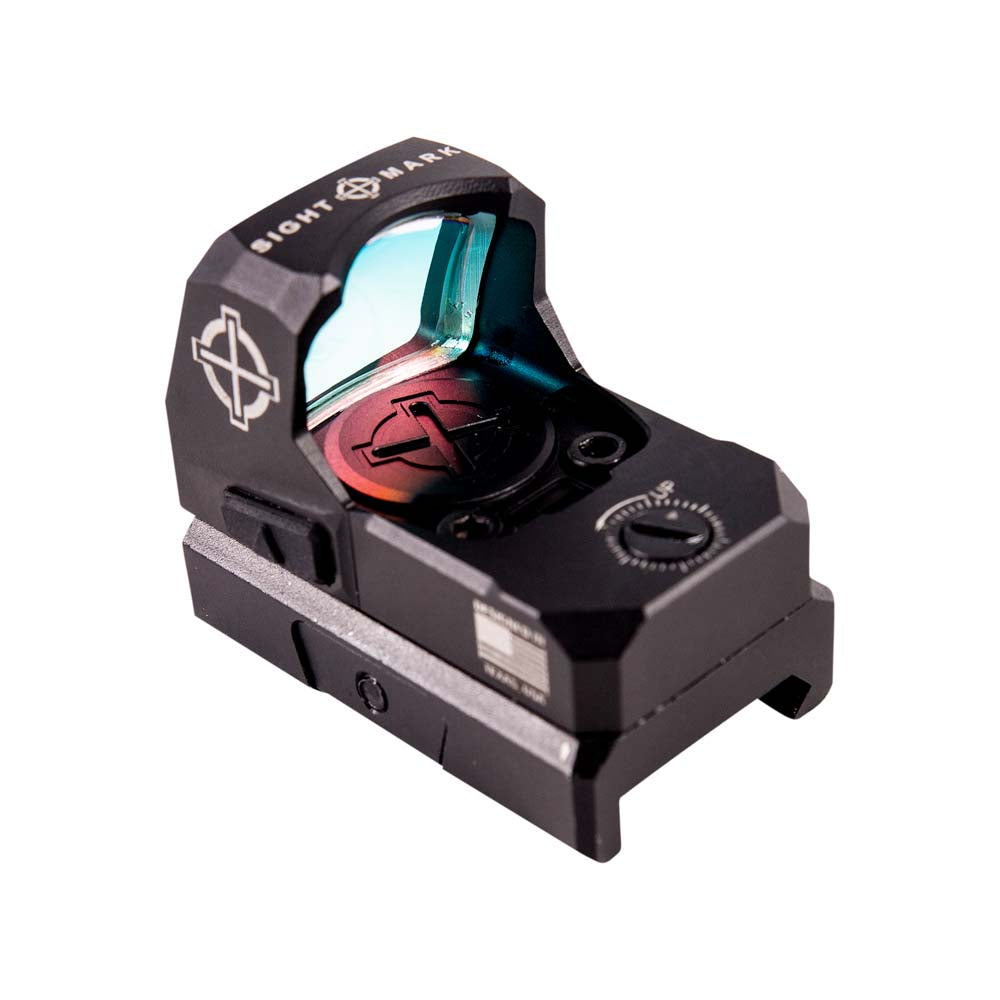

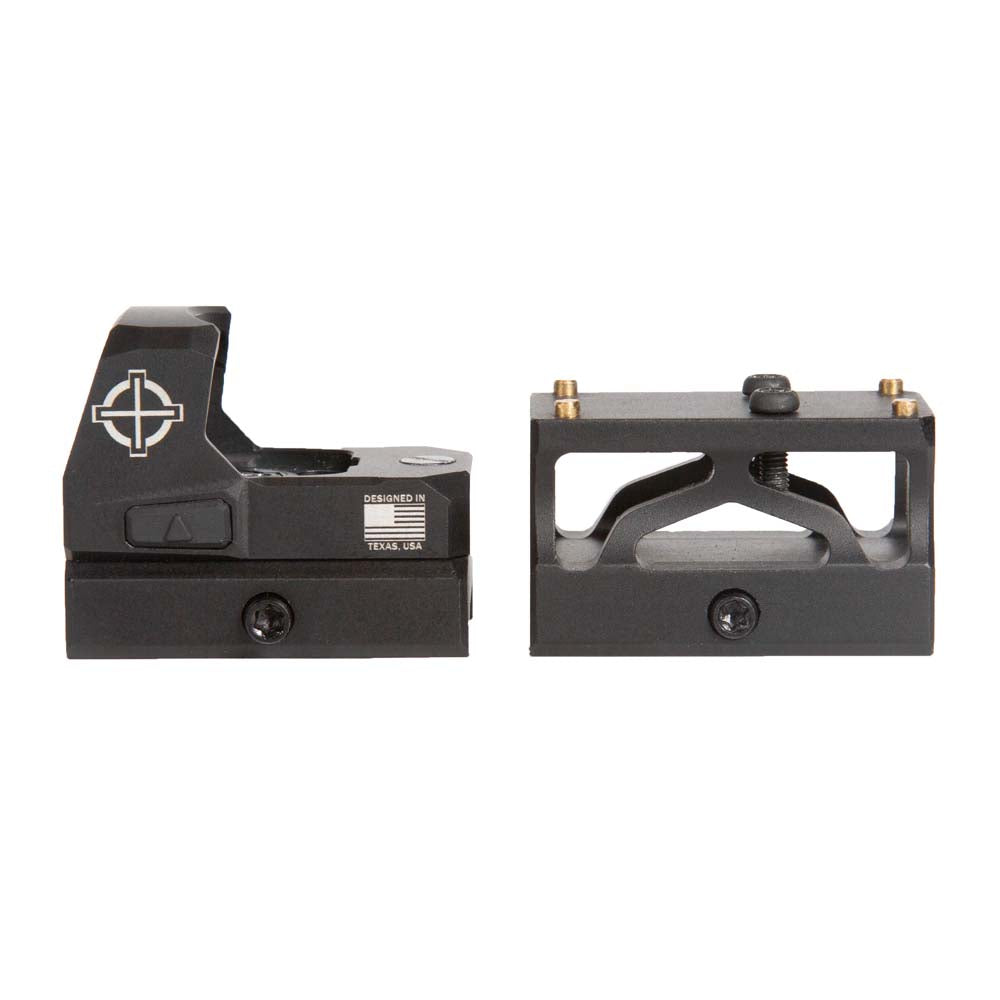

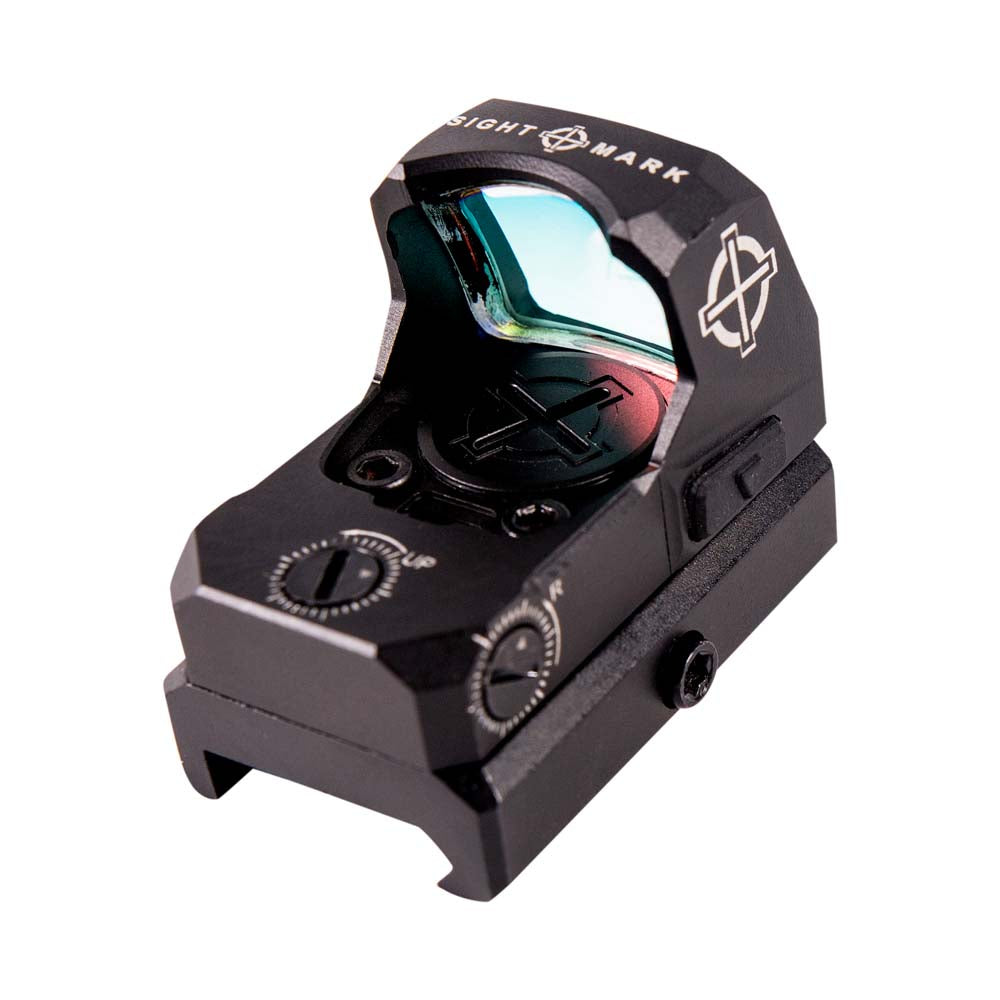

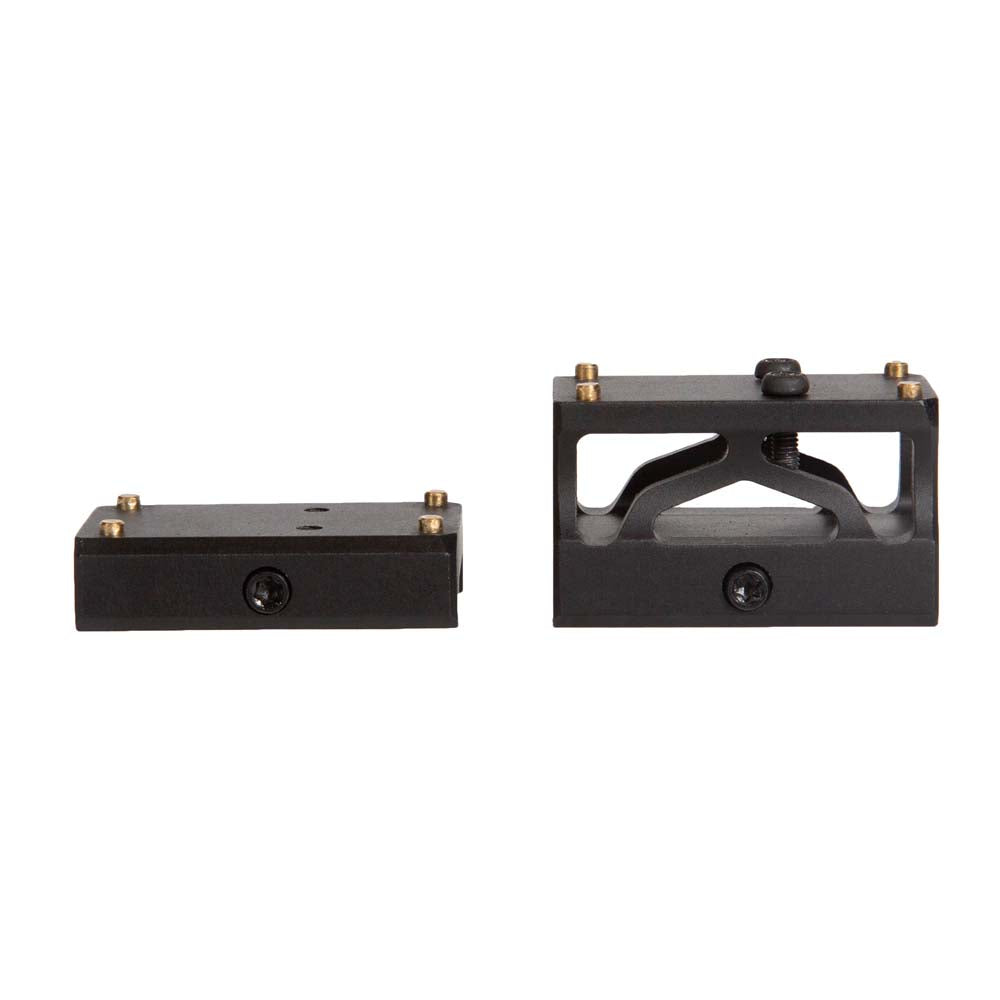

  • Low Profile Fixed Mount

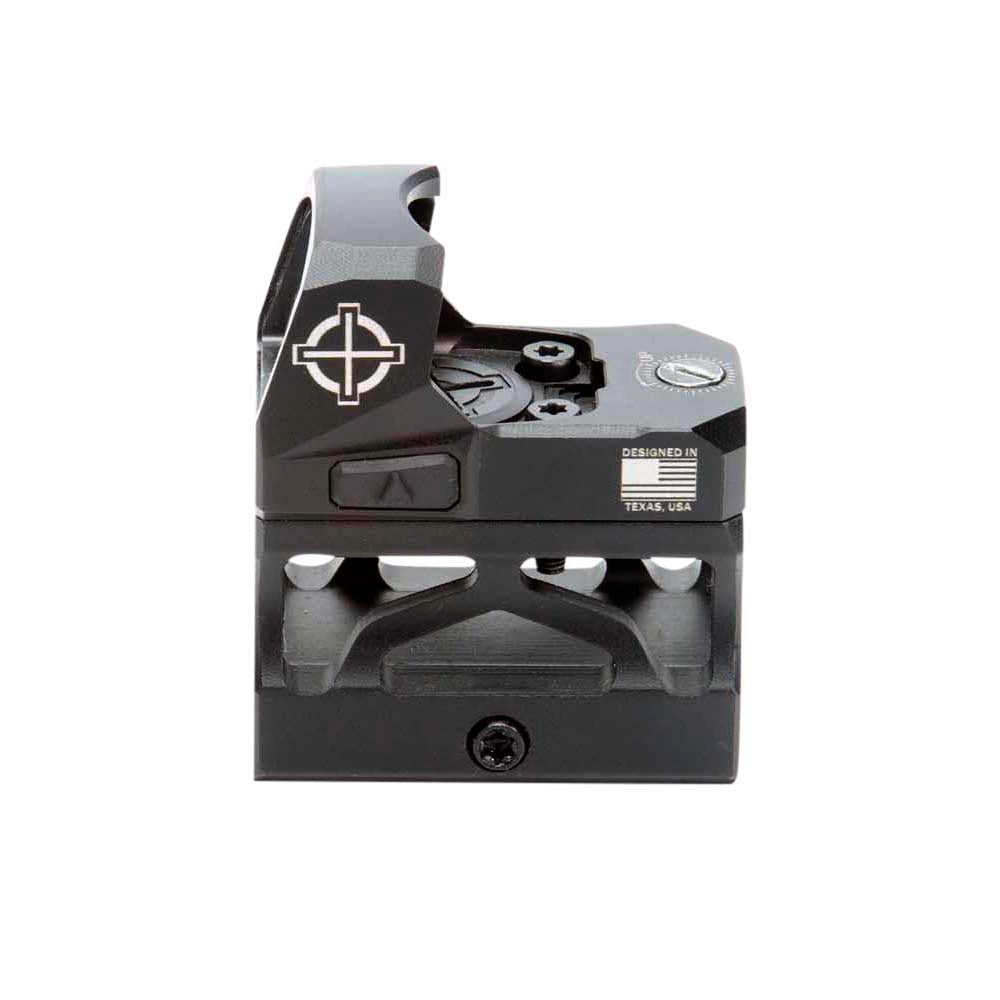

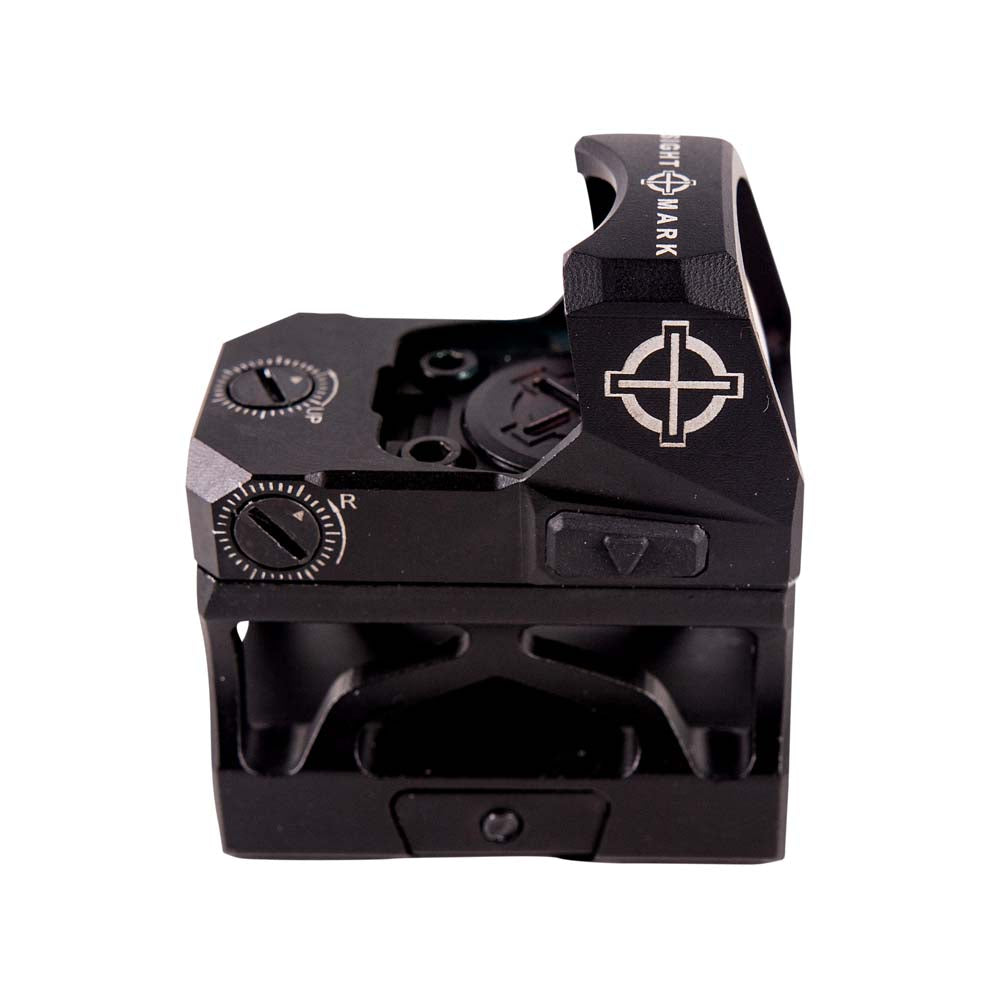

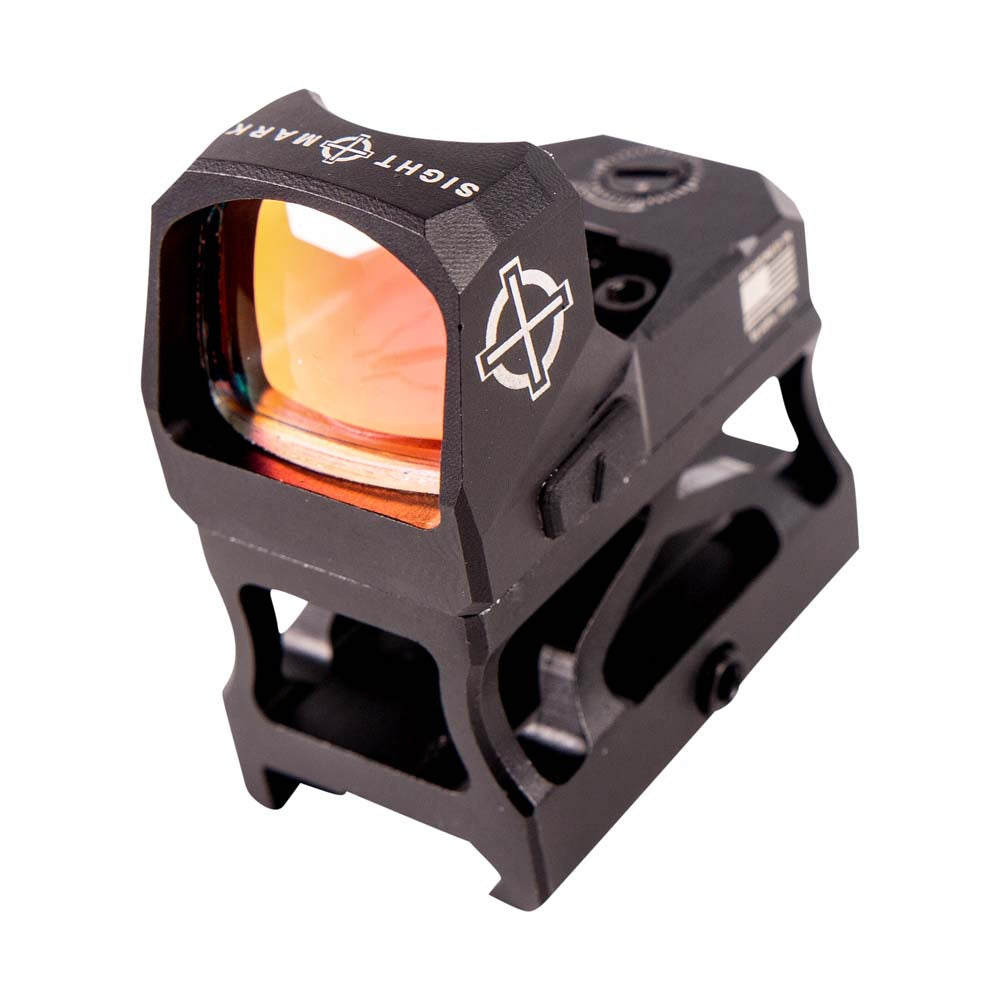

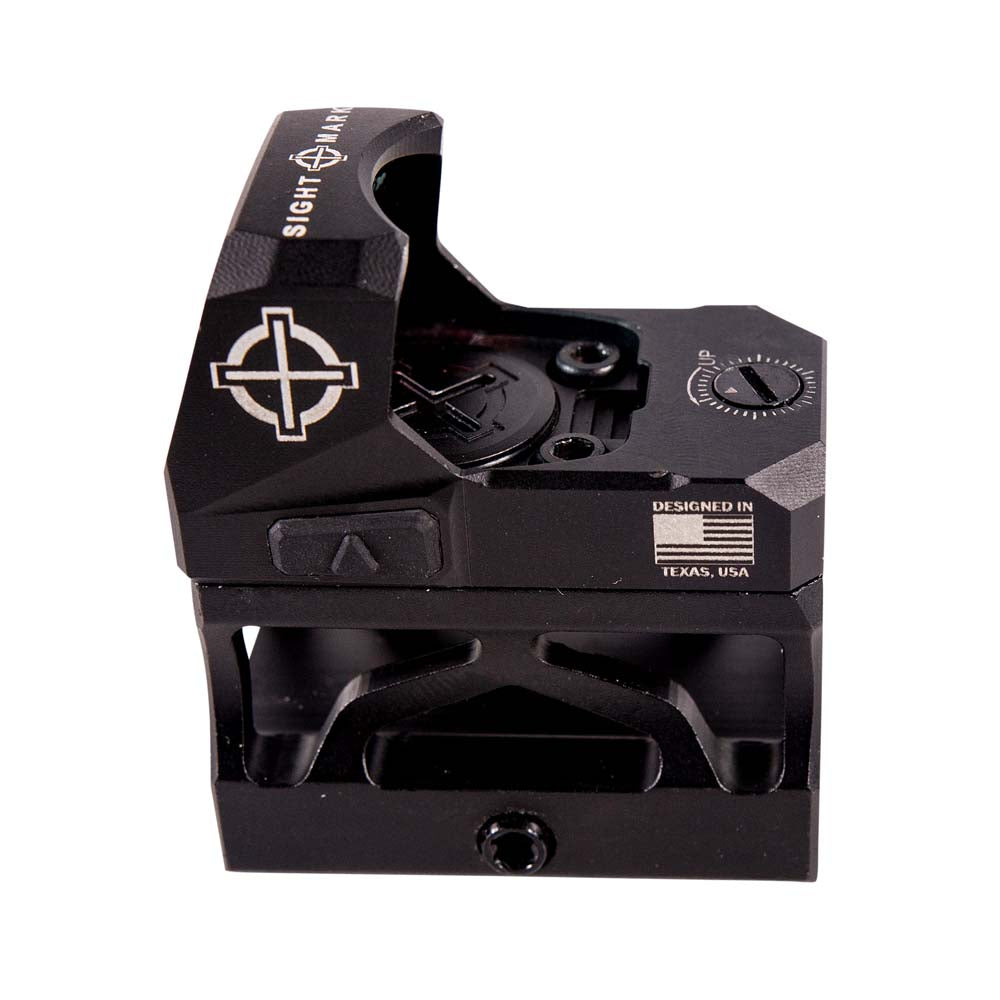

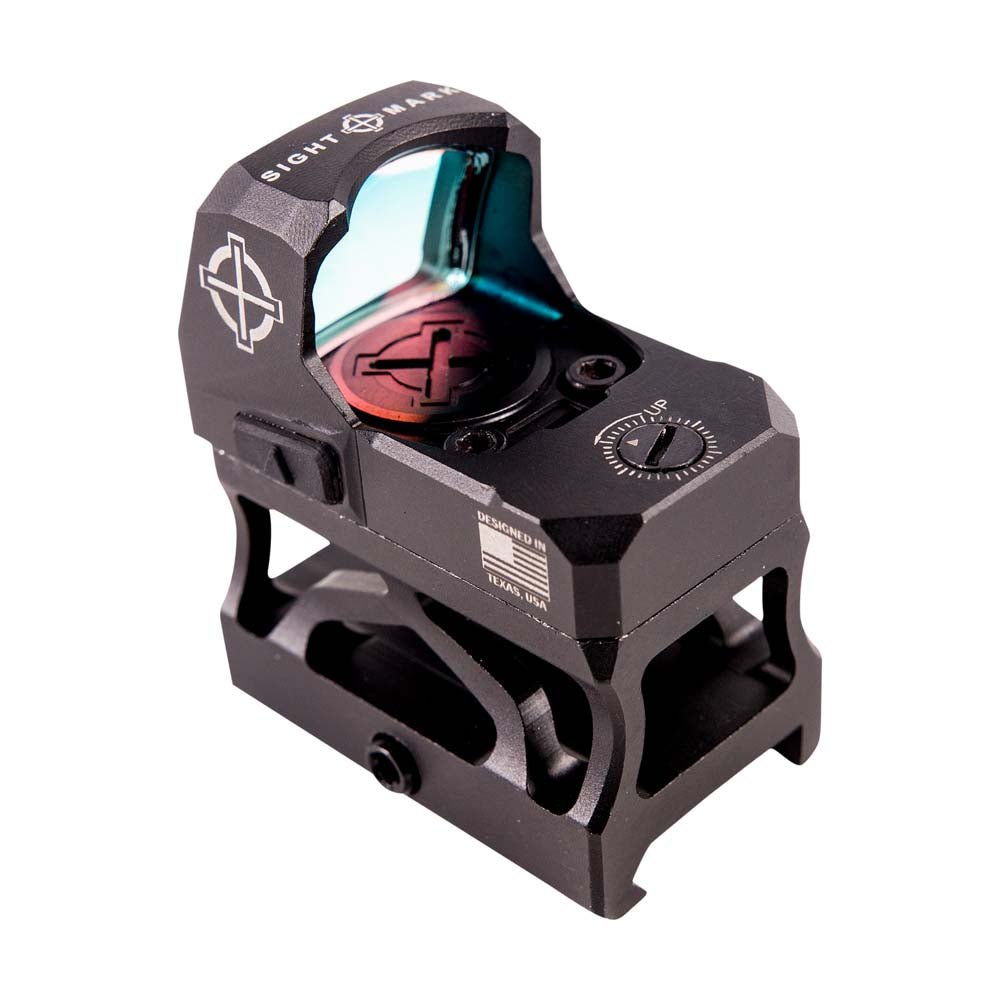

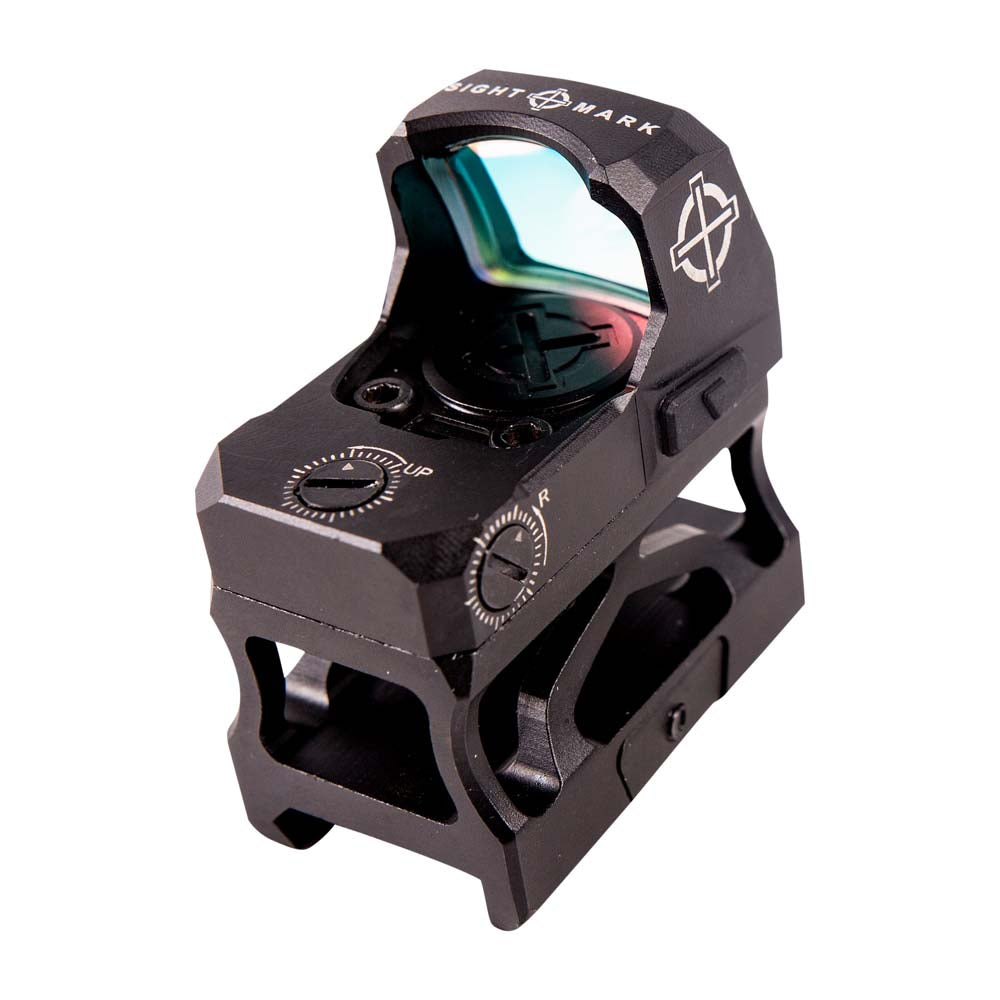

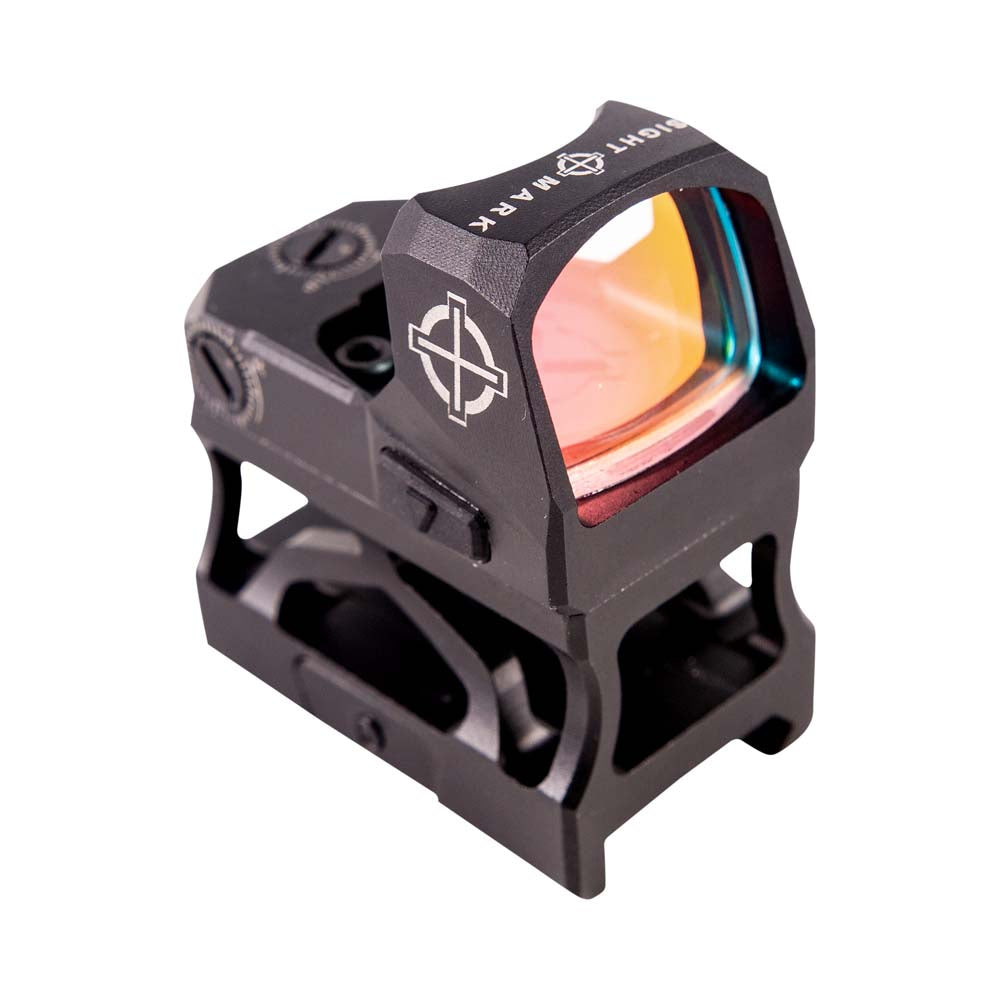

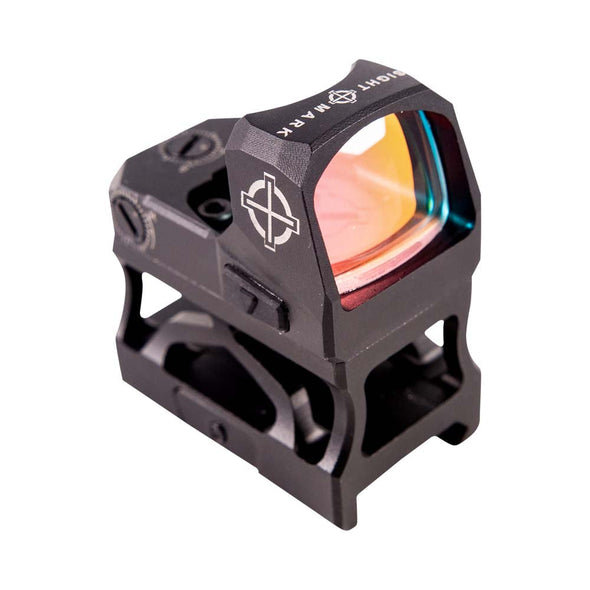

  • AR riser fixed mount
  • Torx key

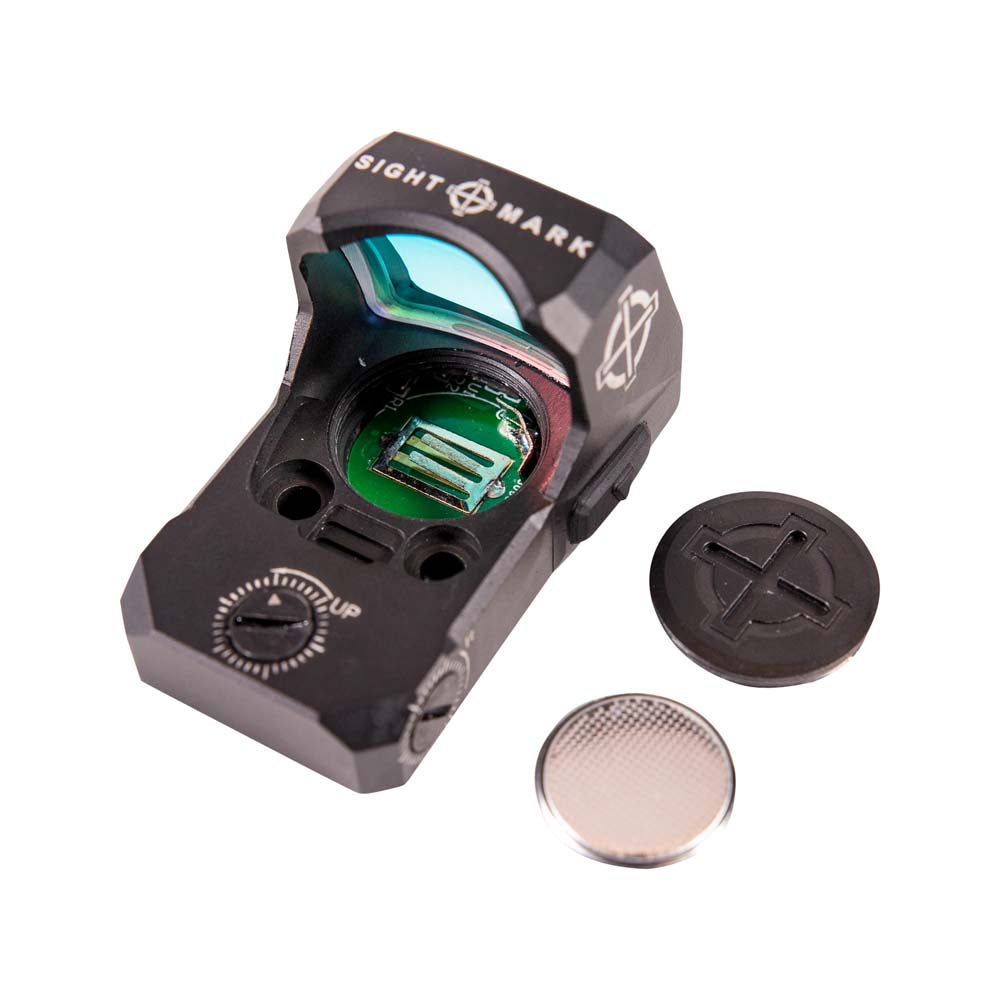

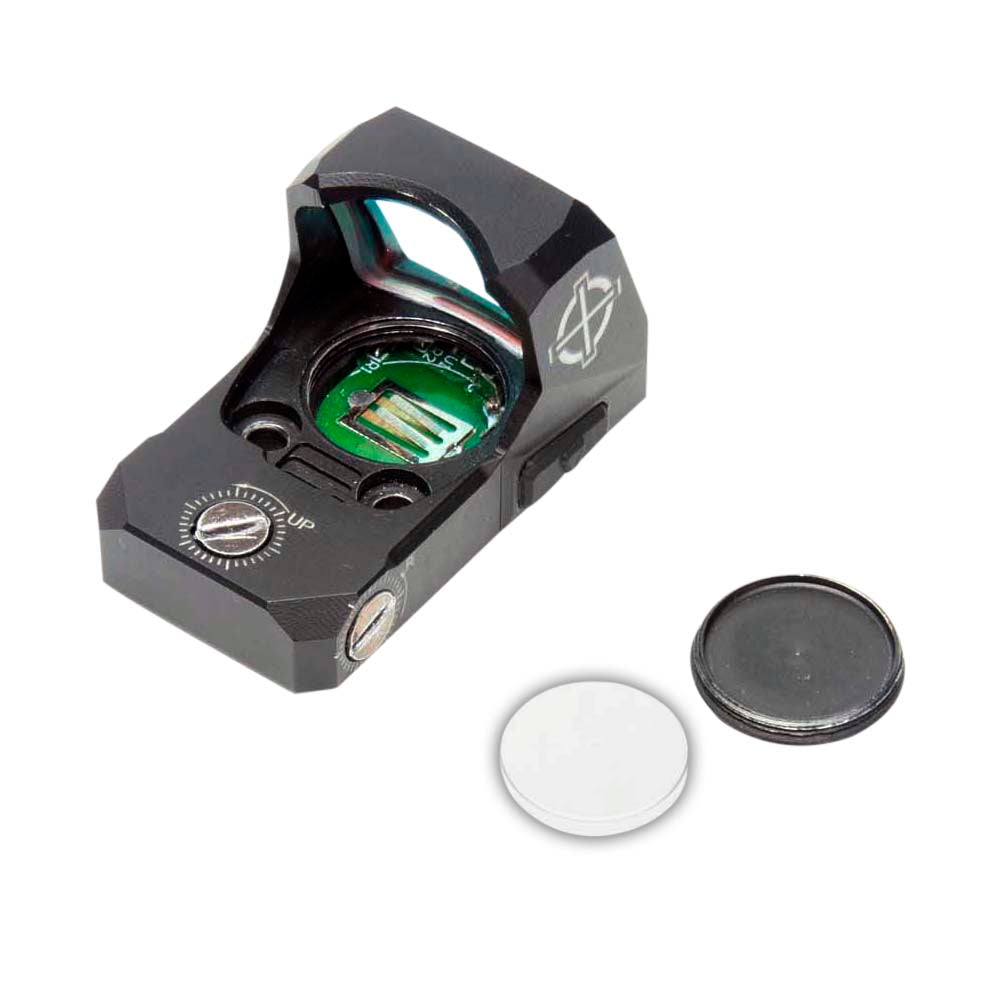

Batteries Used

  • Type: CR1632
  • Quantity: 1

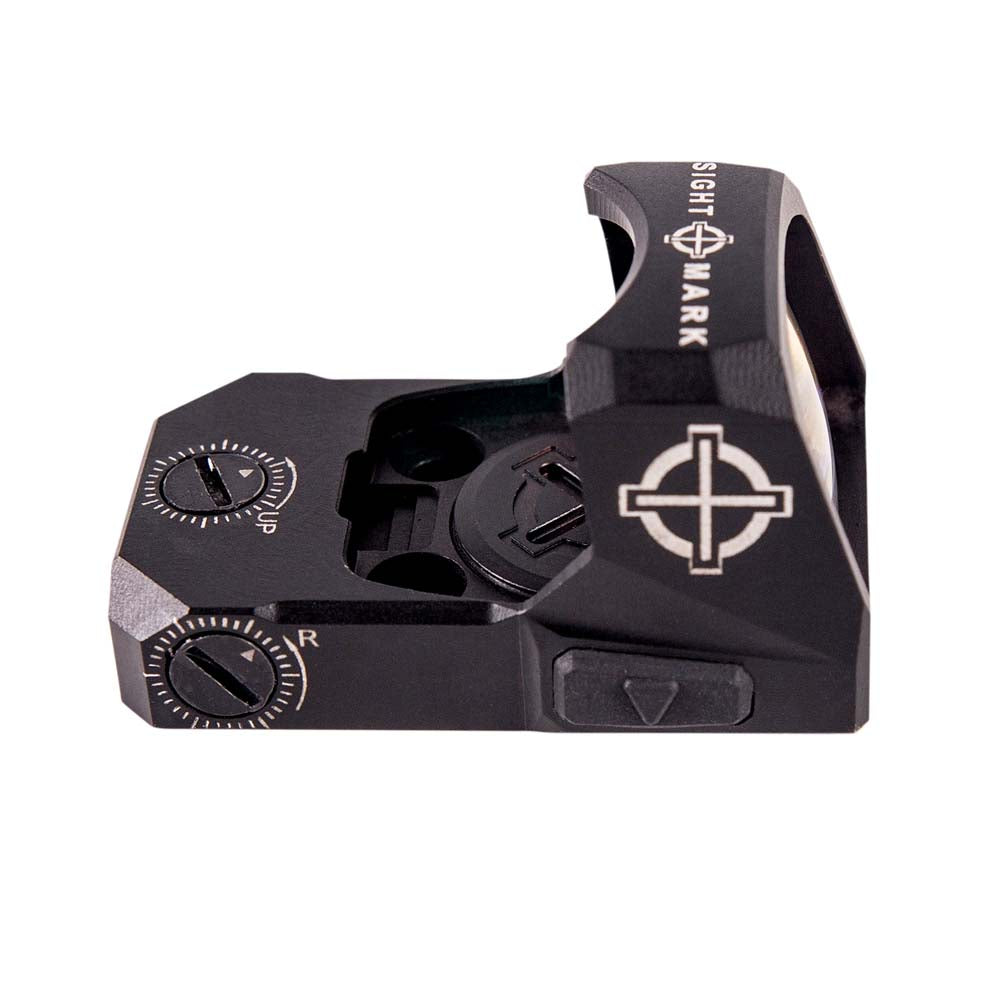

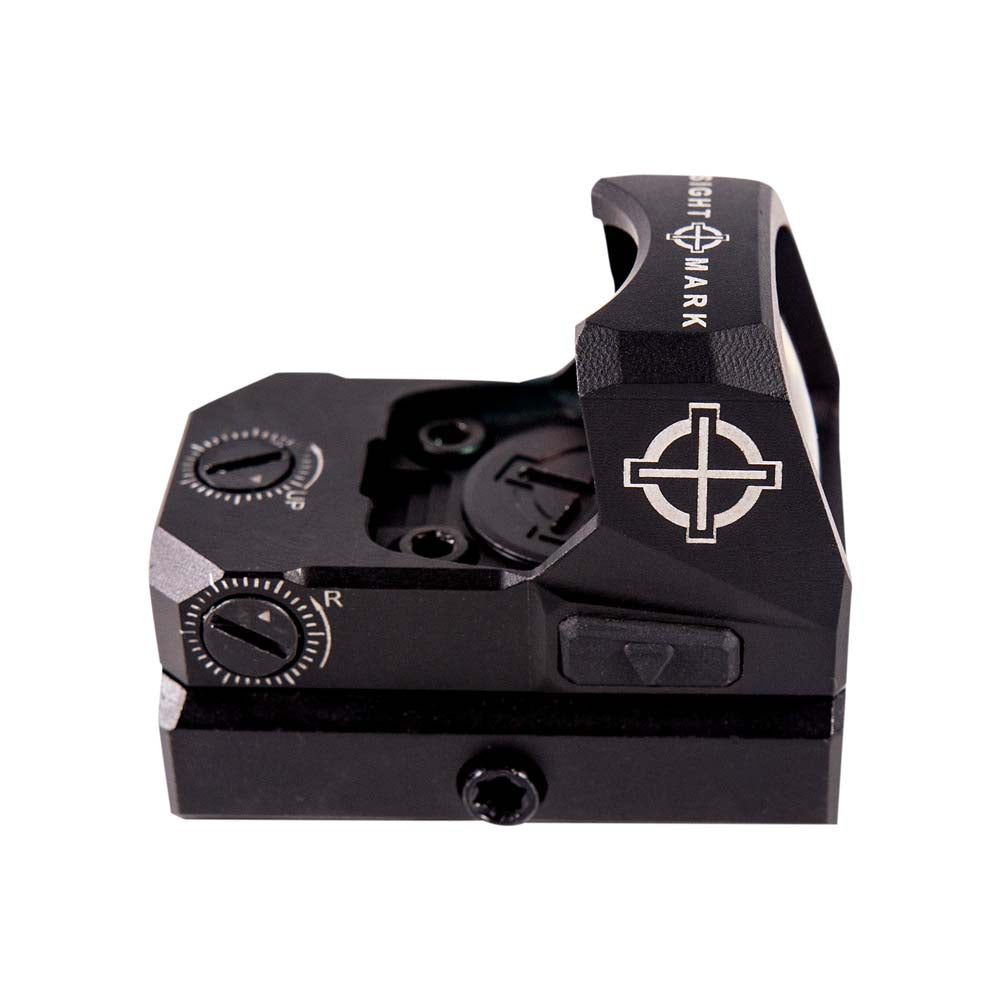

  • Windage and elevation click adjustments
  • 10 reticle brightness levels

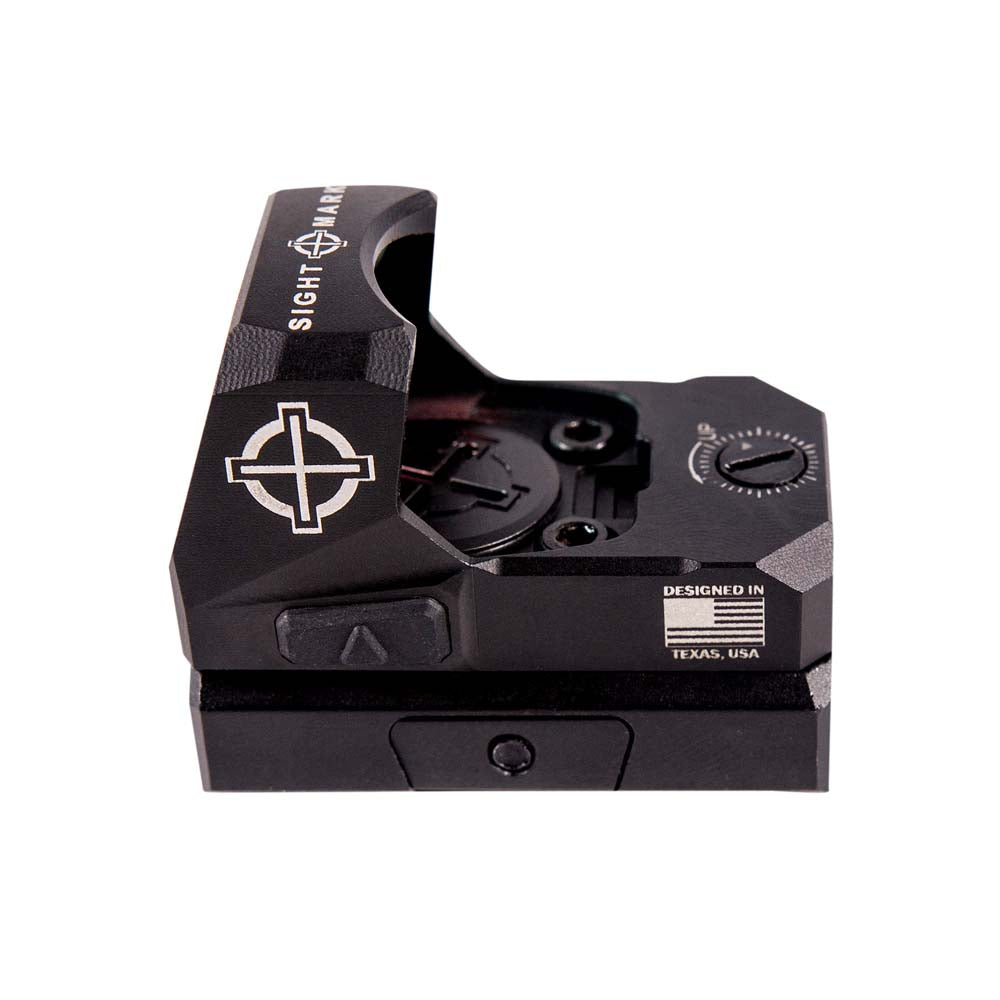

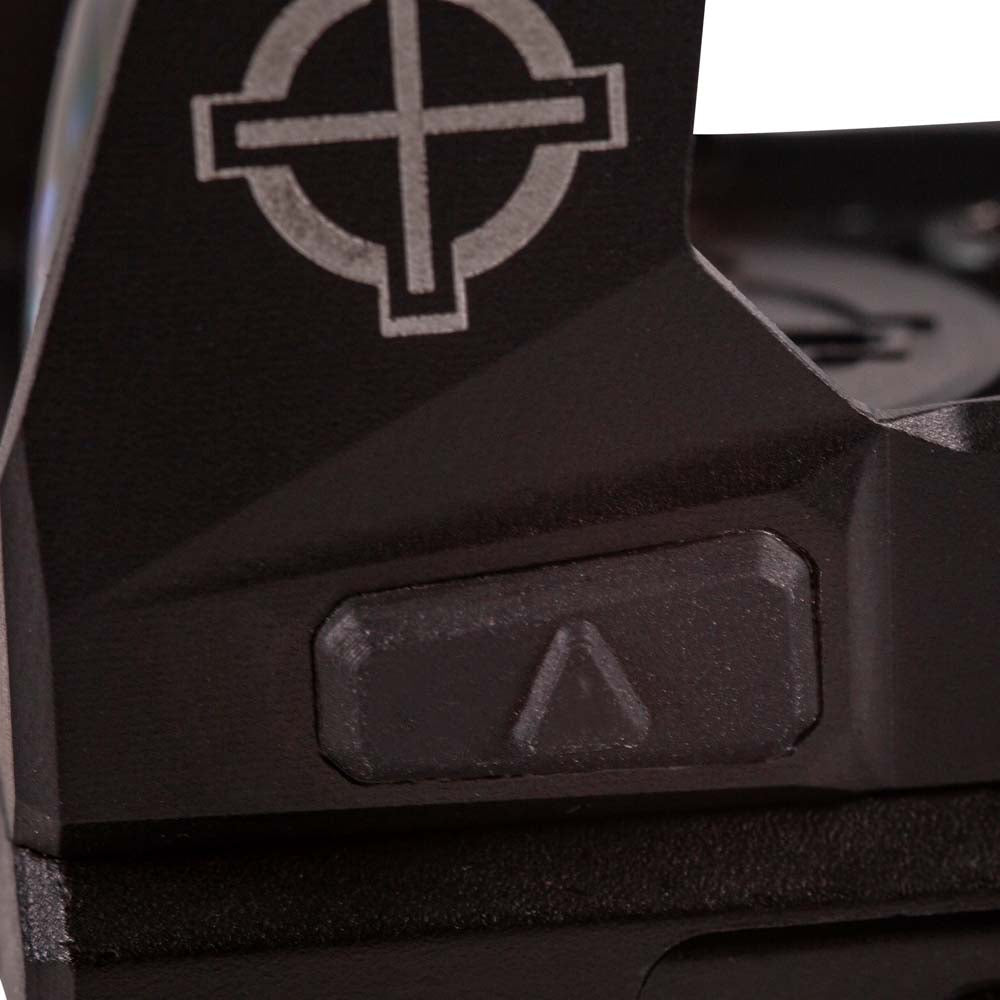

  • Ambidextrous digital brightness switch
  • Advanced parallax free lens design
  • Red reticle illumination
  • Rugged lightweight aluminum alloy housing
  • Scratch resistant lens coating

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

California Disclaimer

Reticle, Type 2 MOA
Reticle, Color Red
Reticle Brightness Setting 1 - 10
Magnification 1
Objective Lens 22 x 17 mm
Eye relief (in/mm) Unlimited
Elevation Range of Adjustment 110 MOA
Windage Range of Adjustment 110 MOA
Adjustment Value 1 MOA
Parallax Setting 25 yds
Finish/Color Matte Black
Body Material 6061-T6 Aluminum
Maximum Recoil .375 H&H
IP Standard IP55 - Water Resistant
Shockproof Yes, 3ft / .9m
Lens Coating AR Red
Mount Type Weaver / Picatinny
Battery Type CR1632
Battery Life 15 - 160 hours
Battery Voltage 3 V
Operating Temperature -4 to 122 / -20 to 50 °F / °C
Length w/ low mount 1.854 / 47 in / mm
Width w/ low mount 1.223 / 31 in / mm
Height w/ low mount 1.552 / 39 in / mm
Weight w/ low mount 2.3 oz.
Length w/ riser mount 1.854 / 47 in / mm
Width w/ riser mount 1.223 / 31 in / mm
Height w/ riser mount 2.195 / 55.77 in / mm
Weight w/ riser mount 2.9 oz.
