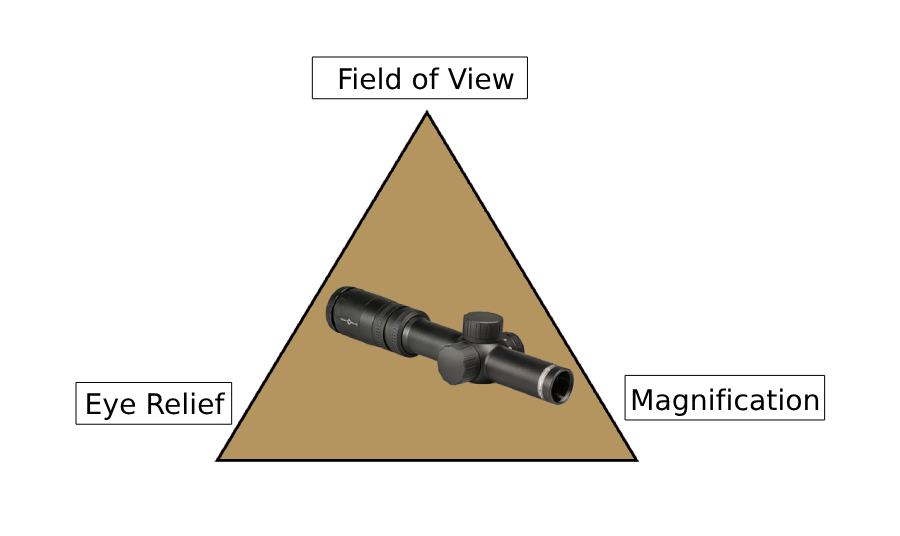

If you go deep into the world of optics when shopping for a rifle scope, you might hear about the "optical triangle" — a balancing act involving eye relief, field of view (FOV), and magnification. These three factors are critical to a scope’s performance, but understanding how they interact is key to choosing the right optic for your needs.
Eye Relief
Eye relief is the distance between your eye and the ocular lens (the lens closest to your eye) while still maintaining a full, clear image. It’s the comfort zone that allows you to see your entire field of view without getting a black ring or "scope shadow" around the edges.
Scopes with long eye relief are particularly valuable for high-recoil firearms because they keep your face at a safer distance from the scope. No one enjoys the "scope kiss"—that unpleasant surprise when your optic slams into your brow under recoil. Long eye relief also allows for faster target acquisition because your head position doesn’t have to be as precise.
Long eye relief scopes are also popular with scout-style rifles, since their optics are traditionally mounted forward on their action. These types of scopes, unsurprisingly called “scout scopes,” give shooters better peripheral vision and situational awareness while still providing some magnification.
However, achieving long eye relief often comes with trade-offs. As you increase eye relief, the field of view generally decreases. This happens because the light has to travel further to reach your eye, effectively narrowing the angle of view. So, while you might be more comfortable or safer behind the scope, you're seeing less of your surroundings, which can be a disadvantage in dynamic shooting scenarios.
Field of View
Field of view is the width of the area you can see through the scope at a given distance, usually measured in feet at 100 yards. A wide FOV is crucial for tracking moving targets or surveying your surroundings quickly. It allows you to maintain situational awareness, which is particularly important in hunting and tactical scenarios where things can change rapidly.
The challenge here is that increasing magnification often reduces the field of view. This is why low-power scopes, like 1-4x or 1-6x, are popular in close-quarters combat or hunting in dense woods; they offer a wide field of view, making it easier to track fast-moving game or engage multiple targets.
Magnification
Magnification is what brings your target closer, allowing for precise shots at longer distances. The higher the magnification, the more detailed the image becomes, but this comes with its own set of complications.
First, as magnification increases, the field of view will decrease. Additionally, higher magnification also often results in a shorter eye relief. This can be problematic, especially with powerful calibers where keeping a safe distance from the scope is crucial.
Another factor is that higher magnification can amplify slight movements or shakes, making the image appear less stable. This is why long-range shooters often use bipods or shooting rests to stabilize their rifles. The increased sensitivity to movement can also make it harder to acquire targets quickly, which is why many hunters and tactical shooters prefer variable scopes with a lower minimum magnification.
The Balancing Act
Now, if someone wants a scope that excels in eye relief, field of view, and magnification simultaneously, they are asking for the impossible. When you prioritize one attribute, you will sacrifice one or both of the other attributes.
To understand why it’s mechanically impossible to build a scope that excels in eye relief, field of view, and magnification simultaneously, we need to dive into the inner workings of a rifle scope. The key components involved in this balance include the objective lens, the erector assembly (or magnification system), and the ocular lens. Each part plays a specific role in how light is transmitted, focused, and ultimately delivered to your eye.
As magnification goes up, the erector lenses move closer together, reducing field of view and making it harder to maintain long eye relief. The exit pupil also becomes smaller, demanding more precise eye alignment.
A wide field of view, on the other hand, depends on the construction of the eyepiece as well as specific lens configurations that may not be compatible with high magnification. Additionally, maintaining a wide field of view often requires shorter eye relief, as the image needs to be focused over a broader area.
To increase eye relief, the ocular lens must be designed in a way that allows the image to be viewed from a greater distance. While this adjustment is crucial for comfort and safety, it can influence the apparent resolution of the image—how sharp the image appears to your eye—especially at higher magnifications. Additionally, maintaining a wide field of view with longer eye relief can be challenging, as the lens configuration required for extended eye relief often narrows the field of view. However, it's important to note that true resolution, or the actual level of detail the scope can resolve, remains unaffected by eye relief adjustments.
Therefore, if you want a scope with long eye relief for comfort and safety, you're likely going to have to accept a narrower field of view and/or lower magnification. On the other hand, if you prioritize a wide field of view for quick target acquisition, you might have to compromise on magnification or eye relief.
In the end, understanding the optical triangle helps you make informed decisions when choosing a scope. It's about knowing what you need for your shooting style and being aware of the trade-offs involved. After all, there’s no one-size-fits-all solution in optics, but with the right knowledge, you can find the perfect scope for your unique situation.
